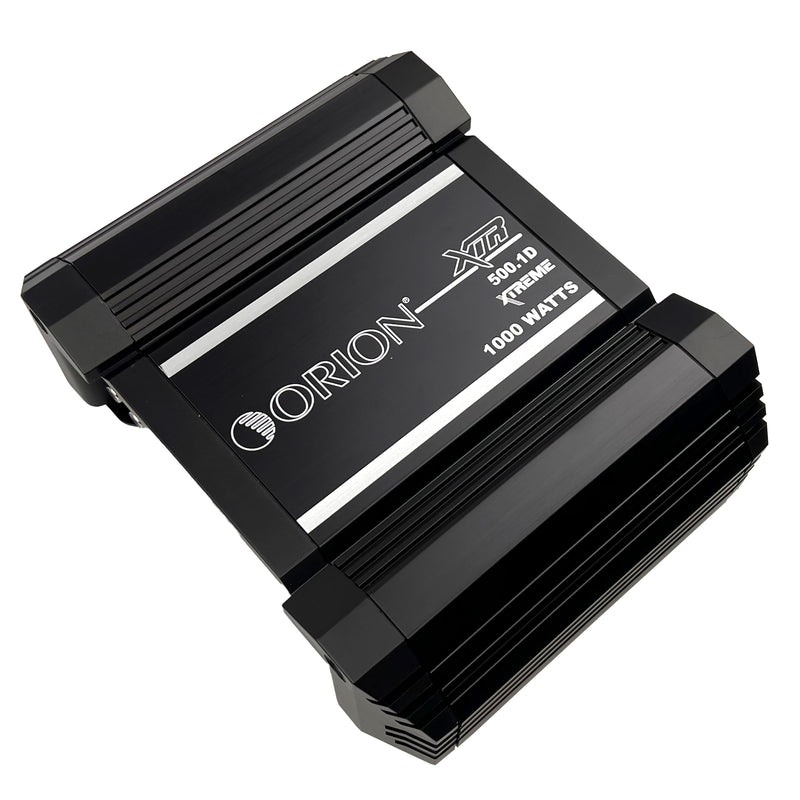

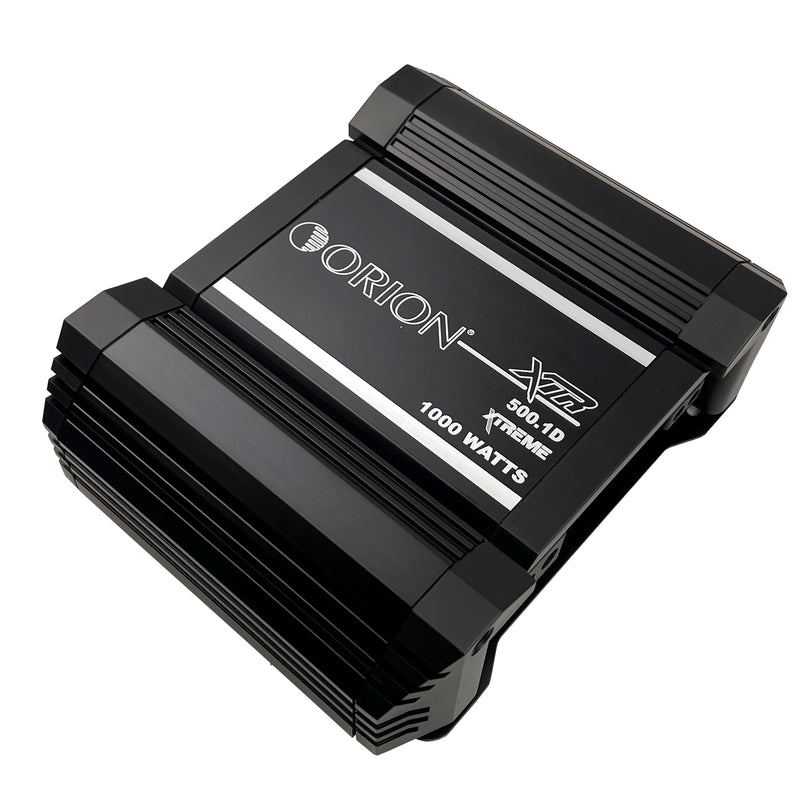

500 Watts RMS 1-Channel Class D Amplifier ORION XTR Series XTR500.1D

• Compact dimensions with high efficiency (>80%) and a signal-to-noise ratio of >90dB
• Includes 12dB octave low-pass filter, bass boost circuit, and remote gain controller
• 500 Watts RMS 1-Channel Class D Amplifier from the ORION XTR Series
• Features all MOSFET power supply and output stage for consistent performance
• 4-way protection with thermal, DC offset, short protection, under & over voltage safeguards

500 Watts RMS 1-Channel Class D Amplifier ORION XTR Series XTR500.1D

This Listing Includes:

• (1) 1-Channel Class D Amplifier ORION XTR Series XTR500.1D

Description:

Unleash Audio Excellence

The ORION XTR500.1D XTR Series 500W RMS 1-Channel Class-D Amplifier brings your sound to life. With advanced features and precision engineering, this amplifier elevates your audio experience, delivering exceptional power, clarity, and control.

Immersive Sound Reproduction

Rediscover your music with precision and depth. Every note and beat – from the softest to the most dynamic – is faithfully reproduced for an immersive listening journey.

Power and Clarity Combined

Experience the synergy of power and precision. The ORION XTR500.1D XTR Series Amplifier seamlessly integrates raw power with exceptional audio quality, crafting a sonic landscape that resonates deeply.

Elevate Your Drive

Step into a world of sonic brilliance with the ORION XTR500.1D XTR Series 500W RMS 1-Channel Class-D Amplifier. Elevate your audio journey, redefine your driving soundtrack, and immerse yourself in an elevated level of musical satisfaction. It's time to embrace sound in its purest form.

Features:

• All MOSFET Power Supply & Output Stage


• Heavy Gauge / High Current Custom Power and Speaker Terminals

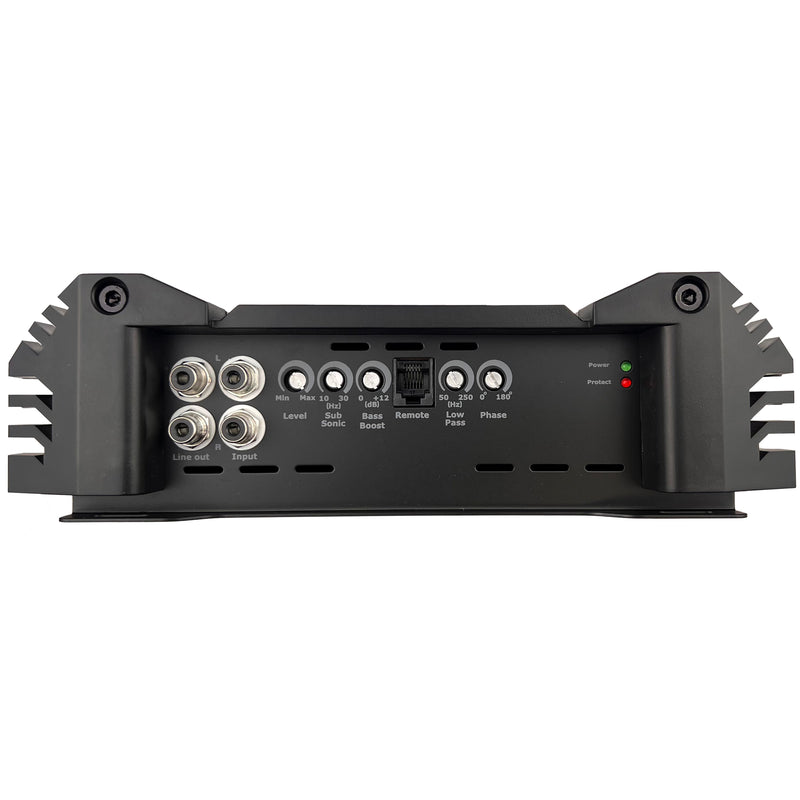

• 12dB Octave Low-Pass Filter

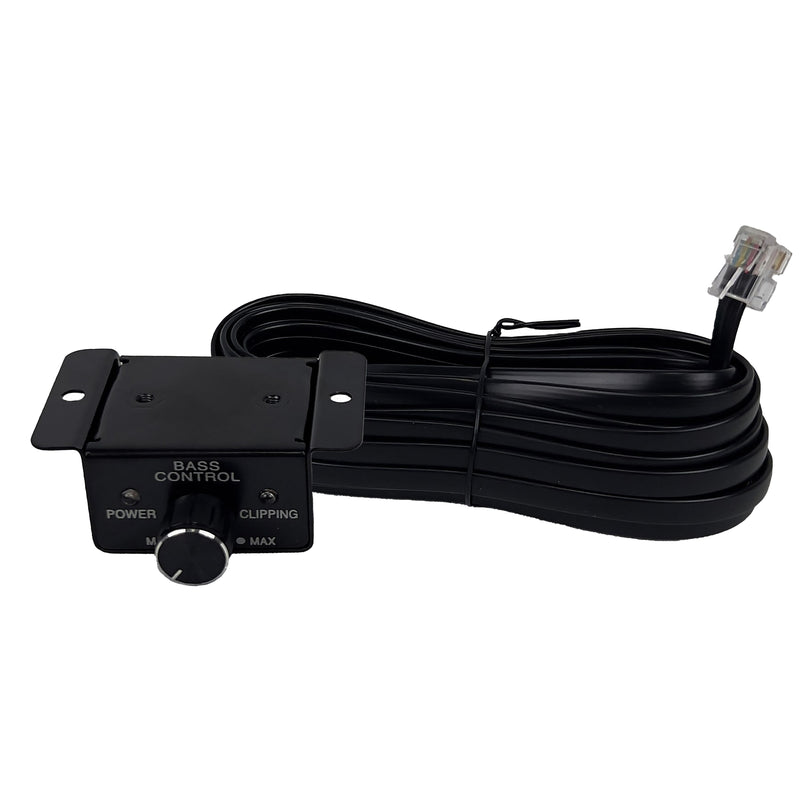

• Remote Gain Controller Included


• Electronic Crossover Network


• Bass Boost Circuit


• Power and Protection LED Indicators


• Soft Turn-on/Turn-off Turn-On Delay


• Fault and Protection Monitoring


• 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage

Specifications:

• RMS Power @ 4 Ohms @ 0.5% THD+N: 510W


• RMS Power @ 2 Ohms @ 0.5% THD+N: 790W


• RMS Power @ 1 Ohm @ 0.5% THD+N: 1080W

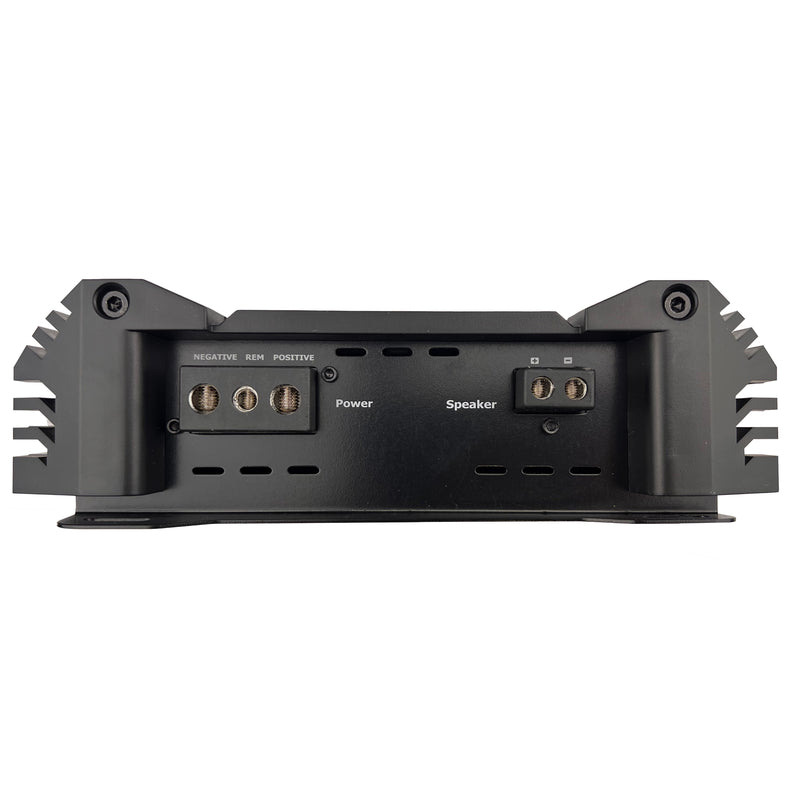

• Positive Terminals: 1 x 4 AWG.


• Negative Terminals: 1 x 4 AWG.


• Remote Turn-ON Signal: 12 AWG.


• Speaker Output Terminals: 12 AWG.


• Frequency Response: 15Hz - 250Hz


• Linear Bandwidth 15Hz to 250Hz +/- 3 dB


• Low Pass Crossover: 30Hz - 300Hz


• Supply Voltage: 9 - 16V


• Amplifier Efficiency: >80%


• Damping Factor: 200dB


• Signal to Noise Ratio: >90dB


• T.H.D. & Noise: 0.5%


• Phase Shift: 0 - 180


• Bass Boost: 0-18dB Variable


• Subsonic Filter: 10 - 25Hz


• Variable Input Level Control: 0.2V - 6.0V


• Fuses: **A recommended (* x **A ATC Fuses)


• Dimensions (L x W x H): 7.1" x 9.25" x 2.75" (180x235x70mm)
