4x DS18 8" 2320W Speakers + 4x Super Bullet Tweeters + 4 Channel Korean Amp

SKU DS-GEN-COMBO-GM8.4PK
by DS18
Sold out
Original price $393.95
Original price $393.95 - Original price $393.95
Original price $393.95
Current price $267.71
$267.71 - $267.71
Current price $267.71
Snap Logo Lease for as low as $/week Learn More

Free Gifts when added to Cart

The more you spend, the greater selection of free gifts you'll have at your fingertips when selecting items in your shopping cart!

Spend More, Save More

Big Jeff loves his customers!!!
  • Spend $250, Save 3%
  • Spend $500, Save 5%
  • Spend $1000, Save 10%
  • Spend $1500, Save 11%
  • Spend $2500, Save 12%
  • Spend $5000, Save 15%

*Does not apply to: AudioControl, Sundown, XS power or Kicker products*

*Does not stack with other promotional sales*

This is a Sample Product Title
Was $200.00 Now $100.00
  • The PRO-GM8.4 speaker has a sensitivity of 94 dB

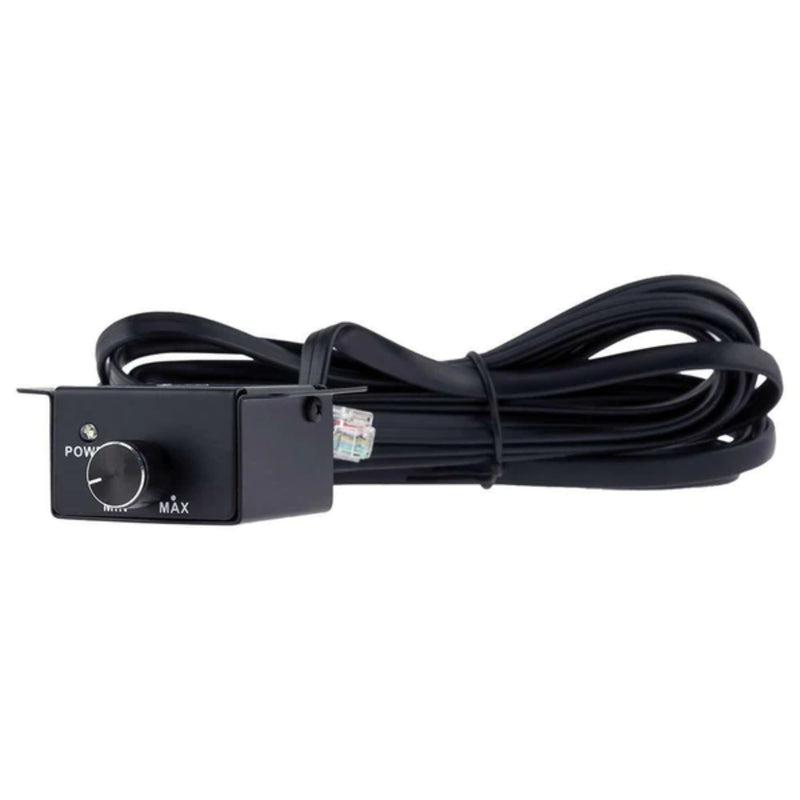

  • 4 Channel EXL-P800X4 has Remote Bass Knob and Latest SMC and MOSFET Technology
  • The PRO-GM8.4 speaker with the 1.5 4-ohms voice coil is able to handle high heat temperatures
  • The DS18 1 Super Bullet Tweeter has an Aluminum Diaphragm


4x DS18 8" 2320W Speakers + 4x Super Bullet Tweeters + 4 Channel Korean Amp

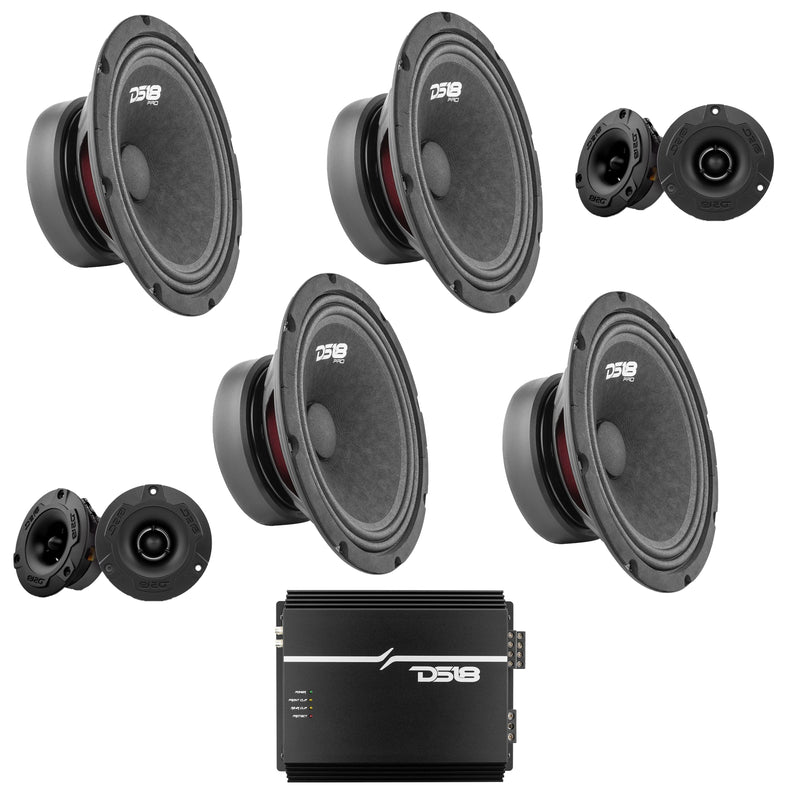

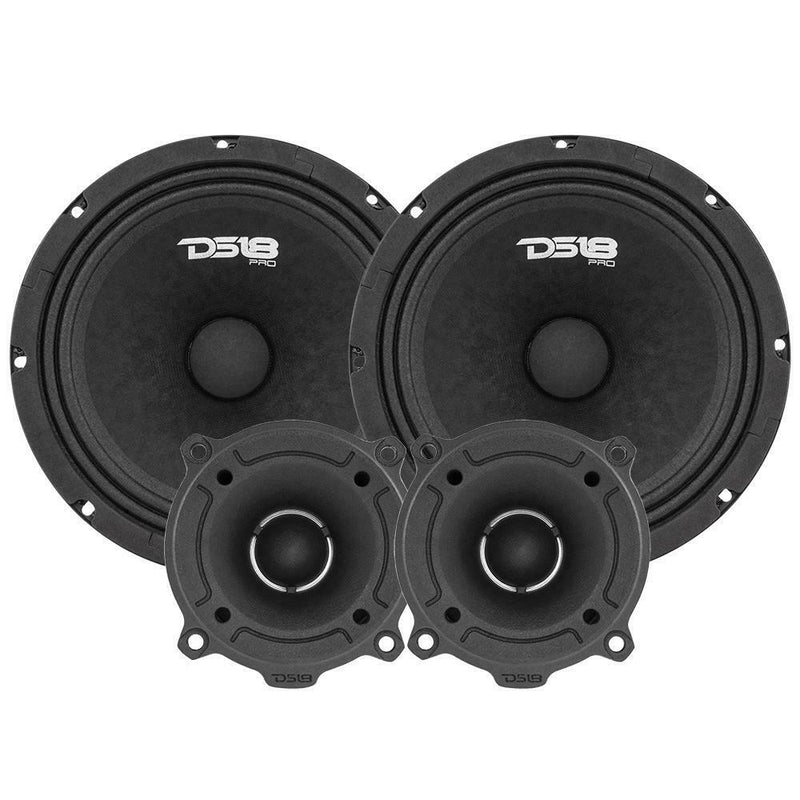

This listing includes:



  • (4) DS18 PRO-GM8.4 Mid-Range Speakers

  • (1) DS18 EXL-P800X4 4 Channel Full Range Korean Amplifier

  • (2) Pair of DS18 TWX1 Super Tweeters


With a combination like this, you will have loudspeakers that deliver a concert-like audio experience without any distortion; Gen-X series AMP that is durable and provides maximum wattage for your budget; and ; tweeters that are engineered and designed in the US, that are top of the line in the Pro Audio market.


Specifications per item in this combo:

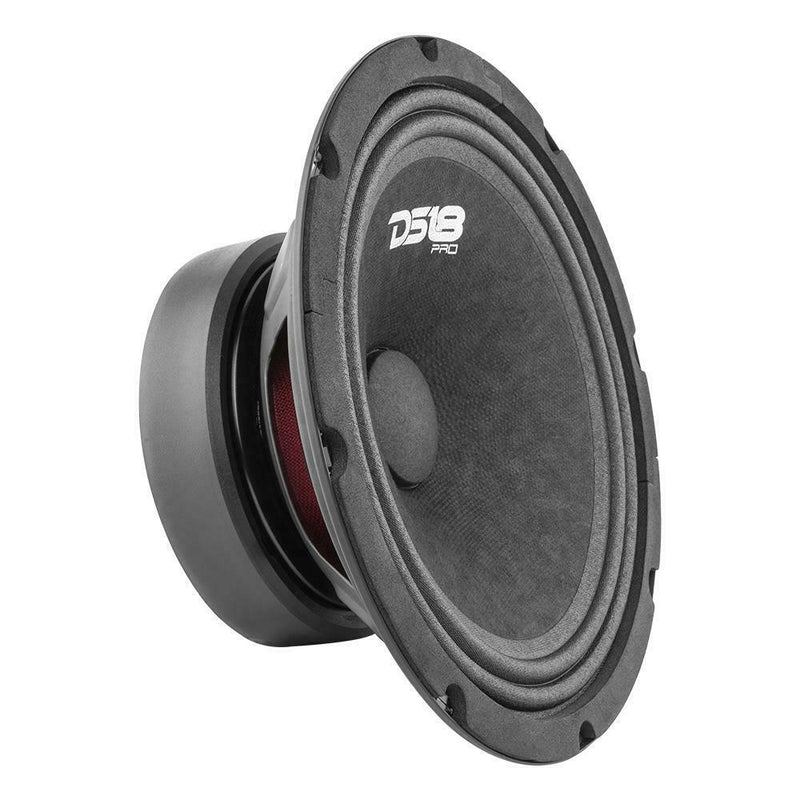

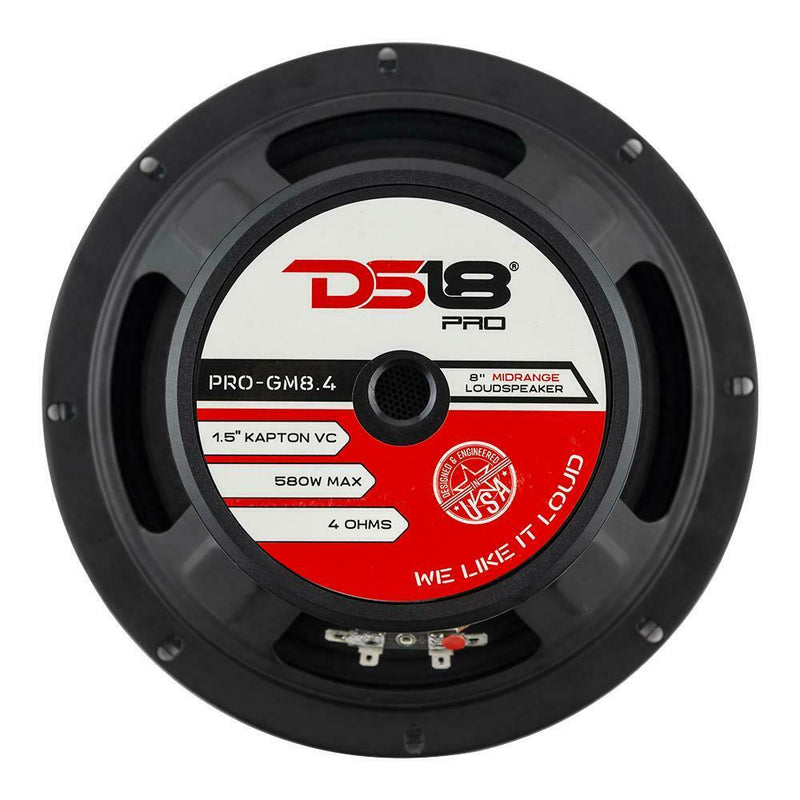

DS18 8" Midrange Loudspeaker PRO-GM8.4:



  • Nominal Diameter: 8"

  • Nominal Impedance: 4 Ohms

  • RMS Power Handling: 190 Watts

  • Max Power Handling: 580 Watts

  • Sensitivity (1w/1m): 94 dB

  • Frequency Response: 80Hz ~ 10kHz

  • Recommended Hi Pass Crossover: 120Hz

  • Voice Coil Diameter: 1.5"

  • Voice Coil Former Material: Kapton

  • Winding Material: CCAW

  • Cone Material: Paper

  • Dust-cap Material: Paper

  • Surround Material: Cloth

  • Basket Material: Steel

  • Basket Color: Matte Black

  • Magnet Material: Ferrite

  • Equivalent Volume: Vas - 22.53L / 0.79ft

  • Free Air Resonance: Fs - 86 Hz

  • Mechanical Factor: Qms - 10.462

  • Electrical Factor: Qes - 0.795

  • Total Factor: Qts - 0.739

  • Mechanical Mass: Mms - 9.685g

  • Mechanical Compliance: Cms - 0.351mm/N

  • BL Factor: BL - 4.71

  • Voice Coil Inductance: Le - 0.431mH

  • Cone Area: Sd - 213.82cm

  • DC Resistance: Re - 3.3 Ohms

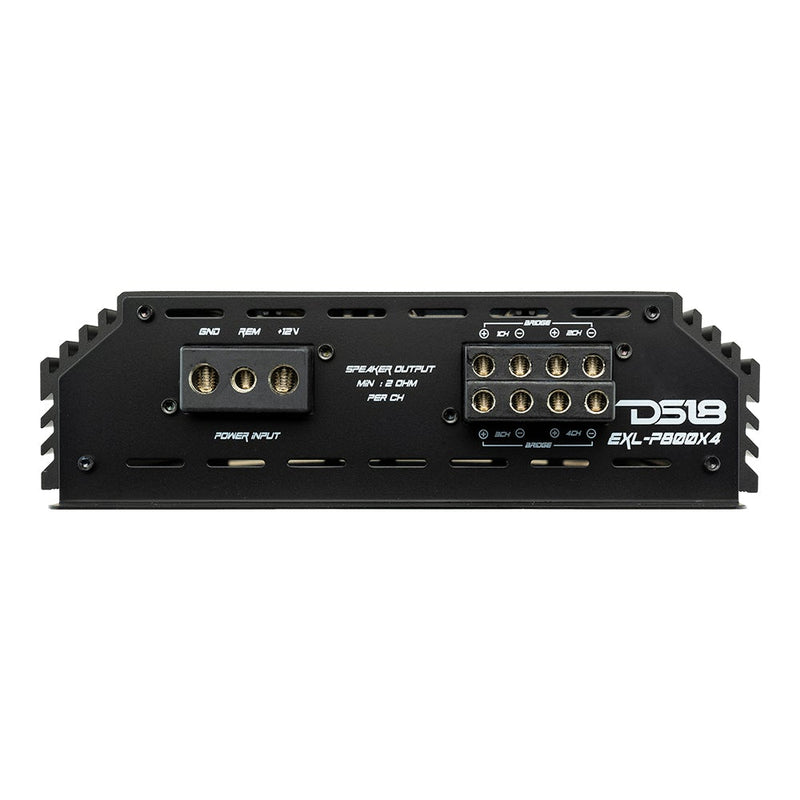

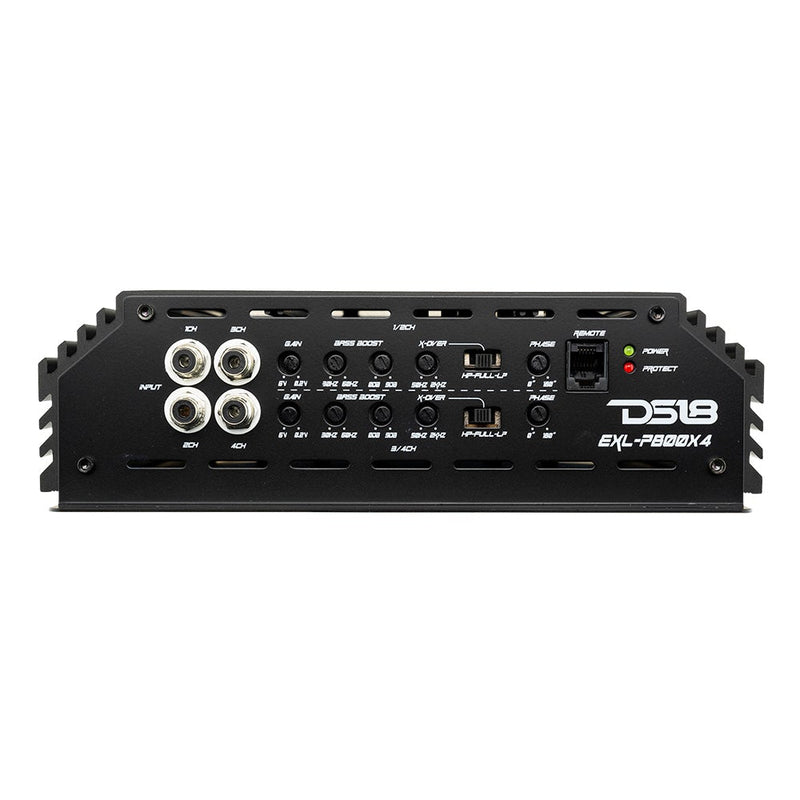

DS18 4 Channel Korean Amplifier Class A/B Full Range w/ Bass Knob EXL-P800X4:



  • RMS Power @ 4 Ohm: 150W x 4CH

  • RMS Power @ 2 Ohm:  200W x 4CH

  • RMS Power @ 4 Ohm Bridge :  400W x 2CH

  • Frequency Response: 20Hz-20KHz

  • Signal/Noise Ratio: Greater than 98dB

  • Efficiency @4 Ohm:  Greater than 63%

  • Damping Factor: 140

  • THD%: Greater than 0.10%

  • Low Level Input Range: 200MV-6V

  • Selectable X-Over: Yes, HPF/FULL/LPF

  • X-Over Filter Range: 50Hz-2KHz

  • Bass Boost Range: 0-+9dB

  • Bass Boost Frequency: 30Hz-60Hz

  • Infrasonic Filter: No

  • Phase Selector:  0-180

  • Class: AB (Analog)

  • Amplifier Type: Stereo Full - Range

  • Channels: 4 CH

  • Minimum Impedance: 2 Ohm/CH (4 Ohm Bridge)

  • Led Indicator: PWR / CLIP / PROTECT

  • Power Input Size: 4 AWG

  • Fuse Rating: 120A

  • Remote Level Control: Yes - Dash Mount

  • Cooling Fan: Yes

  • Thermal Protection: Yes > 97C / 206F

  • Over-Load Protection: Yes

  • Dc Output Protection: Yes

  • Short Circuit Output Protection: Yes

  • Voltage Input Protection: Yes, greater than 15.5V

  • Clipping Protection: Yes

  • Body Color/Finish: Black Aluminum

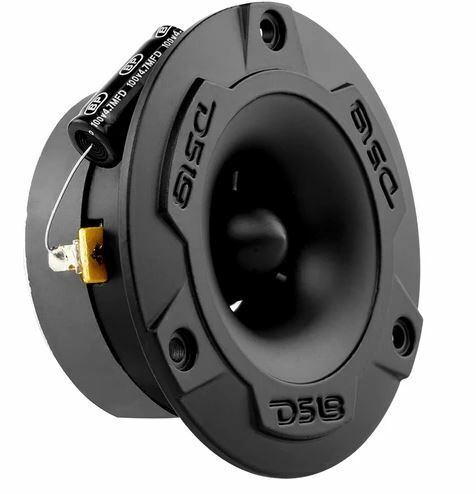

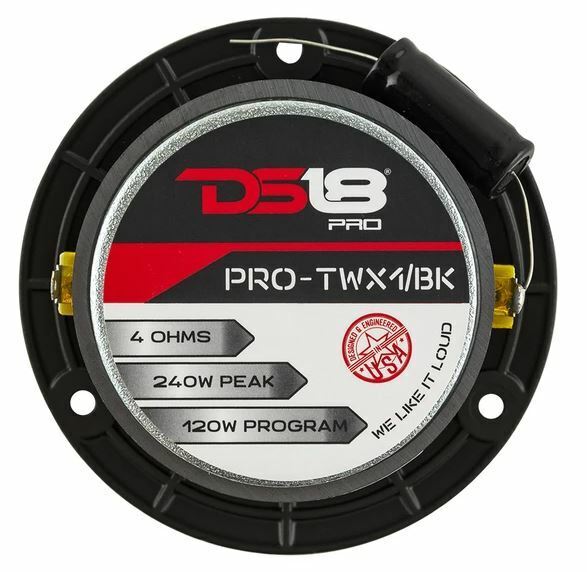

TWX1 Super Bullet Tweeter per speaker:



  • Nominal Impedance: 4 Ohms

  • 60W RMS

  • 120W MAX

  • Sensitivity (1W/1W): 103 dB

  • Frequency Response: 3.5K-20kHz

  • Voice Coil Diameter: 1"

  • Diaphragm Material: Aluminum

  • Magnet Material: Ferrite

  • Body Material: Aluminum


Recommendation(s) per item in this combo:


DS18 8 Midrange Loudspeaker PRO-GM8.4 per speaker:



  • Recommended Hi Pass Crossover: 120 Hz


TWX1 Super Bullet Tweeter per speaker:



  • Recommended Hi Pass Crossover: 2kHz


Item Dimensions per item in this combo:


DS18 8" Midrange Loudspeaker PRO-GM8.4:



  • Overall Diameter: 8.26 inches

  • Overall Depth: 3.46 inches

  • Front Mount Baffle Cutout: 7.2 inches

  • Mounting Depth: 3.22 inches

  • Motor Diameter: 4.64 inches

  • Magnet Weight: 30 Oz

  • Weight: 5 lb


DS18 4 Channel Korean Amplifier Class A/B Full Range w/ Bass Knob EXL-P800X4:



  • Length: 11.5 inches

  • Width: 8.77 inches

  • Height: 2.67 inches

  • Heatsink Length: 9.84 inches


TWX1 Super Bullet Tweeter per speaker:



  • Overall Diameter: 3.78 inches

  • Overall Depth: 1.78 inches

  • Front Mount Baffle Cutout: 2.76 inches

  • Mounting Depth: 1.57 inches

  • Weight: 3 lb
