Pair of DS18 600W 4 Ohm PRO-6.4BM + Pair of 6x9 1100W 4 Ohm PRO-X694BM

DS18 SKU: DS-PRO-X6.4BM-X694BM x 2

$189.95

Shipping calculated at checkout

Available Now!

Pair of DS18 600W 4 Ohm PRO-6.4BM + Pair of 6x9 1100W 4 Ohm PRO-X694BM

This listing includes:
(2) PRO-X6BM 600W Full Range Speakers
(2) PRO-X694BM Midrange Speakers

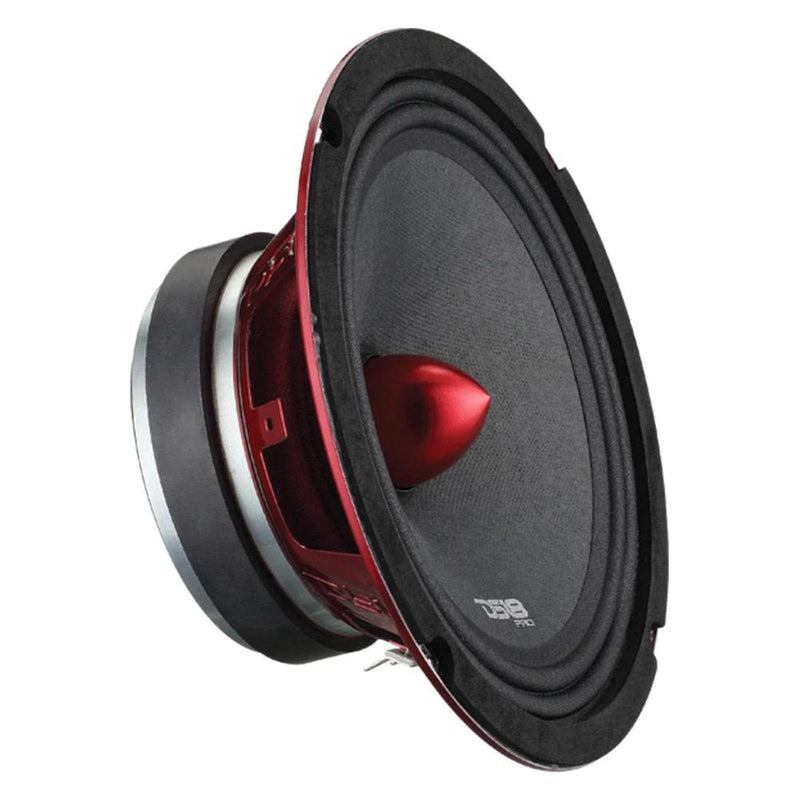

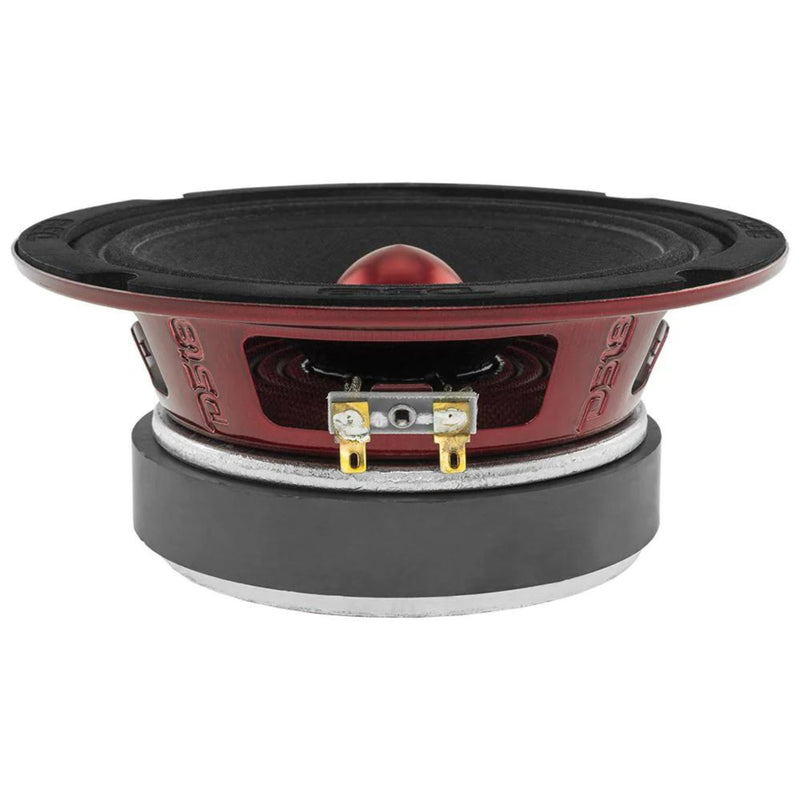

SPECIFICATIONS PER PRO-X6BM SPEAKER
6.5" Midrange Loudspeaker with Bullet
Cloth Edge and Non-Pressed Paper Cone
Red Aluminum Bullet
250 Watts RMS Power Each Speaker
500 Watts Max Power Each Speaker
Impedance: 8 Ohms
Sensitivity: 90 dB
Frequency Response: 118Hz-17KHz
Recommended Hi Pass Crossover: 120 Hz
MOTOR
Voice Coil Size: 1.5" (38.1 mm)
Voice Coil Material: Kapton
Winding Material: CCAW
Basket Material: Steel
Magnet Material: Ferrite
Magnet Size: 30 oz

DIMENSIONS
Overall Diameter: 6.61“ (168 mm)
Mounting Depth: 2.44" (62 mm)
Front Mount Baffle Cutout: 5.70" (145 mm)
Overall Depth: 2.72” (69 mm)

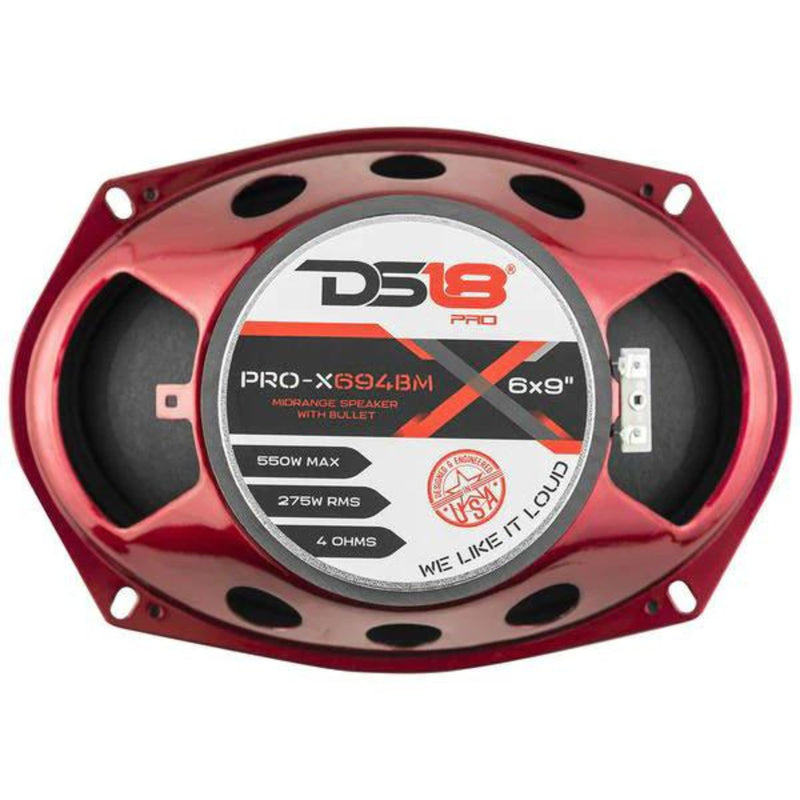

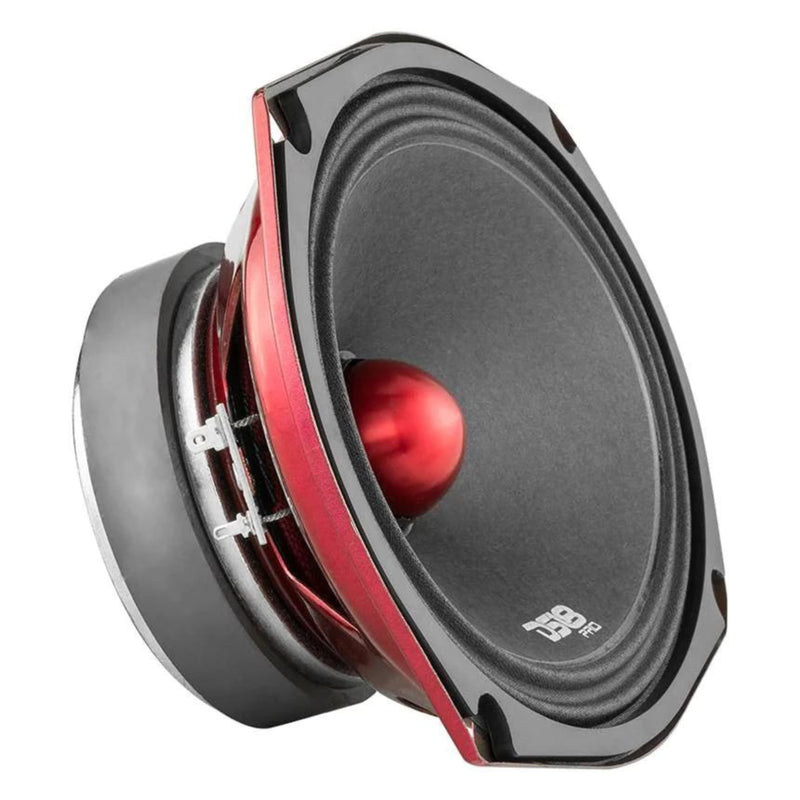

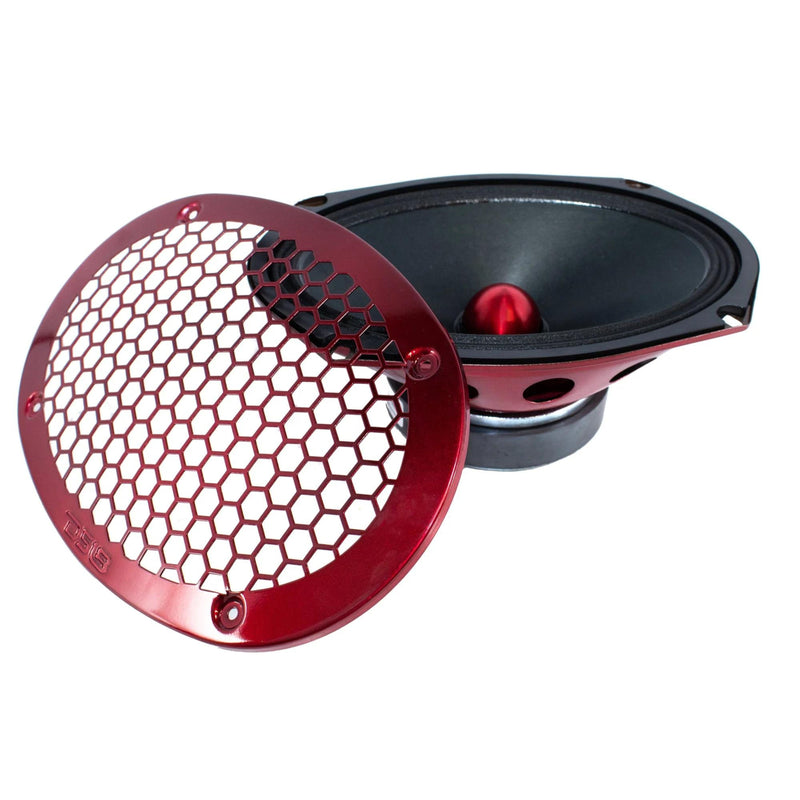

SPECIFICATIONS PER PRO-X694BM SPEAKER
Type Mid range Loudspeaker
Size 6X9"
RMS Power 275 Watts Each Speaker
MAX Power 550 Watts Each Speaker
Frequency Response 65 Hz-12 KHz
Impedance 4 ohm
Sensitivity 98 dB
Materials
Surround Cloth Edge
Frame Red Steel Basket
Cone Non-Pressed Paper Cone
Magnet Ferrite
Voice Coil Wire CCAW
Parameters:
Vas: 14.69 LTR
Xmax: 9.2 mm
Fs: 105 Hz
Qms: 7.382
Qes: 0.941
Qts: 0.835
Re: 3.2 ohms

Diameters
Voice Coil Size 1.5"
Magnet Size 27 oz
Mounting Depth 3.35"
Cut-Out Dimension 8.62 x 5.91"
Overall Diameter 10.24" x 7.09"
Hole To Hole 8.0"
