OEM Dahua 4MP Outdoor CCTV Motion Security Camera 2.8MM Fixed HD-CVI 2K PIR

OEM Dahua 4MP Outdoor CCTV Motion Security Camera 2.8MM Fixed HD-CVI 2K PIR

This MotionEye model is an indoor/outdoor dual detection camera which uses both video and infrared sensor to achieve motion detection and PIR functionality, reducing false alarms and ensuring the accuracy and effectiveness of real-time alarm information. Built-in PIR and coax alarm output makes the camera an ideal choice for applications which require video verification of intrusion alarms, such as courtyards, offices, warehouses, stores, etc.

This listing includes:

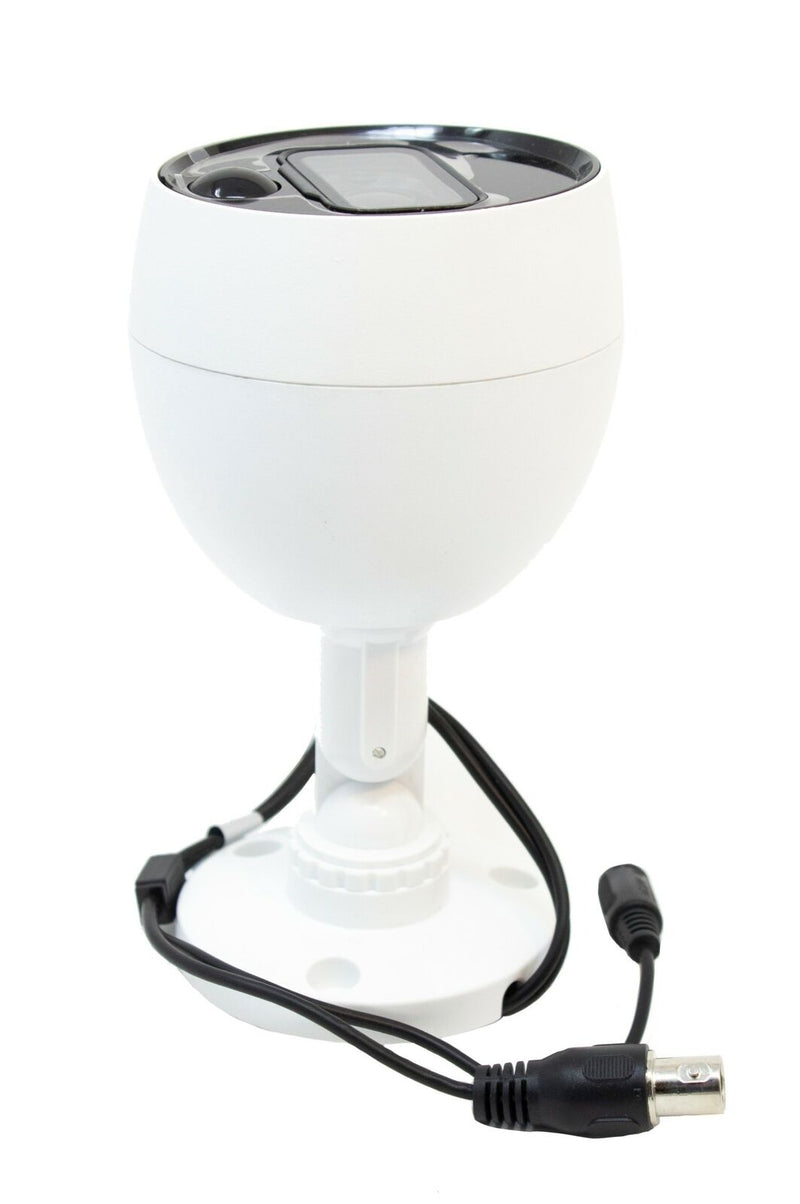

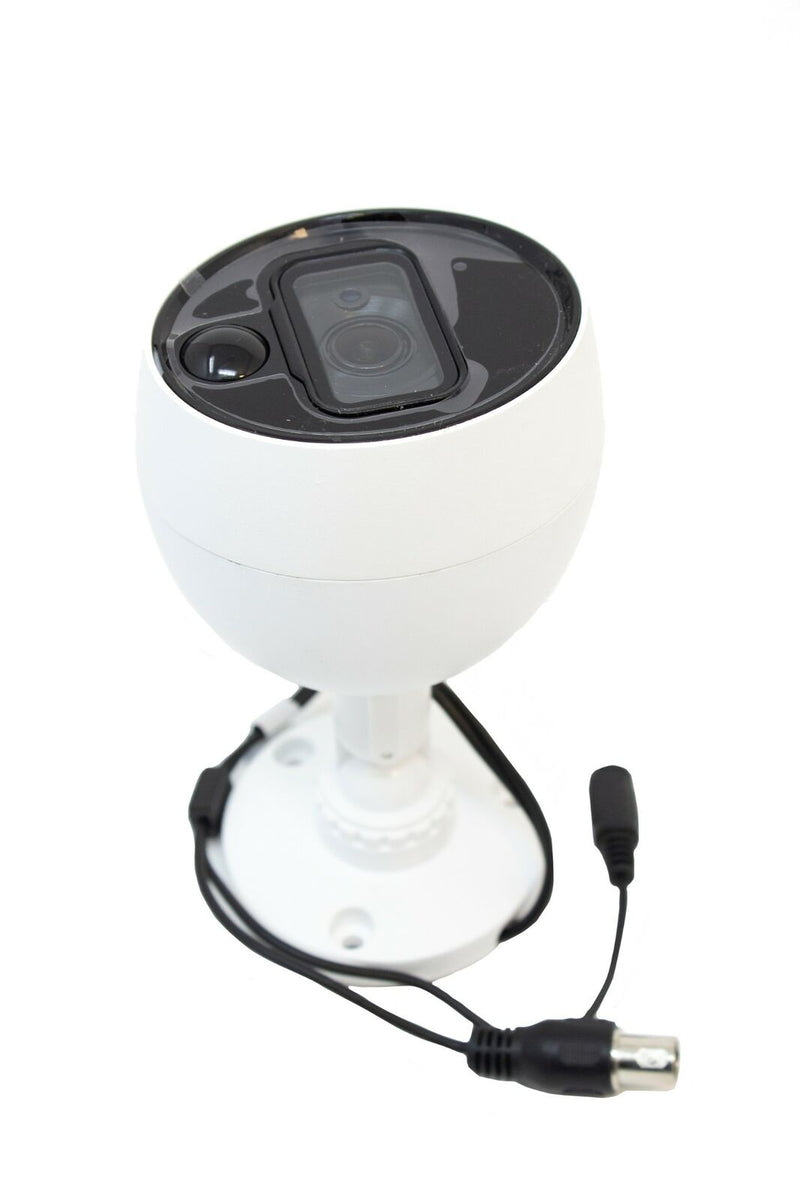

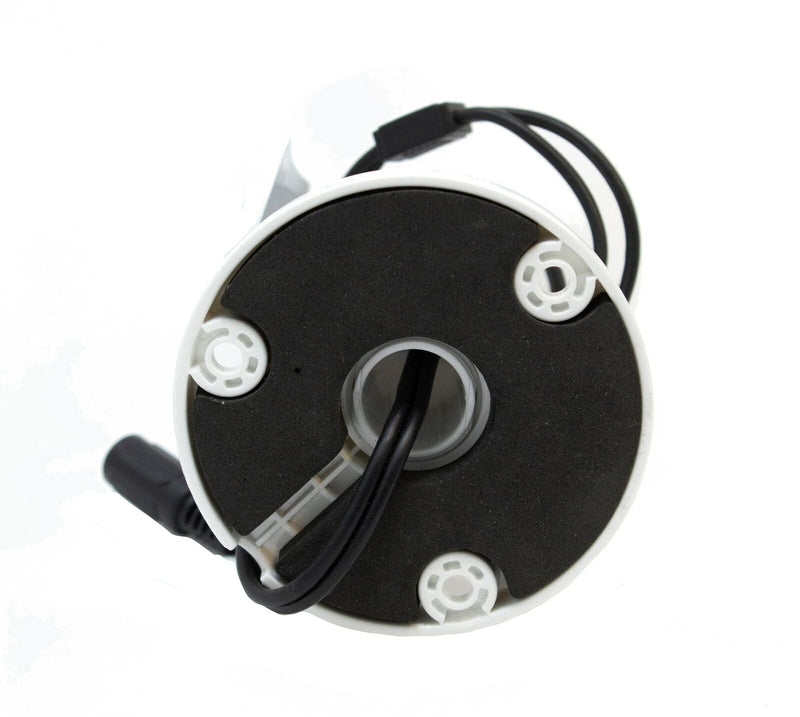

(1) OEM Dahua 4MP Outdoor CCTV Motion Security Camera HCC3840B-IRP/28

SPECIFICATIONS:

Camera
Image Sensor: 1/3" CMOS
Effective Pixels: 2688(H)xl520(V), 4.lMP Interface
Scanning System: Progressive
Audio Interface: N/A
Electronic Shutter Speed PAL: 112s~1/100000s NTSC: 1/30~1/lO0000s
Minimum Illumination: 0.03Lux/F2.0(Color), 30IRE, 0Lux IR on
S/N Ratio: More than 65dB
IR Distance: Up to 20m (66 feet)
IR On/Off Control: Auto / Manual
IR LEDs: 1

Lens
Lens Type: Fixed lens/ Fixed iris
Mount Type: Board-in
Focal Length: 2.8mm
Max Aperture: Fl.8
Angle of View: H: 107.2
Focus Control: N/A
Close Focus Distance: 1100mm 43.31"

DORI Distance:
Note: The DORI distance is a "general proximity" of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

-----------------DORI Definition----Distance
Detect--------25px/m (8px/ft)-----2.8mm: 56m(l84ft)
Observe-----63px/m (19px/ft)----2.8mm: 22m(72ft)
Recognize--125px/m (38px/ft)---2.8mm: llm(36ft)
Identify-------250ppm (76px/ft)---2.8mm: 6m(20ft)

Pan/ Tilt/ Rotation
Pan: 0 ~ 360
Tilt: 0 ~ 90
Rotation: 0 ~ 360

Video
Resolution: 4MP (2560x1440)
Frame Rate: 25fps@4MP, 25/30fps@l080P, 25/30fps@720P
Video Output: 1-channel BNC HDCVI high definition video output/ CVBS video output (Can switch)
Day/Night: Auto (ICR) / Manual
OSD Menu: Multi-language
BLC Mode: BLC / HLC / DWDR
WDR: DWDR
Gain Control: AGC
Noise Reduction: 2D
White Balance: Auto / Manual
Smart IR: Auto / Manual

PIR
Detection: Passive infrared
Detection Range: 10m, 110
Alarm prompt: Red led
Installation height: Default bracket, wall mount, 2.2-2.Sm

Certifications: CE (EN55032, EN55024, EN50130-4) FCC(CFR47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-l+CAN/CSA C22.2 No.60950-1)

Eelectrical
Power Supply: 12V DC 30%
Power Consumption: Max 4.4W (12V DC, IR on)

Environmental
Operating Conditions: -l0C ~ +S0C (+14F ~ +122F) / Less than 95% RH *Startup should be done at above-l0C (14F)

Storage Conditions: -l0C ~ +S0C (+14F ~ +122F) / Less than 95% RH
Ingress Protection & Vandal Resistance: IP67

Construction
Casing: Aluminium (Front cover) + Plastic (Rear Barrel)
Dimensions: 146.6mmx72.4mmx83mm (5.77"x2.85"x3.27")
Net Weight: 0.23kg (0.Sllb)
Gross Weight: 0.30kg (0.66Ib)
