- Versatile Design: With a compact size (16.5" x 7.09" x 2.13") and 2-ohm stability, this amplifier is designed for easy installation and optimal functionality in various car audio setups
- High-Quality Components: Built with an all MOSFET power supply and output stage, along with heavy gauge custom power and speaker terminals, for superior performance.
- Reliable and Durable: Equipped with 4-way protection, including thermal, short circuit, and voltage protections, ensuring safe and long-lasting operation.

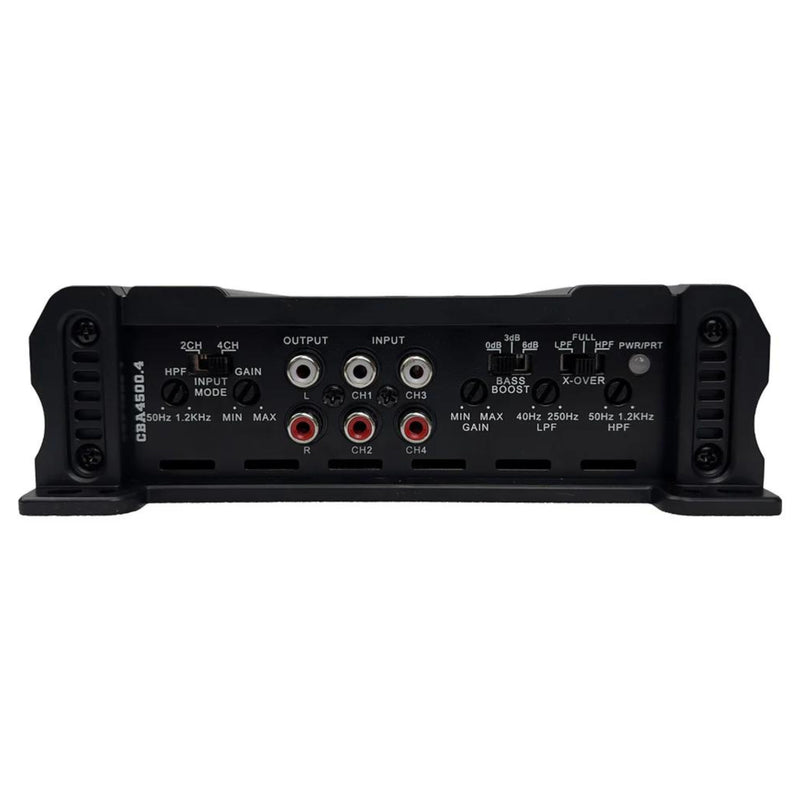

- Advanced Audio Control: Features include adjustable high-pass and low-pass crossovers, a bass boost circuit, and variable input level control for precise sound customization.

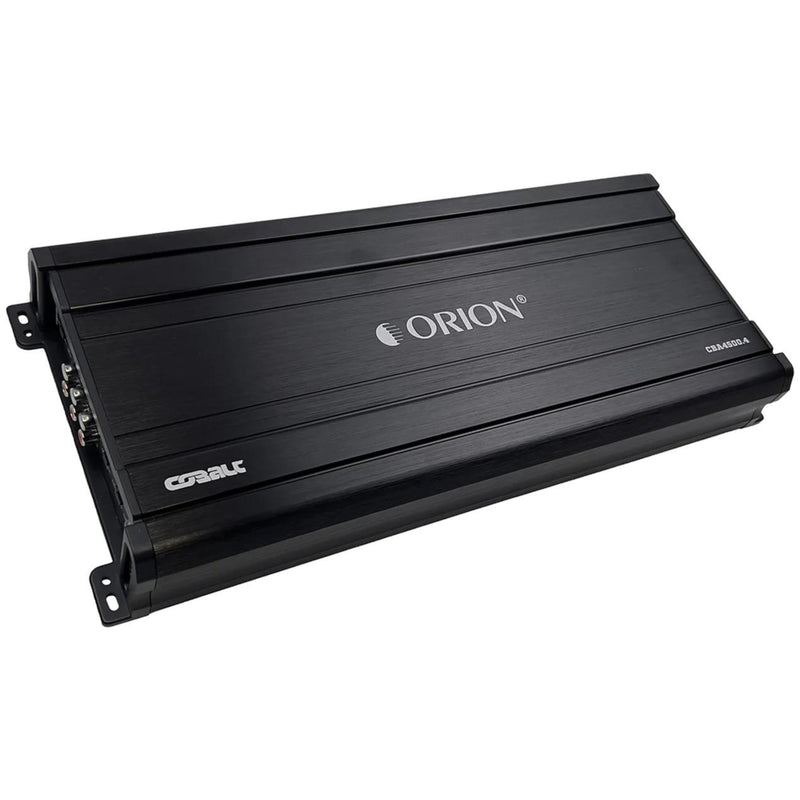

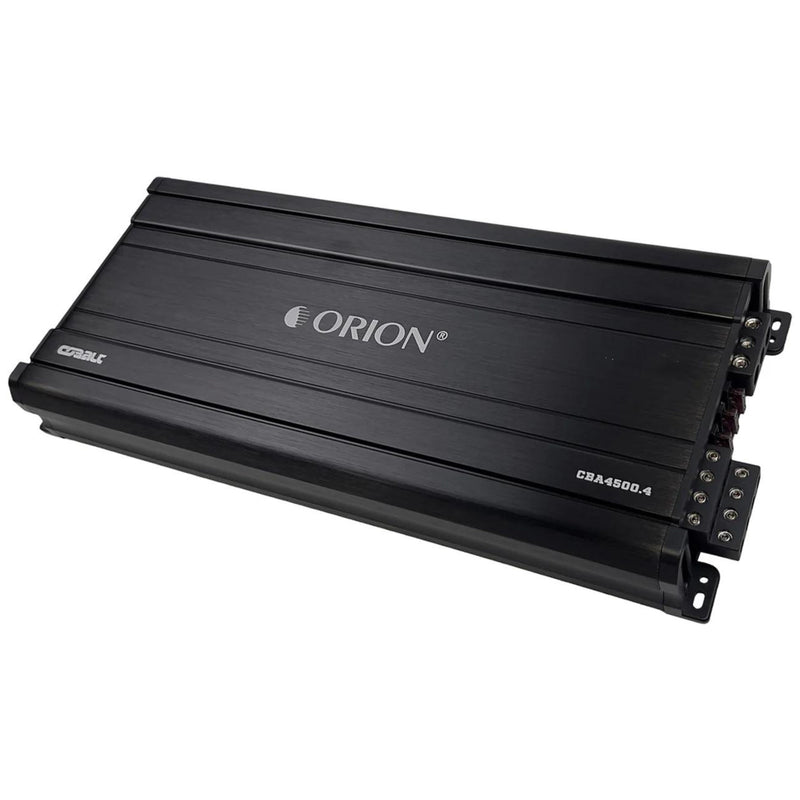

4500 Watts MAX 4-Channel Class A/B Amplifier ORION COBALT Series CBA4500.4
This Listing Includes:
- (1) 4-Channel Class A/B Amplifier ORION CBA4500.4
Description:
Unleash Sonic Brilliance
The ORION CBA4500.4 COBALT Series 4500 Watts MAX 4-Channel Class A/B Amplifier exemplifies the pinnacle of audio excellence. Through advanced features and meticulous engineering, this amplifier transcends conventional boundaries, delivering an extraordinary fusion of power, accuracy, and control to your car audio system.
Meticulous Sound Reproduction
Prepare for a reimagined musical experience. Every note, beat, and melody – from the softest to the most dynamic – is meticulously reproduced for a captivating and authentic listening journey.
Empower Your Audio Landscape
Experience your music in a whole new dimension. The ORION CBA4500.4 COBALT Series Amplifier seamlessly integrates raw power with unmatched audio quality, creating a symphony of sound that resonates deeply.
Elevate Your Drive
Enter the realm of sonic perfection with the ORION CBA4500.4 COBALT Series 4500 Watts MAX 4-Channel Class A/B Amplifier. Elevate your audio journey, redefine your driving soundtrack, and immerse yourself in an elevated level of musical sophistication. It's time to embrace sound in its purest form.
Features:
- All MOSFET Power Supply & Output Stage

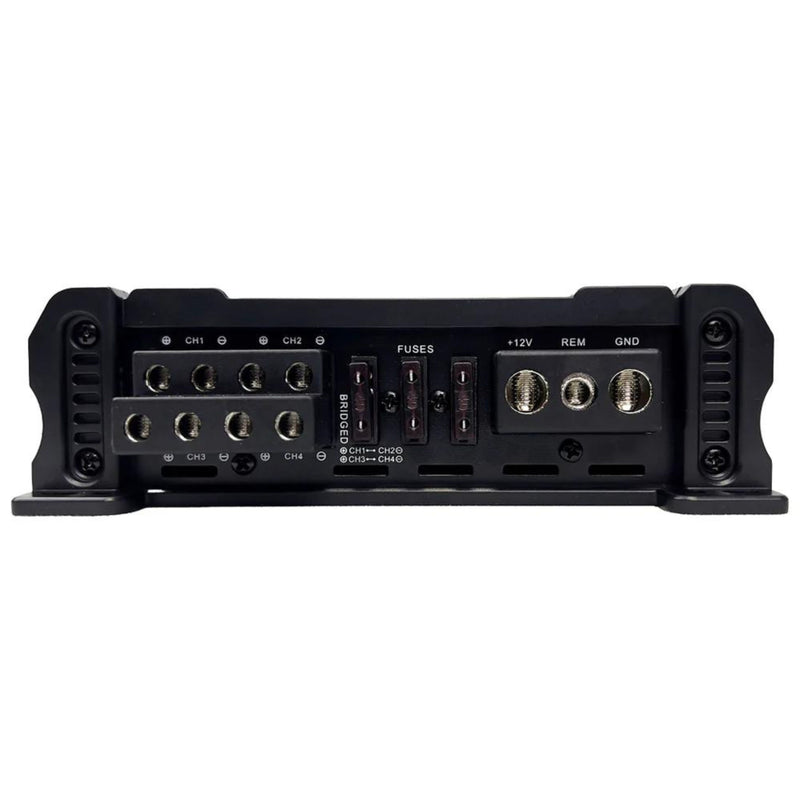

- Heavy Gauge / High Current Custom Power and Speaker Terminals
- 2-Ohm Stable
- RCA Out Throughput
- 12dB Octave Low-Pass Filter
- Electronic Crossover Network
- Bass Boost Circuit
- Intelligent Power and Protection LED Indicator
- Soft Turn-on/Turn-off Turn-On Delay
- Fault and Protection Monitoring
- 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage
Specifications:
- MAX MUSIC POWER 4500W
- Positive Terminals: 1 x 4 AWG.
- Negative Terminals: 1 x 4 AWG.
- Remote Turn-ON Signal: 10 AWG.
- Speaker Output Terminals: 10 AWG.
- Frequency Response: 10Hz - 30kHz
- High Pass Crossover Continuously variable (50-1.2kHz)
- Low Pass Crossover Continuously variable (40-250Hz)
- Supply Voltage: 10 - 16V
- Input Impedance: 22kOhm - Signal to Noise Ratio: >90dB
- Bass Boost: 0/3/6dB Switch
- Variable Input Level Control: 0.2V - 6.0V
- Fuses: 120A recommended (3 x 40A ATC)
- Dimensions (L x W x H): 16.5" x 7.09" x 2.13" (419x180x54mm)
