DS18 4 Pro 8" Mid range Loud speakers + 4 Channel 1600 Amplifier + 4G Ampkit

4 Pro 8" Mid range Loud speakers 4 Channel 1600 w Amplifier Complete 4G Ampkit

This listing includes:

(4) PRO-X8M 8" Loud Speakers 8 Ohm

(1) GEN-X1600.4 4 Channel Amplifier

(1) Black Diamond AK4 Complete Amp Kit

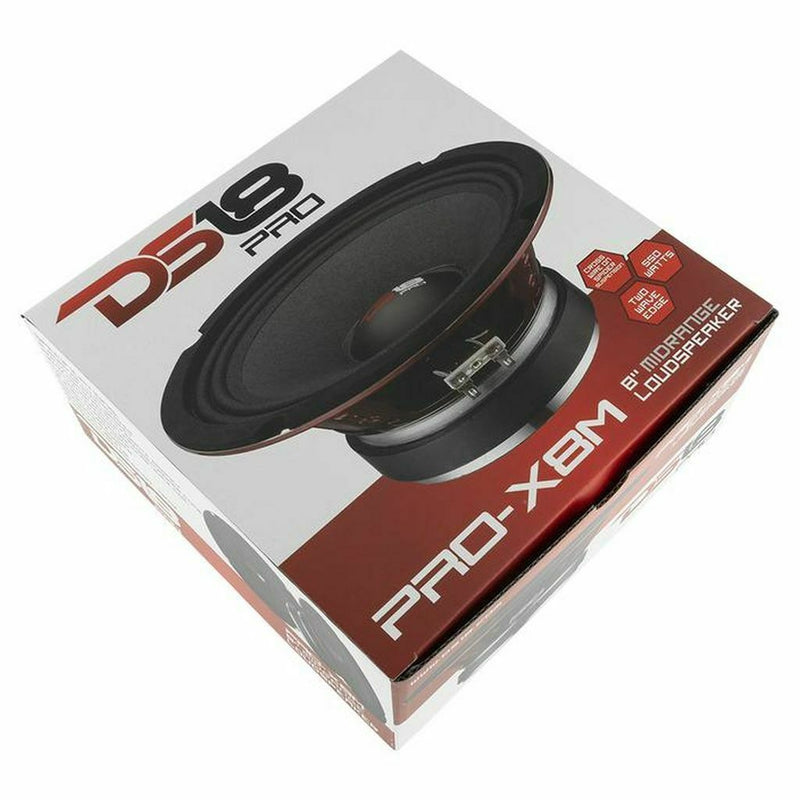

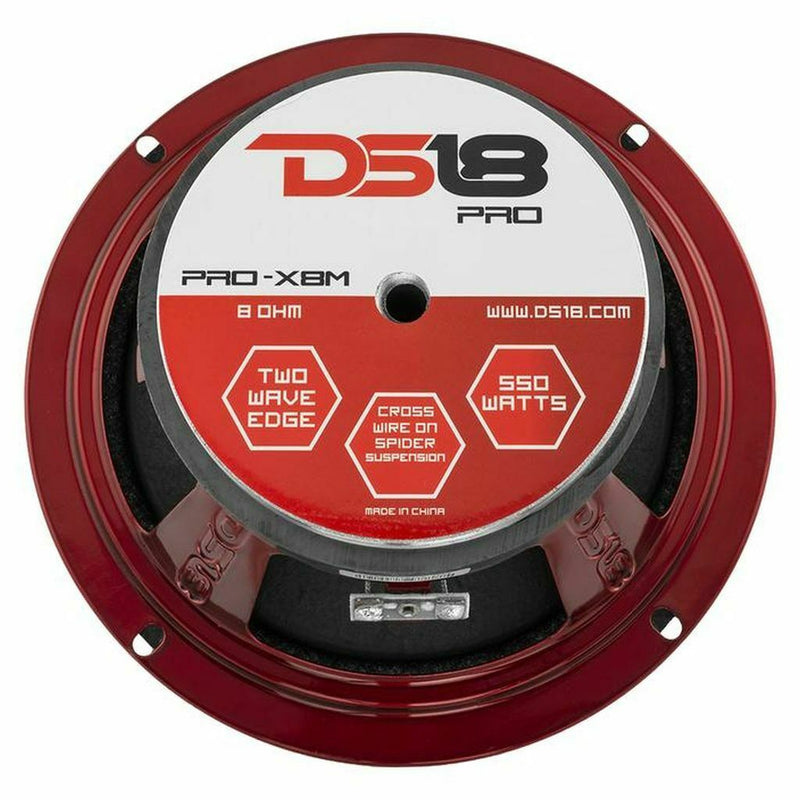

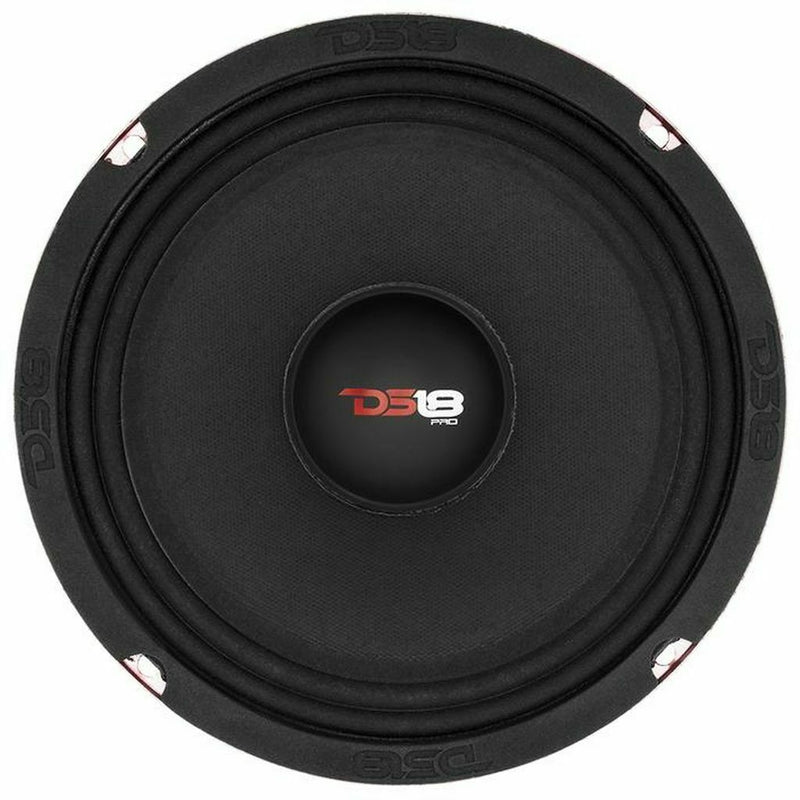

SPECIFICATIONS PER EACH PRO-X8M

Type: Midrange Loudspeaker

Size: 8"

RMS Power: 275W

MAX Power:550W

Frequency Response: 80Hz-13KHz

Impedance: 8 Ohm

Sensitivity: 96 dB

Materials

Surround: Cloth Edge

Frame: Red Steel Basket

Cone: Non-Pressed Paper Cone

Magnet: Ferrite

Voice Coil Wire: CCAW

Measurements

Voice Coil Size: 1.5"

Magnet Weight: 30 oz.

Mounting Depth:3.38" (86mm)

Cut-Out Dimension: 7.16" (182mm)

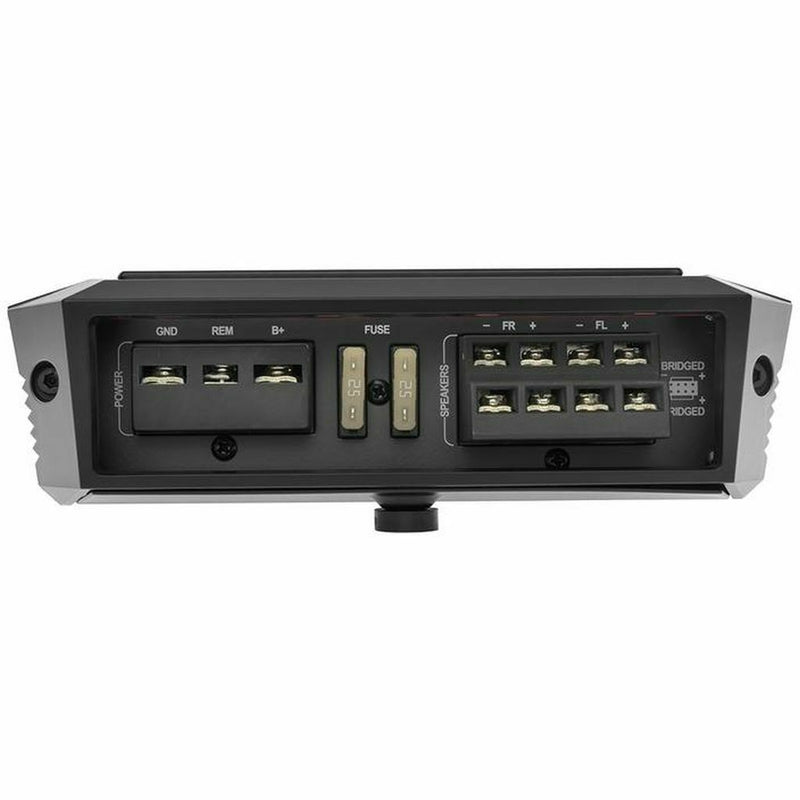

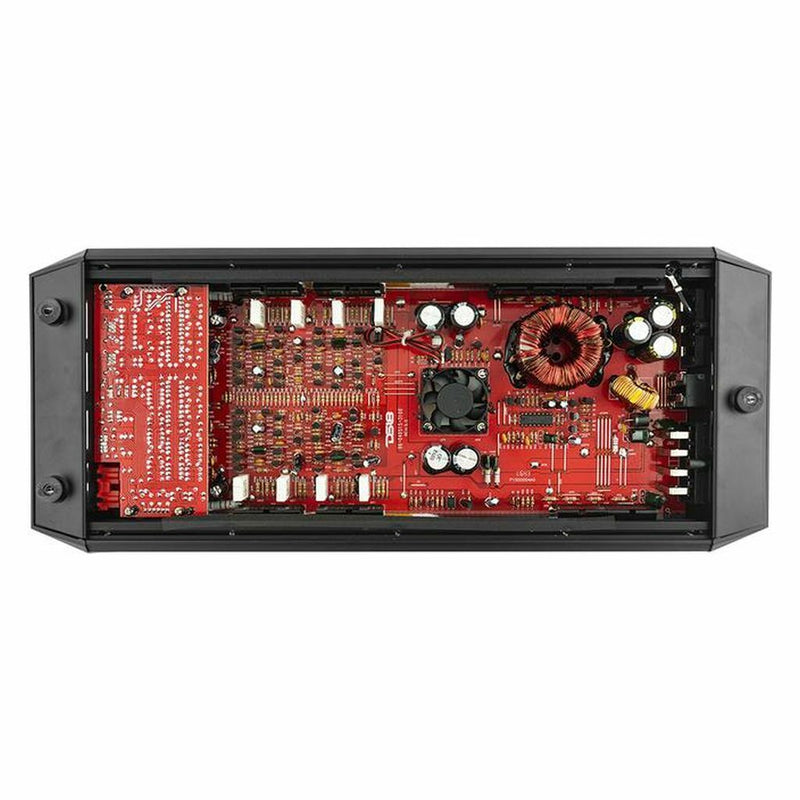

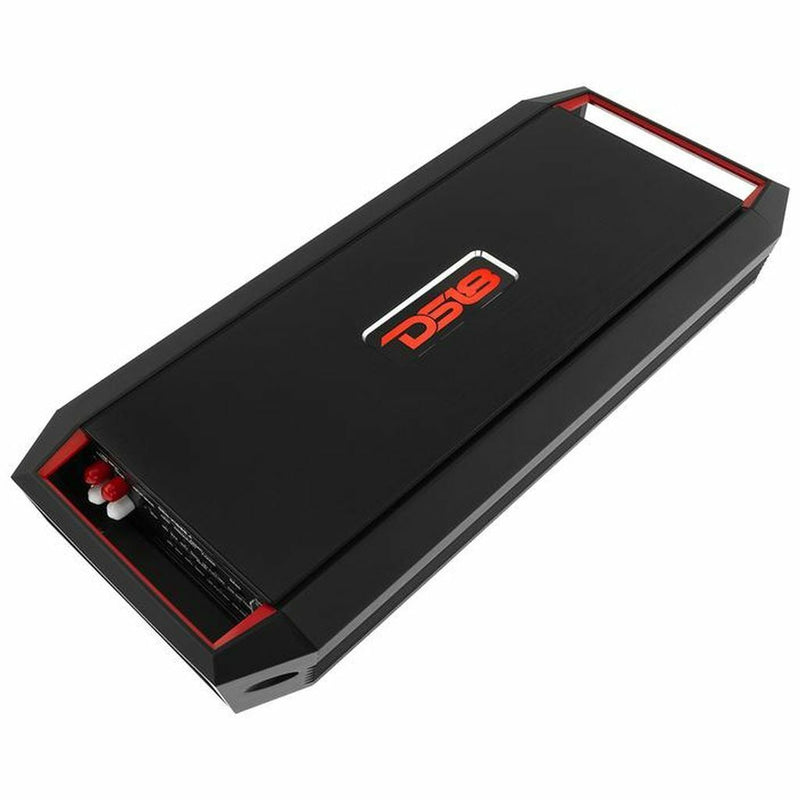

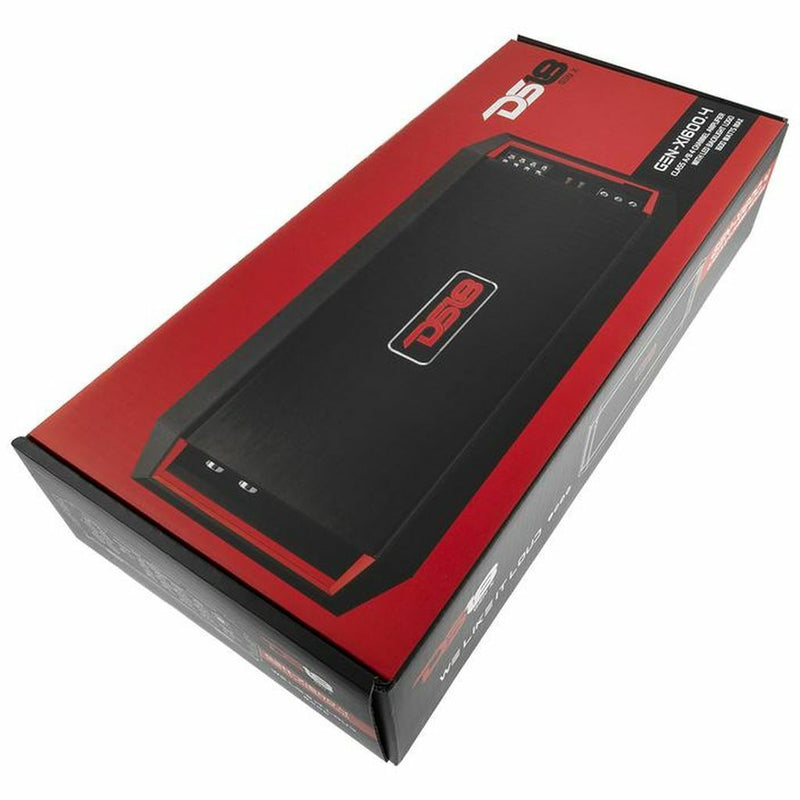

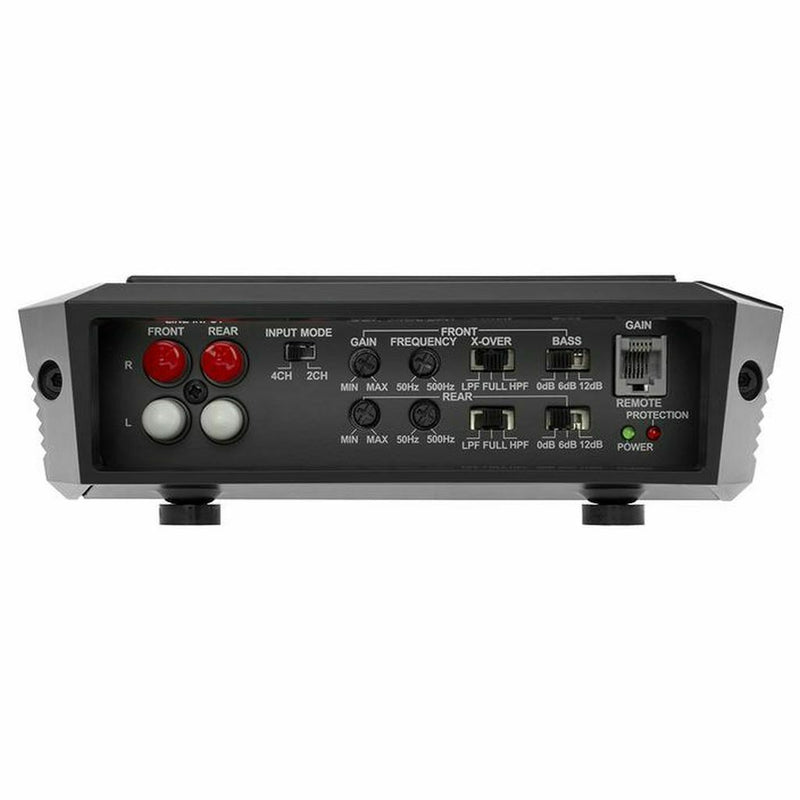

SPECIFICATIONS FOR GEN-X1600.4

Number of Channels: 4

Frequency Response: 20Hz - 20KHz

Max Power: 1600W

2 Ohms RMS Power (14.4V) Per Channel: 4 x 120W

4 Ohms RMS Power (14.4V) Per Channel: 4 x 80W

4 Ohms RMS Power Bridge (14.4V) Per Channel: 2 x 200W

Speaker Impedance Range: 2-4 Ohm

Input Sensitivity: 0.2V-+6V

Low Pass Filter: 50Hz - 500Hz

High Pass Filter: 50Hz - 500Hz

Fuse Size: 2 x 25A

Signal-to-Noise Ratio: 98 dB

THD: 0.08%

Product Dimensions (L x W x H): 16.92 x 7.48 x 2.16 (430 x 190 x 55 mm)

4-GA Installation Kit:

17ft 4Gauge Red Super Flex Twist Premium Cable

3ft 4Gauge Black Super Flex Twist Ground Cable

17ft 16 Gauge Red/Black Super Flex Twist Premium Speaker Cable

17ft 2 Channel Shielded Twisted Pair Premium Speaker Cable

17ft 18 Gauge Remote Turn-on Wire

3ft 4AWG Split Loom Tubing

1pc Mini ANL Fuse Holder and 100A ANL Fuse
