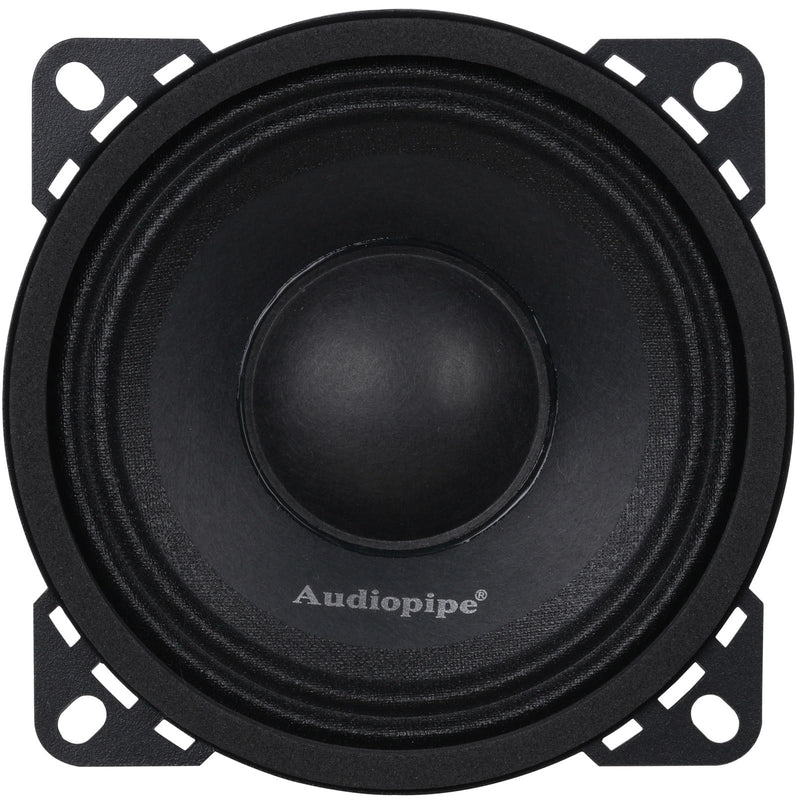

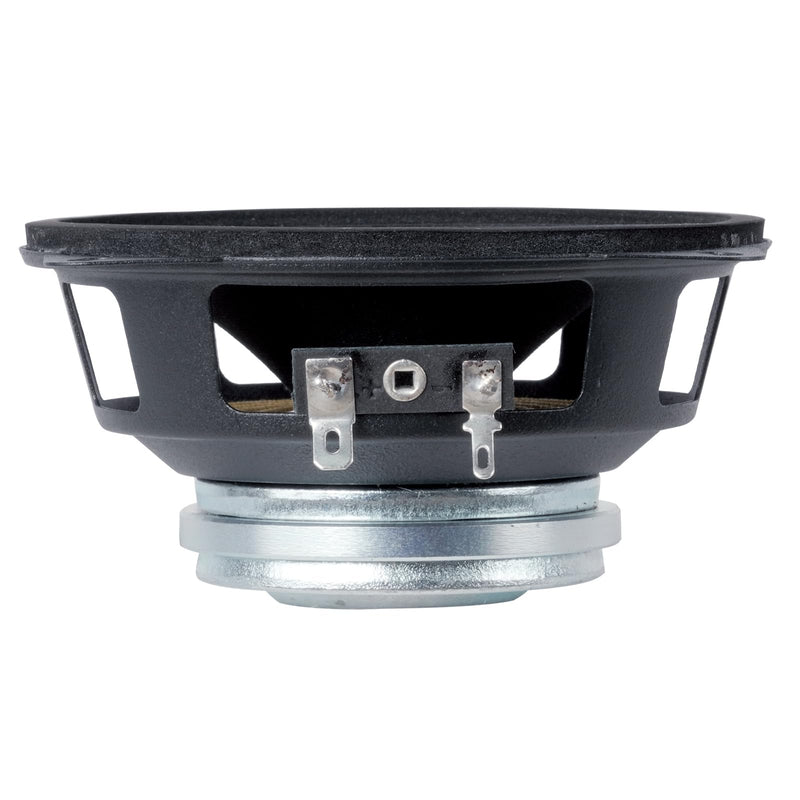

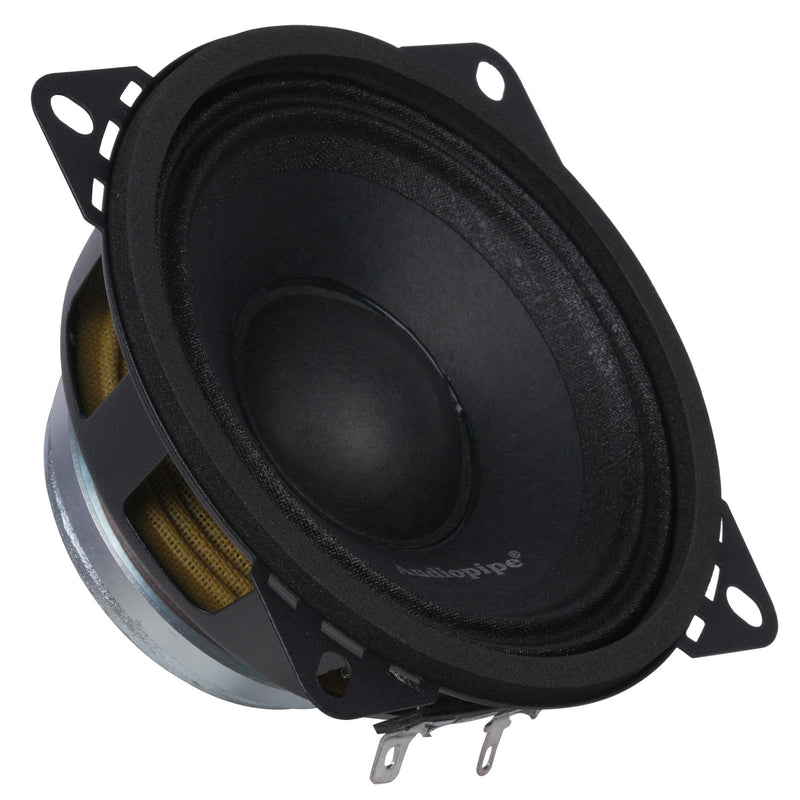

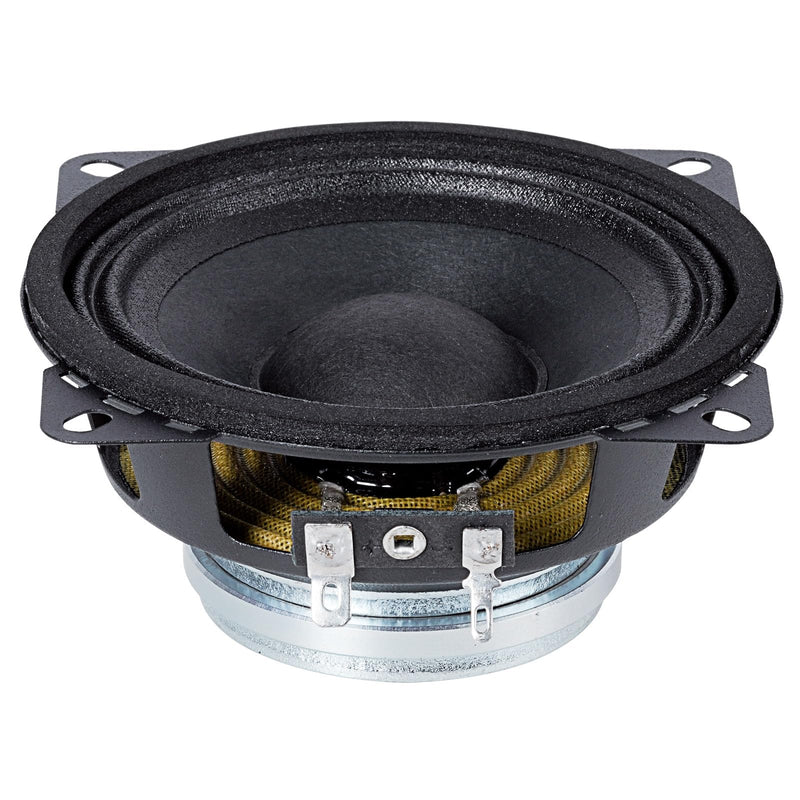

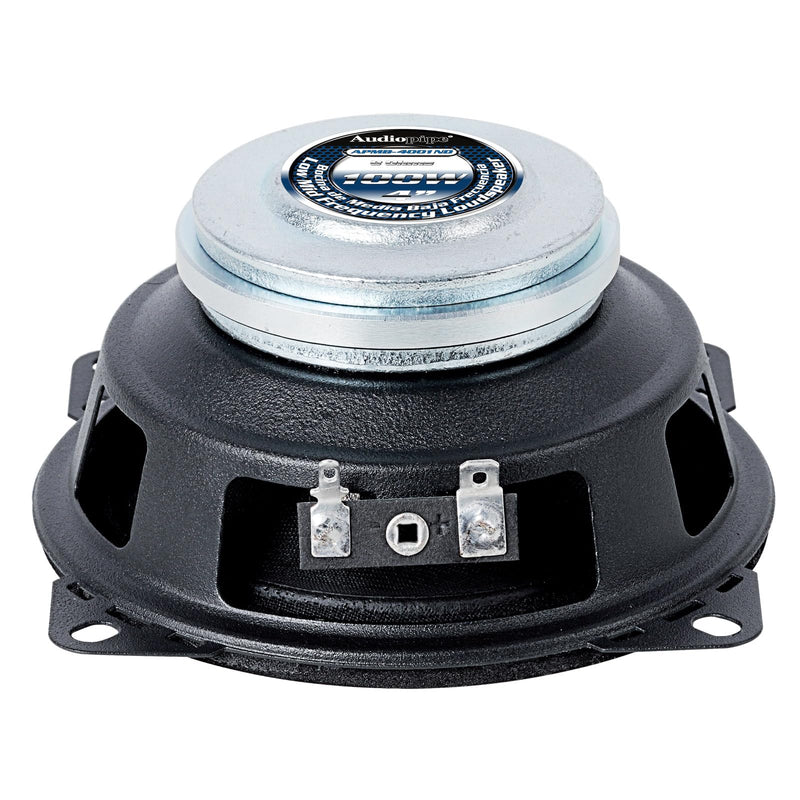

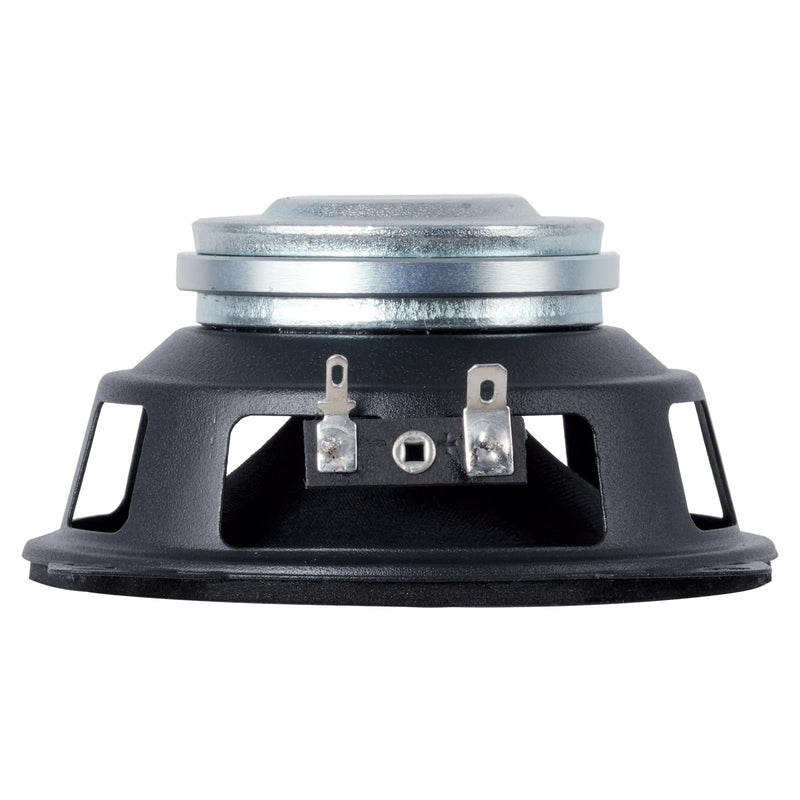

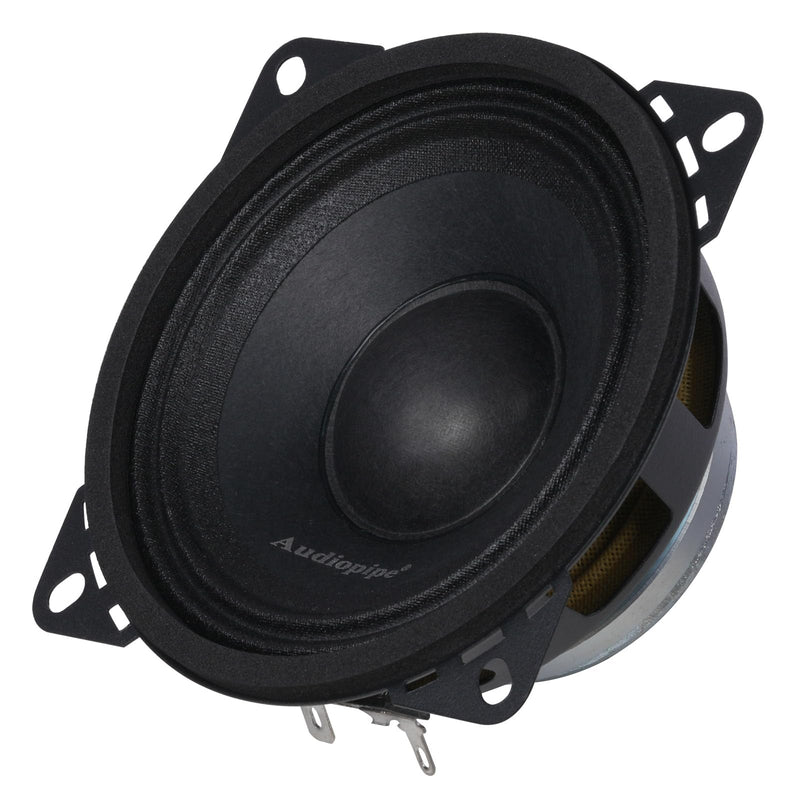

(1) 4" Neodymium Car Audio Loudspeaker Audiopipe APMB-4001ND
Description:
Introducing the Audiopipe APMB-4001ND 4" Neodymium Car Audio Loudspeaker, a compact yet powerful solution for enhancing your sound system. This 50 Watts RMS loudspeaker boasts an 8-Ohm impedance, delivering crisp and clear audio performance with its high-sensitivity of 89 dB. Designed with a lightweight neodymium magnet, it efficiently produces sound across a wide frequency range of 100 Hz to 15 kHz, making it perfect for mid-range frequencies.
Its robust build includes a steel black basket, durable paper cone, and cloth surround for long-lasting performance. The speaker features a KSV voice coil former and EISV winding material, ensuring smooth operation even under demanding conditions. Measuring just 4 inches in diameter with a mounting depth of 1.8 inches, this speaker fits easily into various vehicle setups.
Specifications:
Nominal Diameter: 4"
Nominal Impedance: 8 Ohms
RMS Power Handling: 50 Watts
MAX Power Handling: 100 Watts
Sensitivity (1w/1m): 89 Db
Frequency Response: 100 Hz - 15KHz
Pair or Single: Single/Individual
Voice Coil Diameter: 1"/25.5mm
Voice Coil Former Material: KSV
Winding Material: EISV
Cone Material: Paper
Surround Material: Cloth
Basket Material: Steel
Basket Color: Black
Magnet Material: Neodymium
Thiele and Small Parameters
Equivalent Volume: 0.6L/0.02 ft3
Excursion (one way): 0.5mm
Free Air Resonance: 160 Hz
Mechanical Factor: 2.9
Electrical Factor: 0.95
Total Factor: 0.71
Mechanical Mass: 6.3g
Mechanical Compliance: 153 um/N
BL factor: 6.2
Voice Coil Inductance: 0.11mH
Cone Area: 52.8 Cm2
DC Resistance: 5.6 Ohms
Mechanical Mass w/o Air: 6.1g
Speaker Measurements
Overall Diameter: 4"
Overall Depth: 2"
Front Mount Baffle Cutout: 3.7"
Mounting Depth: 1.8"
Motor Diameter: 2.4"
