- Compact & Clear – 4" 2-way coaxial speakers ideal for OEM upgrades and small enclosures.
- Full-Range Output – Integrated mylar tweeter delivers clean, crisp highs.
- Strong Power Handling – 40W RMS / 120W MAX for daily use and consistent performance.
- Durable Build – Steel basket, rubber surround, and ferrite magnet for reliability.
- Easy Installation – Includes grilles and fits most factory openings.
6x9" 80W RMS 4-Ohm 3-Way Coaxial Speaker Pair DS18 SELECT Series / DS-S69

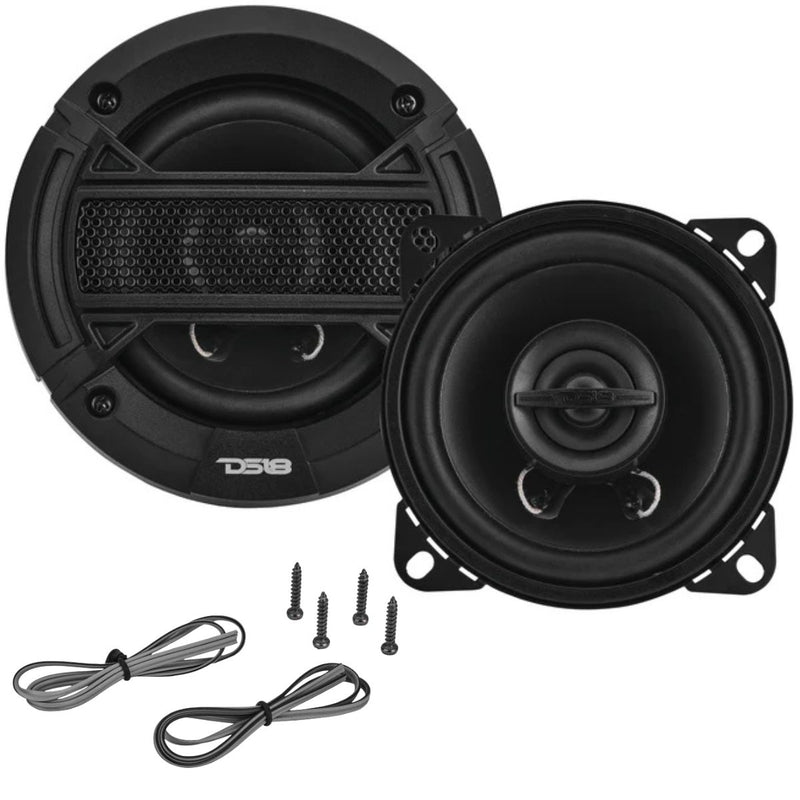

This Listing Includes:
- (2) 4" 40 Watt RMS 4-Ohm 2-Way Coaxial Speakers
- (2) Grilles
- Mounting Hardware
- User Manual

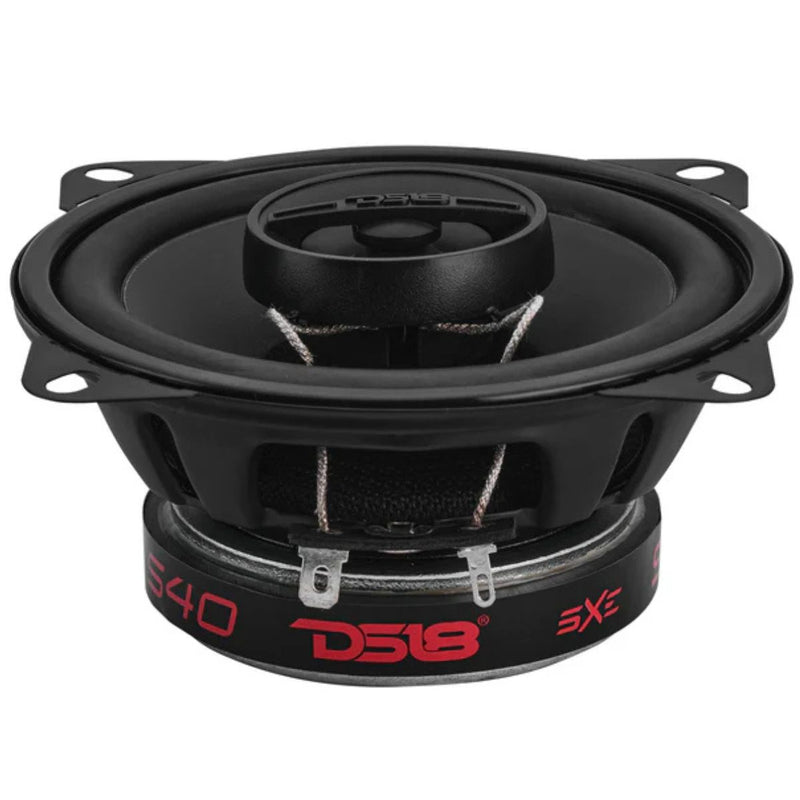

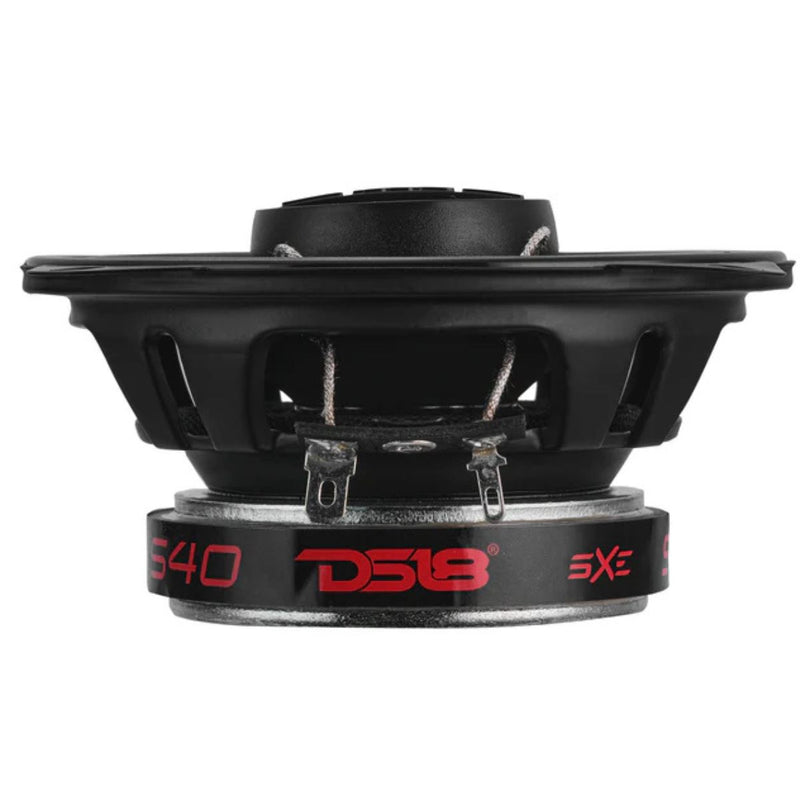

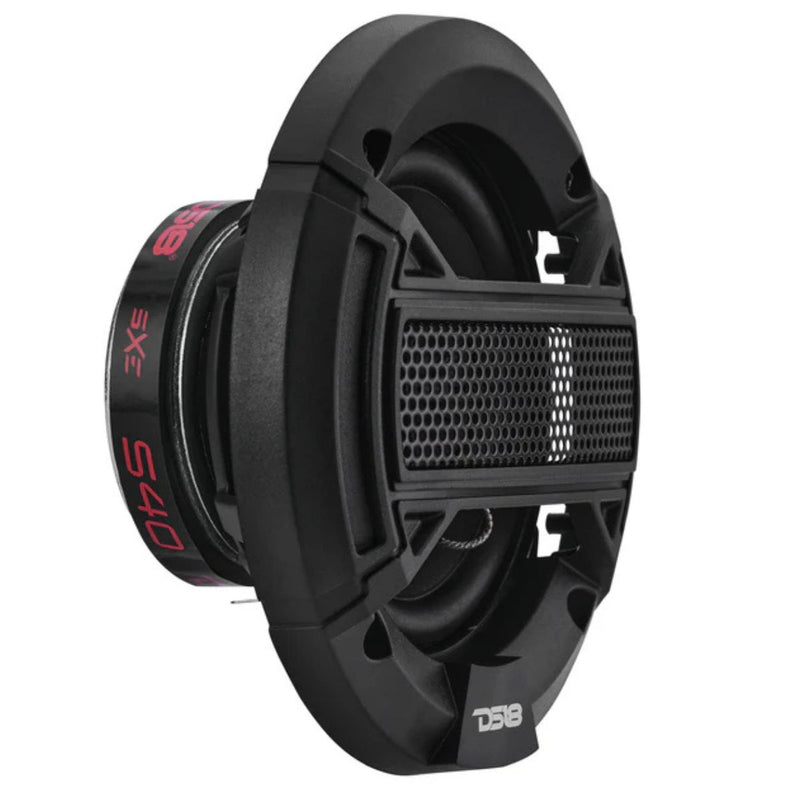

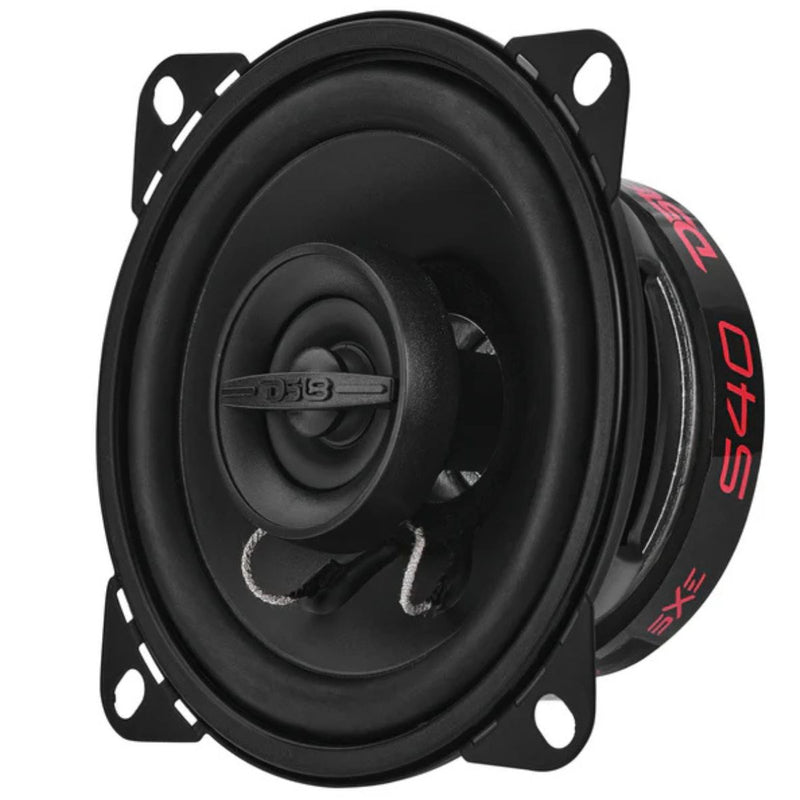

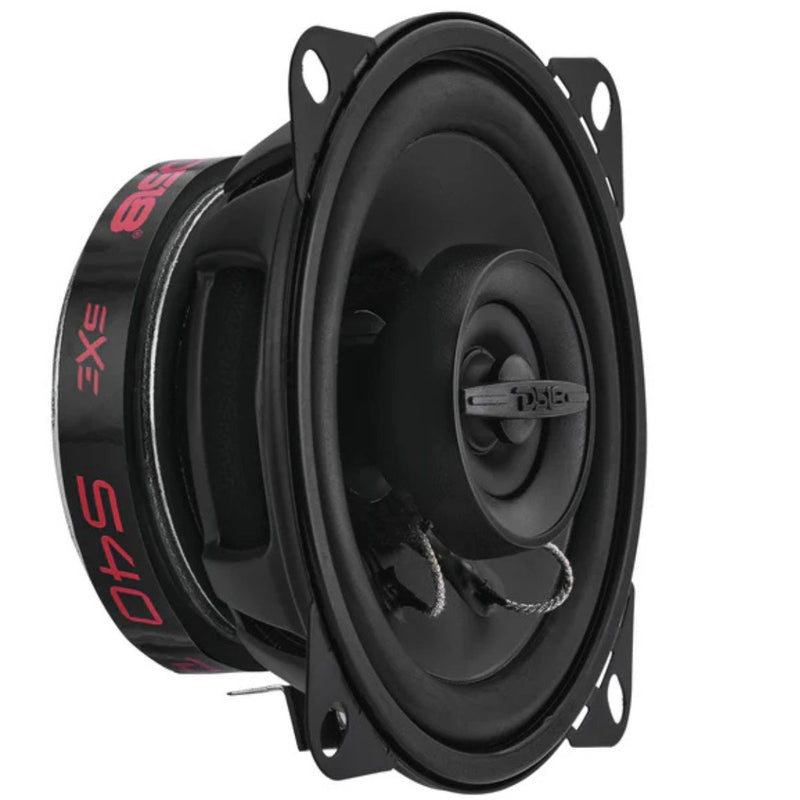

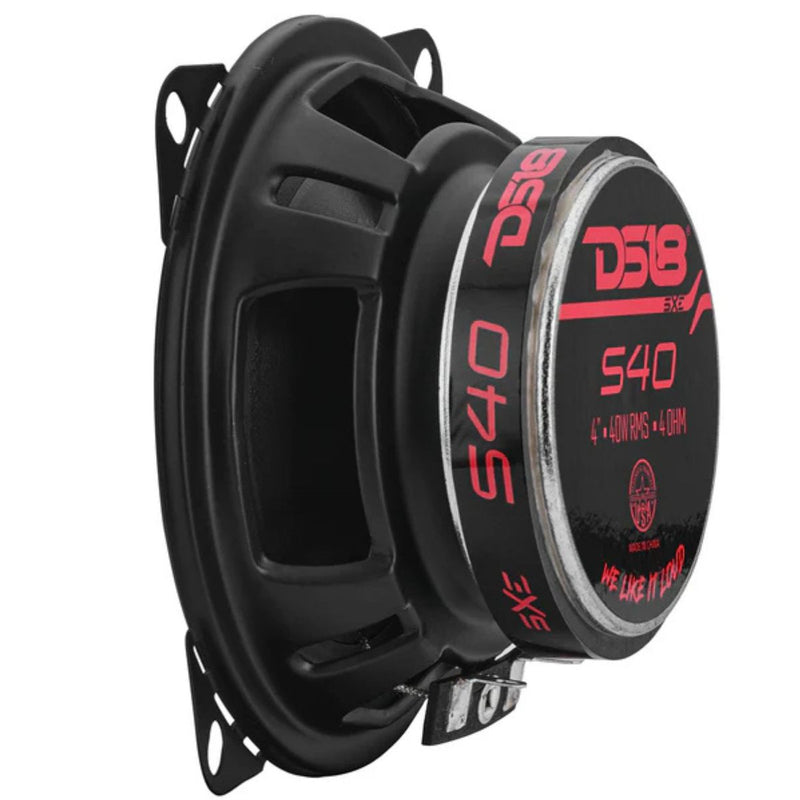

The DS18 S40 brings clear, full-range sound to tight spaces. This 4" 2-way coaxial speaker pair delivers balanced mids and crisp highs with a compact design that fits most factory and aftermarket locations.
Featuring 40W RMS / 120W MAX power handling, these speakers are ideal for upgrading stock systems or expanding multi-speaker builds. The ASV/EISV voice coil assembly provides durability and heat resistance, while the mylar tweeter ensures smooth, distortion-free highs.
A rubber surround, black matte steel basket, and barium ferrite magnet enhance mechanical control and reduce unwanted resonance. With a mounting depth of just 1.67", the S40 installs easily in doors, dashboards, and other tight-fit areas — no custom work required.
Experience reliable performance, tight response from 80Hz–20kHz, and the quality you expect from DS18.
Features:
- Compact 4" Coaxial Design – Perfect for OEM upgrades or tight-space installs.
- 2-Way Configuration – Woofer + tweeter for full-range clarity.
- 40W RMS / 120W MAX – Reliable performance at all listening levels.
- ASV/EISV Voice Coil – Built for heat resistance and long-lasting performance.
- Wide Frequency Range (80Hz–20kHz) – Balanced mids and smooth highs.
- Durable Construction – Rubber surround, PPI cone, and steel basket for longevity.

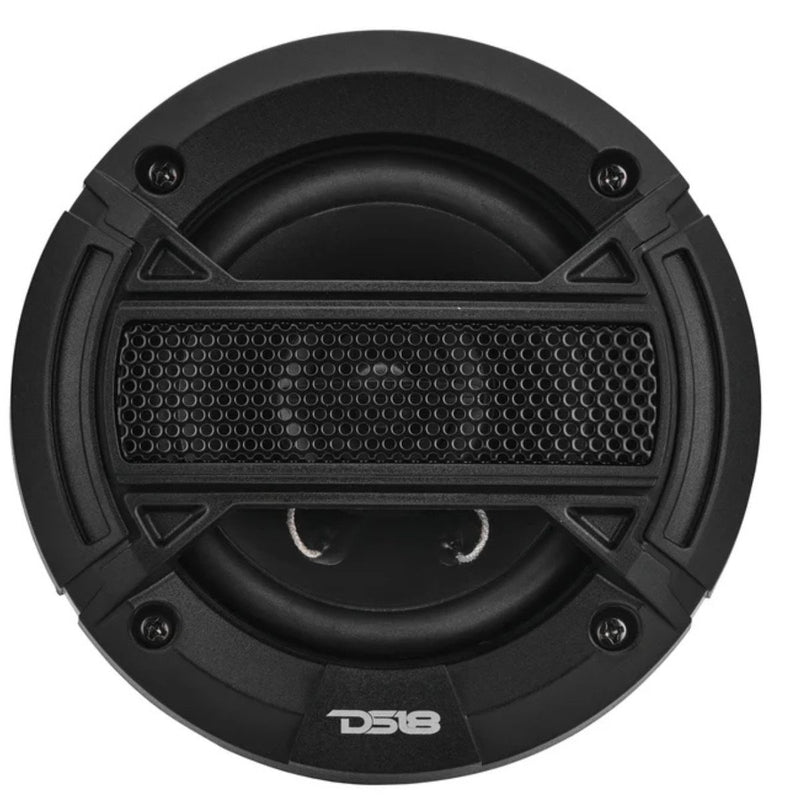

- Grilles Included – Protects the drivers while maintaining a clean appearance.
Specifications:
- Model: S40
- Nominal Diameter: 4" / 101.6mm
- Nominal Impedance: 4 Ohms
- RMS Power Handling: 40W
- MAX Power Handling: 120W
- Sensitivity (1w/1m): 85dB
- Frequency Response: 80Hz–20kHz
- Recommended Hi-Pass Crossover: 120Hz
- Number of Ways: 2
- Pair or Single: Pair
- Grill Included: Yes
Woofer Specifications
- Voice Coil Diameter: 1" / 25.5mm
- Voice Coil Former Material: ASV
- Winding Material: EISV
- Cone Material: PPI
- Surround Material: Rubber
- Basket Material: Steel
- Basket Color/Finish: Black Matte
- Magnet Material: Barium Ferrite
- Magnet Weight: 5.3Oz / 150g
Thiele & Small Parameters
- Equivalent Volume (Vas): 1.82L / 0.064ft
- Excursion (Xmax): 2.2mm
- Free Air Resonance (Fs): 120Hz
- Mechanical Factor (Qms): 5.677
- Electrical Factor (Qes): 1.911
- Total Factor (Qts): 1.429
- Mechanical Mass (Mms): 6.5g
- Mechanical Compliance (Cms): 0.444mm/N
- BL Factor: 2.35
- Voice Coil Inductance (Le): 0.030mH
- Cone Area (Sd): 55cm
- DC Resistance (Re): 3.7 Ohms
Tweeter Specifications
- Nominal Diameter: 1" / 25.5mm
- Voice Coil Diameter: 0.5" / 13.25mm
- Voice Coil Former Material: KSV
- Winding Material: EISVM
- Diaphragm Material: Mylar
- Magnet Material: Neodymium
- Magnet Weight: 1.8g
Dimensions:
- Overall Diameter: 4" / 104mm
- Overall Depth: 2.2" / 56.6mm
- Overall Diameter (With Grill): 5.28" / 134mm
- Overall Depth (With Grill): 2.73" / 69.3mm
- Front Mount Baffle Cutout: 3.6" / 92mm
- Mounting Depth: 1.67" / 42.5mm
- Motor Diameter: 2.76" / 70mm
- Tweeter Protrusion: 0.37" / 9.5mm
