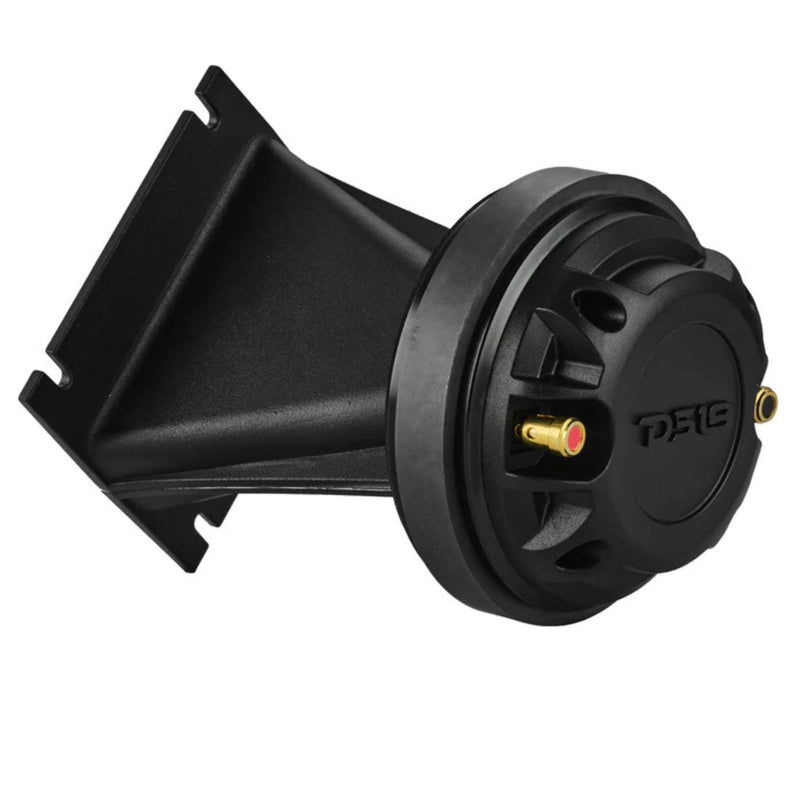

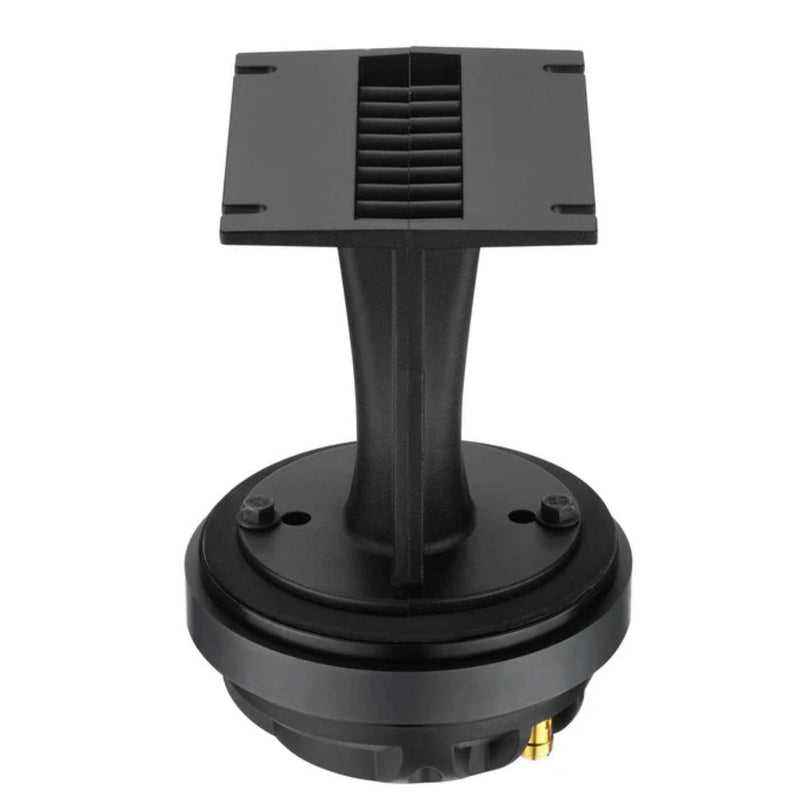

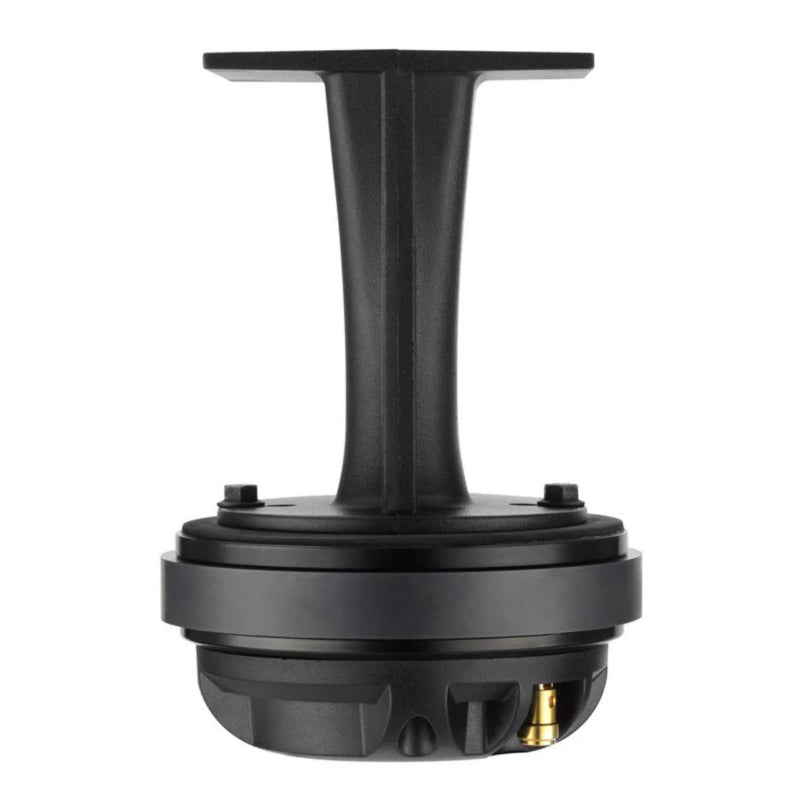

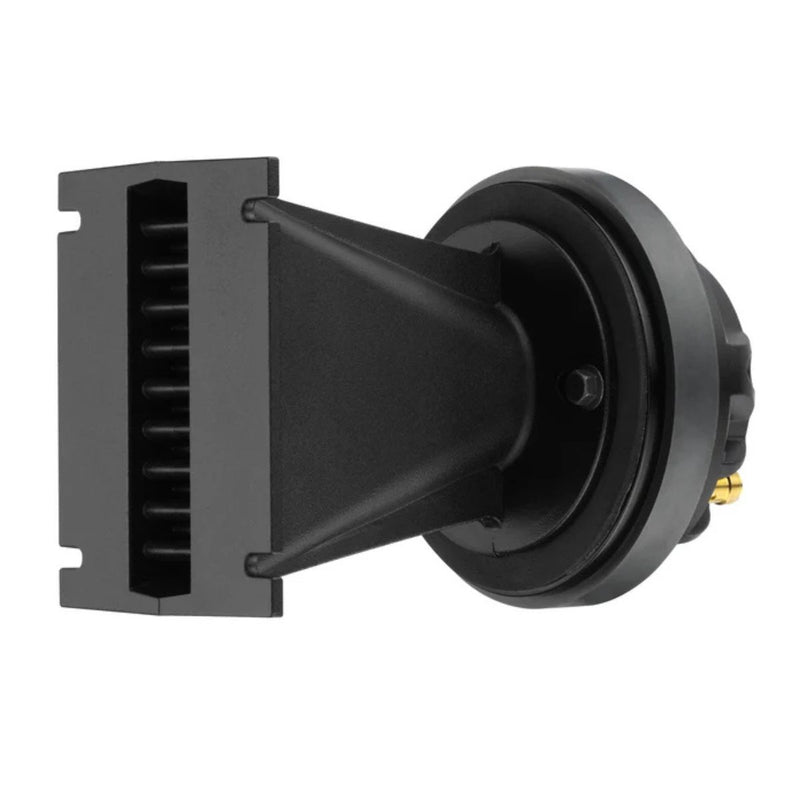

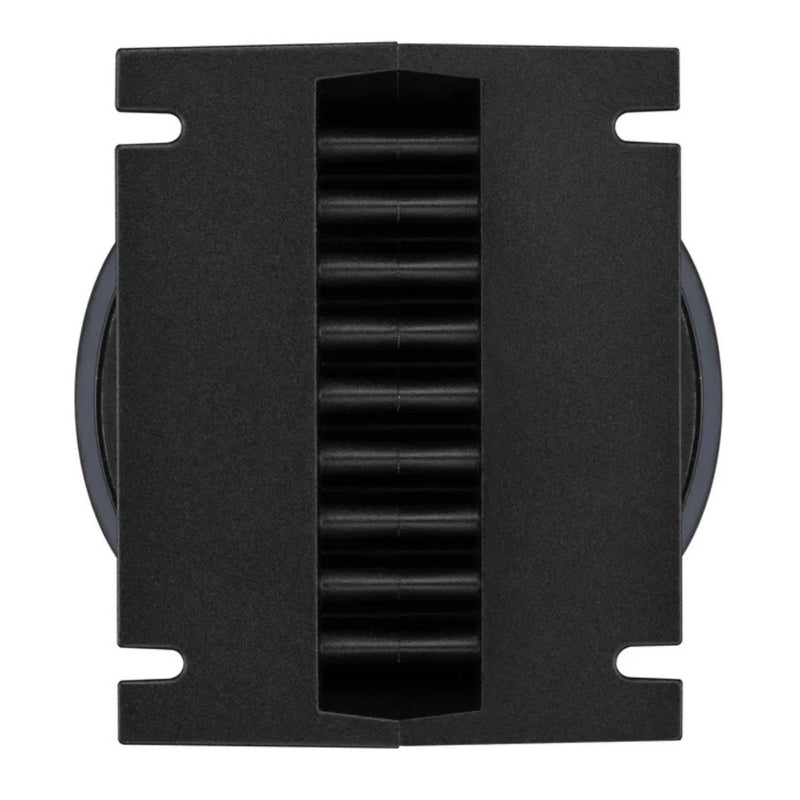

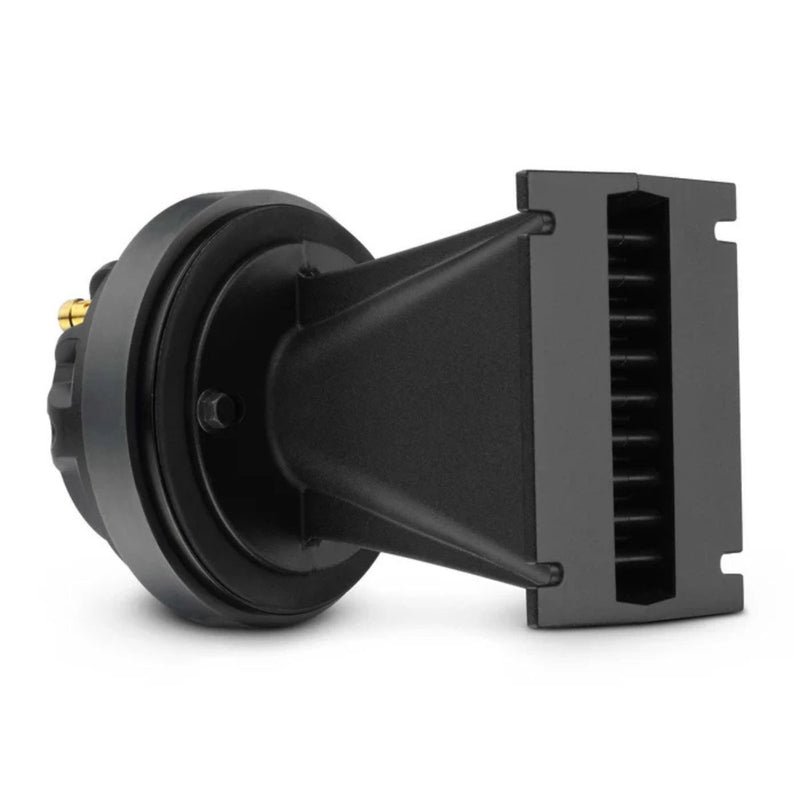

3.5"x4.4" 90W RMS 8 Ohm Compression Driver Horn Kit DS18 PRO-DK175WG

• HIGH OUTPUT COMPRESSION DRIVER 90W AES power handling with 101 dB sensitivity for loud, clear highs.
• TITANIUM DIAPHRAGM PERFORMANCE Provides crisp sound reproduction with strong projection and durability.
• WAVE GUIDE HORN INCLUDED Aluminum cast horn improves dispersion and efficiency for pro audio systems.
• POWERFUL VOCAL PROJECTION Designed for car audio builds, SPL setups, and custom installations.
• DURABLE CONSTRUCTION Ferrite motor and large 1.75 inch voice coil ensure reliable performance.

3.5"x4.4" 90W RMS 8 Ohm Compression Driver Horn Kit DS18 PRO-DK175WG

This Listing Includes:

• (1) DS18 PRO-DK175WG Compression Driver


• (1) DS18 Wave Guide Horn

The DS18 PRO-DK175WG compression driver and waveguide horn kit delivers powerful, clear high-frequency output designed for pro audio car systems and high-performance builds. Engineered with a titanium diaphragm and large 1.75-inch voice coil, this driver produces strong projection, excellent clarity, and reliable performance even at high volume levels.

The included 3.5" x 4.4" cast aluminum waveguide horn improves sound dispersion while maintaining focused output, making it ideal for door panels, custom pods, and SPL systems. With 101 dB sensitivity, the PRO-DK175WG delivers loud, detailed highs with minimal amplifier power, helping vocals and instruments cut through clearly in demanding environments.

Built with a ferrite motor structure and durable construction, the PRO-DK175WG is designed for long-lasting reliability in both daily-driven systems and competition builds.

Features:

• Extreme SPL Output - 90W AES, 180W Program, 360W Peak


• Cut-Through-the-Noise Clarity - Titanium diaphragm


• Wide-Throw Sound Control - 140 horizontal dispersion


• High-Efficiency - 101dB Sensitivity


• Perfect for Loud Setups

Specifications:

• Nominal Impedance: 8 Ohms


• AES Power Handling: 90 Watts


• Program Power Handling: 180 Watts


• Peak Power Handling: 360 Watts


• Sensitivity: 101 dB (1w/1m)


• Frequency Response: 1.5 kHz - 20 kHz


• Sold As: Single

Motor:

• Voice Coil Diameter: 1.75" (44.4 mm)


• Voice Coil Former: KSV


• Winding Material: CCAW


• Diaphragm Material: Titanium


• Magnet Material: Ferrite


• VC Cover Material: ABS


• Magnet Weight: 21.9 oz


• Motor Diameter: 4.5" (115 mm)

Horn Specifications:

• Nominal Diameter: 3.5" x 4.4" (89 x 111 mm)


• Throat Diameter: 1" (25.4 mm)


• Sound Coverage: 140 H x 15 V


• Body Material: Aluminum Cast


• Color: Satin Black

Dimensions:

• Overall Diameter: 3.5" x 4.4" / 89 x 111mm


• Overall Depth: 6.6" / 167mm


• Mounting Depth: 6.4" / 162mm


• Mounting Hole Cut-out: 1" x 4" / 25.4 x 101.6mm
