- Provides 4-way protection including thermal, DC offset, short protection, and under/over voltage monitoring for enhanced safety and durability.
- Equipped with an all-MOSFET power supply and output stage for reliable and efficient power management.
- 2500 Watts RMS - Immerse yourself in a world of sonic supremacy with 2500 Watts RMS, delivering unmatched audio performance.
- Compact and Stylish Design - The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.
- Class D Amplification - Harness the efficiency and precision of Class D amplification for powerful and accurate sound reproduction.

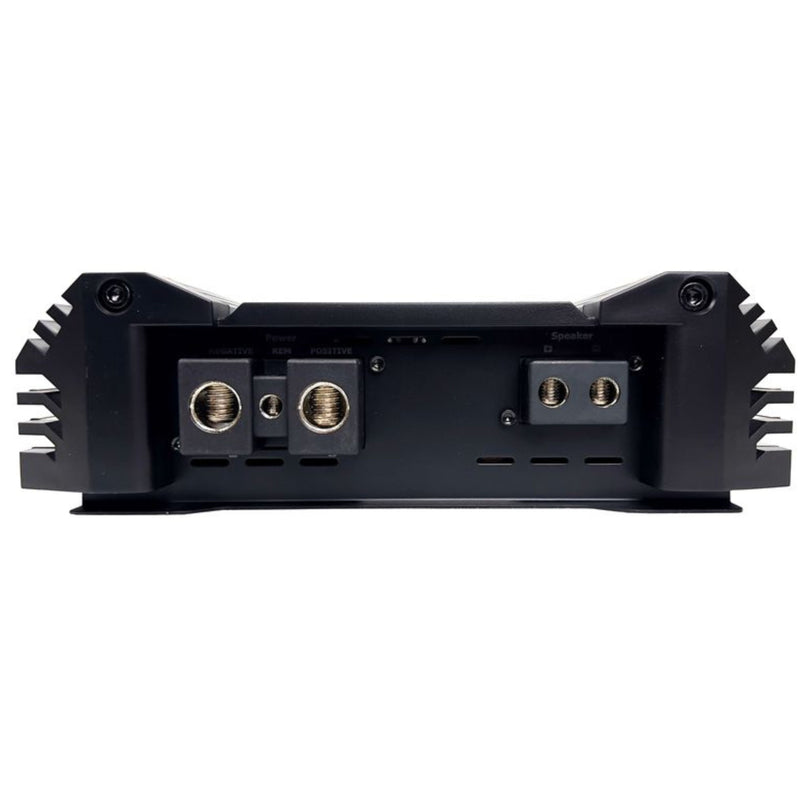

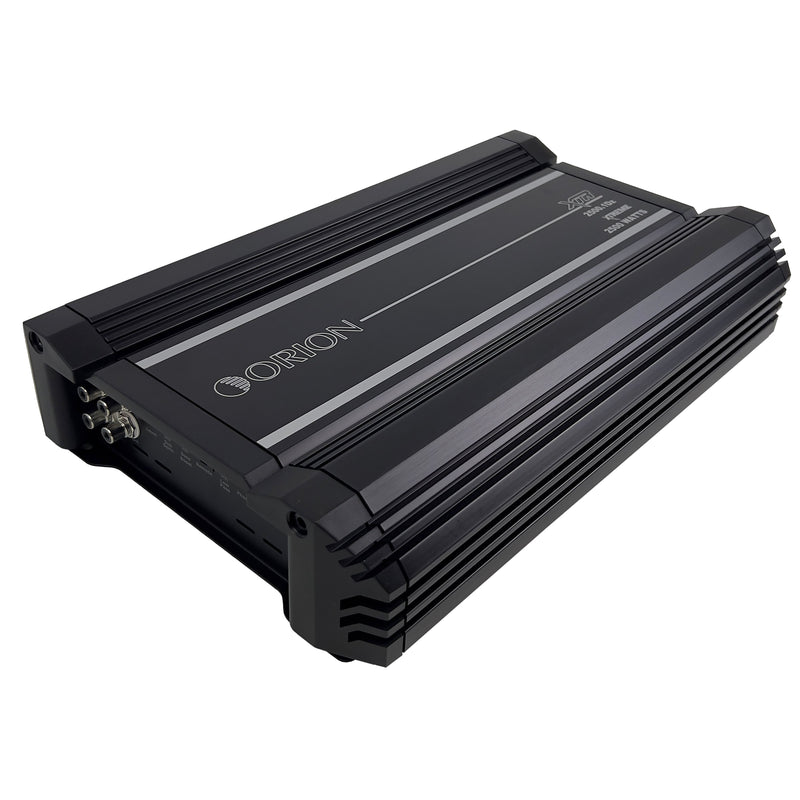

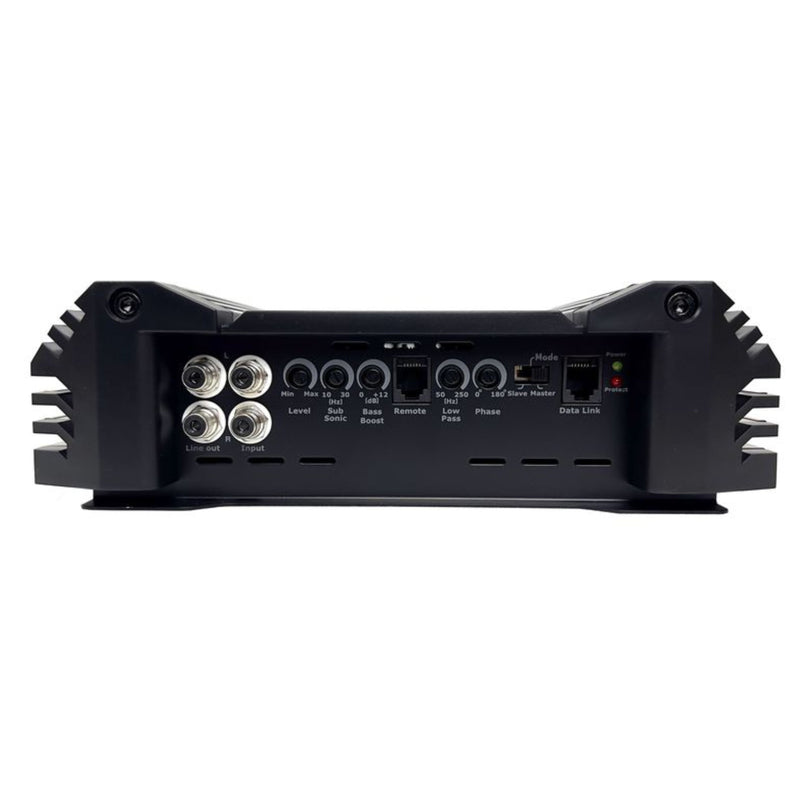

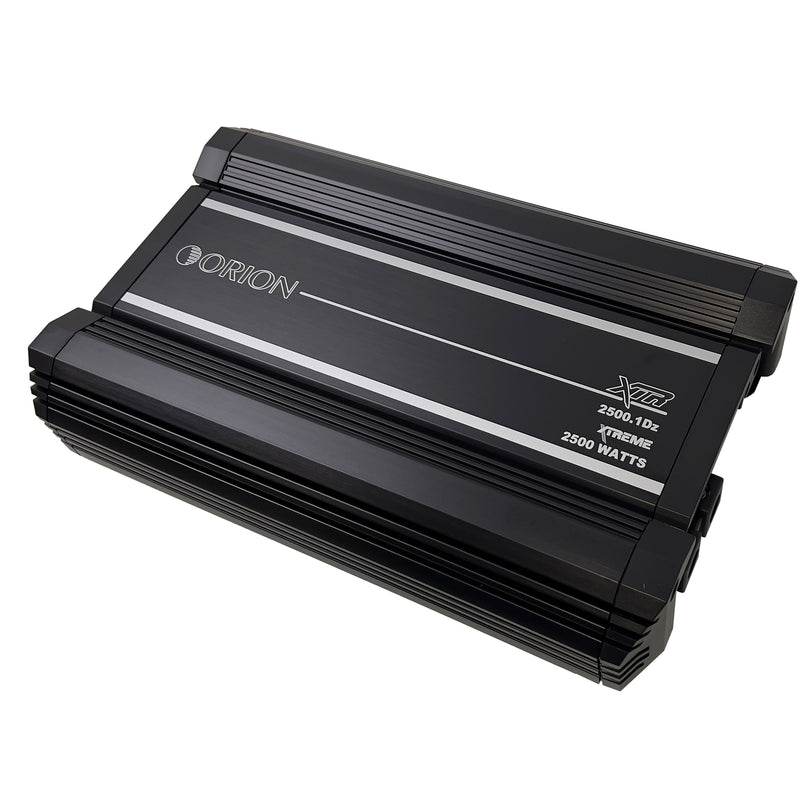

2500W RMS Monoblock Class-D Amplifier ORION XTR Series XTR2500.1DZ
This Listing Includes:
- (1) Monoblock Class-D Amplifier ORION XTR Series XTR2500.1DZ
Description:
Unleash Auditory Excellence:
The ORION XTR2500.1Dz XTR Series 2500W RMS 1-Channel Class-D Amplifier raises the bar for audio performance. With advanced features and precision engineering, this amplifier transcends boundaries, delivering an unparalleled fusion of power, accuracy, and control to your car audio system.
Immersive Sound Reproduction
Rediscover your music in its fullest detail. Every note, beat, and melody – from the gentlest to the most dynamic – is meticulously reproduced for an immersive and authentic listening experience.
Unmatched Power and Precision
Experience your music with unprecedented force and precision. The ORION XTR2500.1Dz XTR Series Amplifier seamlessly blends commanding power with exceptional audio quality, creating an auditory masterpiece that resonates deeply.
Elevate Your Drive
Enter the realm of sonic magnificence with the ORION XTR2500.1Dz XTR Series 2500W RMS 1-Channel Class-D Amplifier. Elevate your audio journey, redefine your driving soundtrack, and immerse yourself in an elevated level of musical sophistication. It's time to embrace sound in its purest form.
Features:
- All MOSFET Power Supply & Output Stage
- Heavy Gauge / High Current Custom Power and Speaker Terminals
- 12dB Octave Low-Pass Filter

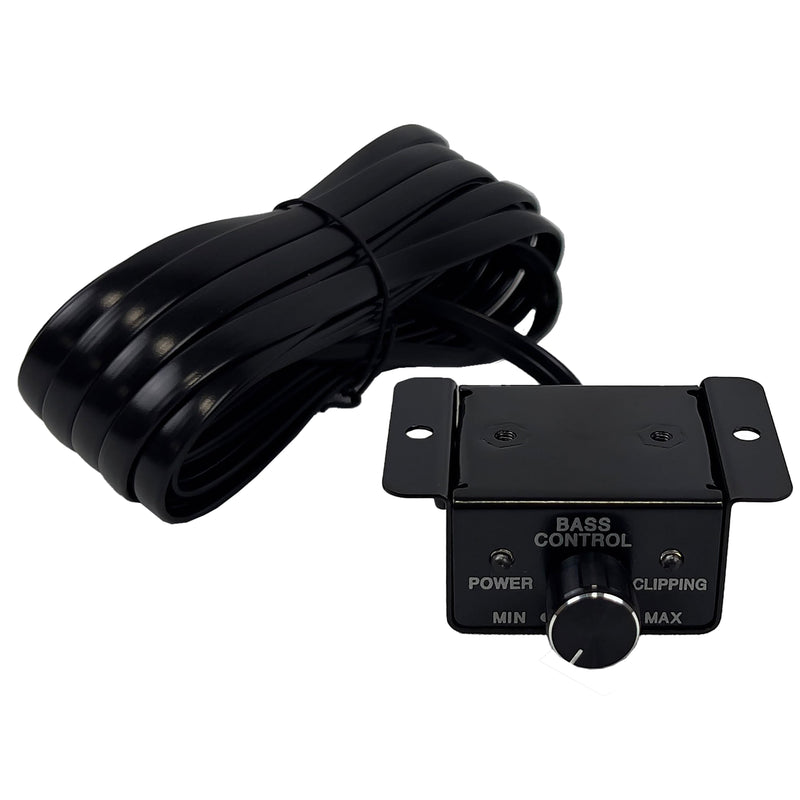

- Remote Gain Controller Included
- Electronic Crossover Network
- Bass Boost Circuit
- Power and Protection LED Indicators
- Soft Turn-on/Turn-off Turn-On Delay
- Fault and Protection Monitoring
- 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage
Specifications:
- RMS Power @ 4 Ohms @ 0.5% THD+N: 1250W
- RMS Power @ 2 Ohms @ 0.5% THD+N: 1750W
- RMS Power @ 1 Ohm @ 0.5% THD+N: 2500W
- Linked with identical Amplifier: RMS Power @ 2 Ohms @ 0.5% THD+N: 3000W
- Positive Terminals: 1 x 0 AWG.
- Negative Terminals: 1 x 0 AWG.
- Remote Turn-ON Signal: 10 AWG.
- Speaker Output Terminals: 4 AWG
- Frequency Response: 20Hz - 250Hz
- Low Pass Crossover: 30Hz - 300Hz
- Supply Voltage: 9 - 16V
- Amplifier Efficiency: >88%
- Damping Factor: 200dB
- Signal to Noise Ratio: >90dB
- T.H.D. & Noise: 0.5%
- Phase Shift: 0 - 180
- Bass Boost: 0-18dB Variable
- Subsonic Filter: Off / 25Hz
- Variable Input Level Control: 0.2V - 6.0V
- Fuses: 250A recommended (not included)
- Dimensions (L x W x H): 14.17" x 9.25" x 2.75" (360x235x70mm)
