- COMPLETE HIGH-OUTPUT BASS PACKAGE: Includes the Sundown Audio X Series V4 12" 3000W RMS subwoofer paired with a custom-tuned Adire Audio birch ported enclosure for powerful low-frequency performance, deep bass extension, and high-output daily or competition-style systems.
- EXTREME POWER HANDLING & EXCURSION: The Sundown Audio Xv4 12" subwoofer handles 3000 watts RMS and 4000 watts peak power while utilizing a high-excursion suspension and massive triple-stacked motor structure for hard-hitting bass with excellent control and durability.
- CUSTOM-TUNED PORTED BIRCH ENCLOSURE: Precision-built 24mm birch plywood enclosure engineered specifically for Sundown Audio X Series V3/V4 subwoofers. Features 2.5 cubic feet of net airspace, 31Hz tuning, and 35 square inches of port area for optimized output and low-end response.
- BUILT FOR CLEAN, DEEP, AND LOUD BASS: Designed to deliver aggressive SPL output while maintaining musical accuracy and low distortion. Ideal for rap, EDM, rebassed music, demos, and high-performance car audio systems that demand powerful sub-bass response.
- EASY INSTALLATION & PREMIUM CONSTRUCTION: Enclosure comes pre-wired with heavy-duty terminal connections for simplified setup. Durable birch construction helps reduce enclosure flex while improving sound quality, output consistency, and long-term reliability.

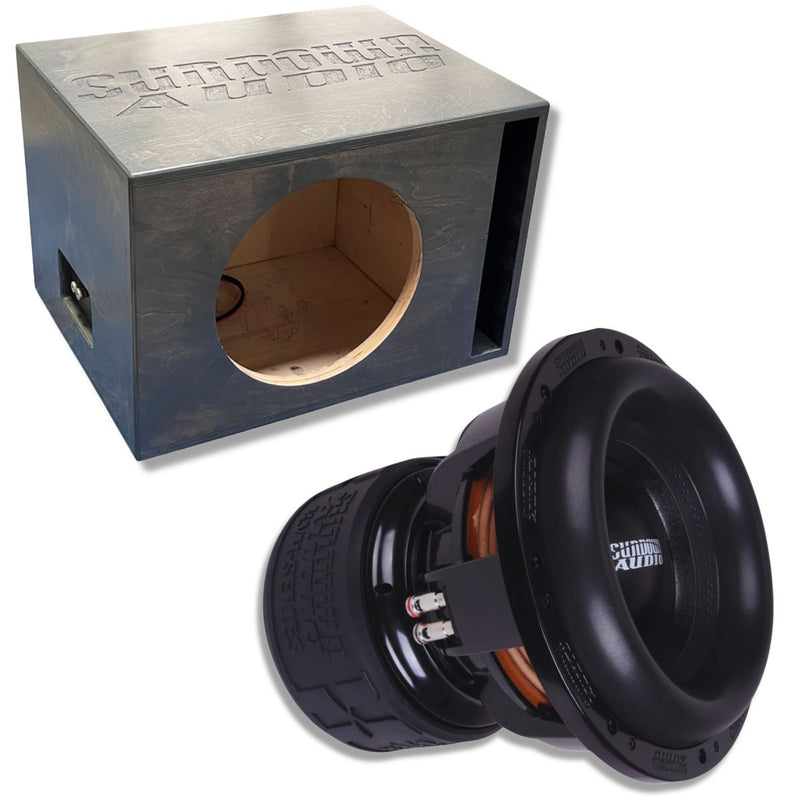

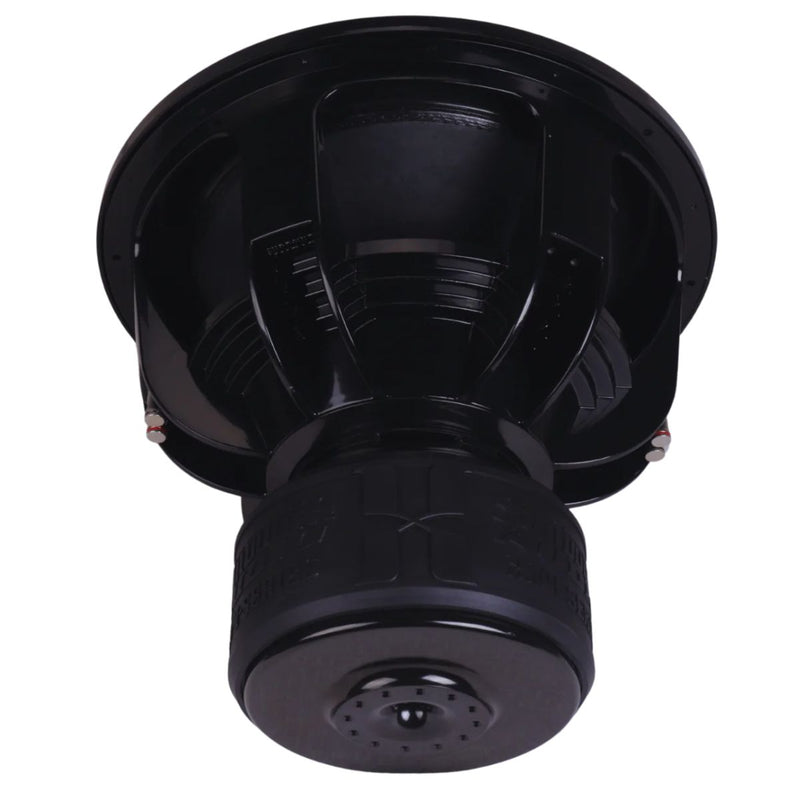

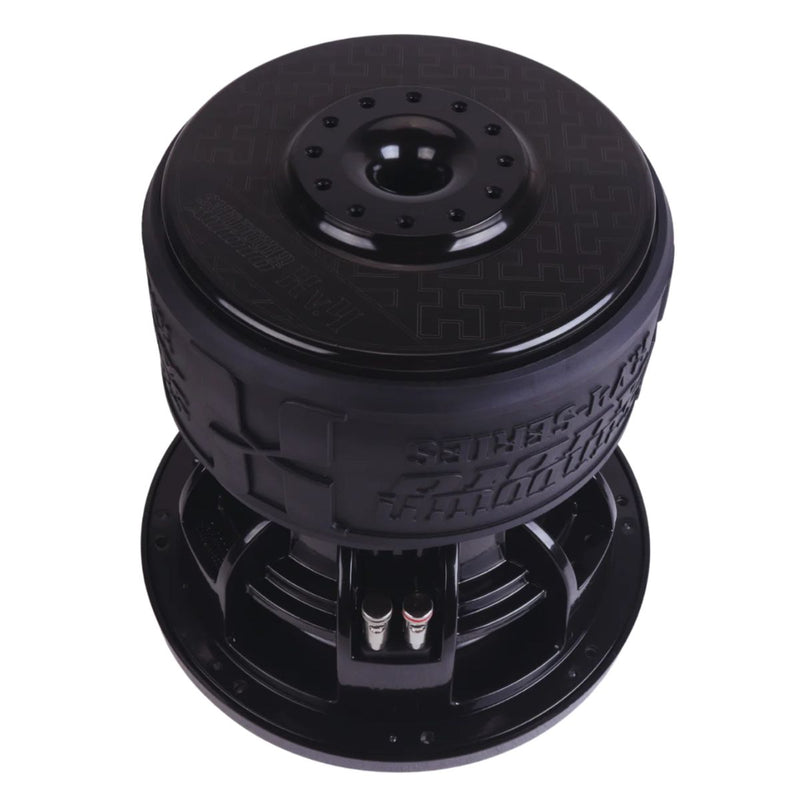

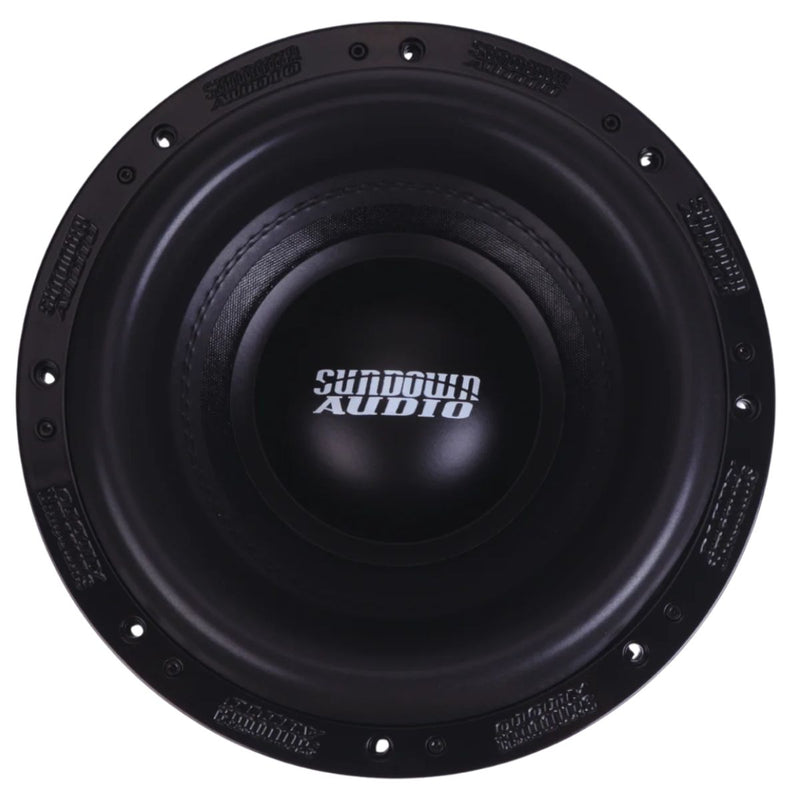

3000W RMS Sundown X Series V4 12" D1/D2 Subwoofer w/Single 12" Birch Ported Box
This Listing Includes:
- (1) Sundown Audio X Series V4 12" Dual 1-Ohm or Dual 2-Ohm Subwoofer
- (1) Adire Audio Single 12" Birch Ported Enclosure for Sundown Audio X Series V3/V4
Experience deep, hard-hitting bass with this expertly matched subwoofer and enclosure package featuring the legendary Sundown Audio X Series V4 12" Subwoofer paired with a precision-built Adire Audio birch ported enclosure. Designed for serious low-frequency performance, this combo delivers extreme output, powerful low-end extension, and clean musical response for daily systems and high-output builds alike.
The Sundown Audio X Series V4 is engineered for ultra-high excursion and high power handling, making it ideal for enthusiasts who demand aggressive bass response without sacrificing sound quality. Matched with the Adire Audio custom-tuned birch enclosure, this setup maximizes efficiency, low-frequency extension, and overall output while maintaining tight, accurate bass reproduction.
Whether you're building an SPL-focused system or a powerful daily driver, this combo is built to perform.
Shipping Disclosure
Please note that the subwoofer and enclosure ship separately and may arrive at different times. Each item is carefully packaged to help ensure safe delivery.
Features
- 3000W RMS Power Handling for serious bass output
- Available in Dual 1-Ohm or Dual 2-Ohm configurations
- High-Excursion Suspension Design for extreme low-frequency performance
- Custom-Tuned Birch Ported Enclosure optimized for the X Series platform
- Deep Bass Extension with strong output and musical accuracy
- Durable 24mm Birch Construction for reduced flex and improved sound quality
- Pre-Wired Terminal Cup for simplified installation
- Excellent for daily drivers and high-output systems alike
Specifications:

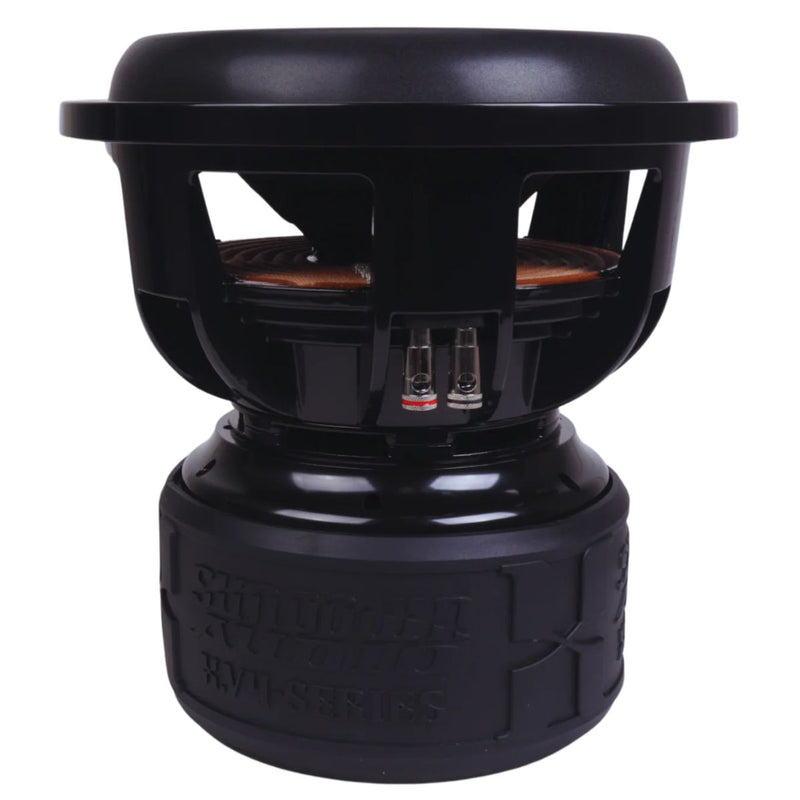

Sundown Audio X Series V4 12" Subwoofers:
- RMS Power Handling: 3000 Watts Each
- Peak Power Handling: 6000 Watts Each
- Voice Coil Configuration: Dual 1-Ohm or Dual 2-Ohm
- Xmax: 30mm One-Way Linear Excursion
- Sensitivity: 83.06 dB @ 1W/1m
- Triple-Stacked 9.25" Motor Structure
- 3" 4-Layer Flat Aluminum Voice Coil
- High-Excursion Low Distortion Suspension
- Motor Diameter: 9.25"
- Driver Displacement: 0.23 Cubic Feet
T/S Parameters (D2):
- Re: 3.25 Ohms
- Fs: 36.06 Hz
- Vas: 15.75 Liters
- Qes: 0.54
- Qms: 4.82
- Qts: 0.49
- Le: 2.6 mH
- BL: 22.25 NA
- Mms: 367.13 Grams
- Cms: 53.04 uM/N
- Sd: 44.11
Subwoofer Dimensions:
- Mounting Depth: 11.75"
- Outside Diameter: 12.81"
- Cutout Diameter: 11.09"
- Motor Diameter: 9.25"

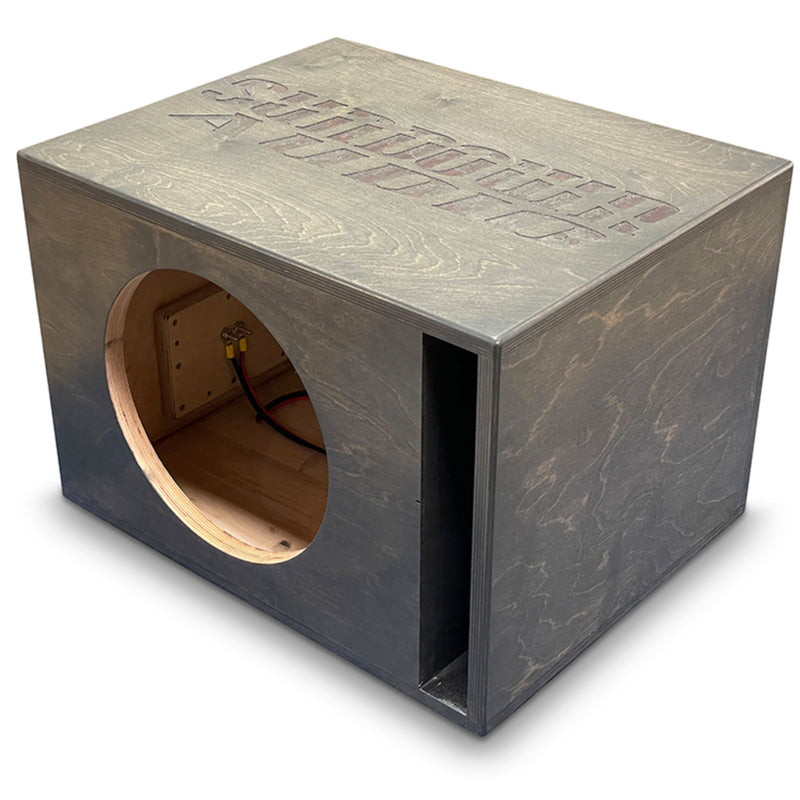

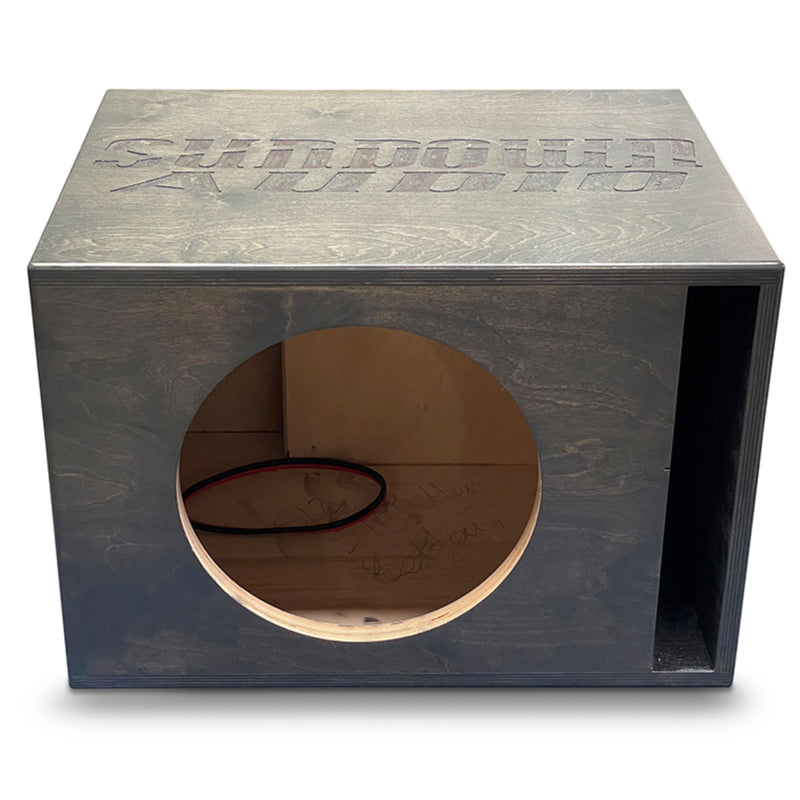

Adire Audio Single 12" Birch Ported Enclosure Specifications
- Net Internal Volume: 2.5 Cubic Feet
- Tuning Frequency: 31 Hz
- Port Area: 35 Square Inches
- Construction Material: 24mm (1") Birch Plywood
- Finish: Gray-Stained Exterior
- Pre-Wired Terminal Connection
External Dimensions:
- Height: 16"
- Width: 19"
- Depth: 27.375"
