2-Ohm 5 Channel Full Range 1000 Watts RMS Class AB / D Amplifier

• Powerful & Versatile: Delivers a total of 1000W RMS, combining Class AB clarity with Class D efficiency for a complete audio experience.
• 5-Channel All-in-One Solution: Powers your entire system—crisp mids and highs plus deep, impactful bass—without needing multiple amplifiers.
• Precision Tuning Controls: Built-in high-pass, low-pass, and subsonic filters let you fine-tune your sound exactly how you like it.
• Remote Gain Control Included: Easily adjust your subwoofer levels on the go for the perfect bass response.

DD Audio 2-Ohm 5 Channel Full Range 1000 Watts RMS Class AB / D Amplifier

This Listing Includes:

• (1) DD Audio 2-Ohm 5 Channel Full Range 1000 Watts RMS Class AB / D Amplifier

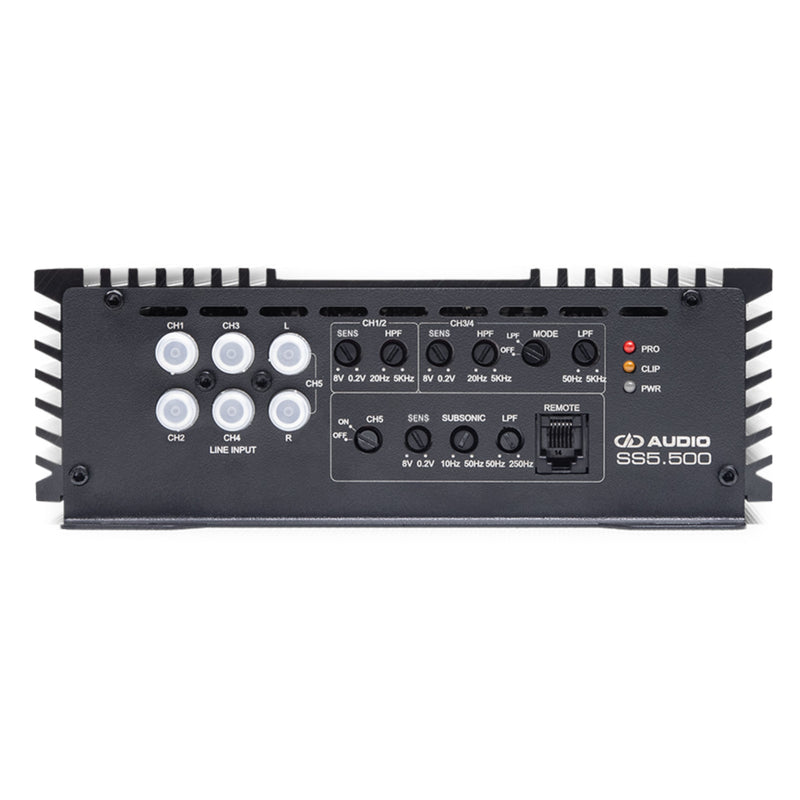

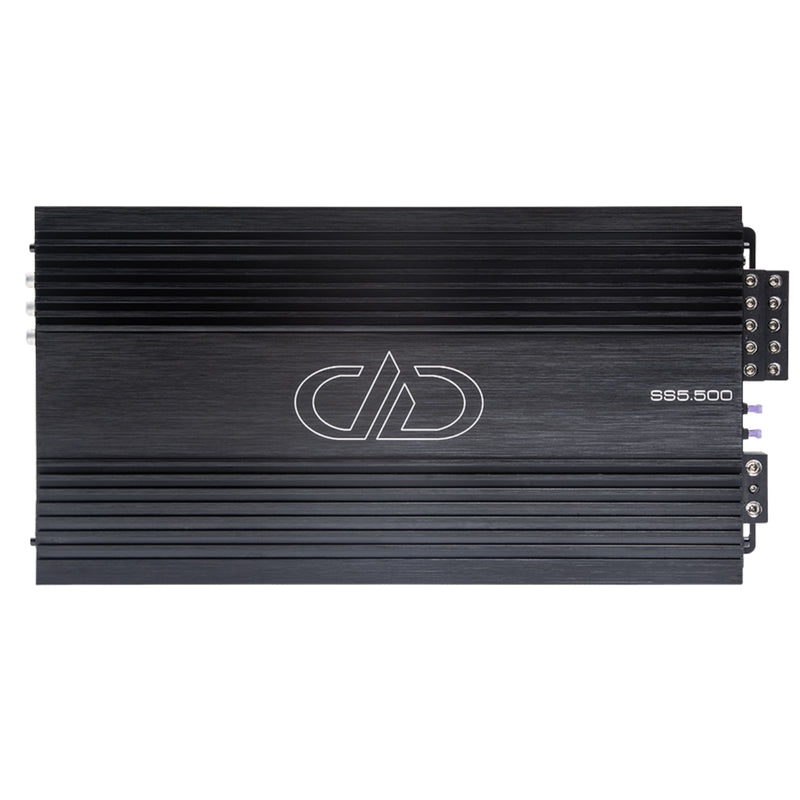

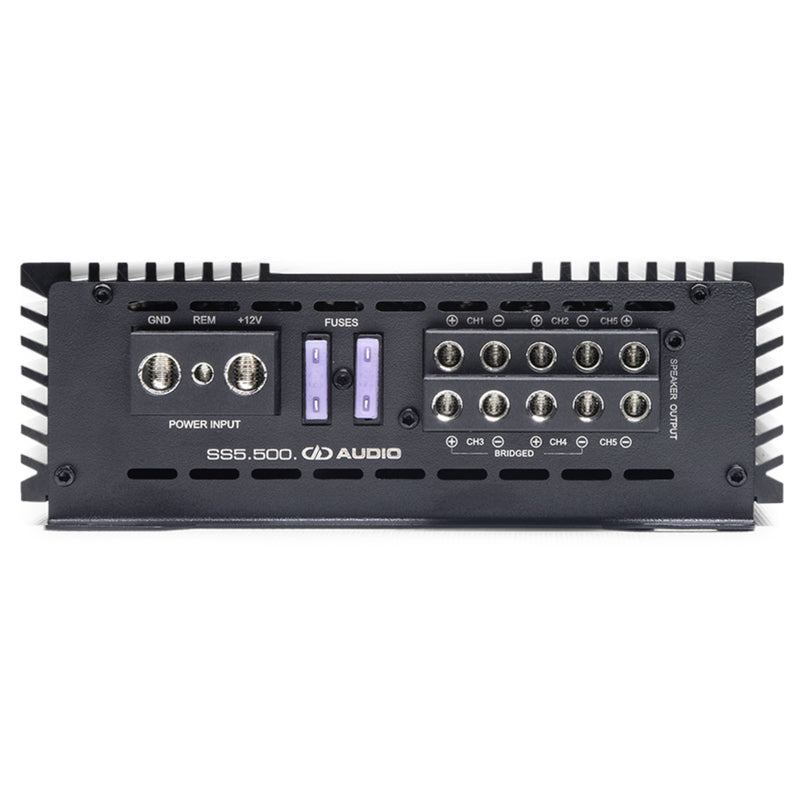

The DD Audio SS5.500 is a high-performance 5-channel amplifier designed to deliver exceptional sound quality with the perfect combination of Class AB and Class D circuit designs. The four-channel AB Class section provides precise and transparent mid and high-frequency response, offering warmth, clarity, and control. The Class D subwoofer mono channel delivers deep, powerful bass efficiently, maximizing your vehicle's stock electrical system. With premium components like Elna capacitors, high-spec transistors, and a high-speed International Rectifier-powered subwoofer section, this amplifier ensures a dynamic, high-fidelity listening experience.

Key Features:

• 12dB/Oct High Pass/Low Pass Crossovers


• Dual Toroidal Power Supply for stable and efficient performance


• Heavyweight DD Aluminum Chassis for durability


• Set Screw Power and Speaker Terminals for secure connections

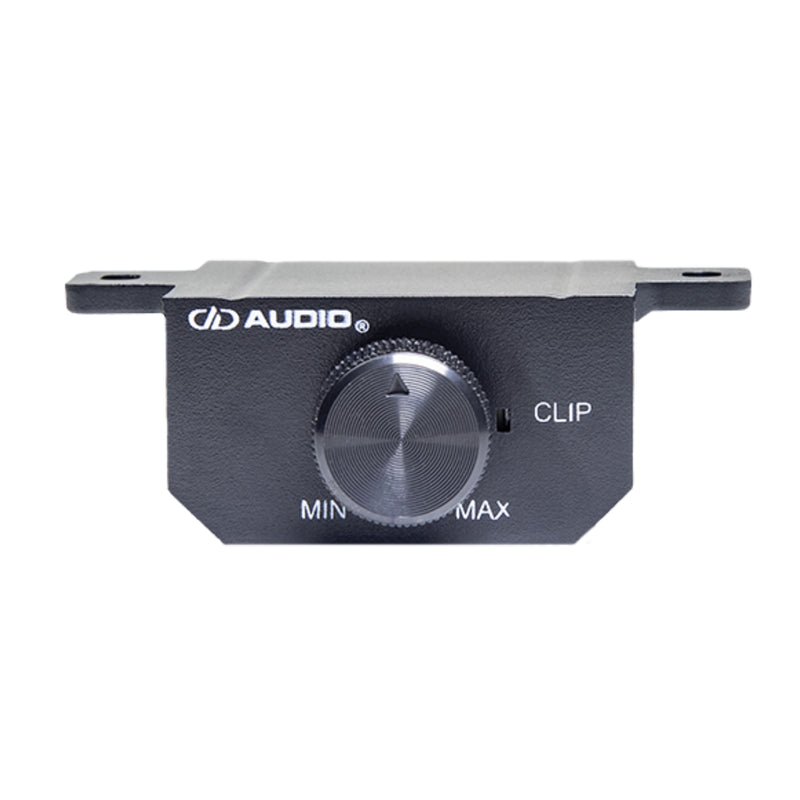

• Remote Gain Control for on-the-fly adjustments


• 0 AWG Power Terminals for maximum power delivery

Power Output:

• 80W x 4 @ 4 Ohms


• 120W x 4 @ 2 Ohms


• 500W x 1 @ 1 Ohm (Sub Channel)

Specifications:

• Operating Voltage: 9V - 16V


• Test Voltage: 14.4V


• Input Channels: 6


• Output Channels: 5


• Max Current Draw: 100A


• RCA Input Voltage Sensitivity: 8V - 0.2V


• High-Level Input Voltage Sensitivity: 20V - 1.1V


• Signal-to-Noise Ratio: >95dB


• Damping Factor: >100


• Total Harmonic Distortion (THD): <1.0 Percent


• Bass Boost: 12dB


• Frequency Response: 20Hz - 20kHz


• High Pass Filter: 20Hz - 5kHz


• Subsonic Filter: 10Hz - 50Hz


• Low-Pass Filter: 50Hz - 5kHz


• Remote Subwoofer Control: Yes (Included)


• Power Wire Gauge: 4 AWG


• Speaker Wire Gauge: 12 AWG


• Dimensions: 13.4" x 7.3" x 2.4" (340mm x 185mm x 60mm)


• Shipping Weight: 5 lbs
