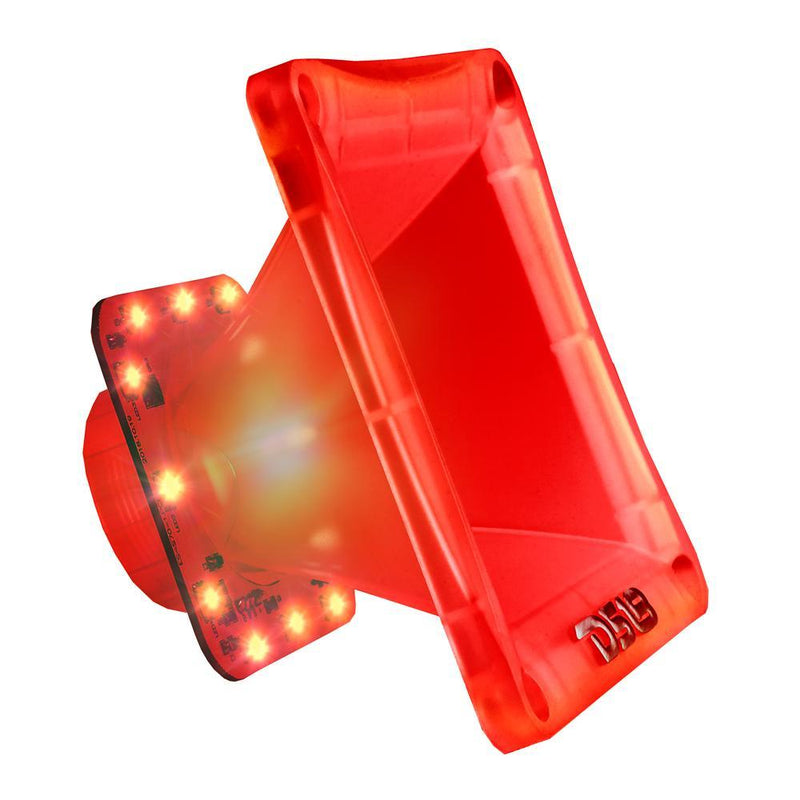

DS18 PRO 1" 240 Watt 8 Ohm Twist On Compression Driver w/ RGB LED Horn

This Listing Includes:

(1) Driver PRO-DR1P

(1) Horn PRO-HA44CL

FEATURES FOR PRO-DR1P DRIVER

- Utilizes a CCA 1" voice coil to maximize loudness per watt.

- 240w peak power and 120w program power will make these compliment your entire system

- Removable voice coil so if you happen to need to repair on the go, it can be done in minutes.

- Wide frequency response of 800HZ to 20KHZ so you won't miss one high-hat or cymbal crash.

- Will easily accommodate most screws on throats.

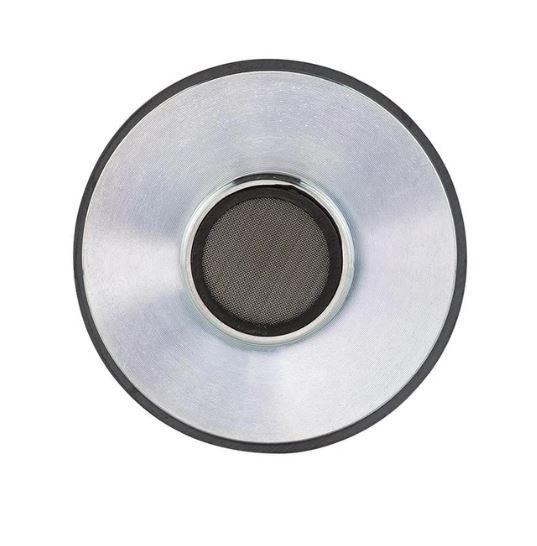

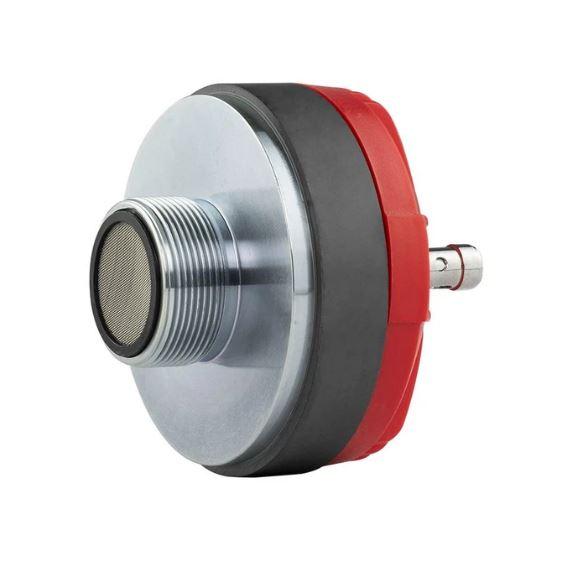

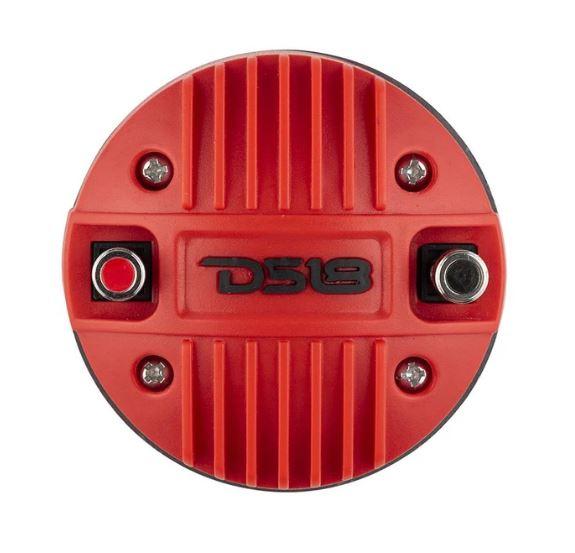

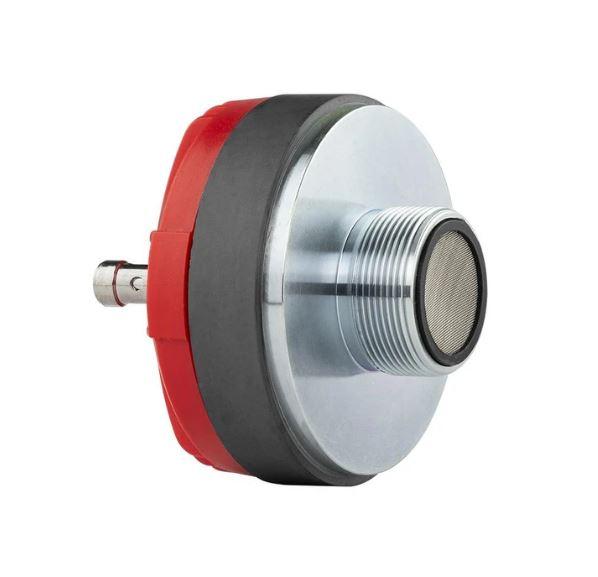

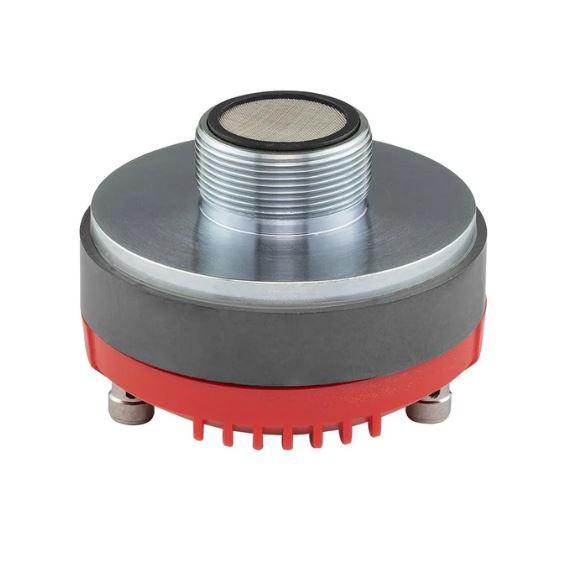

SPECIFICATIONS PER PRO-DR1P DRIVER

Throat Diameter: 1"

Installation Type: Screw Down

Nominal Impedance: 8 ohms

Peak Power Handling: 240W

Program Power Handling: 120W

AES Power: 60 W

Sensitivity (1w/1m): 103dB

Frequency Response: 800Hz-20Khz

Recommended HI Pas Crossover : 900Hz

MOTOR

Voice Coil Diameter: 1"

Voice Coil Former Material: Kapton

Winding Material: CCA

Diaphragm Material: Phenolic

Magnet Material: Ferrite

Magnet Weight: 0.38 oz

Dimensions:

Overall Diameter: 3.13"

Overall Depth: 2.4"

Bolt Type: M34

Mounting Depth: 1.79"

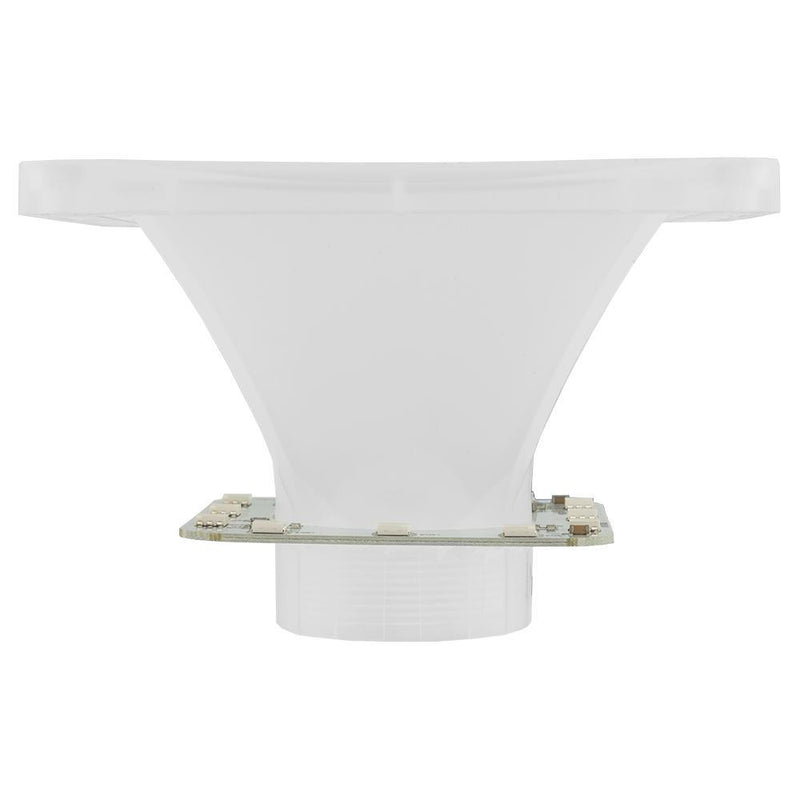

SPECIFICATIONS FOR PRO-HA44CL HORN

Throat Diameter: M1-3/8"

Material: Transparent ABS/PC Injection with Sand Texture

Mounting Depth: 69mm / 2.72"

Profile: Square

Installation Method: Twist

Coverage: 45 x 45

Minimum Low Frequency: 1K

Fits Most 1" Throat Diameter Drivers

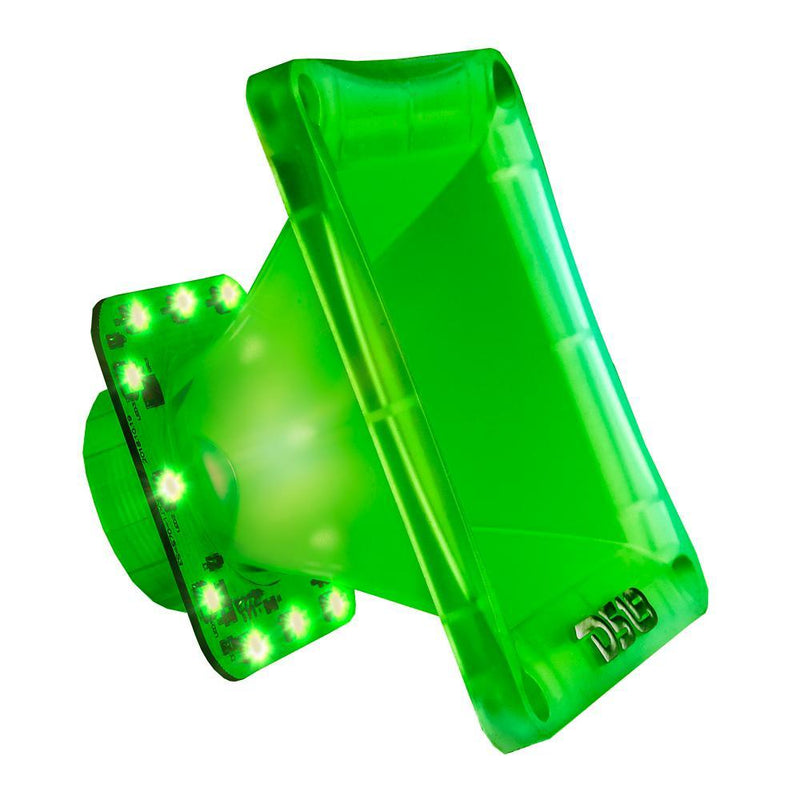

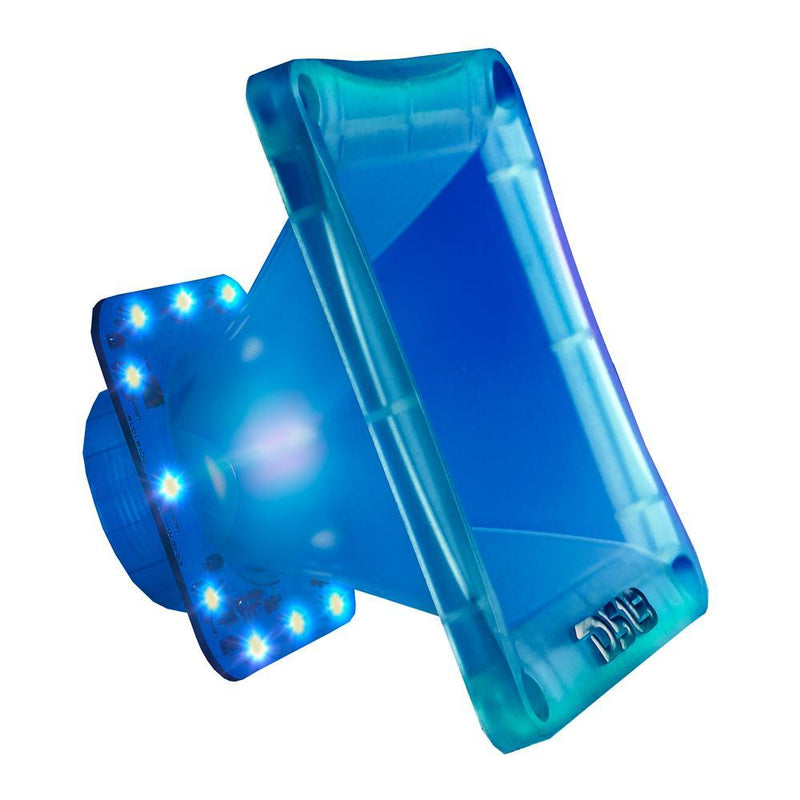

RGB Lighting Built-in

RGB Wires: 1m Input

Dimensions:

Overall Diameter: 115 x 115mm / 4.53 x 4.53"

Overall Depth: 77mm / 3.03"

Net Weight: 85g (0.19lbs)

Mounting Hole Cutoff: 83.3 x 83.3mm / 3.28 x 3.28"
