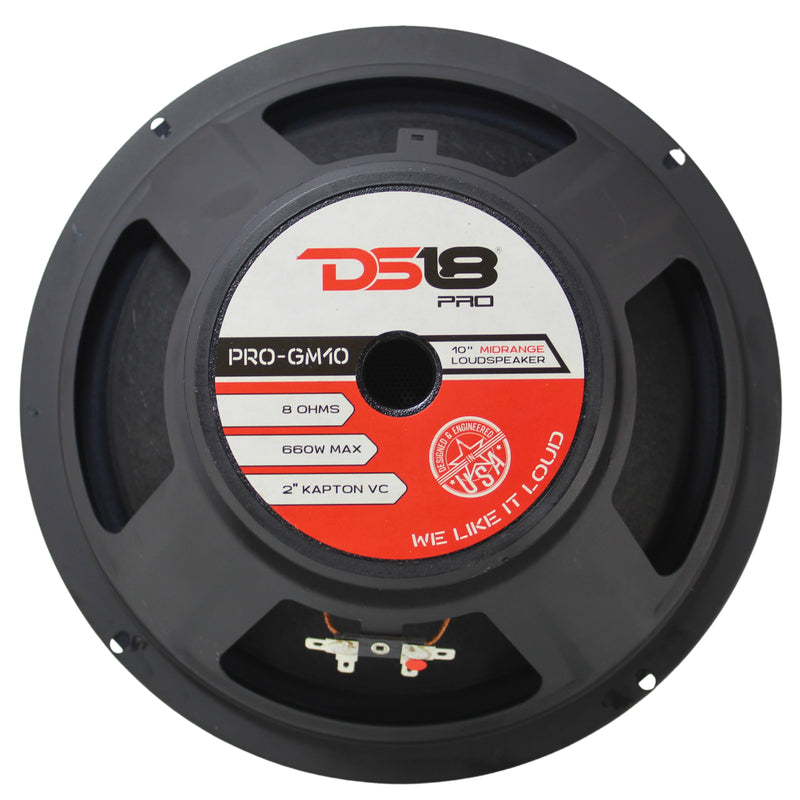

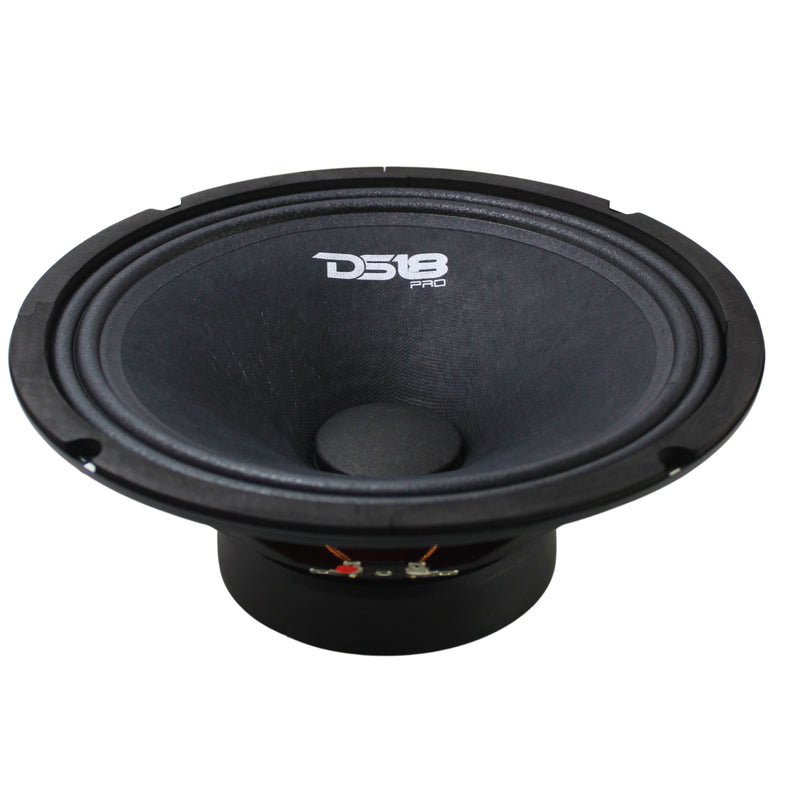

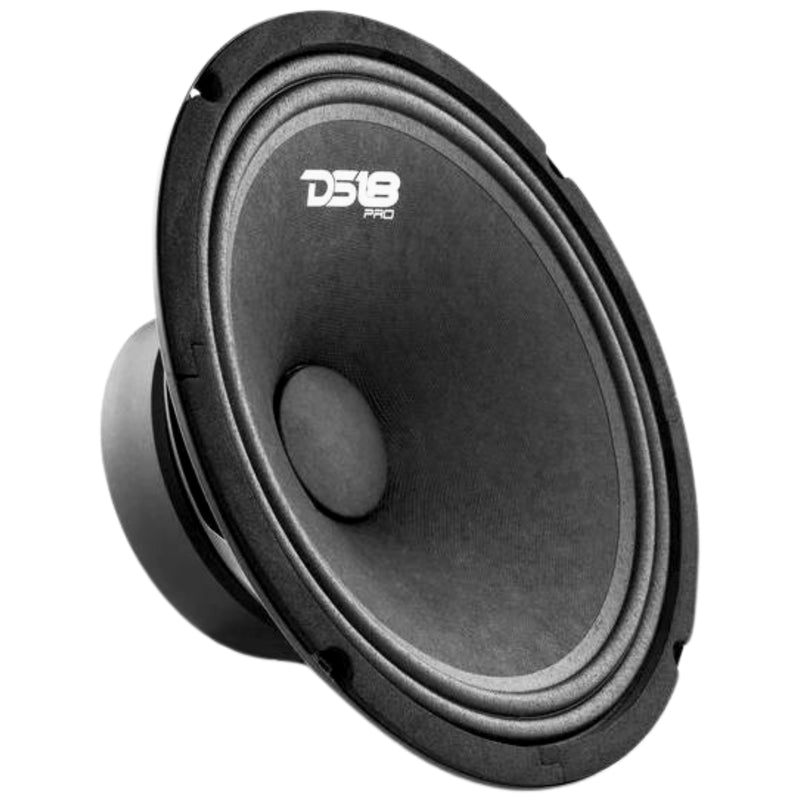

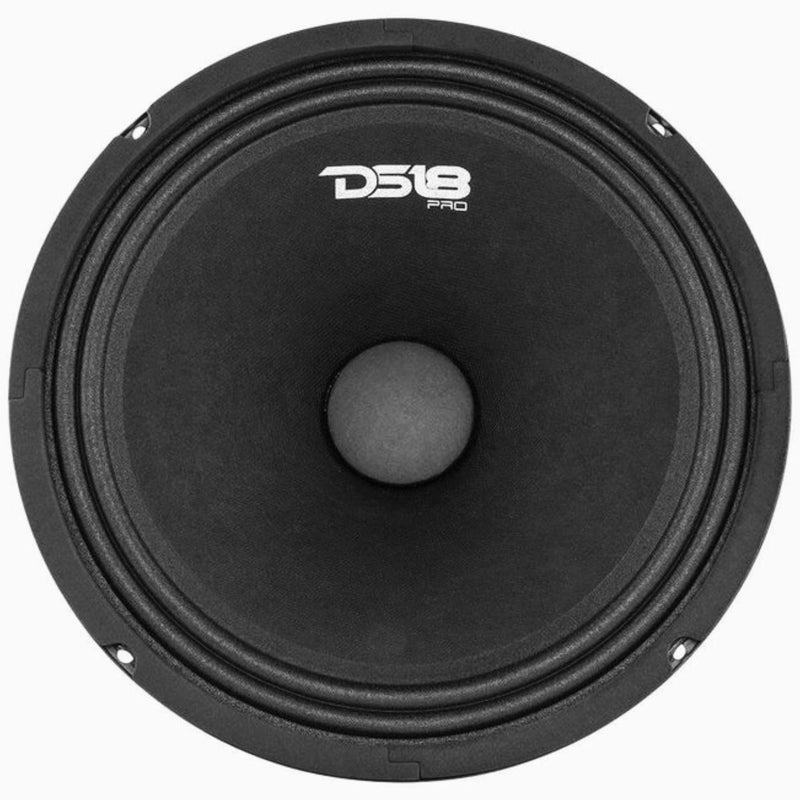

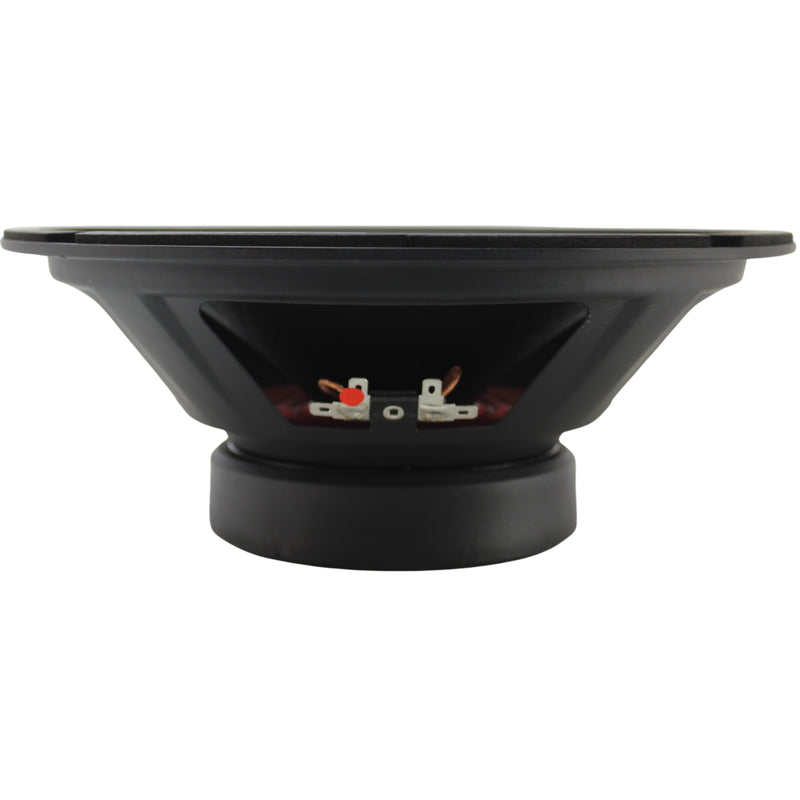

DS18 Car Audio 10" Classic Midrange Loud Speaker 660 Watts 8 Ohm PRO-GM10

During the focused R&D period of perfecting the PRO-EXL line, DS18 identified the opportunity to spawn off another line since there was a division amongst competition audiophiles and concert/"voceteo" audiophiles. Therefore, DS18 created the PRO-GM audio line, which features a wide variety of midranges the produce concert-like sounds that will knock the wind out of you.

A midrange driver is called upon to handle the most significant part of the audible sound spectrum, the region where the most fundamentals emitted by musical instruments and, most importantly, the human voice, lie. This region contains sounds which are the most familiar to the human ear, and where discrepancies from faithful reproduction are most easily observed. It is therefore paramount that a midrange driver of good quality be capable of low-distortion reproduction.

This listing includes:
(1) DS18 10" Loudspeaker PRO-GM10

Nominal Diameter: 10"
Nominal Impedance: 8 Ohms
RMS Power Handling: 220 Watts
Max Power Handling: 660 Watts
Sensitivity: 95 dB
Frequency Response: 40 Hz ~ 6.3 kHz
Recommended Hi Pass Crossover: 90 Hz
Voice Coil Diameter: 2" (50.8mm)
Voice Coil Former Material: Kapton
Winding Material: CCAW
Cone Material: Paper
Dust-cap Material: Paper
Surround Material: Cloth
Basket Material: Steel
Basket Color: Matte Black
Magnet Material: Ferrite
Magnet Weight: 30 Oz

Equivalent Volume: Vas - 75.76L / 2.67ft³
Free Air Resonance: Fs - 67 Hz
Mechanical Factor: Qms - 11.409
Electrical Factor: Qes - 1.13
Total Factor: Qts - 1.028
Mechanical Mass: Mms - 12.66g
BL Factor: BL - 5.43
Voice Coil Inductance: Le - 0.962 mH
Cone Area: Sd - 349.67cm²
DC Resistance: Re - 6.2 Ohms

Overall Diameter: 10.1" (256mm)
Overall Depth: 4" (103mm)
Front Mount Baffle Cutout: 9" (230mm)
Mounting Depth: 3.7" (96mm)
Motor Diameter: 4.72" (120mm)
