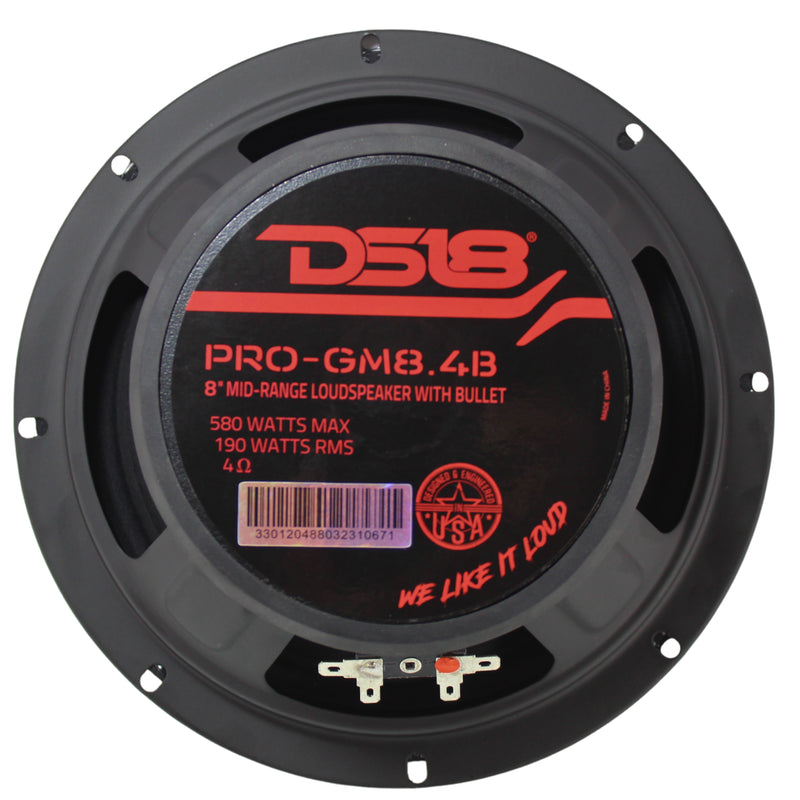

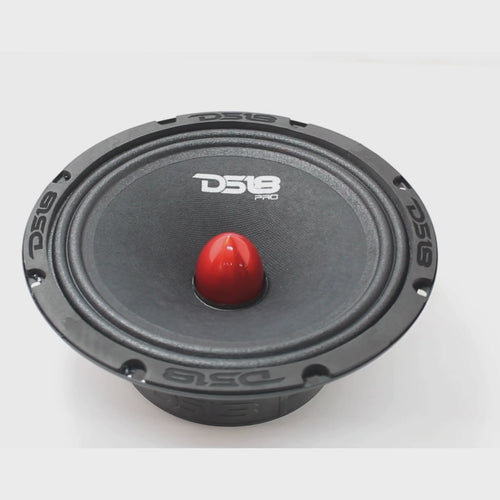

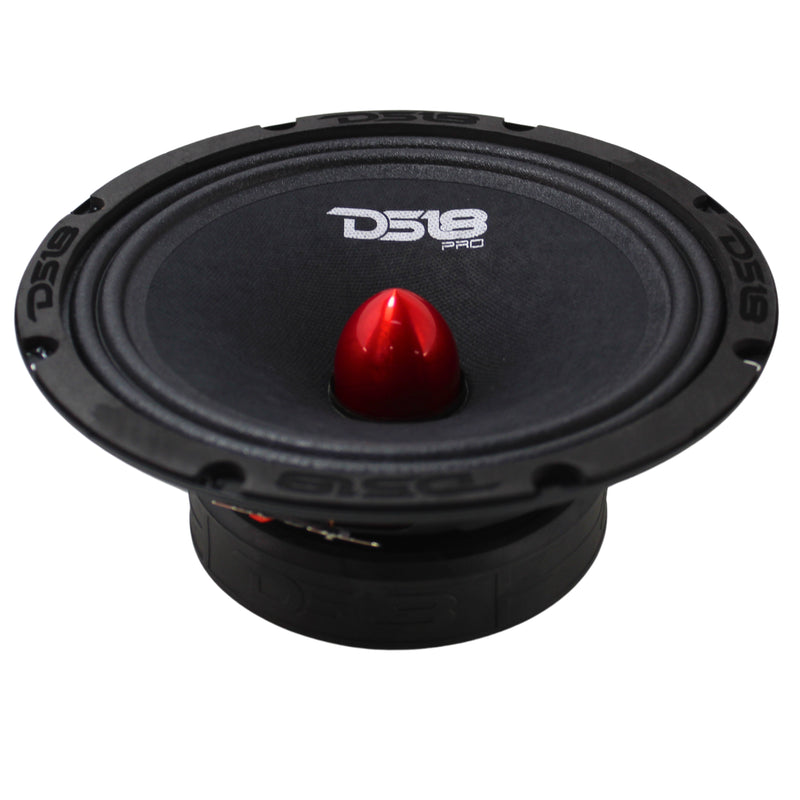

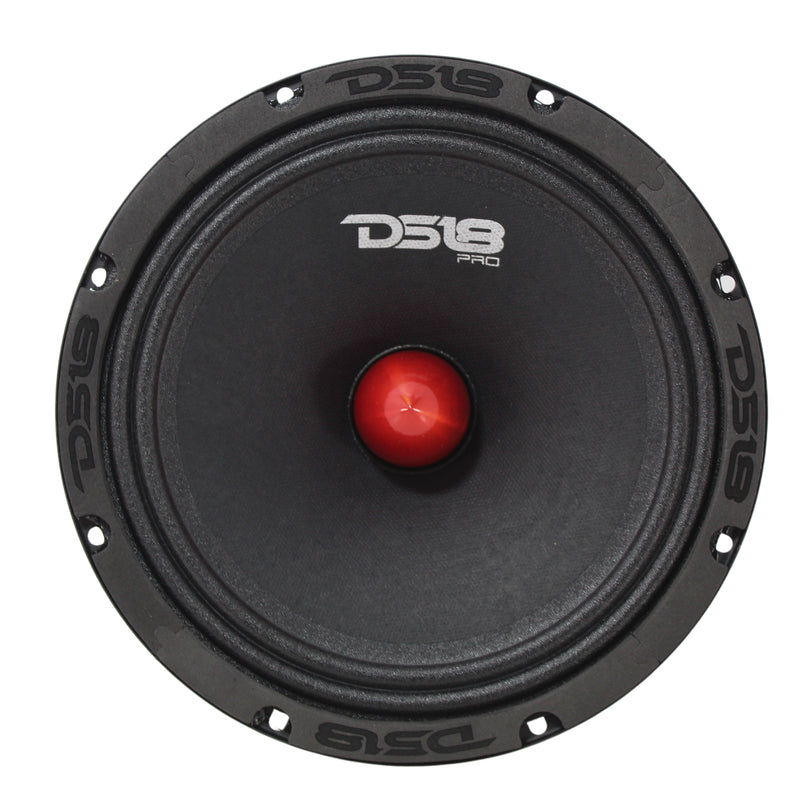

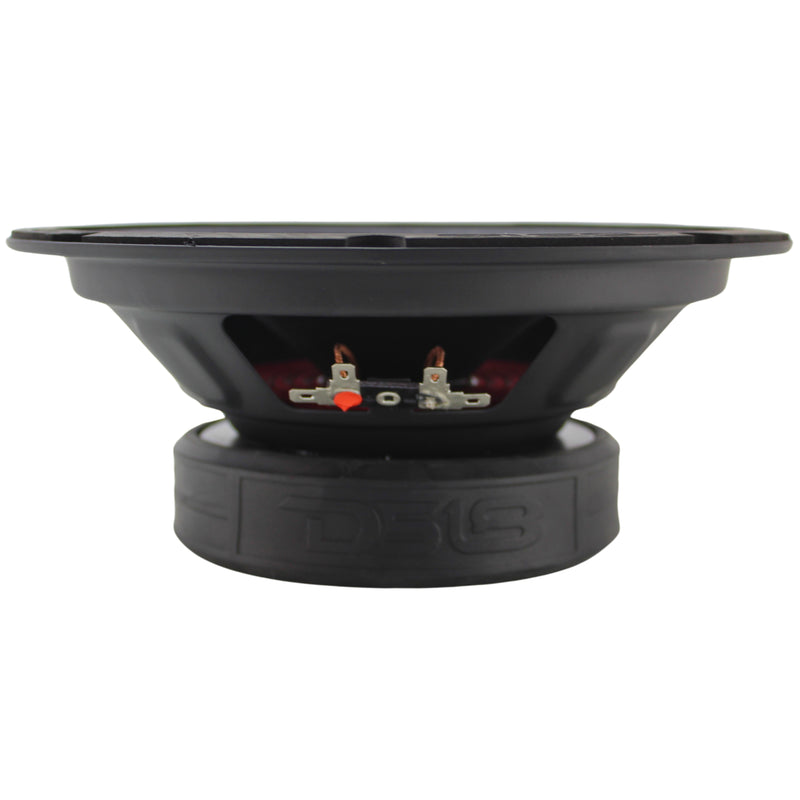

1x 8" DS18 Mid Range Red Bullet Loud Speaker 580 Watts 4 Ohms PRO-GM8.4B

1x 8" DS18 Mid Range Red Bullet Loud Speaker 580 Watts 4 Ohms PRO-GM8.4B

The PRO GM series was brought in to bring loud, high quality pro audio to the entry level user. This pro audio is leaps ahead of the competition in quality and over all loudness. The PRO GM series is offered in many different styles and variations to fit all your system's needs.

DS18's highly popular series of High Powered pro audio.
Great DS18 design of high durability parts including strong ferrite magnet, pressed paper cone, and CCA voice coils to get you maximum loudness with great sound quality. BM stands for BULLET! This includes a resonator (tweeter) with red bullet design to give the speaker a much higher range of frequencies.

This listing includes:
(1) DS18 8" Loudspeaker PRO-GM8.4B

SPECIFICATIONS:
Nominal Diameter: 8"
Nominal Impedance: 4 Ohms
RMS Power Handling: 190 Watts
Max Power Handling: 580 Watts
Sensitivity (1w/1m): 96 dB
Frequency Response: 90Hz ~ 10kHz
Recommended Hi Pass Crossover: 120Hz
Voice Coil Diameter: 1.5"
Voice Coil Former Material: Kapton
Winding Material: KCCAW
Cone Material: Paper
Dust-cap Material: Paper
Bullet Material: Aluminum
Surround Material: Cloth
Basket Material: Steel
Magnet Material: Ferrite
Magnet Weight: 30 Oz

THIELE & SMALL PARAMETERS:
Equivalent Volume: Vas - 17.832L
Free Air Resonance: Fs - 110 Hz
Mechanical Factor: Qes - 7.857
Electrical Factor: Qts - 0.665
Total Factor: Re - 3.2 Ohms

MEASUREMENTS:
Overall Diameter: 8.23" (209mm)
Overall Depth: 3.39" (86mm)
Front Mount Baffle Cutout: 7.17" (182mm)
Mounting Depth: 3.11" (79mm)
Motor Diameter: 4.72" (120mm)
