1500 Watt 1-Ohm Monoblock Class D Car Audio Amplifier DS18 SXE-1500.1D-RD

• 1500W Monoblock amplifier with RMS ratings of 200W at 4 ohms, 350W at 2 ohms, and 500W at 1 ohm.
• Compact Class D design ensures high-efficiency amplification with clear, powerful sound.

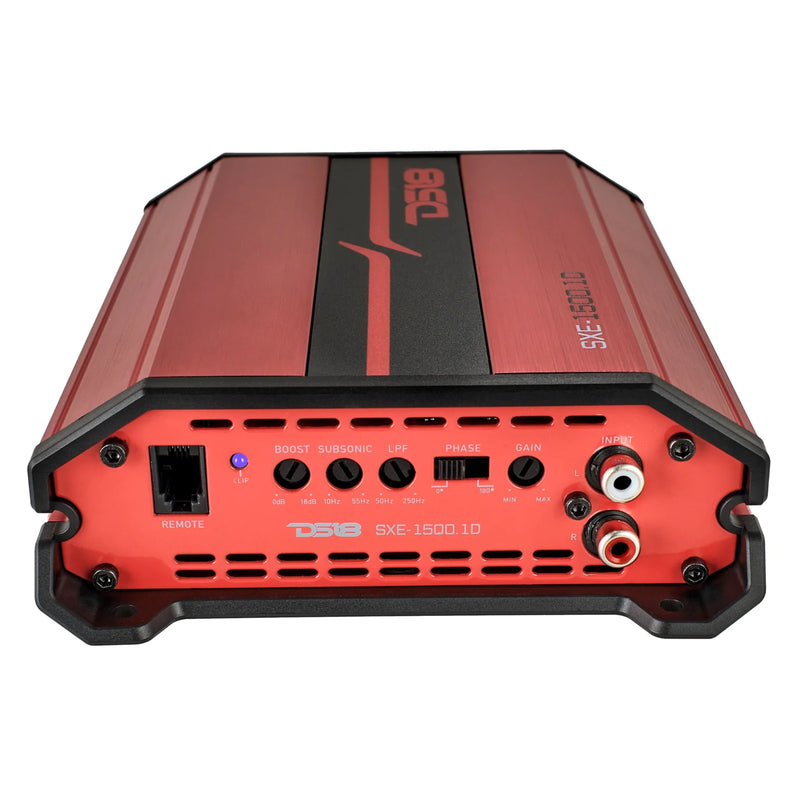

• Adjustable lowpass and subsonic filters with a bass boost up to 18dB for precise audio control.
• Built-in LED indicators and multiple protection features, including thermal, overload, and short circuit protection.
• Remote level control with clip indicator for easy in-vehicle audio customization.

500 Watts 1-Ohm Monoblock Class D Car Audio Amplifier DS18 SXE-1500.1D-RD

This Listing Includes:

• (1) Monoblock Class D Car Audio Amplifier DS18 SXE-1500.1D-RD

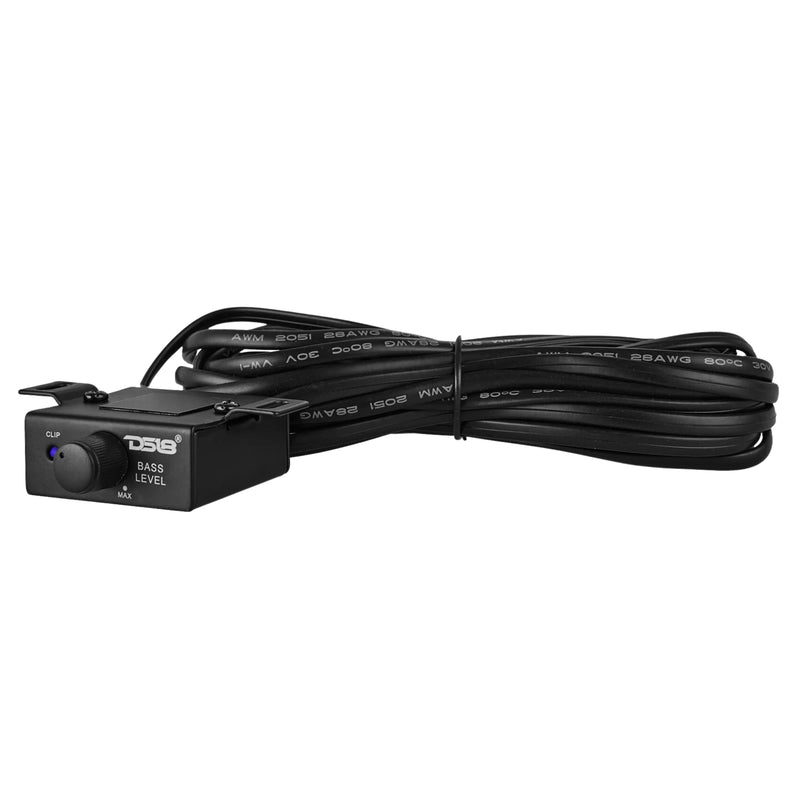

• (1) Bass Knob


• (1) set of mounting hardware

Description:

The SXE-1500.1D is a powerful 1500W Monoblock amplifier designed for deep, rich bass. With RMS power ratings of 200W at 4 ohms, 350W at 2 ohms, and 500W at 1 ohm, it offers high-efficiency amplification and compact design for easy installation. Its Class D digital design ensures clear sound, and 1-ohm stability provides reliable performance. Key features include adjustable lowpass and subsonic filters, a bass boost up to 18dB, and built-in LED indicators for clipping and protection. The remote level control allows easy customization, making it perfect for enhancing your car's audio system.

Features:

• Amplifier Class: Digital (D)


• Amplifier Type: Monoblock Subwoofer


• Number of Channels: 1


• Minimum Impedance: 1 Ohm


• LED Indicator: Power/Protect/Clip

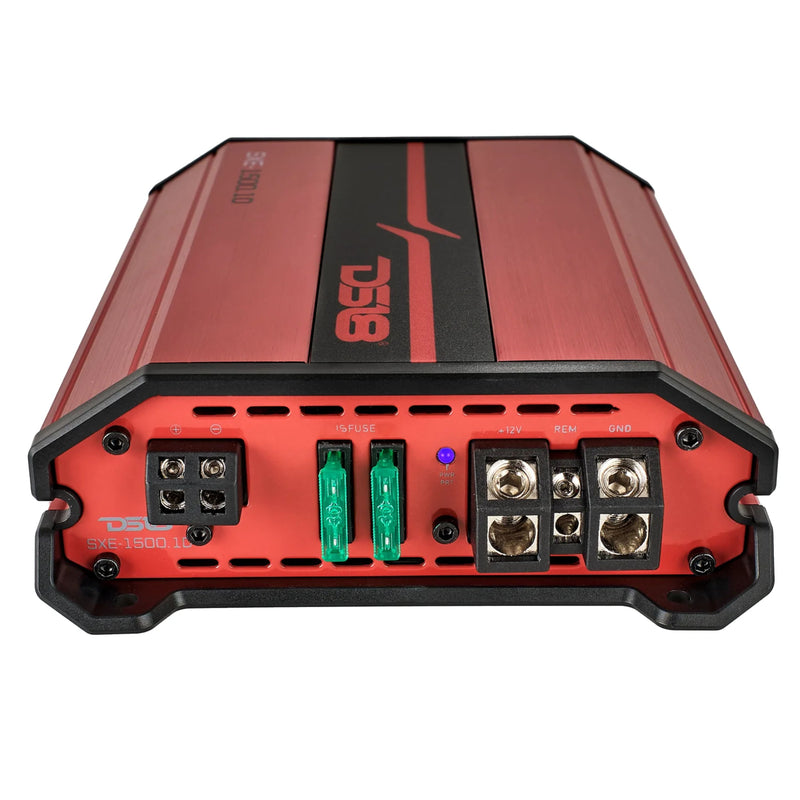

• Power Input Terminal Size: 4Ga


• Fuse Size: 2 x 30A (60A)


• Remote Level Control: Yes


• Cooling Fan: No


• Voltmeter: No


• Thermal Protection: Yes (70C)


• Over-Load Protection: Yes


• DC Output Protection: Yes


• Short Circuit Output Protection: Yes


• Voltage Input Protection: Yes (16.5V)


• Clipping Protection: Yes


• Body Color / Finish: Red / Black Brushed Aluminum

Specifications:

• Total Watts (Peak): 1500W


• RMS Power @ 4 ohm: 200W


• RMS Power @ 2 ohm: 350W


• RMS Power @ 1 ohm: 500W

Audio Specifications:

• Frequency Response: 10Hz-250Hz


• Signal to Noise Ratio: 90dB


• Efficiency @ 4ohm: 80%


• Damping Factor: 140


• Input Impedance: 20k©


• Channel Separation: N/A


• Total Harmonic Distortion (THD): 0.05%


• Low Level Input Range: 200mV-5V


• High Level Input: No


• Selectable X-Over: Fixed LPF


• X-Over Filter Range: 50-250Hz


• Bass Boost Range: 0-12dB


• Bass Boost Frequency: 45Hz


• Infrasonic Filter: 10-55Hz


• Phase Selector: 0-180

Measurements:

• Overall Length: 7.68" / 195mm


• Overall Width: 5.5" / 140mm


• Overall Height: 1.8" / 48mm


• Heatsink Length: 6.18" / 157mm
