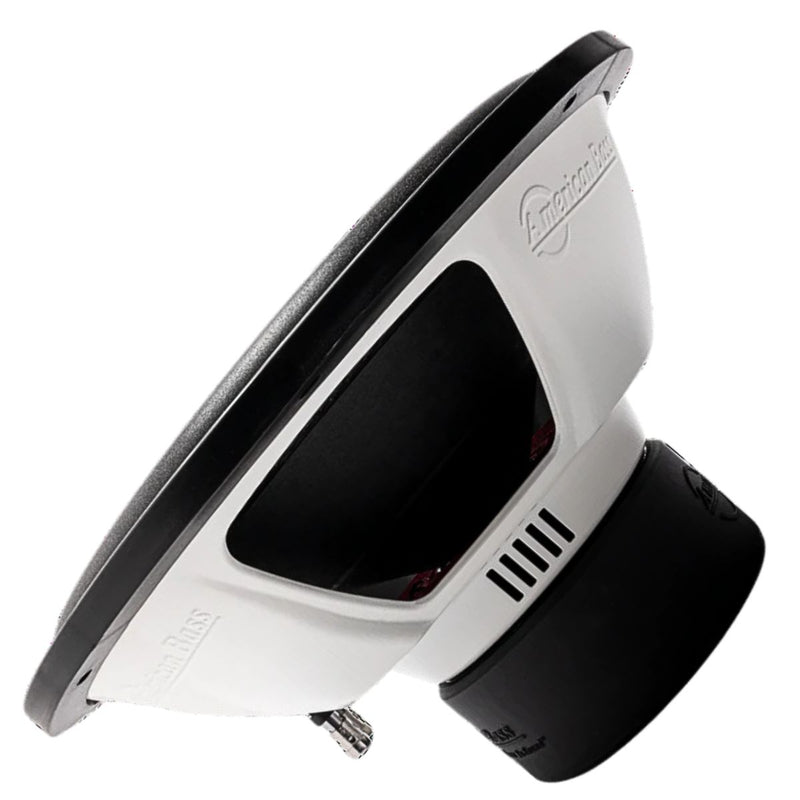

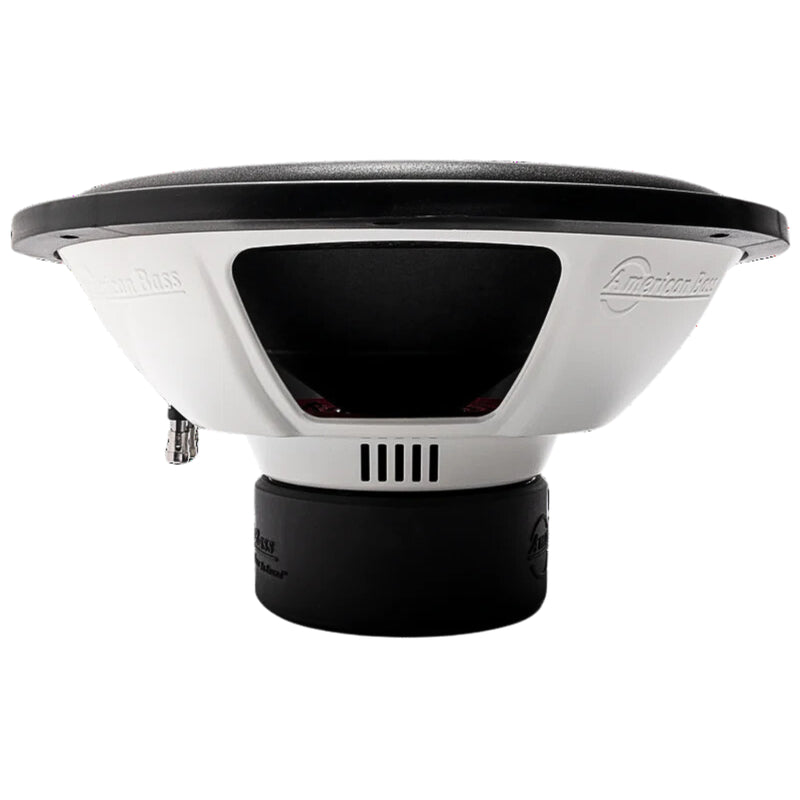

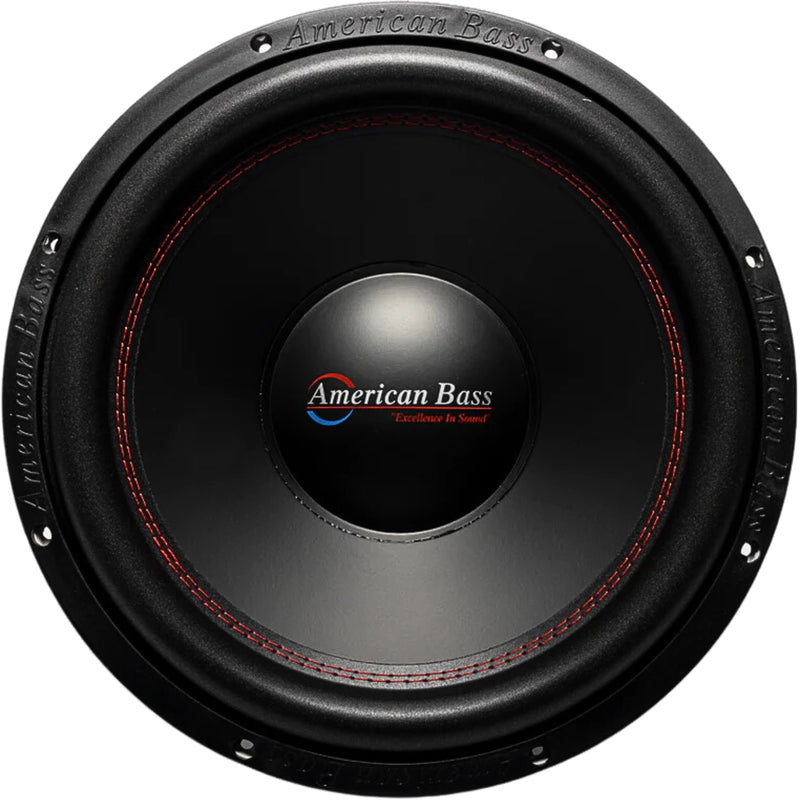

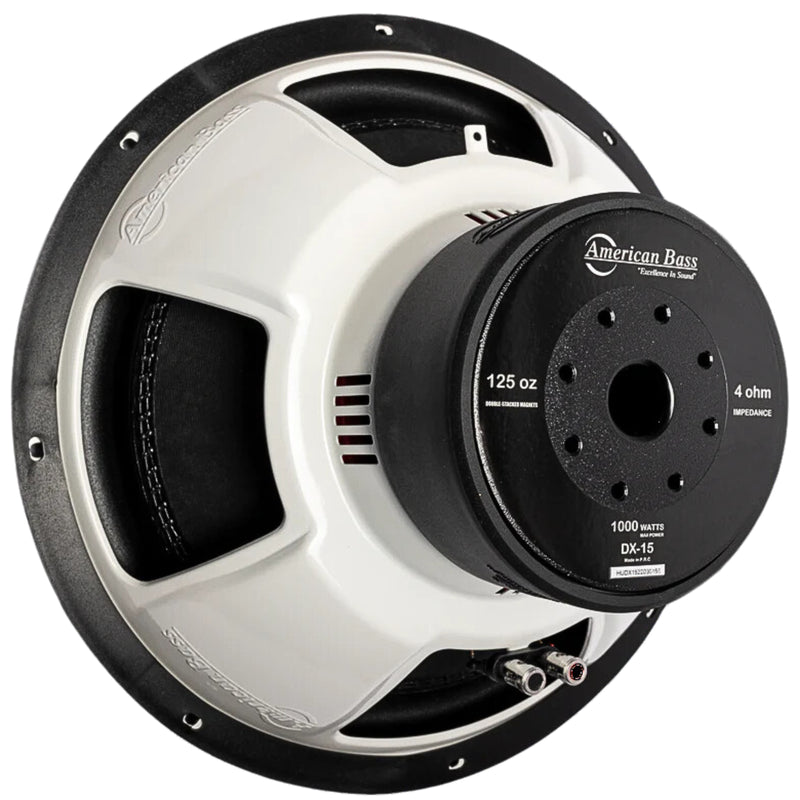

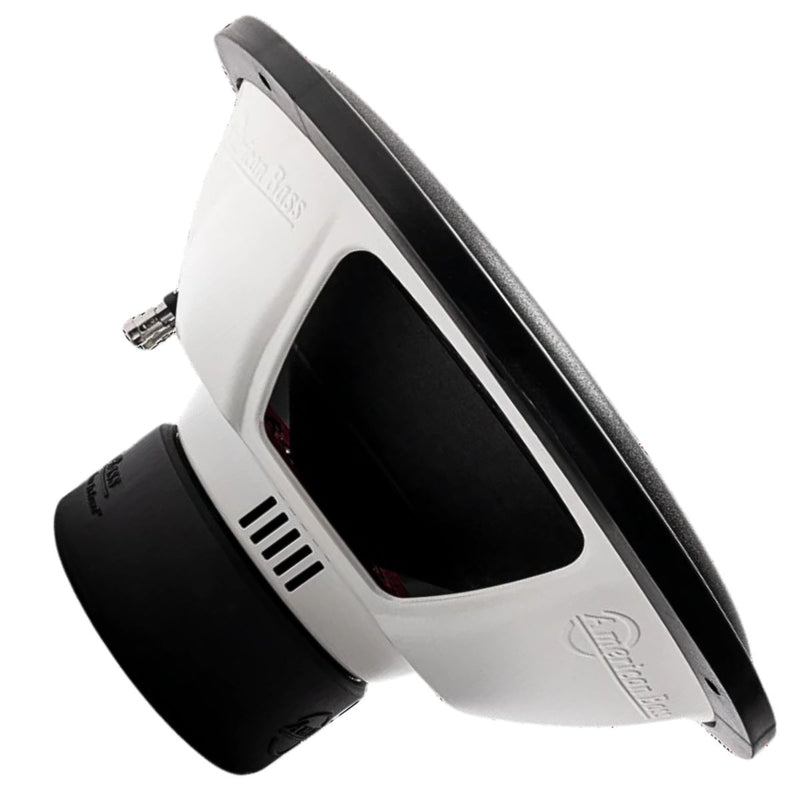

American Bass 15" 500 Watt RMS 4-Ohm DX Series Car Audio Subwoofer DX-154

CASE QUANTITY: N/A

PACKAGE WEIGHT: 23.0 LB

SKU AB-DX-154
Save 20% Save 20%
Original price $144.90
Original price $144.90 - Original price $144.90
Original price $144.90
Current price $115.92
$115.92 - $115.92
Current price $115.92

Free Gifts when added to Cart

The more you spend, the greater selection of free gifts you'll have at your fingertips when selecting items in your shopping cart!

  • HIGH POWER BASS PERFORMANCE: Handles 500W RMS and 1000W MAX for strong, reliable low-frequency output in daily and SPL builds
  • DEEP LOW-END RESPONSE: 30.4Hz Fs and 12.5mm Xmax allow for powerful bass extension when paired with the right enclosure
  • 15-INCH HIGH OUTPUT DESIGN: Large cone area moves more air for louder, deeper bass reproduction
  • 4-OHM IMPEDANCE: Compatible with a wide range of mono amplifiers for flexible system design
  • HIGH-TEMP 2.5" VOICE COIL: 4-layer construction improves heat dissipation and durability under heavy load


American Bass 15" 500 Watt RMS 4-Ohm DX Series Car Audio Subwoofer DX-154


This Listing Includes:



  • (1) American Bass DX 15" Subwoofer DX-154


Prepare to shake the ground with the American Bass DX Series 15" Subwoofer - DX-15. This awesome entry-level subwoofer delivers unrivaled performance and features that satisfy any bass enthusiast. Enjoy reliable power and deep, pounding bass tones day after day, truly blowing you away with each beat. The DX Series is American Bass's best-selling subwoofer for a reason - it packs a serious punch and never disappoints. Optimized for everyday use, this plug-and-play unit promises extreme lows with no surprises. The subwoofer features quality construction with a 125oz magnet, 2.5" voice coil, and a durable S Steel basket. If you're seeking a high-performance subwoofer for everyday use, look no further than the DX Series from American Bass.


Features



  • 500 Watts RMS: Real bass. No fluff. Hits hard all day

  • 15" Subwoofer: Bigger cone, louder output, deeper lows

  • Deep 30Hz Bass: Feel it in your chest, not just hear it

  • 1000W Max Bursts: Handles peaks without folding

  • 4-Ohm Load: Easy amp pairing, clean power delivery

  • 2.5" Voice Coil: High-temp, abuse-ready performance

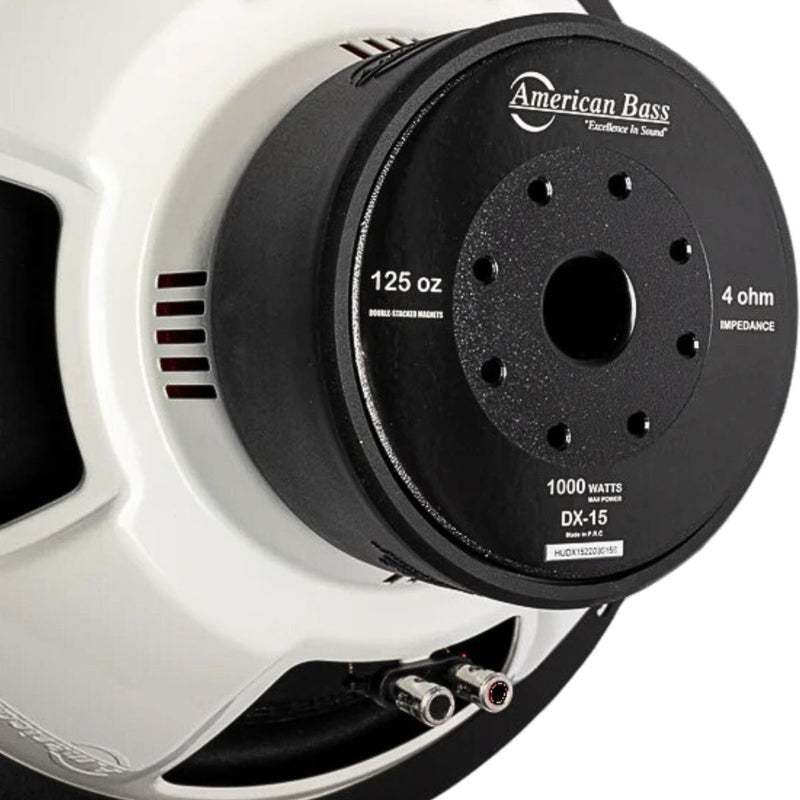

  • Heavy Ferrite Motor: 125 oz magnet = serious control

  • High Excursion: 12.5mm Xmax for moving real air


Specifications:



  • Nominal Diameter: 15" RMS

  • Power Handling: 500 Watts

  • Max Power Handling: 1000 Watts

  • Nominal Impedance: 4 Ohms

  • Frequency Response: 30Hz - 500Hz

  • Sensitivity: 89.8 dB

  • Voice Coil Diameter: 2.5"

  • Voice Coil Type: Hi-Temp 4-Layer

  • Magnet Type: Ferrite

  • Magnet Weight: 125 oz

  • Frame Material: Stamped Steel

  • Cone Material: Non-Pressed Paper

  • Surround Material: Foam


T/S Parameters



  • Re: 3.2 Ohms

  • Fs: 30.4 Hz

  • Qms: 4.76

  • Qes: 0.64

  • Qts: 0.56

  • Vas: 89.6 L

  • Xmax: 12.5 mm

  • BL: 16.29

  • Mms: 259.6 g

  • Le: 3.78 mH

  • Sd: 804 cm


Dimensions:



  • Diameter: 15.5"

  • Mounting Depth: 7.1"

  • Baffle Cut: 13.9"
