- EXTREME 2,000W RMS POWER HANDLING: Built for serious SPL performance, the Audiopipe TXX-BDX-15-D2 delivers 2,000 watts RMS and 4,000 watts peak power for deep, aggressive bass in high-output competition systems.
- DUAL 2-OHM VOICE COIL FLEXIBILITY: Dual 2-ohm configuration allows flexible wiring options for 1-ohm or 4-ohm final loads. Perfect for matching high-powered monoblock amplifiers in SPL and demo builds.

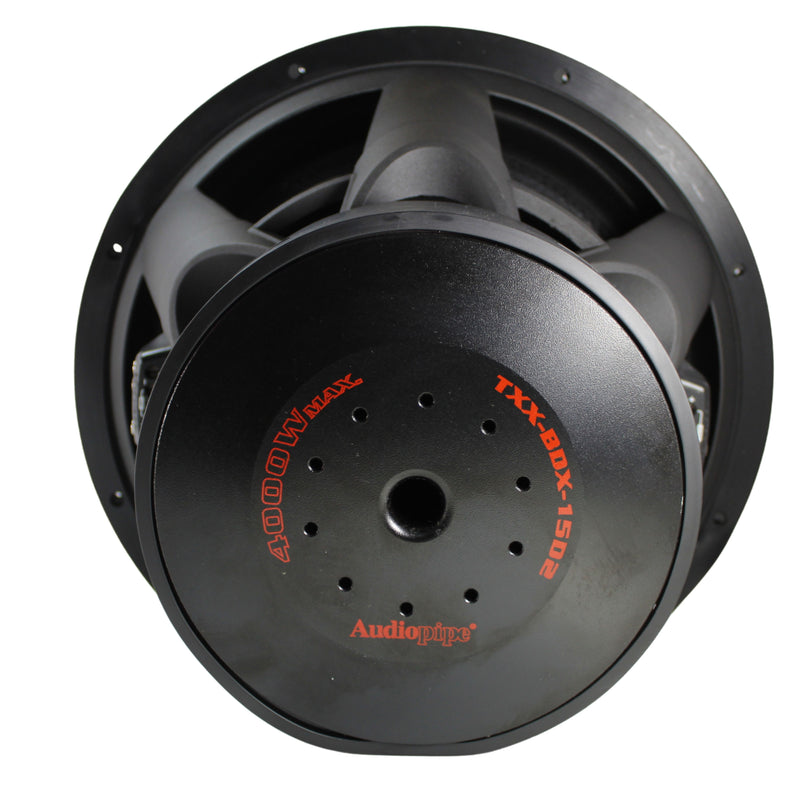

- MASSIVE 375 OZ TRIPLE MAGNET MOTOR: Three stacked magnets create a 375 oz motor structure for maximum motor force, stronger control, and higher output under extreme power conditions.
- 3” HIGH-TEMP BASV ALUMINUM VOICE COIL: Large 3-inch 2-layer black aluminum BASV voice coil with enhanced ventilation improves heat dissipation and durability during long demo sessions and competition runs.

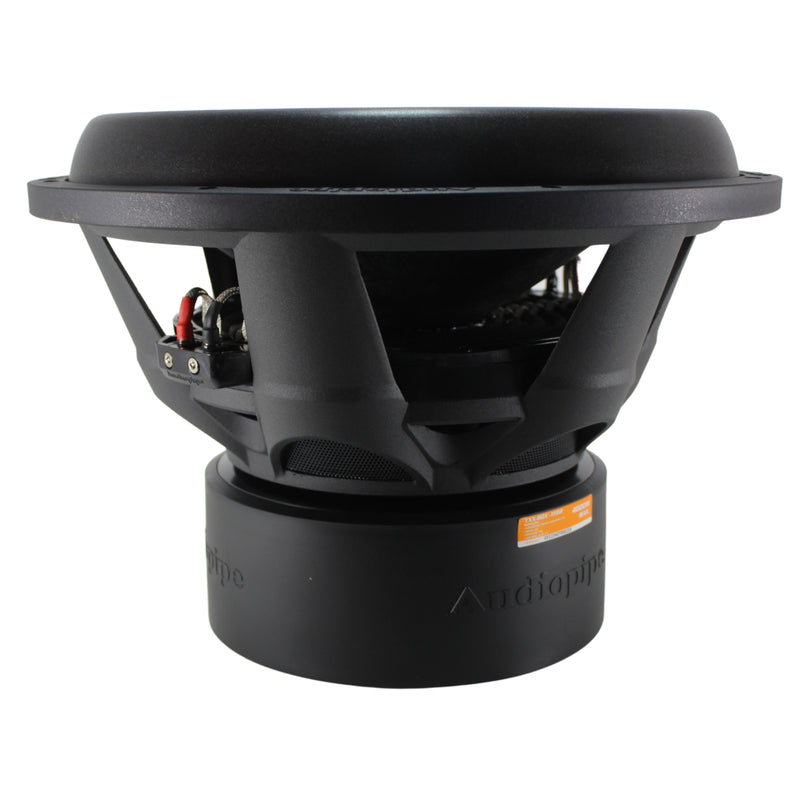

- COMPETITION-GRADE CONSTRUCTION: Powder-coated aluminum basket, sand-blasted non-press paper cone, reinforced black stitched surround, and vented T-yoke cooling system ensure long-term durability and reduced distortion at high excursion.

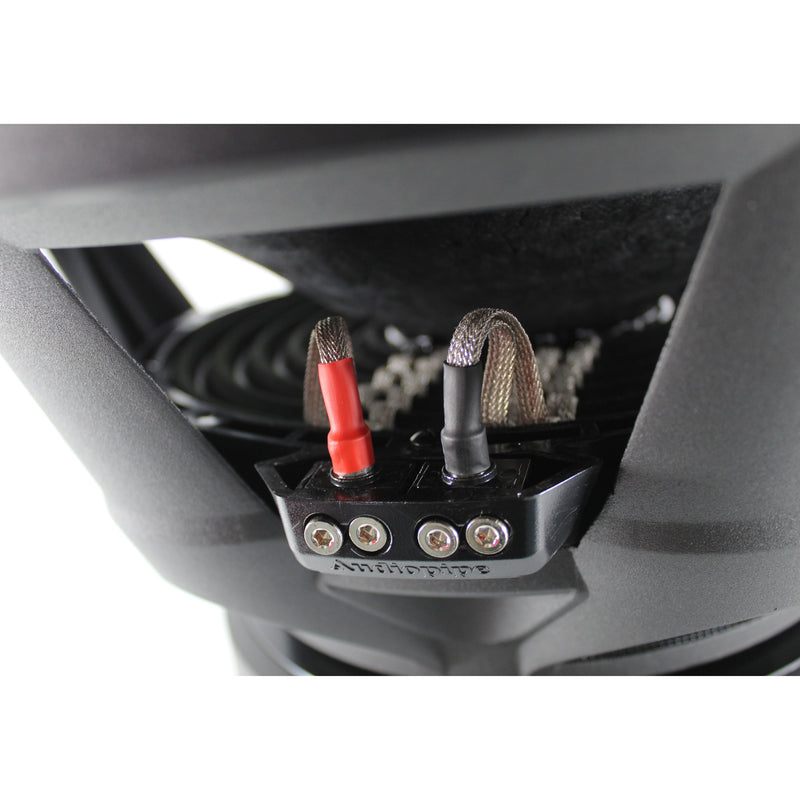

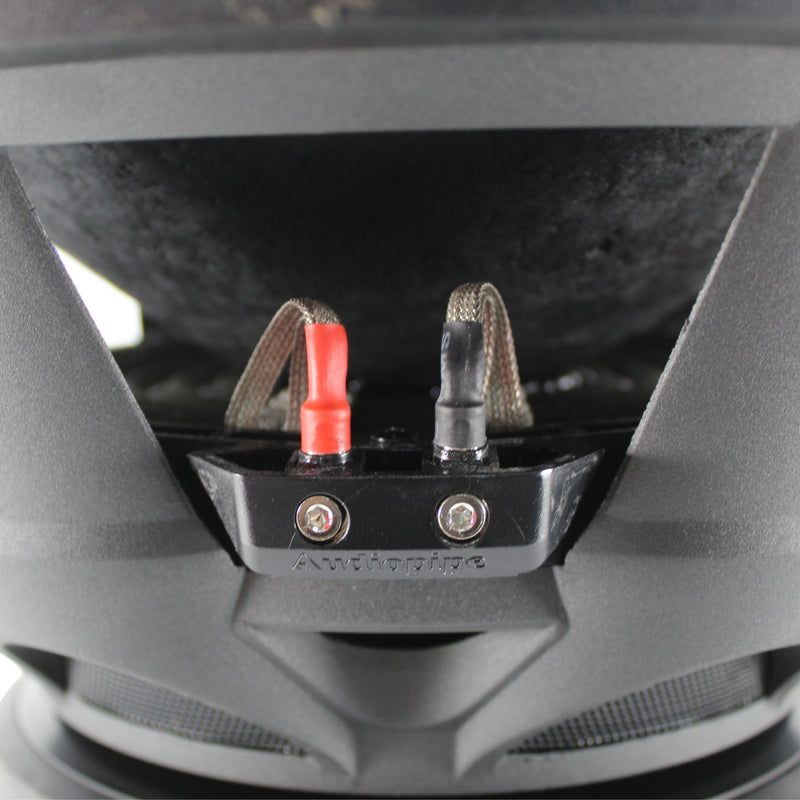

- EASY MULTI-CONNECT TERMINALS: Patent Pipe multi-connect terminals simplify parallel or series wiring for quick, secure amplifier connections.

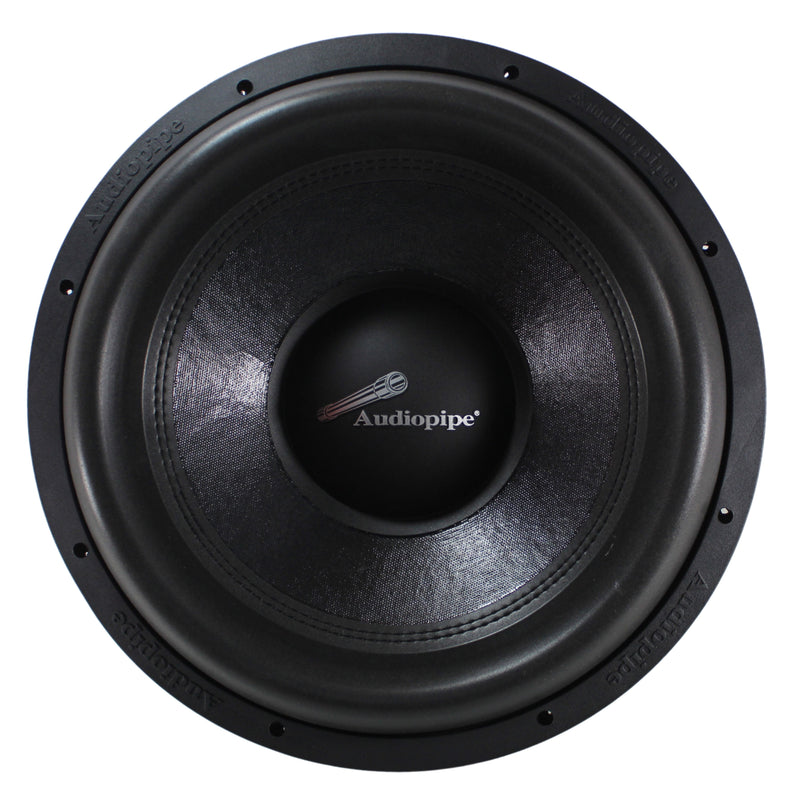

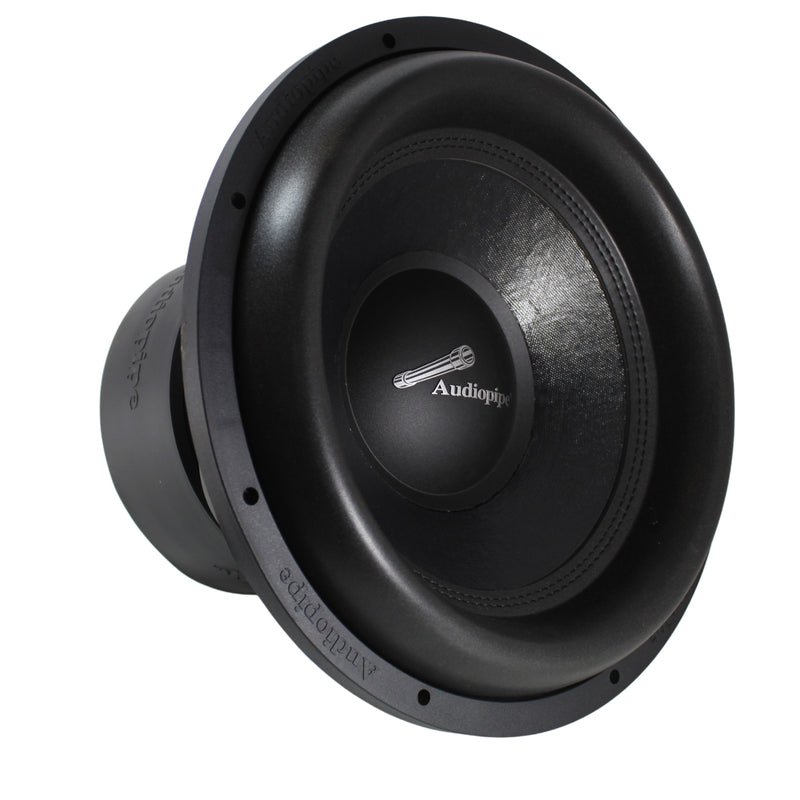

15" 2000W RMS 3" Dual 2-Ohm SPL Car Audio Competition BDX Audiopipe Subwoofer
This Listing Includes:
- (1) 15" Dual 2-Ohm Competition-Series Subwoofer
Built to move air. Built to survive it.
The Audiopipe TXX-BDX-15-D2 is a full-blooded SPL competition subwoofer engineered for extreme output and brutal low-frequency authority. Rated at 2,000 watts RMS with a staggering 4,000 watts peak, this 15" monster is designed to dominate high-output builds, demo vehicles, and serious competition systems.
At its core is a 375 oz triple-stacked magnet structure, delivering the motor force necessary for deep, punishing bass while maintaining control. The 3-inch 2-layer high-temperature black aluminum (BASV) voice coil is ventilated for improved heat dissipation, ensuring reliability even during extended high-power sessions.
An ultra-rigid aluminum basket, thick sand-blasted non-press paper cone, and reinforced black-stitched surround keep everything stable under extreme excursion. Vented T-yoke cooling channels help manage internal temperatures so the sub stays composed when the volume knob is buried.
This isn't a casual daily driver sub. It's built for systems that shake panels, flex metal, and make windshields nervous.
Features
- 2,000 Watts RMS power handling
- 4,000 Watts peak output
- Dual 2-Ohm voice coil configuration
- Massive 375 oz triple-magnet motor structure
- 3" high-temp BASV aluminum voice coil
- Enhanced voice coil ventilation
- Vented T-yoke cooling design
- Powder-coated black aluminum basket
- Sand-blasted non-press paper cone
- Reinforced black-stitched surround
- Patent Pipe multi-connect terminals for flexible wiring
Specifications:
- Power Handling: 2,000W RMS / 4,000W Max
- Impedance: Dual 2 Ohm
- Voice Coil: 3" 2-layer High-Temp Black Aluminum (BASV)
- Magnet Structure: Triple Stack - 375 oz
- Frequency Response: 28 Hz - 1,100 Hz
- Sensitivity: 87 dB
Theile & Small Peramiters
- Fs: 41 Hz
- Re: 4.4 Ohms
- Le: 0.45 mH
- Qts: 0.52
- Qes: 0.55
- Qms: 1.8
- Cms: 0.20 mm/N
- Vas: 23 Liters
- Mms: 640 g
- Md: 635 g
- No: 0.30%
- SPL (2.83V/1M): 87 dB
- BL: 49 Tm
- Sd: 830 cm
- Krms: 44 Ns/m
- Krm: 0.40 N/A
- Xmax: 7.5 mm
- Ebm: 0.75
- Voice Coil Diameter: 3 Inches
- Voice Coil Height: 48 mm / 12 mm Gap
- Voice Coil Layers: 2
- Magnetic Gap Height: 8 mm
- Linear Bottom Pole Extension: 8 mm
- Magnet Weight: 157 oz (4.45 kg)
- Motor Outside Diameter: 215 mm
- Net Weight: 55 lbs / 25 kg
Dimensions:
- Mounting Depth: 9.5"
- Total Depth: 10"
- Cutout Diameter: 13.875"
- Total Diameter: 15.5"
