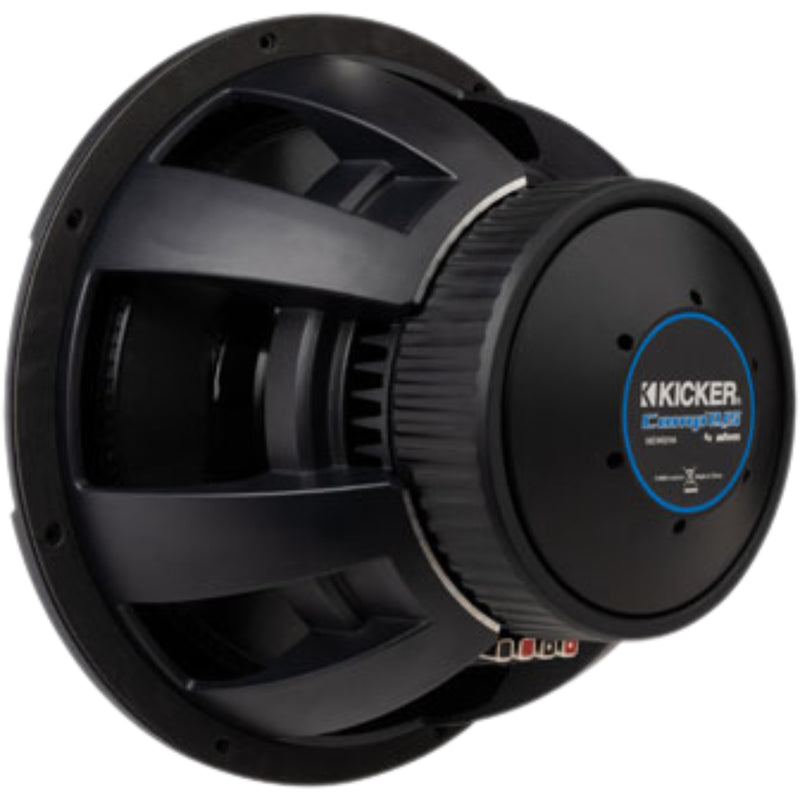

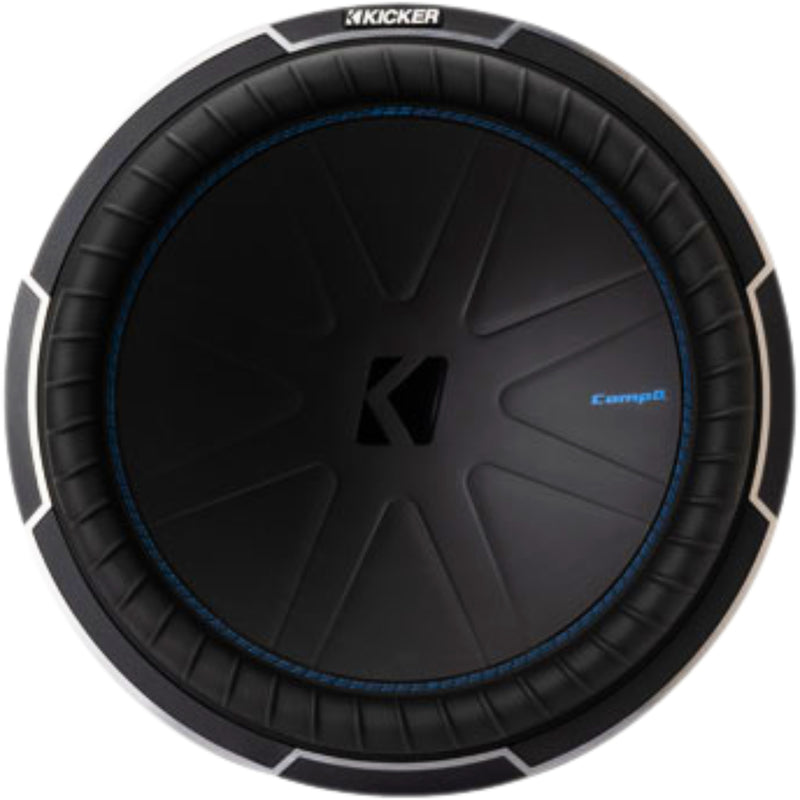

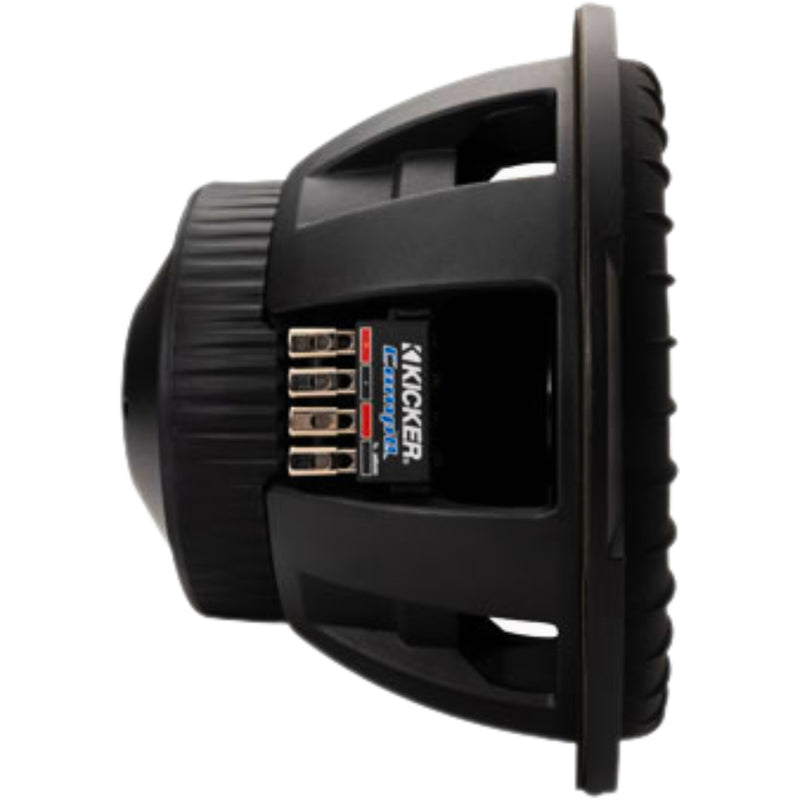

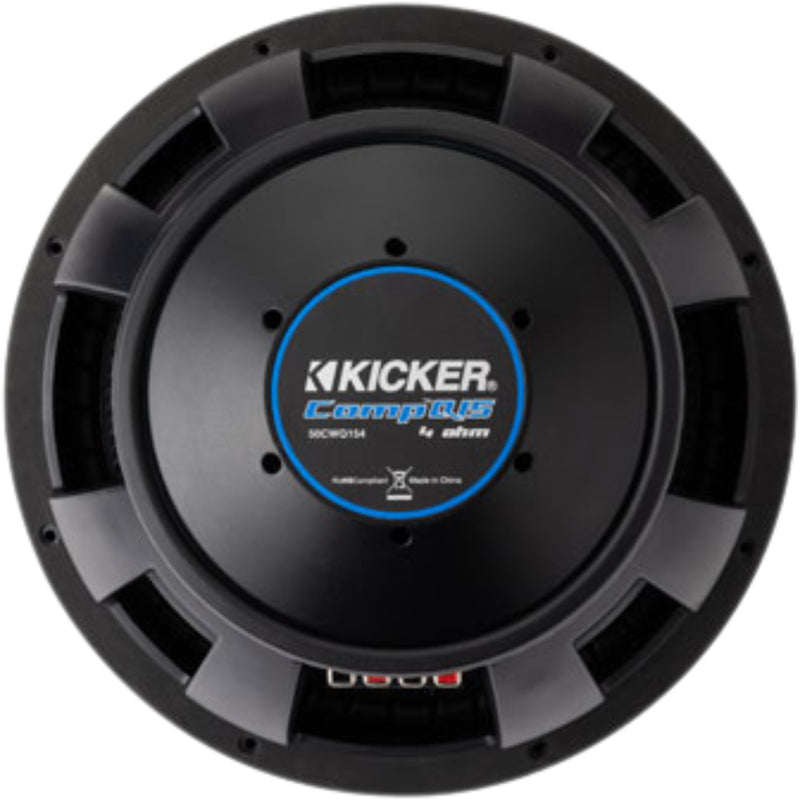

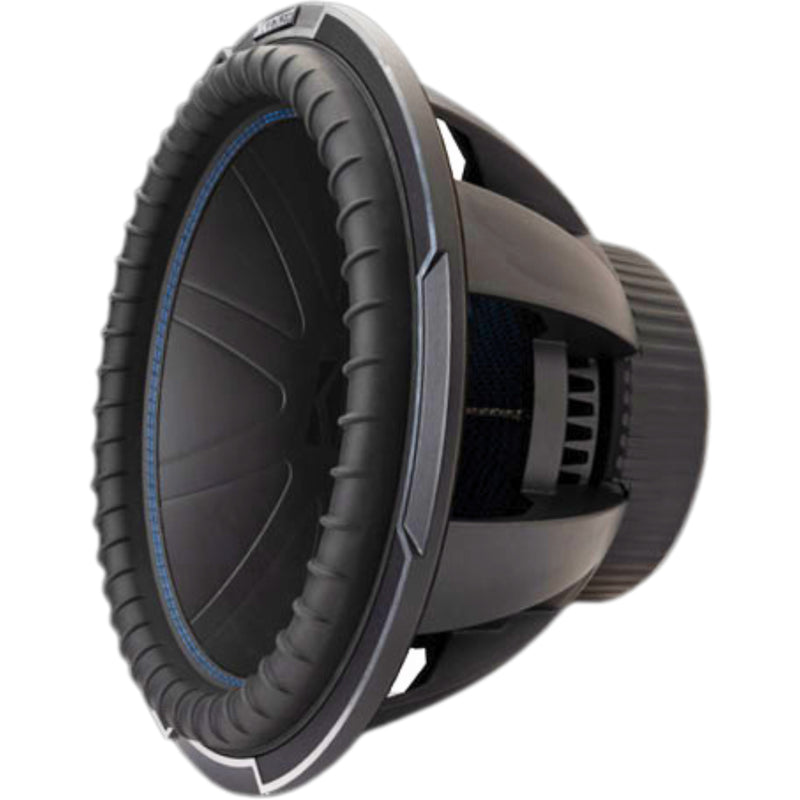

15" 1200W RMS 4-Ohm Dual Voice Coil Subwoofer Kicker CompQ Series 51CWQ154

15" 1200W RMS 4-Ohm Dual Voice Coil Subwoofer Kicker CompQ Series 51CWQ154

This Listing Includes:

• (1) 51CWQ154 Subwoofer

Description:

Unleash the full potential of your sound system with the Kicker CompQ Series 15" 1200W RMS Subwoofer. Designed for audiophiles who demand nothing but the best, this powerhouse delivers earth-shattering bass and impeccable sound quality. Its dual 4-ohm voice coils provide ultimate flexibility in wiring configurations, while the robust construction ensures longevity and performance under the most intense conditions. Whether you're driving through city streets or hitting the open road, the CompQ subwoofer guarantees a sonic experience that's as thrilling as your journey.

Download Owner's Manual

Features:

• Round Design: Delivers the power, capacity, and performance of the L7 square counterpart, utilizing a round basket and cone.
• High Performance: Pinnacle of KICKER's round speaker line, offering construction and performance nearly identical to the L7 square subs.

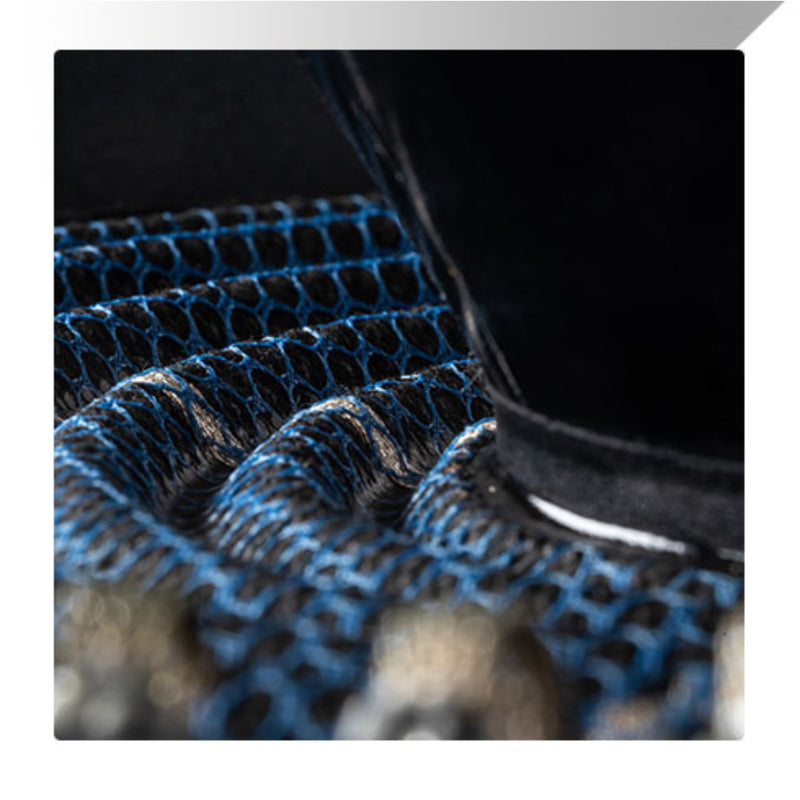

• Durable Components: Features Ribbed Santoprene surrounds and a BlueLace large-diameter progressive roll spider for extreme flexibility and durability at any volume.
• Power Handling: Built for high power handling, recommended for use with 1200 watts of power.
• Versatile Enclosure Compatibility: Optimized for both sealed and ported enclosures for accurate bass reproduction.

Specifications:

• Woofer (in, mm): 15, 38
• Impedance (Ohms): 4 DVC
• Recommended Amp Power (watts RMS): 600-1200
• Frequency Response (Hz): 18-100
• Sensitivity (1W, 1m): 88
• Xmax (mm): 23.7

Thiele & Small Parameters:

Electrical Parameters

• Re: 7.17 | Ohm | electrical voice coil resistance at DC
• Krm: 0.02065 | Ohm | WRIGHT inductance model
• Erm: 0.85 | WRIGHT inductance model
• Kxm: 0.10035 | Ohm | WRIGHT inductance model
• Exm: 0.74 | WRIGHT inductance model
• Cmes: 392.385 | µF | electrical capacitance representing moving mass
• Lces: 61.595 | mH | electrical inductance representing driver compliance
• Res: 126.425 | Ohm | resistance due to mechanical losses
• fs: 32.4 | Hz | driver resonance frequency

Mechanical Parameters

• Mms: 398.8545 | g | mechanical mass of driver diaphragm assembly including air load and voice coil
• Mmd (Sd): 372.5955 | g | mechanical mass of voice coil and diaphragm without air load
• Rms: 8.0415 | kg/s | mechanical resistance of total-driver losses
• Cms: 0.061 | mm/N | mechanical compliance of driver suspension
• Kms: 16.52 | N/mm | mechanical stiffness of driver suspension
• Bl: 31.8825 | Tm force factor (Bl product)

Loss factors

• Qtp: 0.67 | total Q-factor considering all losses
• Qms: 10.0965 | mechanical Q-factor of driver in free air considering Rms only
• Qes: 0.569 | electrical Q-factor of driver in free air considering Re only
• Qts: 0.5385 | total Q-factor considering Re and Rms only

Other factors

• Vas: 56.8694 | L | equivalent air volume of suspension
• n0: 0.326 | reference efficiency (2 pi-radiation using Re)
• Lm: 87.335 | dB | characteristic sound pressure level (SPL at 1m for 1W @ Re)
• Lnom: 87.84 | dB | nominal sensitivity (SPL at 1m for 1W @ Zn)
• Sd: 814.33 | cm² | diaphragm area
• Xmax: 23.7 | mm

Measurements:

• Mounting Depth (in, mm): 8-15/1, 22.6
• Mounting Diameter (in, mm): 13-7/8, 35.2
