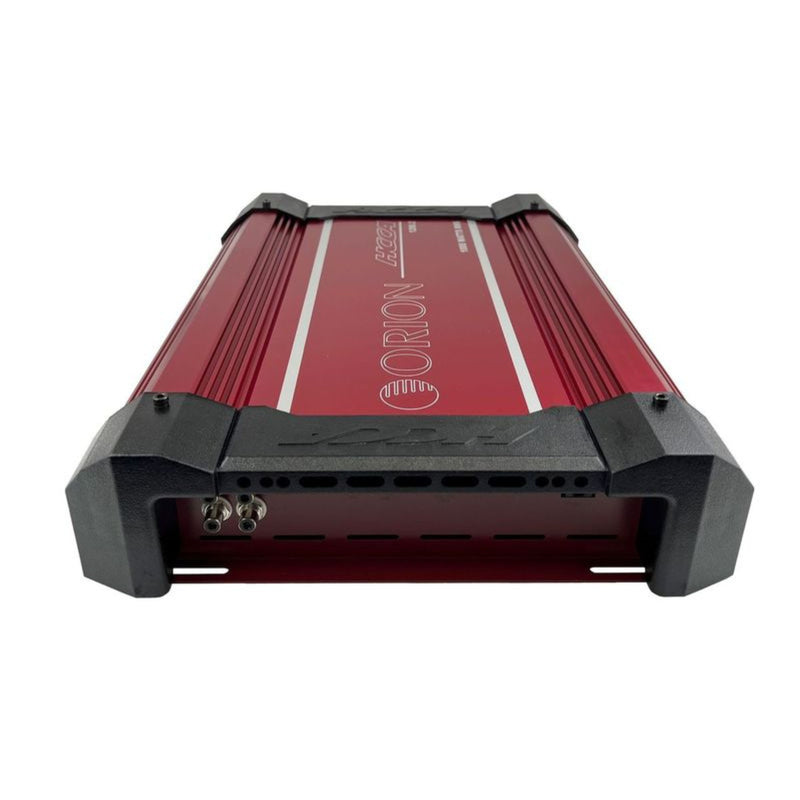

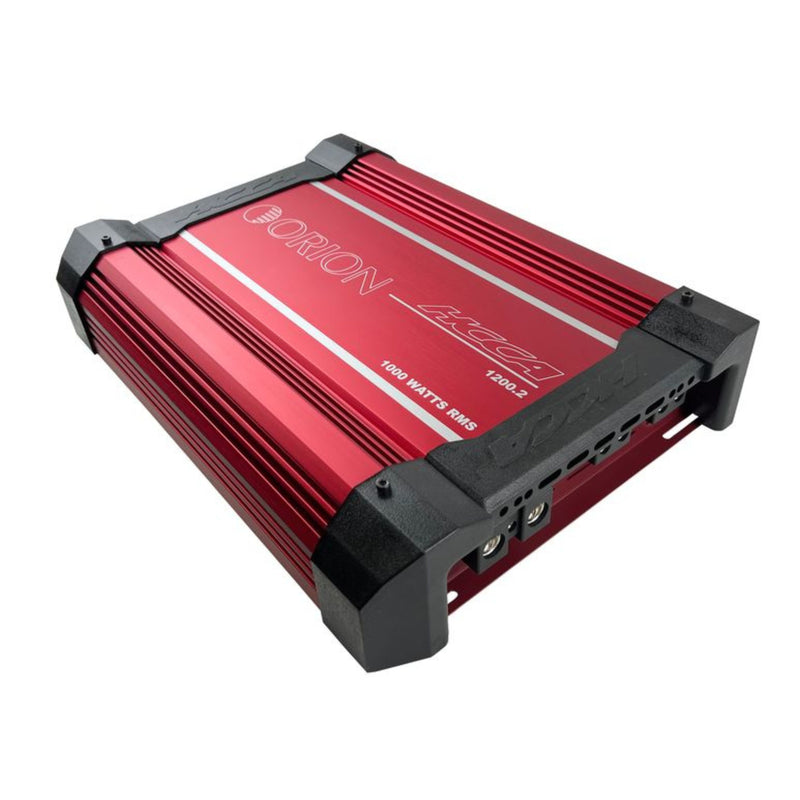

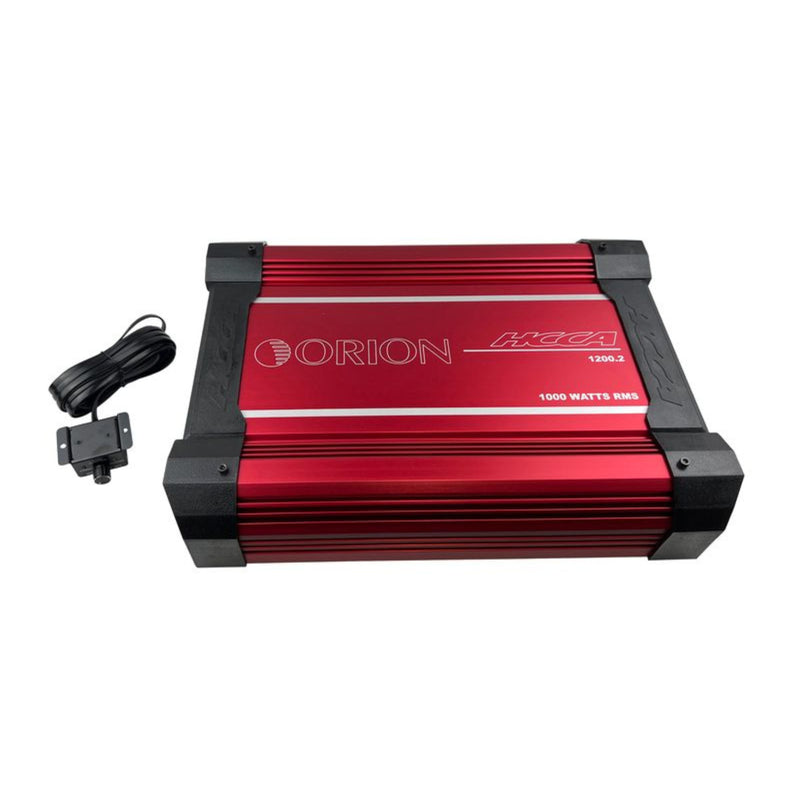

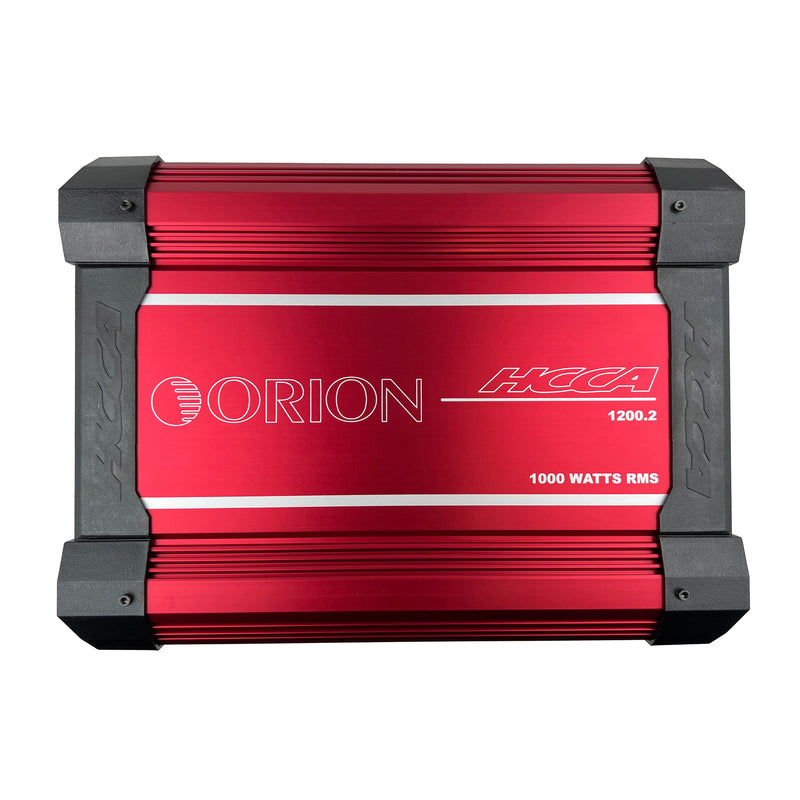

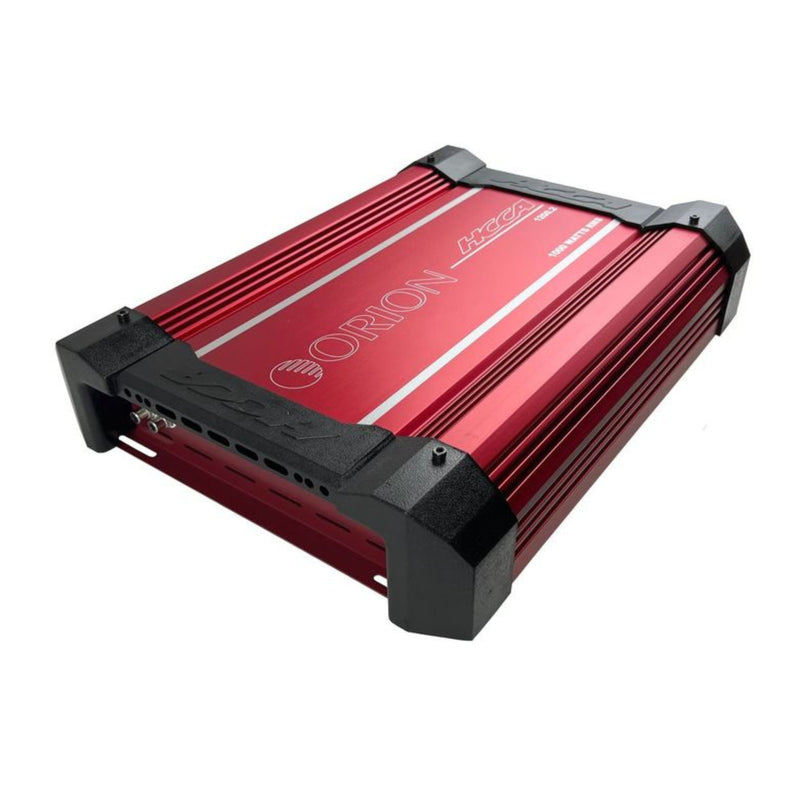

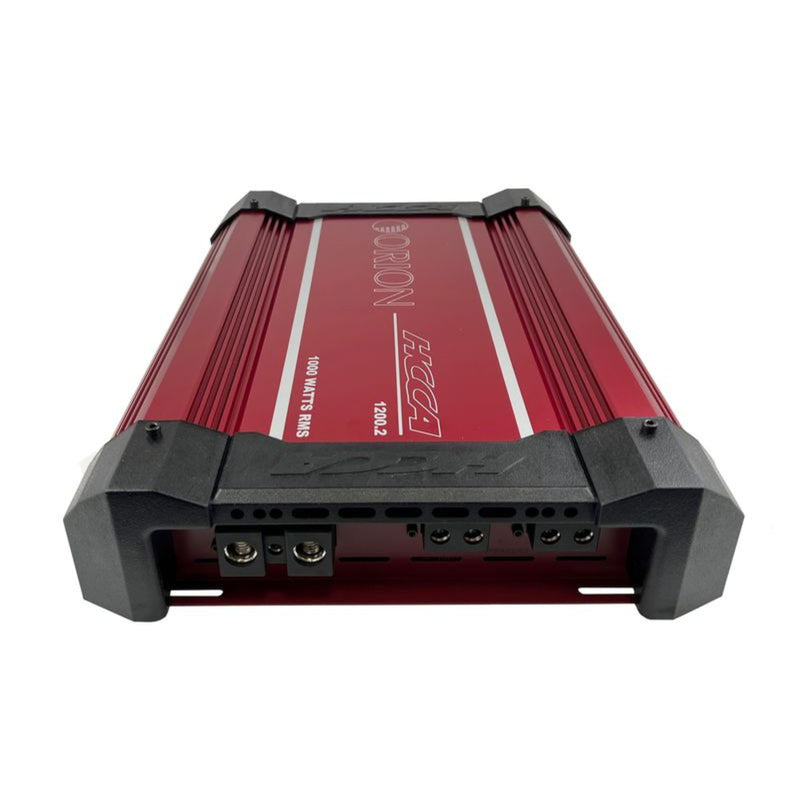

1200W RMS 2-Ohm Class A/B 2-Channel Amplifier ORION HCCA Series HCCA1200.2

• 1200W RMS Power: Experience intense power output with 1200W RMS at 2 Ohms, providing your speakers and subwoofers the energy they need to perform at their best.
• Class A/B Technology: Enjoy the perfect balance between efficiency and sound quality, ensuring crystal-clear audio reproduction across all frequencies.
• 2-Channel Flexibility: Versatile 2-channel configuration allows for multiple setup options, whether you’re running a pair of speakers or bridging the channels for subwoofer power.
• Enhanced Heat Management: Advanced cooling system ensures consistent performance and longevity, even during extended high-power operation.
• Built-in Crossover: Fine-tune your sound with precision using the integrated high-pass and low-pass crossover filters, tailoring your audio to suit your setup perfectly.

1200W RMS 2-Ohm Class A/B 2-Channel Amplifier ORION HCCA Series HCCA1200.2

This Listing Includes:

• (1) HCCA1200.2 Amplifier

Description:

Unleash the Power of Sound with the ORION HCCA Series 1200W RMS 2-Ohm Class A/B 2-Channel Amplifier

Elevate your audio experience with the ORION HCCA Series amplifier, designed to deliver a powerful 1200W RMS at 2 Ohms. This Class A/B 2-channel amplifier combines raw power with exceptional sound clarity, making it perfect for those who demand the best from their audio system. Whether you're pushing high-performance speakers or driving subwoofers, this amplifier ensures that every note and beat is delivered with precision and impact.

Features:

• All MOSFET Power Supply: Ensures efficient power conversion and stable performance, maximizing the amplifier's output capabilities.

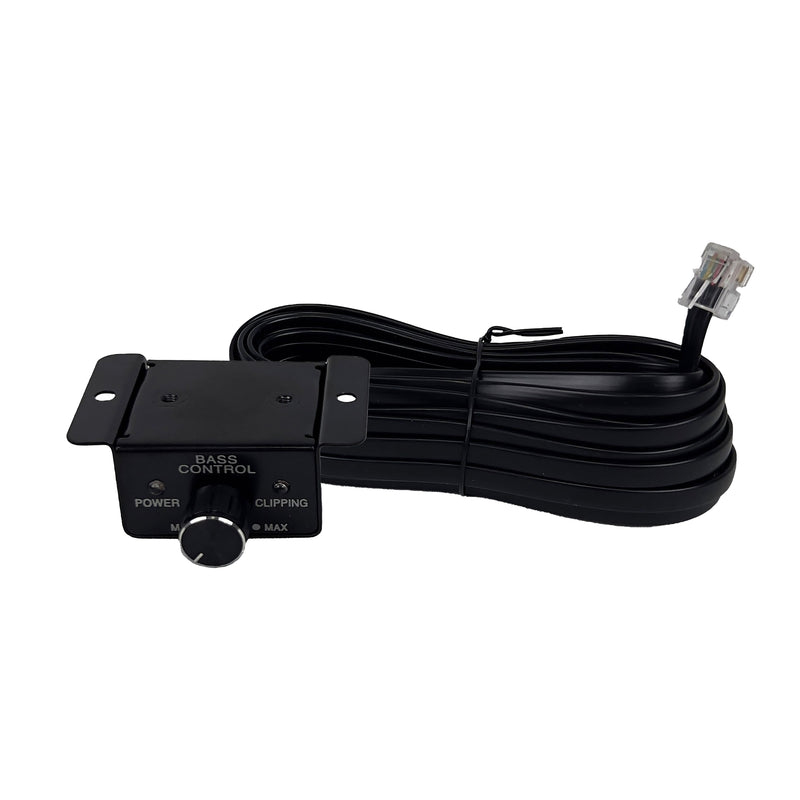

• Remote Gain Control Included: Allows you to easily adjust the amplifier's gain from a distance, providing convenient control over sound levels.


• Heavy-Gauge Direct-Wire High-Current Power and Speaker Terminals: Designed to handle high current, these terminals ensure a secure connection and minimal power loss, essential for high-performance systems.


• Advanced Electronic Crossover Network: Provides precise control over the frequency range sent to your speakers, enhancing sound clarity and performance.


• Adjustable Bass Boost Circuitry: Allows fine-tuning of bass frequencies, giving you the power to customize your sound to your preferences.


• Tri-Mode Operation Capable: Supports multiple speaker setups, enabling flexible configurations to suit different audio needs.


• High-Pass/Low-Pass Filter Controls: Offers the ability to set frequency cutoffs, ensuring that your speakers only receive the frequencies they can handle, preventing distortion and damage.


• Power and Protection LED Indicators: Visual indicators keep you informed of the amplifier's status, including power and protection modes.


• Soft Turn-On/Turn-Off Circuit: Prevents sudden power surges, protecting your speakers and other components from potential damage.


• Balanced Input (CMRR) for Noise Rejection: Reduces noise and interference, delivering cleaner audio signals for improved sound quality.


• Comprehensive Fault and Protection Monitoring: Continuously monitors the amplifier for any issues, ensuring reliable operation and preventing damage.


• 4-Way Protection (Thermal, DC Offset, Short Circuit, Under & Over Voltage): Provides robust protection against various potential hazards, ensuring the amplifier remains safe and operational under different conditions.

Specifications:

• Frequency Response: 10Hz to 35kHz 1 dB


• Linear Bandwidth: 20Hz to 65kHz 3 dB


• High Pass Crossover: Continuously variable from 40Hz to 1.25kHz / 400Hz to 12.5kHz


• Low Pass Crossover: Continuously variable from 40Hz to 300Hz


• Phase Shift Control: Adjustable from 0 to 180 degrees


• Bass Boost: 0-18dB, adjustable


• Distortion at Rated Power: 0.005% THD+N


• Damping Factor: Greater than 100


• Input Sensitivity (RMS): 200mV to 6V


• Supply Voltage Range: 9V to 16V


• Input Impedance: 20K Ohms


• Amplifier Efficiency: Over 67% at max power into a 2-Ohm load


• Signal-to-Noise Ratio: Greater than 95dB at rated output power and lowest impedance


• Recommended Fuse Rating: 125A (fuse not included)


• Dimensions (L x W x H): 15" x 11.89" x 3.15" (381 x 302 x 80mm)

Power Rating:

• RMS Power @ 4 Ohms @ 0.5% THD+N: 2 x 400W


• RMS Power @ 2 Ohms @ 0.5% THD+N: 2 x 600W


• RMS Power (Bridged) @ 4 Ohms @ 0.5% THD+N: 1 x 1200W

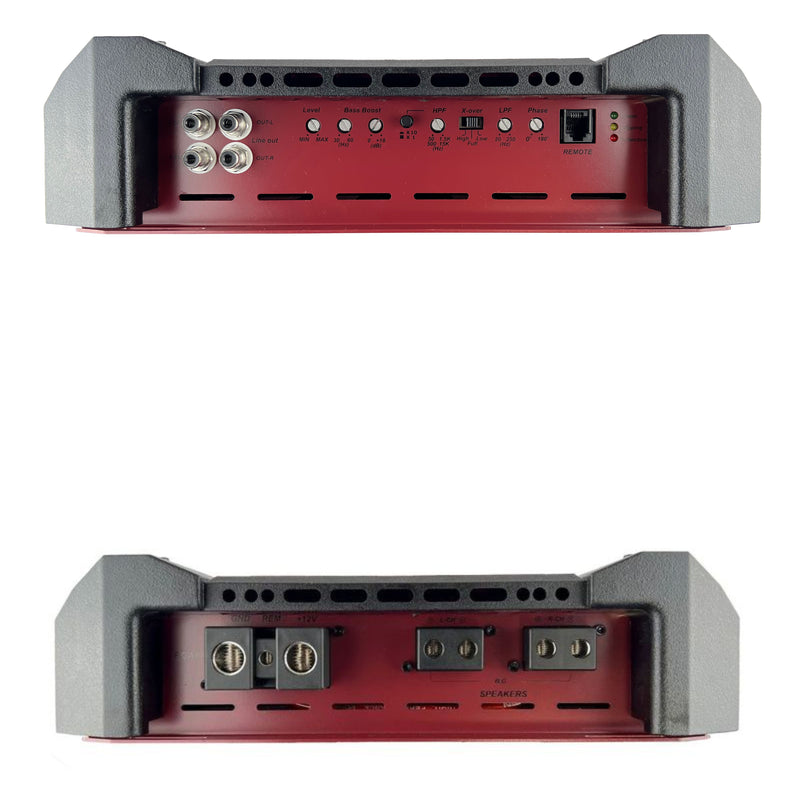

Power Terminal Management

• Positive Terminals: 1 x 0 AWG


• Negative Terminals: 1 x 4 AWG


• Remote Turn-On Signal: 10 AWG


• Speaker Output Terminals: 10 AWG
