- SHALLOW MOUNT DESIGN: Ultra-compact 3.54-inch mounting depth allows installation in trucks, under seats, and custom enclosures where traditional subwoofers won't fit.
- POWERFUL BASS OUTPUT: Handles 220 Watts RMS and 440 Watts MAX power for strong low-frequency performance in a compact footprint.
- SINGLE 4-OHM VOICE COIL: Easy amplifier matching and straightforward system integration for a wide variety of car audio setups.
- HIGH EFFICIENCY PERFORMANCE: 88dB sensitivity rating delivers impressive output while maximizing available amplifier power.
- DURABLE DS18 CONSTRUCTION: Features a ferrite magnet motor, aluminum voice coil former, steel basket, paper cone, and rubber surround for long-lasting reliability. Amazon Title

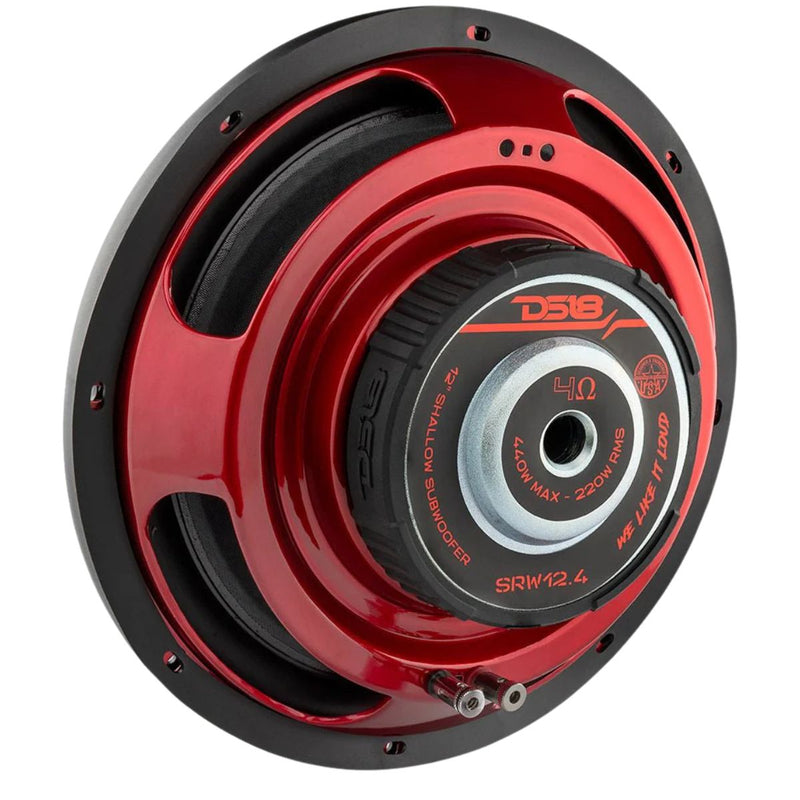

DS18 12" Shallow Mount Subwoofer 220W RMS Single 4-Ohm Voice Coil SRW12.4
This Listing Includes:
- (1) DS18 SRW12.4 12" Shallow Mount Subwoofer

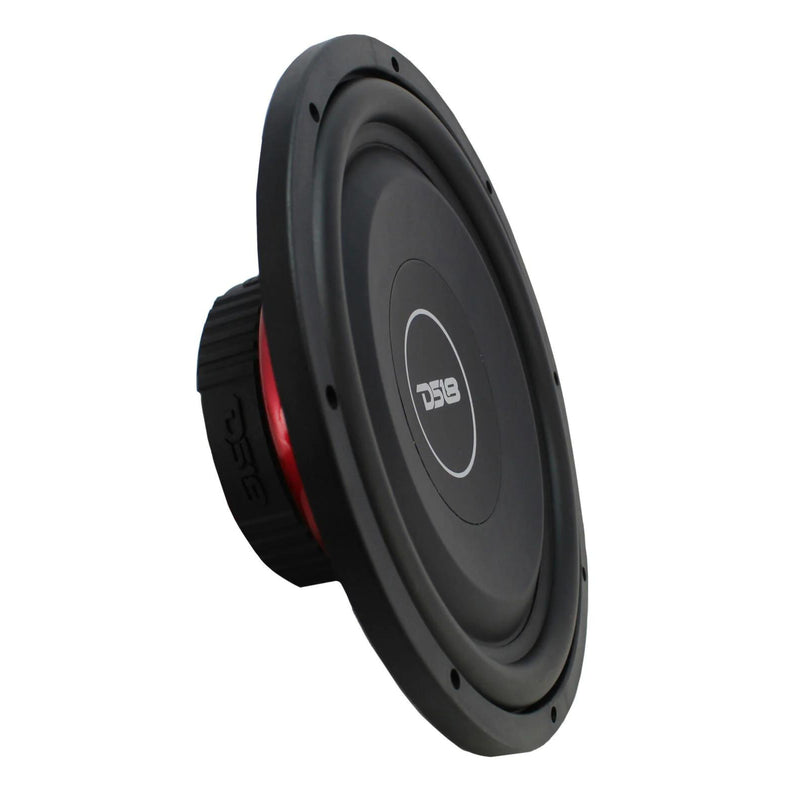

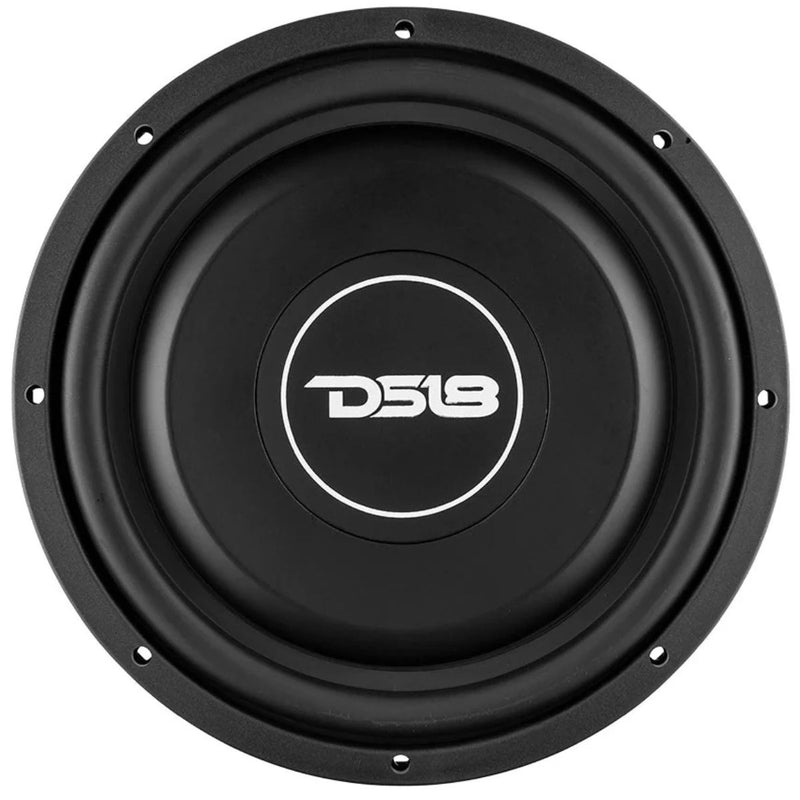

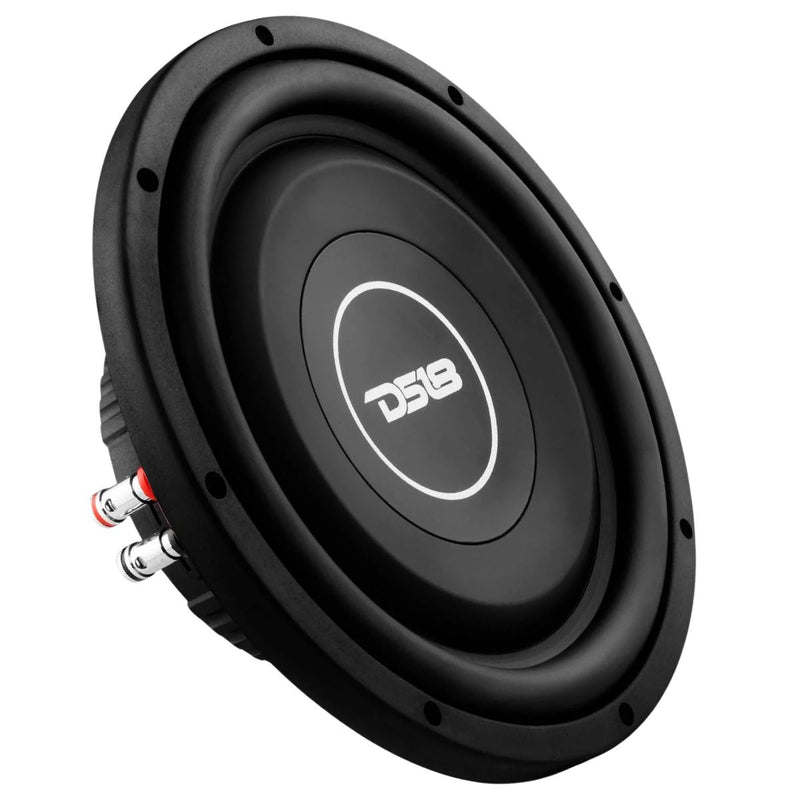

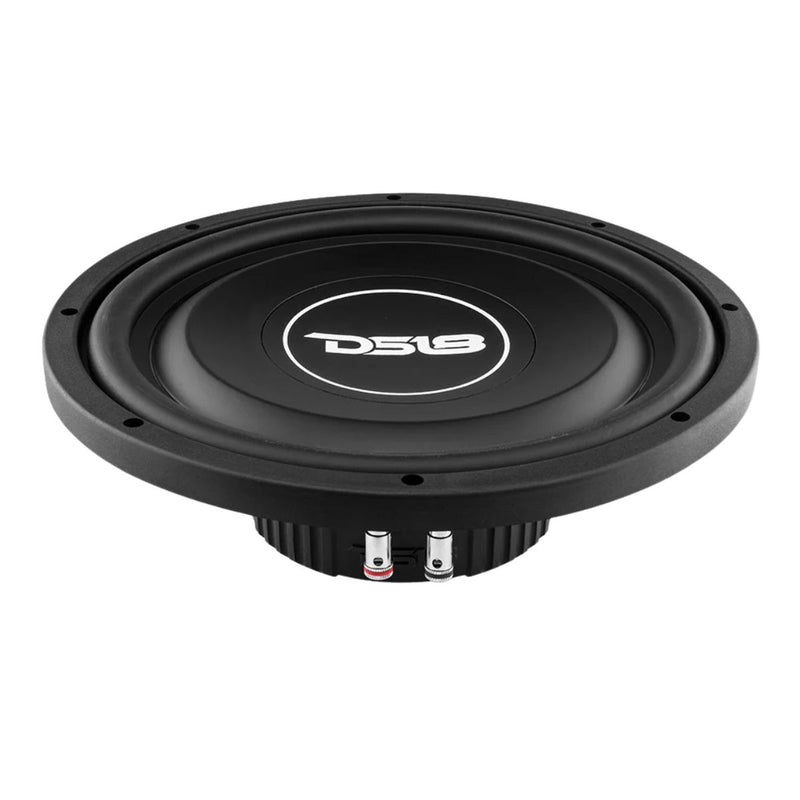

The DS18 SRW12.4 is designed for car audio enthusiasts who need powerful bass performance in limited installation spaces. As part of DS18's renowned SRW Shallow Mount Series, this 12-inch subwoofer delivers impressive low-frequency output while maintaining an ultra-compact profile that fits where traditional subwoofers cannot.

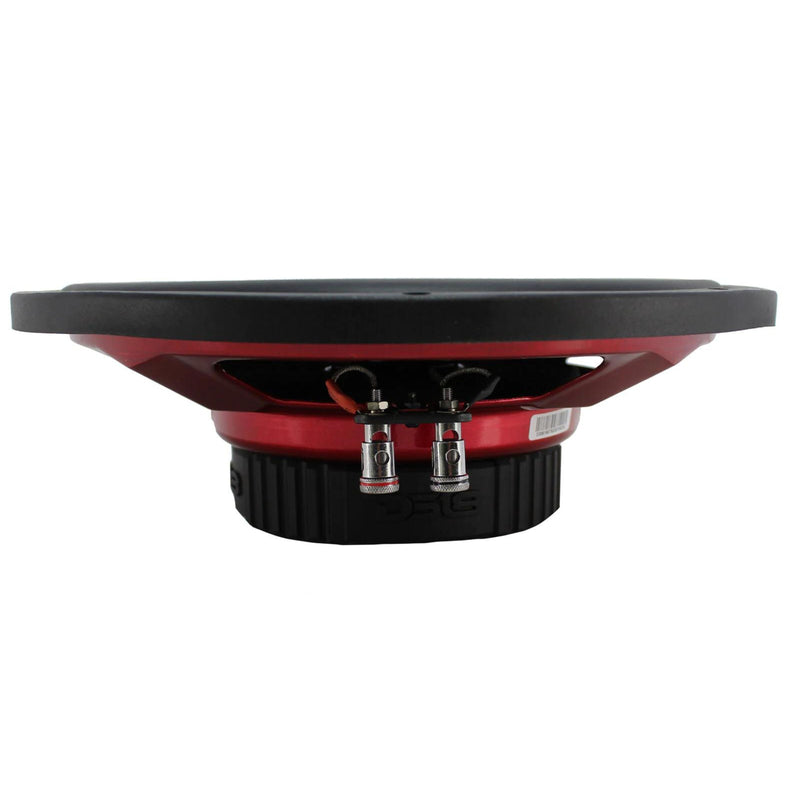

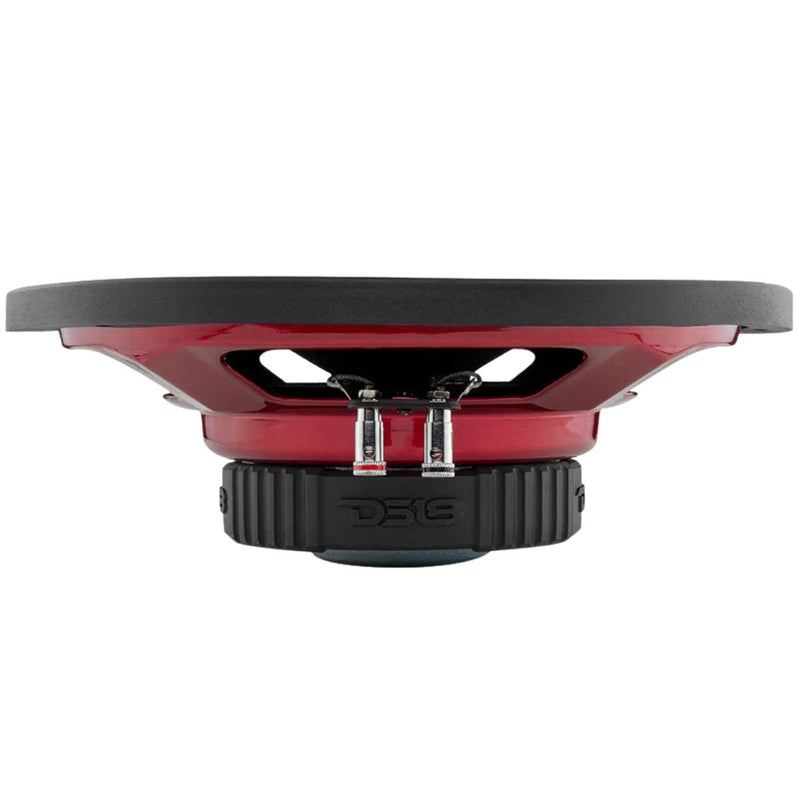

Built with a durable steel basket finished in gloss red, a high-strength ferrite motor, and a 2-inch aluminum former voice coil, the SRW12.4 produces deep, controlled bass with excellent reliability. Its shallow mounting depth of only 3.54 inches makes it ideal for trucks, under-seat enclosures, custom installations, and space-conscious vehicle builds.
Despite its compact design, the SRW12.4 handles 220 watts RMS and 440 watts MAX power while delivering an efficient 88dB sensitivity rating. The paper cone, rubber surround, and flexible suspension system work together to provide a strong low-frequency response with smooth musical accuracy.
Whether installed in a sealed or ported enclosure, the SRW12.4 offers exceptional versatility and performance, making it an excellent solution for adding impactful bass without sacrificing valuable cargo or cabin space.
Features
- Shallow-mount 12-inch subwoofer design
- 220 Watts RMS power handling
- 440 Watts MAX power handling
- Single 4-Ohm voice coil configuration
- Compact 3.54-inch mounting depth
- High-strength ferrite magnet motor
- 2-inch aluminum former voice coil
- Durable paper cone and rubber surround
- Efficient 88dB sensitivity rating
- Ideal for trucks, SUVs, and compact enclosures
Specifications
- Model: SRW12.4
- Subwoofer Size: 12" (254mm)
- RMS Power: 220 Watts
- MAX Power: 440 Watts
- Impedance: Single 4-Ohm Voice Coil
- Sensitivity: 88dB (1W/1M)
- Frequency Response: 25Hz - 250Hz
- Recommended Low Pass Crossover: 80Hz
- Voice Coil Diameter: 2" (50.8mm)
- Voice Coil Former: Aluminum
- Winding Material: SV
- Cone Material: Paper
- Dust Cap Material: Paper
- Surround Material: Rubber
- Basket Material: Steel
- Basket Finish: Gloss Red
- Magnet Material: Ferrite
- Magnet Weight: 45 oz
Thiele/Small Parameters:
- Fs: 53Hz
- Qms: 4.23
- Qes: 1.126
- Qts: 0.889
- Vas: 26.6L / 0.93 ft
- BL: 11.923
- Re: 3.4 Ohms
- Le: 1.09mH
- Sd: 530.93cm
- EBP: 47
Dimensions:
- Overall Diameter: 12.44" (316mm)
- Mounting Depth: 3.54" (90mm)
- Overall Depth: 4.13" (105mm)
- Cutout Diameter: 10.98" (279mm)
- Motor Diameter: 5.51" (140mm)
