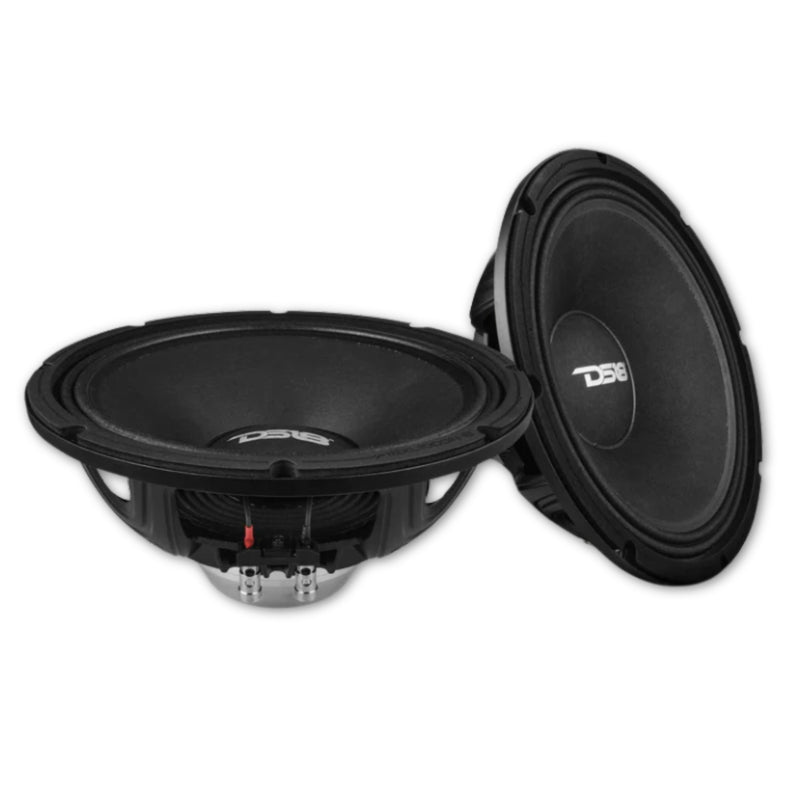

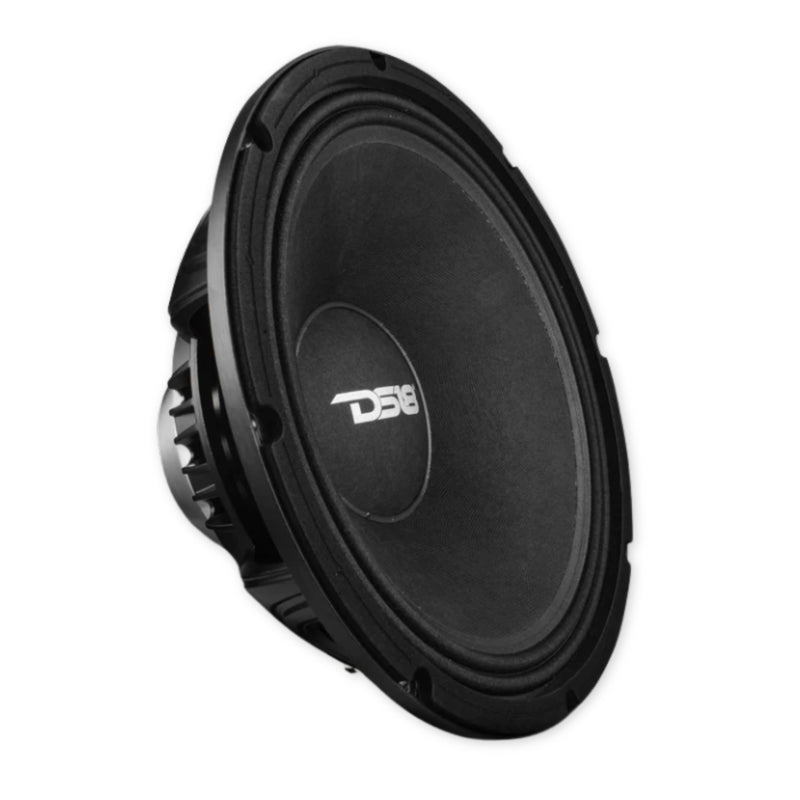

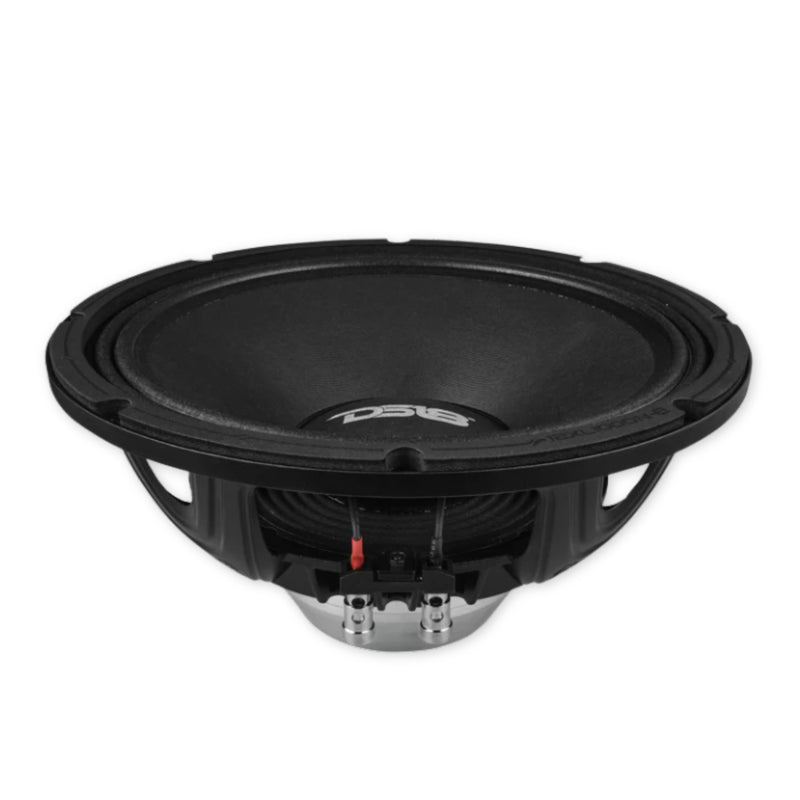

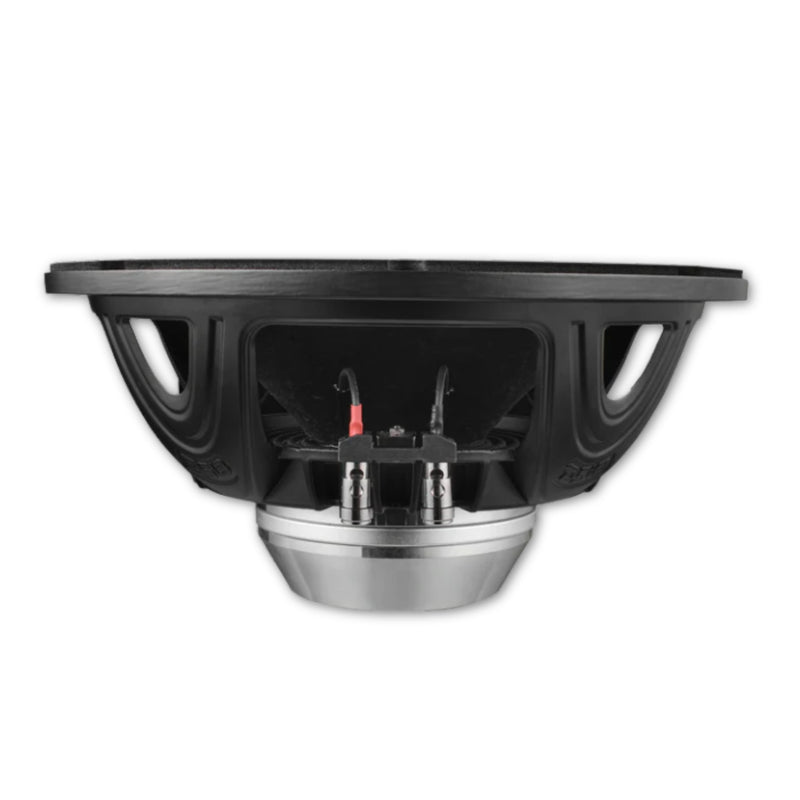

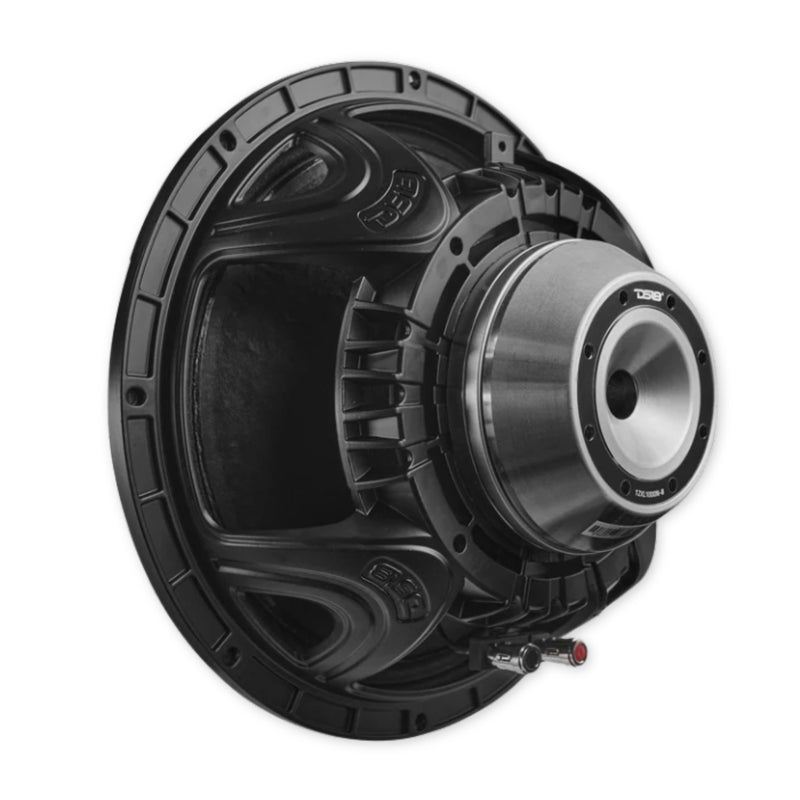

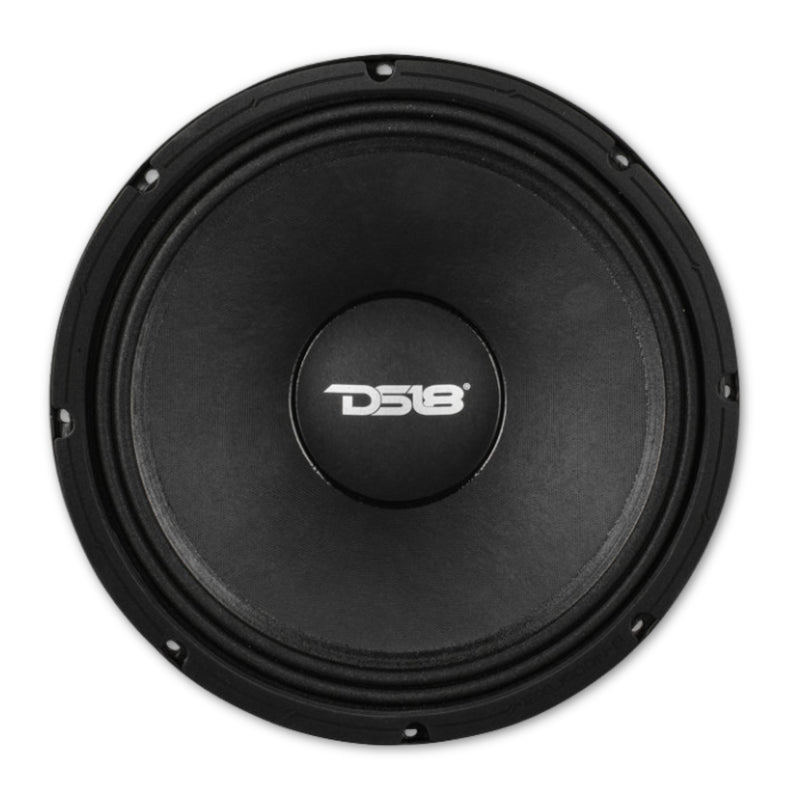

12" 500 Watt RMS 8-Ohm Mid-Range Loudspeaker with Neodymium Magnet

• High Power Handling 500 watts RMS power handling for loud, distortion-free audio
• Neodymium Magnet Offers a lightweight and efficient magnet design for powerful sound without sacrificing weight
• 8-Ohm Impedance Compatible with most car audio systems for optimized sound performance
• Mid-Range Frequency Response Enhances clarity and balance in your audio setup, specifically tuned for midrange frequencies
• Durable Construction Built to endure high-power audio environments with quality materials for long-lasting performance
• Versatile Applications Perfect for subwoofer enclosures, custom car audio builds, and premium car audio setups

12" 500 Watt RMS 8-Ohm Mid-Range Loudspeaker with Neodymium Magnet

This Listing Includes

• (1)12" 500 Watt RMS 8-Ohm Mid-Range Loudspeaker with Neodymium Magnet

This 12" 500 Watt RMS 8-Ohm Mid-Range Loudspeaker with Neodymium Magnet is engineered for high-performance audio setups. It delivers clean, powerful sound with a focus on midrange frequencies, ideal for subwoofer enclosures, high-performance audio builds, and custom car audio installations. Built with a neodymium magnet for superior efficiency and reduced weight, this loudspeaker is a perfect choice for those seeking both durability and top-notch sound quality.

Features

• High Power Handling 500 watts RMS power handling for loud, distortion-free audio


• Neodymium Magnet Offers a lightweight and efficient magnet design for powerful sound without sacrificing weight


• 8-Ohm Impedance Compatible with most car audio systems for optimized sound performance


• Mid-Range Frequency Response Enhances clarity and balance in your audio setup, specifically tuned for midrange frequencies


• Durable Construction Built to endure high-power audio environments with quality materials for long-lasting performance


• Versatile Applications Perfect for subwoofer enclosures, custom car audio builds, and premium car audio setups

Specifications

• RMS Power Handling 500 watts


• MAX Power Handling 1000 watts


• Sensitivity (1w/1m) 100dB


• Frequency Response 80Hz-5KHz


• Recommended High-Pass Crossover 100Hz


• Sold in Pair or Single Single


• Interleaved Sandwich Voice Coil (ISV) No


• Demodulating Rings Yes


• Improved Heat Dissipation Yes


• Cone Shape Curvilinear


• Speaker Terminals Push 12ga


• Voice Coil Diameter 3" / 76.2mm


• Voice Coil Former Material Kapton


• Winding Material CCAW


• Cone Material Non-pressed Paper


• Dust Cap Material Paper


• Bullet Material N/A


• Bullet Color/Finish N/A


• Surround Material Cloth


• Spider Diameter 5" / 127mm


• Leads Type Direct to Cone


• Basket Material Aluminum


• Basket Color/Finish Satin Black


• Magnet Material Neodymium


• Magnet Weight 11 Oz


• Displacement Volume 0.07L / 0.00247ft3


• Equivalent Volume Vas 75.12L / 2.65ft3


• Excursion (one way) Xmax 7mm


• Free Air Resonance Fs 60Hz


• Mechanical Factor Qms 5.8


• Electrical Factor Qes 0.35


• Total Factor Qts 0.33


• Mechanical Mass Mms 44.6g


• Mechanical Compliance Cms 0.19mm/N


• BL Factor BL 18.7


• Voice Coil Inductance Le 0.25mH


• Cone Area Sd 526.85cm2


• DC Resistance Re 5.6 ohm


• Mechanical Mass w/o air Mmd 37g

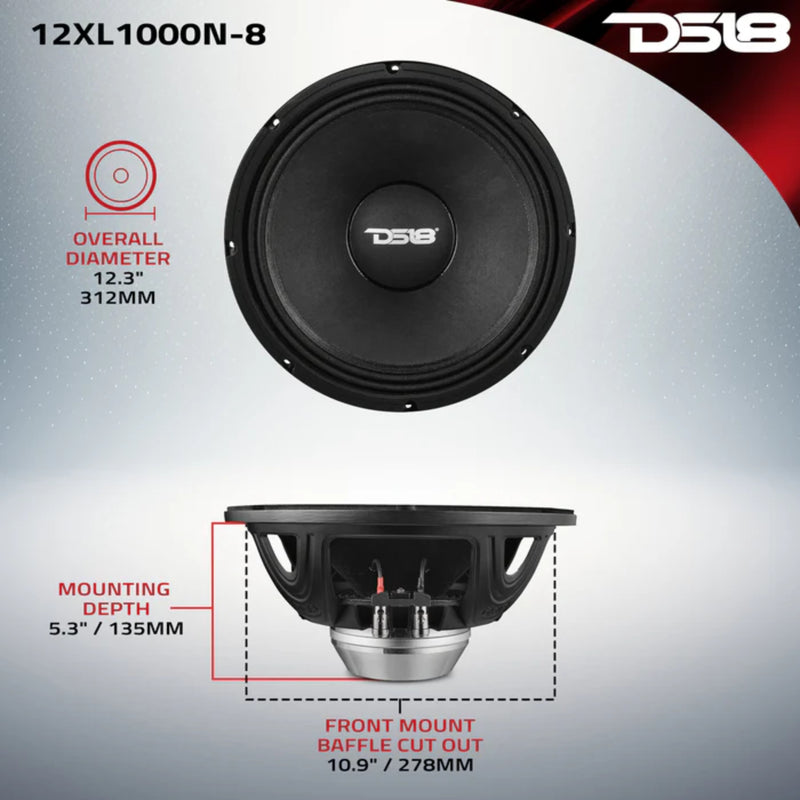

Dimensions

• Overall Diameter 12.3" / 312mm


• Overall Depth 5.8" / 148mm


• Front Mount Baffle Cutout 10.9" / 278mm


• Mounting Depth 5.3" / 135mm


• Motor Diameter 5.16" / 131mm
