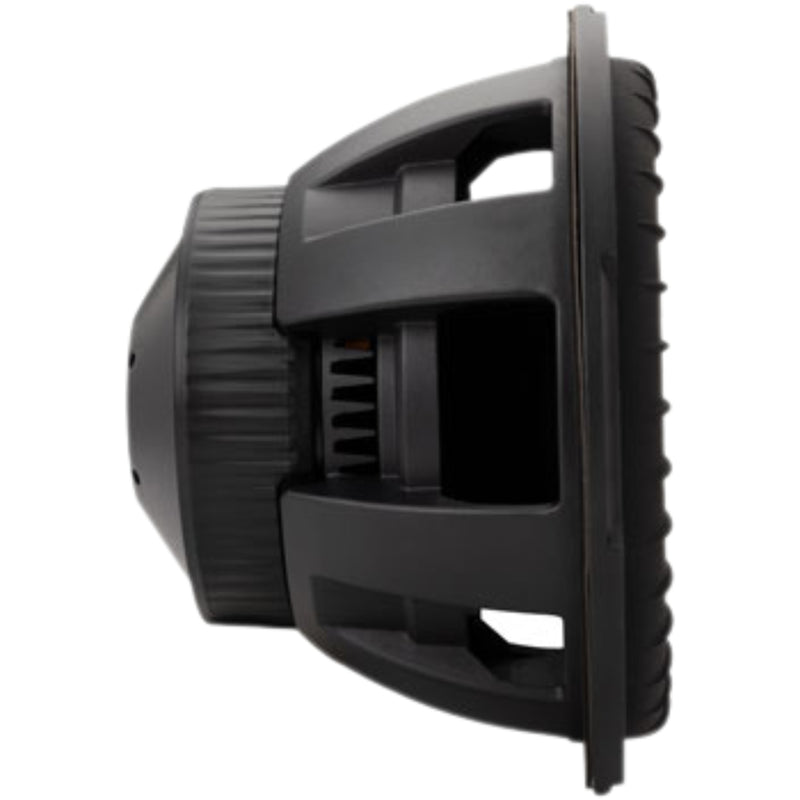

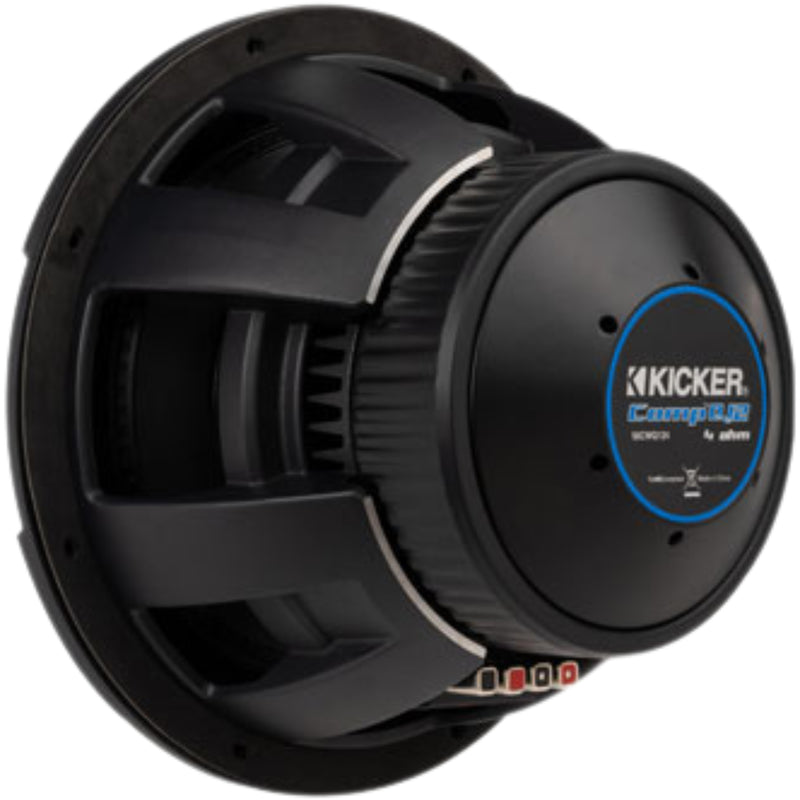

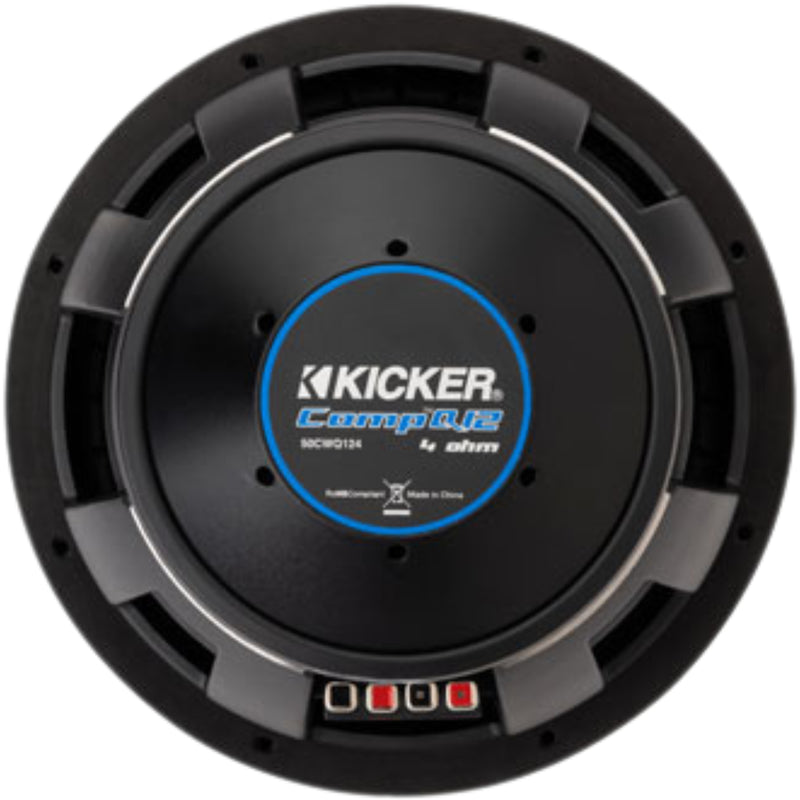

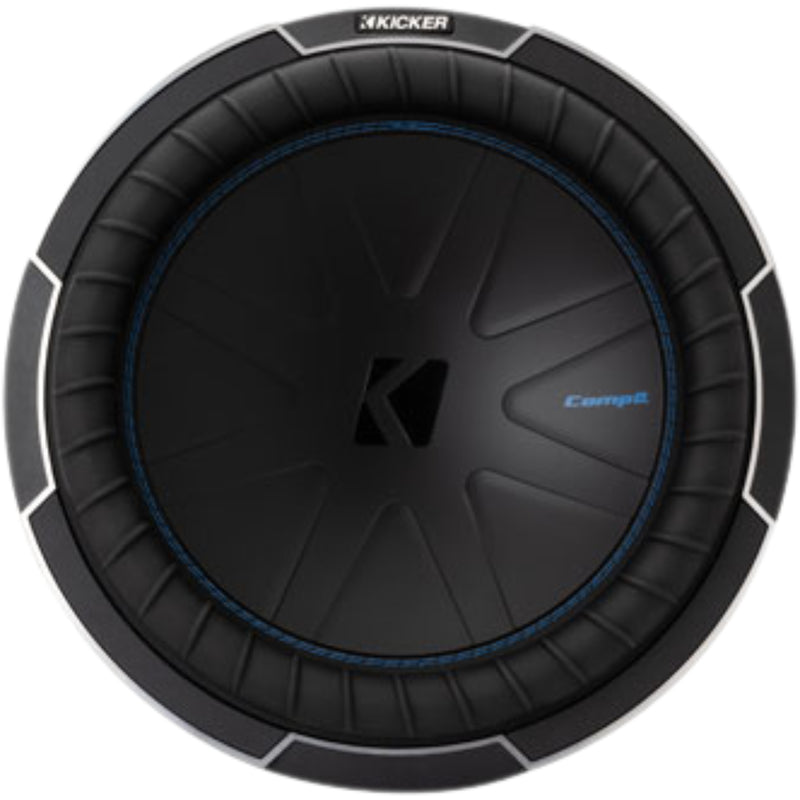

12" 1000W RMS 4-Ohm Dual Voice Coil Subwoofer Kicker CompQ Series 51CWQ124

12" 1000W RMS 4-Ohm Dual Voice Coil Subwoofer Kicker CompQ Series 51CWQ124

This Listing Includes:

• (1) 51CWQ124 Subwoofer

Description:

Unleash the ultimate bass experience with the Kicker CompQ Series 12" Subwoofer. This subwoofer is engineered for those who demand high performance and superior sound quality. With a power range of 500-1000 watts RMS and a 4-ohm dual voice coil configuration, it delivers deep, powerful bass that will transform your audio system. Built with precision and durability in mind, the CompQ Series is perfect for enthusiasts who crave a robust and immersive sound experience. Whether you're upgrading your car's audio system or building a custom setup, the Kicker CompQ 12" Subwoofer is your ticket to premium sound.

Download Owner's Manual

Features:

• Powerful Performance: Handles 500-1000 watts RMS for deep, impactful bass.
• Dual Voice Coil: 4-ohm configuration for flexible wiring options.
• High-Quality Materials: Sturdy construction ensures long-lasting durability and performance.
• Precision Engineering: Designed for superior sound quality and clarity.
• Versatile Application: Ideal for various audio setups, from car audio systems to custom builds.

Specifications:

• Woofer (in, mm): 12, 30
• Impedance (Ohms): 4 DVC
• Recommended Amp Power (watts RMS): 500-1000
• Frequency Response (Hz): 20-100
• Sensitivity (1W, 1m): 85.4
• Xmax (mm): 23

Measurements:

• Mounting Depth (in, mm): 7-1/8, 18.1
• Mounting Diameter (in, mm): 11-1/16, 28.1

Thiele & Small Parameters

Electrical Parameters

• Re: 7 | Ohm | electrical voice coil resistance at DC
• Krm: 0.0222 | Ohm | WRIGHT inductance model
• Erm: 0.835 | WRIGHT inductance model
• Kxm: 0.1153 | Ohm | WRIGHT inductance model
• Exm: 0.715 | WRIGHT inductance model
• Cmes: 410.68 | µF | electrical capacitance representing moving mass
• Lces: 48.16 | mH | electrical inductance representing driver compliance
• Res: 117.9 | Ohm | resistance due to mechanical losses
• fs: 35.9 | Hz | driver resonance frequency

Mechanical Parameters

• Mms: 286.744 | g | mechanical mass of driver diaphragm assembly including air load and voice coil
• Mmd (Sd): 273.855 | g | mechanical mass of voice coil and diaphragm without air load
• Rms: 5.929 | kg/s | mechanical resistance of total-driver losses
• Cms: 0.069 | mm/N | mechanical compliance of driver suspension
• Kms: 14.625 | N/mm | mechanical stiffness of driver suspension
• Bl: 26.426 | Tm | force factor (Bl product)

Loss factors

• Qtp: 0.7795 | total Q-factor considering all losses
• Qms: 10.904 | mechanical Q-factor of driver in free air considering Rms only
• Qes: 0.6475 | electrical Q-factor of driver in free air considering Re only
• Qts: 0.6115 | total Q-factor considering Re and Rms only

Other Parameters

• Vas: 25.08375 | I | equivalent air volume of suspension
• n0: 0.171 | reference efficiency (2 pi-radiation using Re)
• Lm: 84.53 | dB | characteristic sound pressure level (SPL at 1m for 1W @ Re)
• Lnom: 85.11 | dB | nominal sensitivity (SPL at 1m for 1W @ Zn)
• Sd: 506.71 | cm sq | diaphragm area
• Xmax: 23.0 | mm
