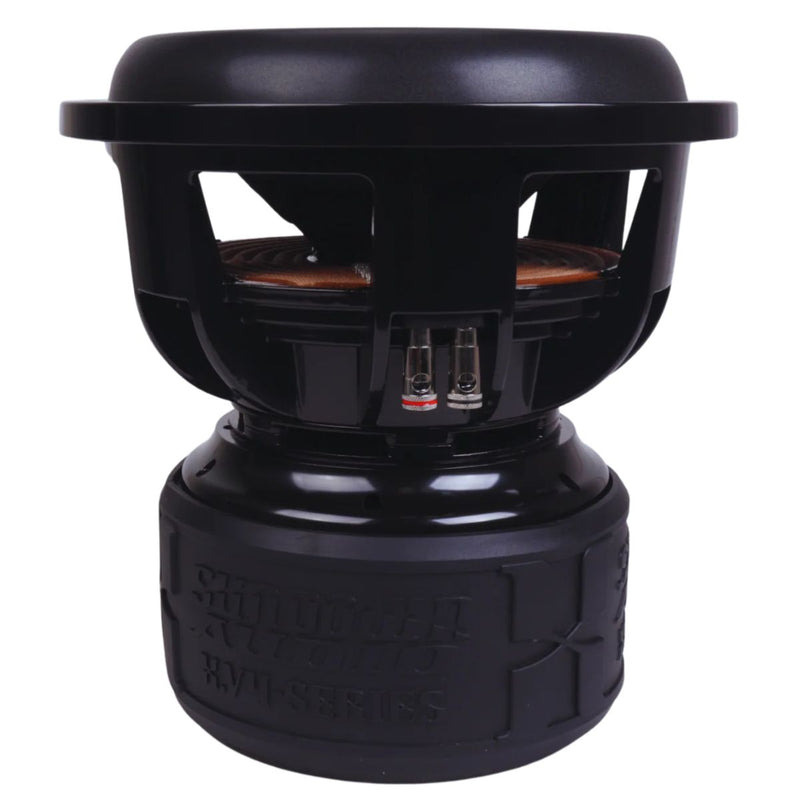

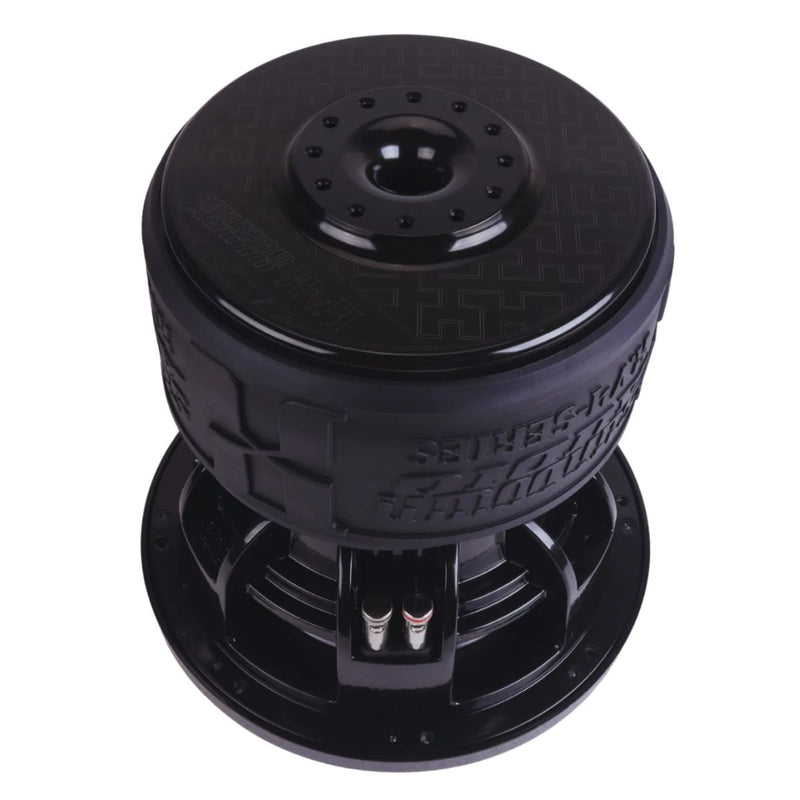

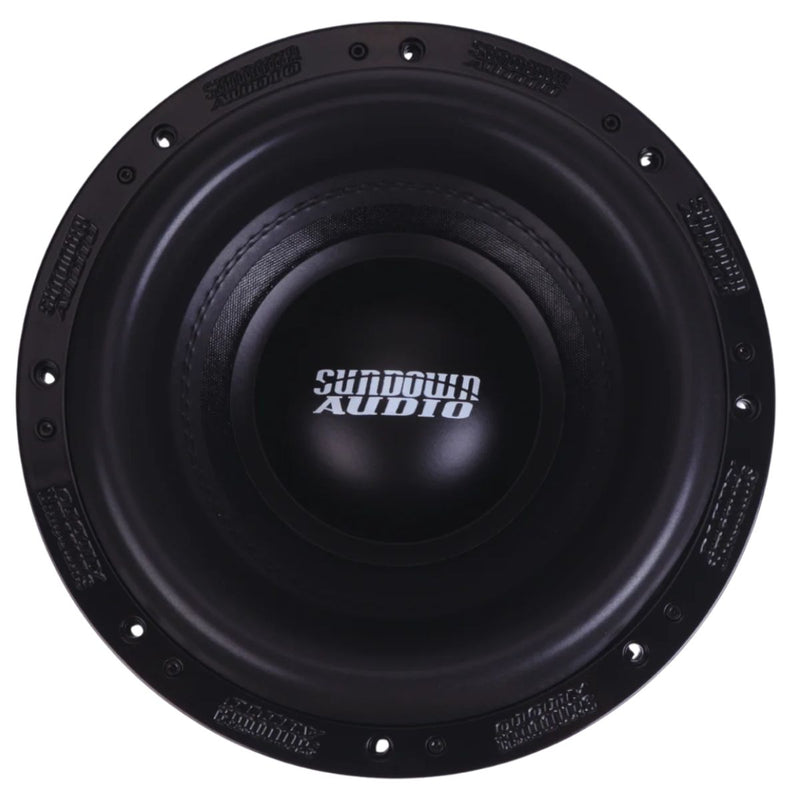

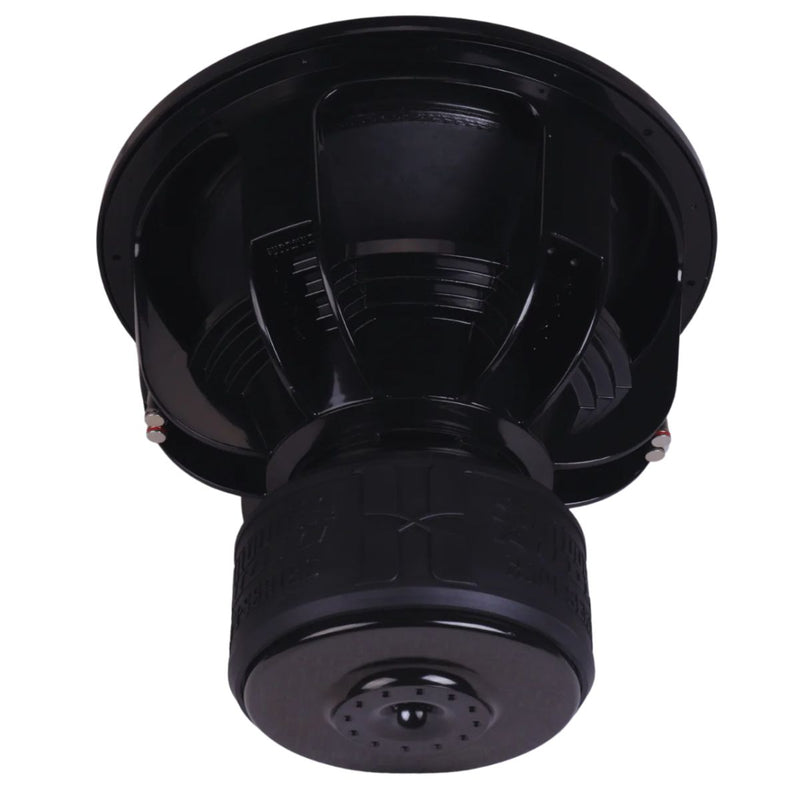

12" 3000 Watt RMS Dual 1 Ohm Car Audio Subwoofer Sundown Audio X-Series XV4

• High power handling rated at 3,000 watts RMS with 6,000 watts peak for aggressive bass systems
• Massive 30mm Xmax delivers deep, hard hitting low frequencies with excellent control
• Advanced X v4 coil technology and heavy duty motor provide strong thermal stability and durability
• Optimized for ported enclosures with a recommended 2.5 cu ft box tuned to 32 Hz
• Built for serious daily and competition builds with proven Sundown Audio X-Series performance

12" 3000 Watt RMS Dual 1 Ohm Car Audio Subwoofer Sundown Audio X-Series XV4

This Listing Includes:

• (1) X-Series XV4 12" Dual 1 Ohm Subwoofer

The Sundown Audio X-Series XV4 12" subwoofer is built for bass lovers who demand serious output with precision and long-term reliability. Rated at 3,000 watts RMS with a massive 30mm Xmax, the XV4 is designed to deliver deep, aggressive low-frequency performance while staying controlled under extreme conditions.

Advanced X v4 coil technology and a heavy-duty motor structure provide excellent thermal management and consistent performance during extended high-output play. The reinforced cone and carefully engineered suspension system minimize distortion while allowing the subwoofer to move serious air. Optimized for ported enclosures, the XV4 12" is ideal for high-power daily systems and competition-focused builds that require both output and durability.

Specifications:

• Subwoofer Size: 12 inch


• Series: X-Series XV4


• Voice Coil Configuration: Dual 1 Ohm


• RMS Power Handling: 3000 Watts


• Peak Power Handling: 6000 Watts


• Xmax: 30 mm


• Sensitivity: 83.47 dB


• Motor Diameter: 9.25 inches


• Displacement: 0.23 cu ft

T/S Parameters (D1 Only):

• Re: 2.05 Ohms


• Fs: 39.39 Hz


• Vas: 14.13 L


• Qes: 0.58


• Qms: 4.95


• Qts: 0.50


• Le: 1.33 mH


• BL: 24.4 NA


• Mms: 343.14 g


• Cms: 47.56 uM/N


• Sd: 44.11

Enclosure Recommendations:

• Sealed Enclosure: Not Recommended


• Ported Enclosure Volume: 2.5 cu ft


• Recommended Port Tuning: 32 Hz


• Recommended Port Area: 40 sq in

4th Order Enclosure Specs:

• Sealed Side Volume: 1.0 cu ft


• Ported Side Volume: 3.0 cu ft


• Port Area: 60 sq in


• Port Length: 8 inches

Dimensions:

• Mounting Depth: 11.75 inches


• Outside Diameter: 12.81 inches


• Cutout Diameter: 11.09 inches


• Motor Diameter: 9.25 inches
