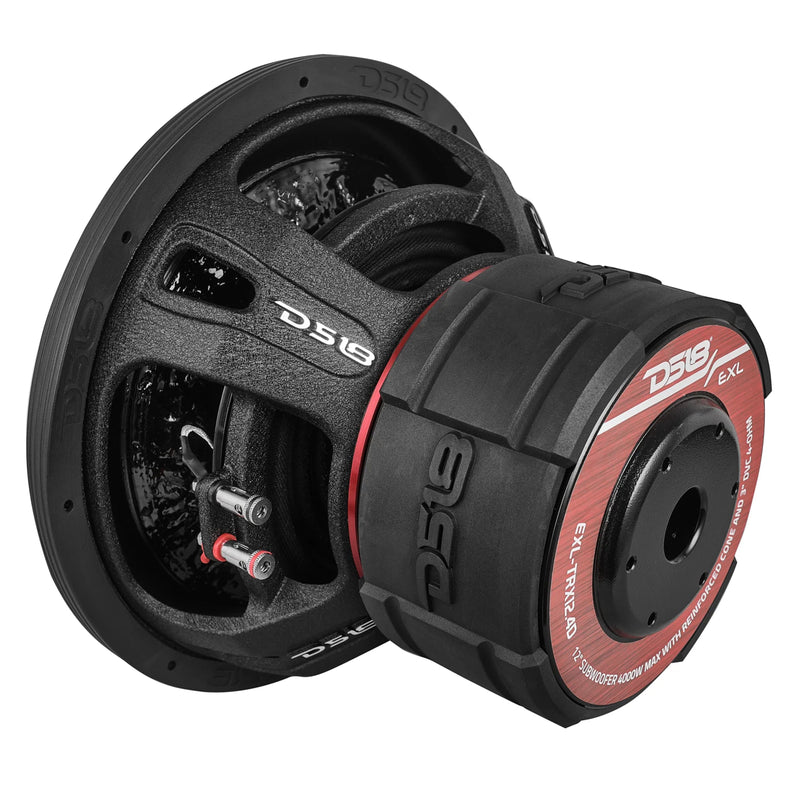

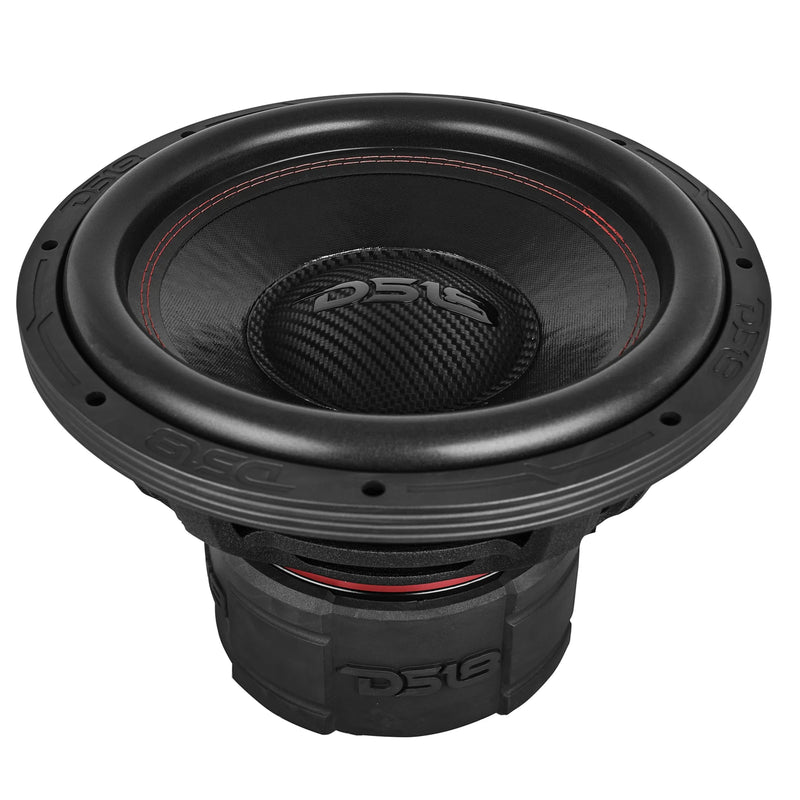

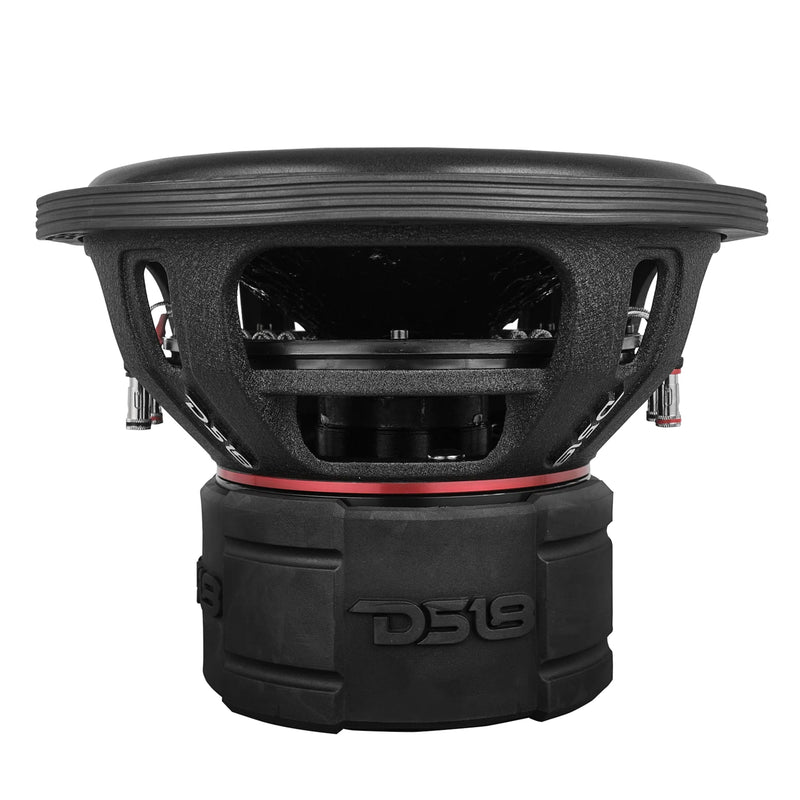

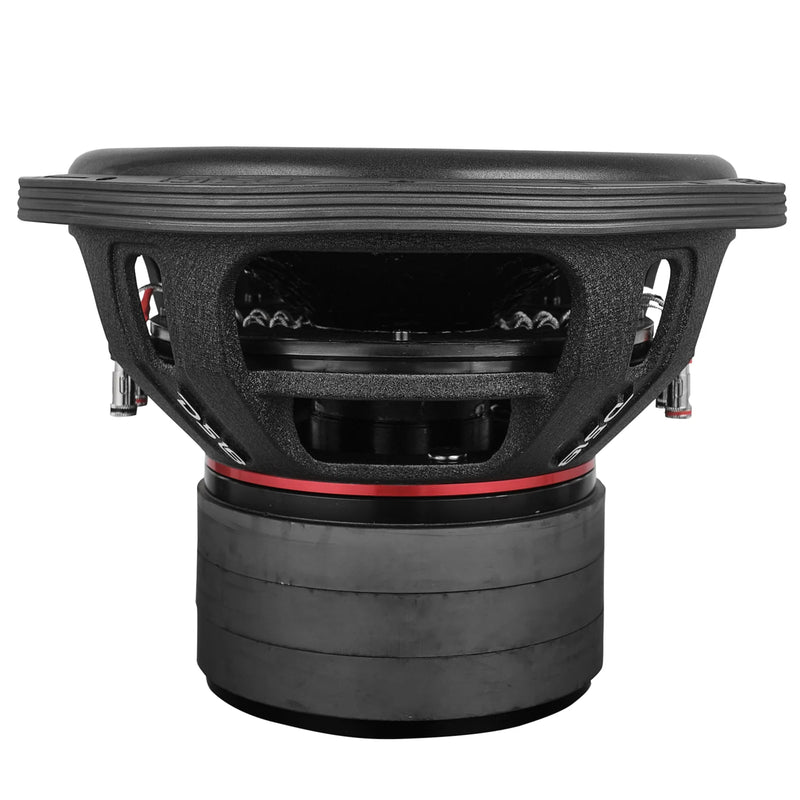

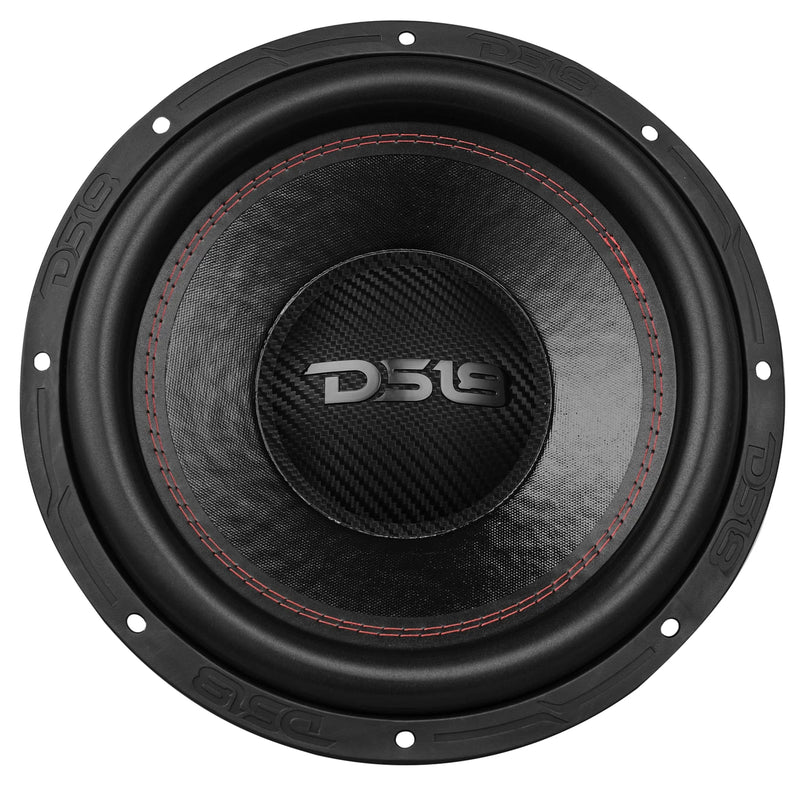

12" 2000 Watts RMS 4 DVC 4-Ohm Triple Stack Car Audio Subwoofer DS18 Series

CASE QUANTITY: N/A

PACKAGE WEIGHT: 20.0 LB

SKU DS-EXL-TRX12.4D
by DS18
Original price $479.95 - Original price $479.95
Original price
$479.95
$479.95 - $479.95
Current price $479.95

Free Gifts when added to Cart

The more you spend, the greater selection of free gifts you'll have at your fingertips when selecting items in your shopping cart!

  • High Power Output: 4000W MAX power handling and 2000W RMS for intense bass performance.
  • Durable Construction: Non-pressed paper cone with epoxy coating for long-lasting sound quality.
  • Enhanced Heat Dissipation: Black aluminum voice coil former and SV winding for reliable high-volume performance.
  • Massive Magnet System: Triple-stacked 255 oz ferrite magnet for superior bass control and stable connections.
  • Versatile Enclosure Compatibility: Works in both sealed and ported enclosures, allowing for a customizable audio setup.


12" 2000 Watts RMS 4†DVC 4-Ohm Triple Stack Car Audio Subwoofer DS18 Series


This Listing Includes:



  • (1) 12" 2000 Watts RMS 4†DVC 4-Ohm Triple Stack Car Audio Subwoofer DS18 Series


Description:


The EXL-TRX12.4D is a powerful 12" subwoofer designed for intense bass performance, with a MAX power handling of 4000W and RMS of 2000W. Its durable non-pressed paper cone with epoxy coating ensures long-lasting sound quality, while dual 4-ohm voice coils provide flexible wiring options. The subwoofer’s black aluminum voice coil former and SV winding enhance heat dissipation for high-volume use. Featuring a triple-stacked 255 oz ferrite magnet for superior bass control and stable connections, the EXL-TRX12.4D works well in both sealed and ported enclosures for a customizable audio setup.


Features



  • Demodulating Rings: No

  • Improved Heat Dissipation: Yes

  • Cone Shape: Curvilinear

  • Speaker Terminals: Push 6ga


Specifications:



  • Nominal Diameter: 12" / 305mm

  • Nominal Impedance: 4+4 ohms

  • RMS Power Handling: 2000W

  • MAX Power Handling: 4000W

  • Sensitivity (1w/1m): 84dB

  • Frequency Response: 10-500 Hz

  • Recommended Lo Pass Crossover: 120 Hz


Motor



  • Voice Coil Diameter: 3" / 76.5mm

  • Voice Coil Former Material: Black Aluminum

  • Winding Material: SV

  • Cone Material: Non-Pressed Paper + Epoxy Coating

  • Dust Cap Material: PPI

  • Surround Material: Foam

  • Spider Diameter: 8.5" / 215mm

  • Leads Connection Type: Crossed Spider

  • Basket Material: Aluminum

  • Basket Color/Finish: Black

  • Magnet Material: Ferrite

  • Magnet Weight: 3 x 85 Oz (255 Oz)

  • Displacement Volume: 3.5L / 0.123ft


Thiele & Small Parameters



  • Equivalent Volume Vas: 12.55L / 0.443ft

  • Excursion (one way) Xmax: 19mm

  • Free Air Resonance Fs: 45 Hz

  • Mechanical Factor Qms: 5.769

  • Electrical Factor Qes: 1.179

  • Total Factor Qts: 0.979

  • Moving Mass Mms: 401.522g

  • Compliance Cms: 31.362u m/N

  • Bl Factor Bl: 26.653

  • Voice Coil Inductance Le: 6.81mH

  • Diaphragm Area Sd: 530.929 cm

  • Dc Resistance Re: 3.7+3.7 ohms

  • Efficiency Bandwidth Product EBP: 71


Recommended Enclosures



  • Sealed Internal Volume: 17L / 0.6ft

  • Sealed Box Output Response F3: 41Hz

  • Ported Internal Volume: 42.5L / 1.5ft

  • Port Size (Square WxHxLong): 1.52"x12.28"x31.82" / 38.5x312x808.2mm

  • Port Tuning Frequency Fb: 30Hz

  • Ported Box Output Response F3: 25Hz


Measurement



  • Overall Diameter: 12.5" / 319mm

  • Overall Depth: 9.68" / 246mm

  • Front Mount Baffle Cutout: 11.1" / 282mm

  • Mounting Depth: 8.17" / 208mm

  • Motor Diameter: 7.5" / 191mm
