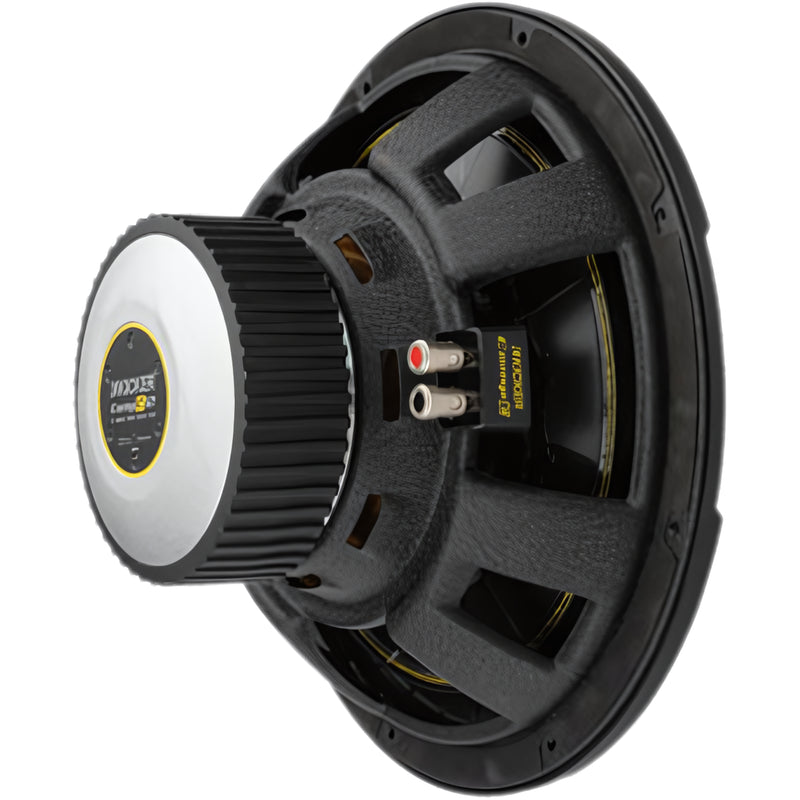

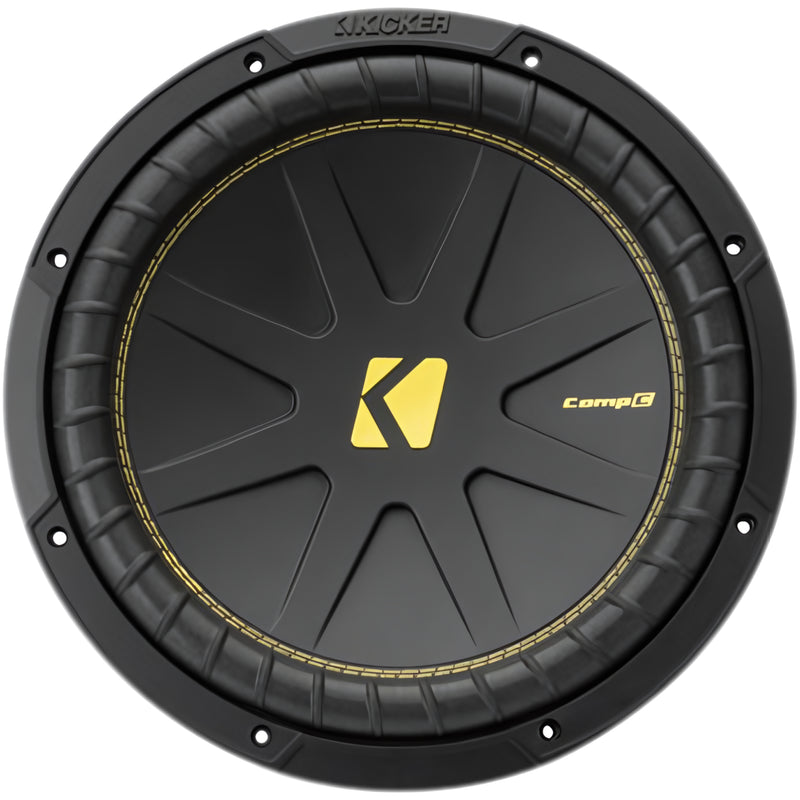

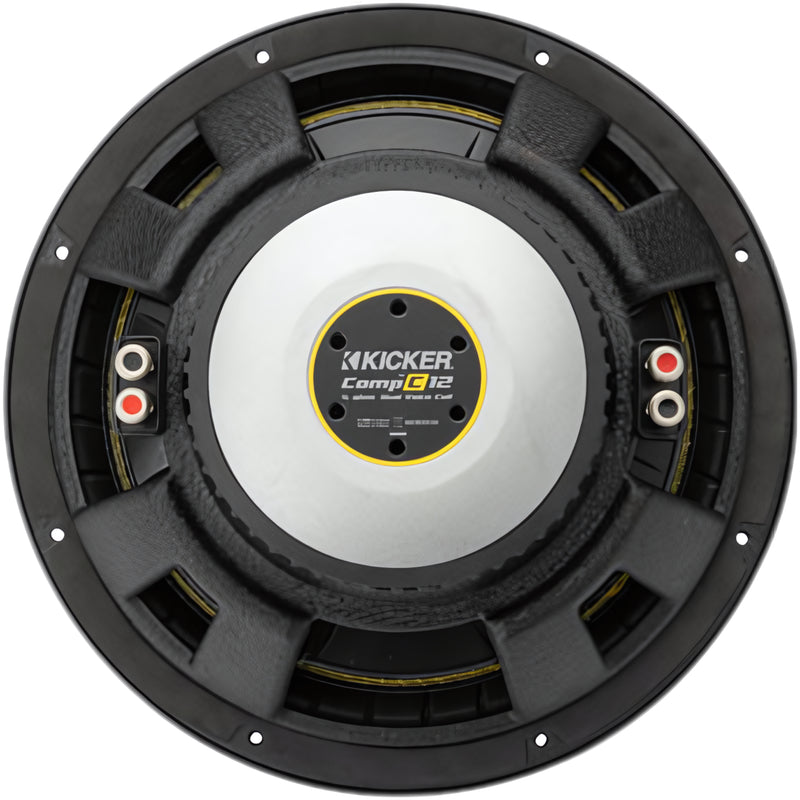

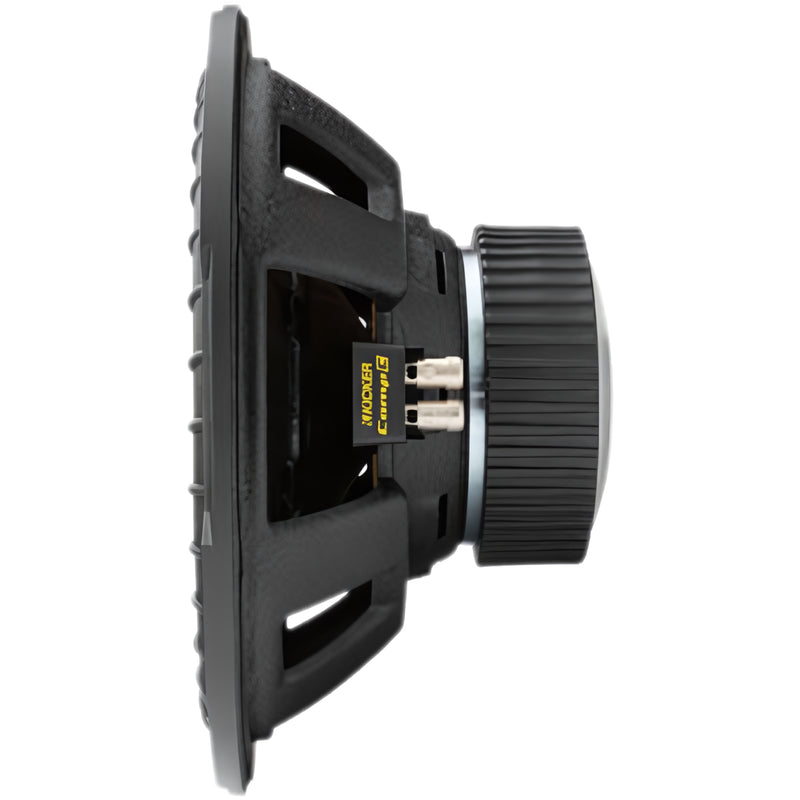

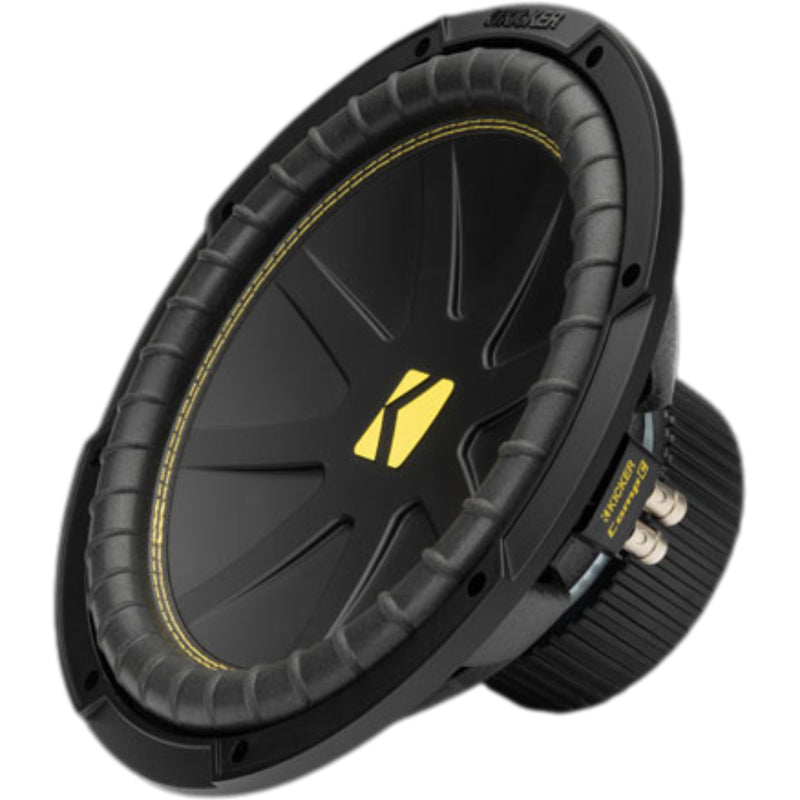

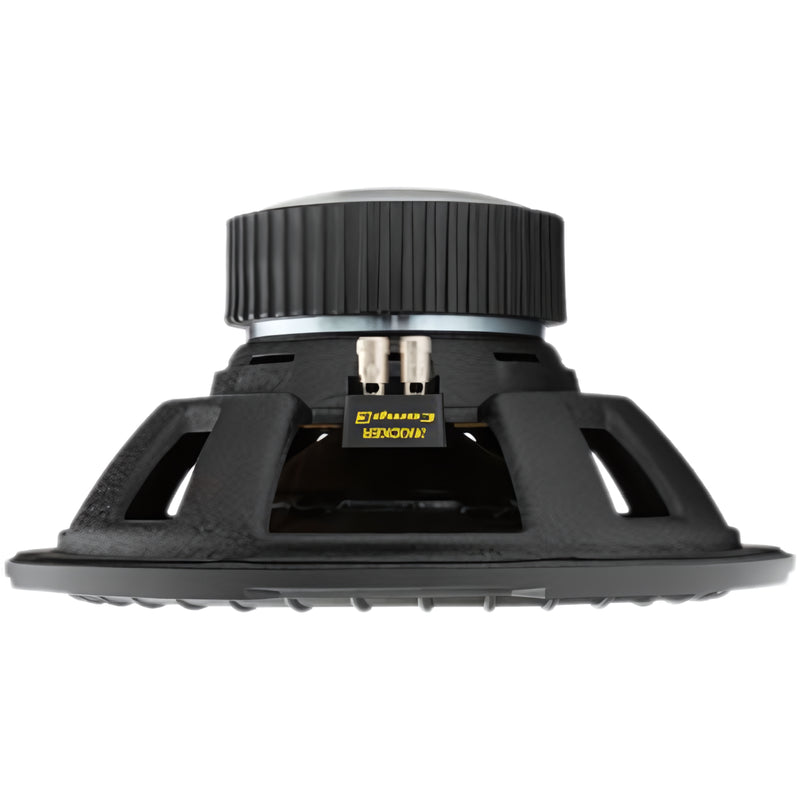

12" 150-300W RMS 4-Ohm DVC Subwoofer Kicker CompC Series / 50CWCD124
This Listing Includes:
- (1) 50CWCD124 12" Subwoofer
Description:
Experience the ultimate in bass performance with the Kicker CompC Series 12" DVC Subwoofer. Designed to deliver powerful, deep bass, this subwoofer features a dual 4-ohm voice coil configuration, allowing for versatile wiring options and enhanced power handling. With a robust RMS power range of 150-300 watts, it provides the perfect balance between intensity and clarity, making it ideal for both everyday listening and high-impact sound systems. Its durable construction ensures long-lasting performance, while its sleek design fits seamlessly into any setup. Elevate your audio experience with the Kicker CompC Series and feel every beat with precision and power.
Download Owner's Manual
Features:
- Dual Four-Ohm Voice Coil and Reengineered for Increased Excursion and Deeper Bass
- Injection-Molded Polypropylene Cone
- Forced-Air Cooling for Outstanding Durability
- Ribbed Polyurethane Surround
- Signature Yellow Surround Stitching
- High-Strength Spiralead Tinsel Leads
- Stamped Steel Basket
- High Temp Voice Coil
- Spring-Loaded Speaker Terminals
Specifications:
- Size [in, cm]: 12, 30
- Recommended Amplifier Power [watts RMS]: 150-300
- Peak Power Handling [watts, per ANSI/CTA-2031-A]: 600
- Sensitivity [dB 1w/1m]: 87.1
- Rated Impedance [OHMS]: 4 DVC
- Fs [Hz]: 30.6
- Frequency Response [Hz]: 27-500
Thiele & Small Parameters:
Electrical Parameters
- Re: 7.485 | Ohm | electrical voice coil resistance at DC
- Krm: 0.00485 | Ohm | WRIGHT inductance mode
- Erm: 0.925| WRIGHT inductance mode
- Kxm: 0.03795 | Ohm | WRIGHT inductance mode
- Exm: 0.775 | WRIGHT inductance mode
- Cmes: 613.11 | µF | electrical capacitance representing moving mass
- Lces: 39.39 | mH | electrical inductance representing driver compliance
- Res: 63.035| Ohm | resistance due to mechanical losses
- fs: 32.45 | Hz | driver resonance frequency
Mechanical Parameters
- Mms: 127.2375 | g | mechanical mass of driver diaphragm assembly including air load and voice coil
- Mmd(Sd): 113.4135 | g | mechanical mass of voice coil and diaphragm without air load
- Rms: 3.299 | kg/s | mechanical resistance of total-driver losses
- Cms: 0.1895 | mm/N | mechanical compliance of driver suspension
- Kms: 5.275 | N/mm | mechanical stiffness of driver suspension
- Bl: 14.406 | Tm | force factor (Bl product)
Loss Parameters
- Qtp: 0.9025 | total Q-factor considering all losses
- Qms: 7.863 | mechanical Q-factor of driver in free air considering Rms only
- Qes: 0.934 | electrical Q-factor of driver in free air considering Re only
- Qts: 0.835 | total Q-factor considering Re and Rms only
Other Parameters
- Vas: 75.7283 | I | equivalent air volume of suspension
- n0: 0.2645 | reference efficiency (2 pi-radiation using Re)
- Lm: 86.425 | dB | characteristic sound pressure level (SPL at 1m for 1W @ Re)
- Lnom: 86.72 | dB | nominal sensitivity (SPL at 1m for 1W @ Zn)
- Sd: 530.93 | cm^2 | diaphragm area
- Xmax: 13.275 | mm
Measurements & Suggestions (Sheet)
- Outer Frame Dimension [in, cm]: 12-5/8, 32
- Mounting Depth [in, cm]: 5-3/4, 14.6
- Mounting Cutout [in, cm]: 11, 27.9
- Max Rec Sealed Box Vol [cu. ft, liters: 3.5, 99.1
- Min Rec Sealed Box Vol [cu. ft, liters: 1.25, 35.4
- Max Rec Vented Box Vol [cu. ft, liters): 2.25, 63.7
- Min Rec Vented Box Vol [cu. ft, liters]: 1.75, 49.6
