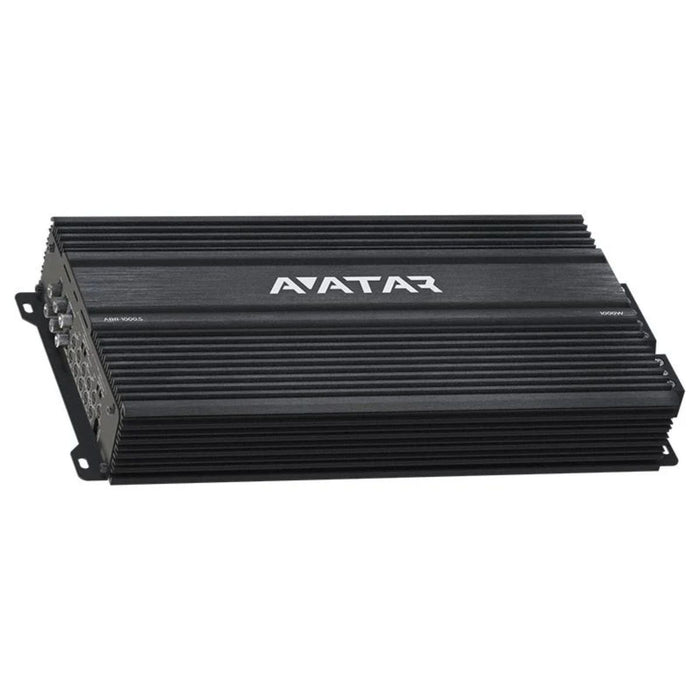

1000 Watt RMS 2-Ohm 5 Ch Class AB + D Full Range Car Audio Amplifier ABR-1000.5

• 5-Channel Power: Drives your full-range speakers and subwoofer with 4x90W + 1x240W RMS at 4Ω, up to 1x600W RMS at 1Ω for deep, precise bass.
• AB + D Class Design: Combines AB efficiency for channels 1–4 and Class D for the subwoofer, delivering high output with minimal heat.
• Advanced Filtering: High-pass (50–12,000 Hz) and low-pass (50–300 Hz) crossovers, plus subsonic filter (10–50 Hz) for clean, controlled sound.
• Flexible & Stable: Supports 1Ω–2Ω loads, bridged mode (4Ω), and simultaneous LPF/HPF operation for versatile setups.
• Compact & Reliable: Space-saving chassis (4.17" x 7.17" x 2.09") with 4 Ga input and 10 Ga output terminals for secure installation.

1000 Watt RMS 2-Ohm 5 Ch Class AB + D Full Range Car Audio Amplifier ABR-1000.5

This Listing Includes

• (1) ABR-1000.5 5-Channel AB + D Amplifier


• (1) User Manual

The ABR-1000.5 is a versatile 5-channel AB + D amplifier built for full-range car audio systems. With 4x90W + 1x240W RMS at 4-Ohm (and higher at 2-Ohm and 1-Ohm), it powers both your front/rear speakers and subwoofer with precision. Featuring high-pass and low-pass crossovers, subsonic filtering, and simultaneous LPF/HPF operation, this amp delivers clean, dynamic sound from lows to highs in a compact, space-saving chassis. Perfect for enthusiasts seeking a single amp solution for a complete car audio setup.

Features

• 5-channel AB + D design for full-range audio plus dedicated subwoofer power


• Flexible RMS power output:

  4-Ohm: 4x90W + 1x240W

  2-Ohm: 4x110W + 1x400W

  1-Ohm: 1x600W (subwoofer channel)


• High-pass and low-pass crossovers with 12dB/Oct slope


• Subsonic filter (10-50Hz) for subwoofer protection


• Simultaneous LPF and HPF operation


• Compact chassis for easy installation in tight spaces


• Input sensitivity: 0.2-6V for universal compatibility

Specifications:

• Model: ABR-1000.5


• Class: AB + D


• Number of Channels: 5


• Frequency Response: 100-20,000 Hz


• Power RMS (14.4V):

  4-Ohm: 4x90 + 1x240W

  2-Ohm: 4x110 + 1x400W

  1-Ohm: 1x600W


• Bridged 4-Ohm RMS Power: 2x220W


• High-Pass Filter (Channels 1-4): 50-12,000 Hz


• Low-Pass Filter (Channels 1-4): 50-300 Hz


• Crossover (1-4): 12 dB/Oct


• Low-Pass Filter (Channel 5): 50-300 Hz


• Subsonic Filter (Channel 5): 10-50 Hz


• Crossover (Channel 5): 12 dB/Oct


• Minimum Load: 2-Ohm/ 1-Ohm


• Minimum Load Bridged: 4-Ohm


• Input Terminal: 4 Ga


• Output Terminal: 10 Ga


• Working Voltage: 9-15V


• Signal-to-Noise Ratio: >90 dB

Dimensions:

• Length: 7.17"


• Width: 4.17


• Height: 2.09"
