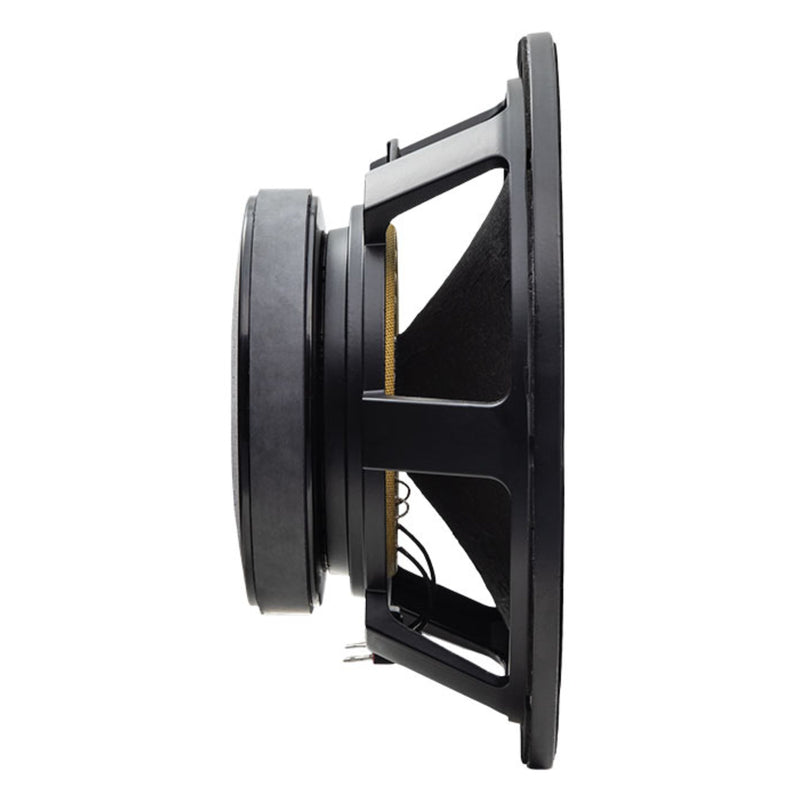

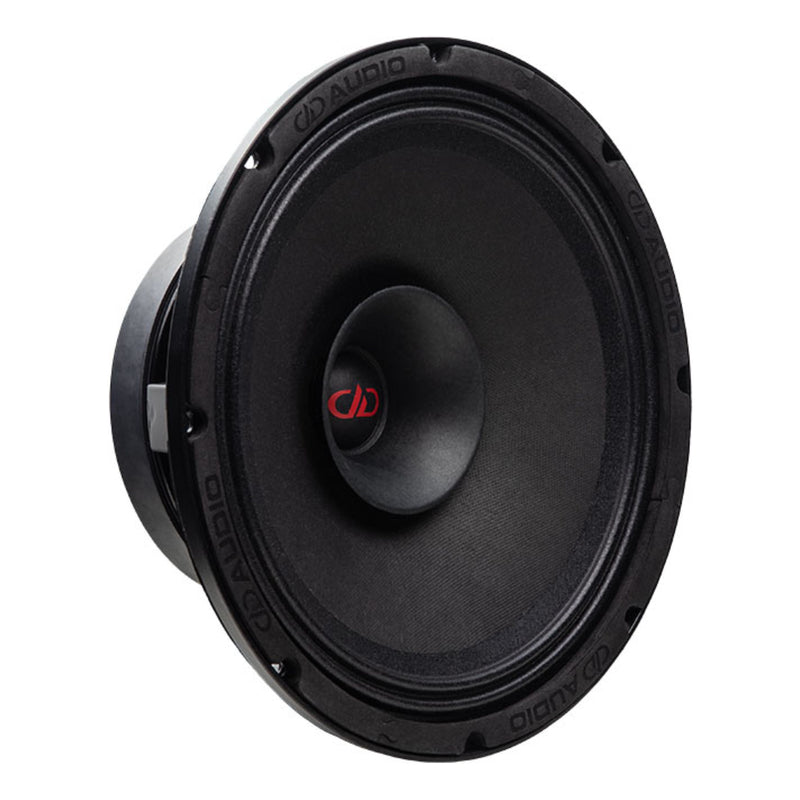

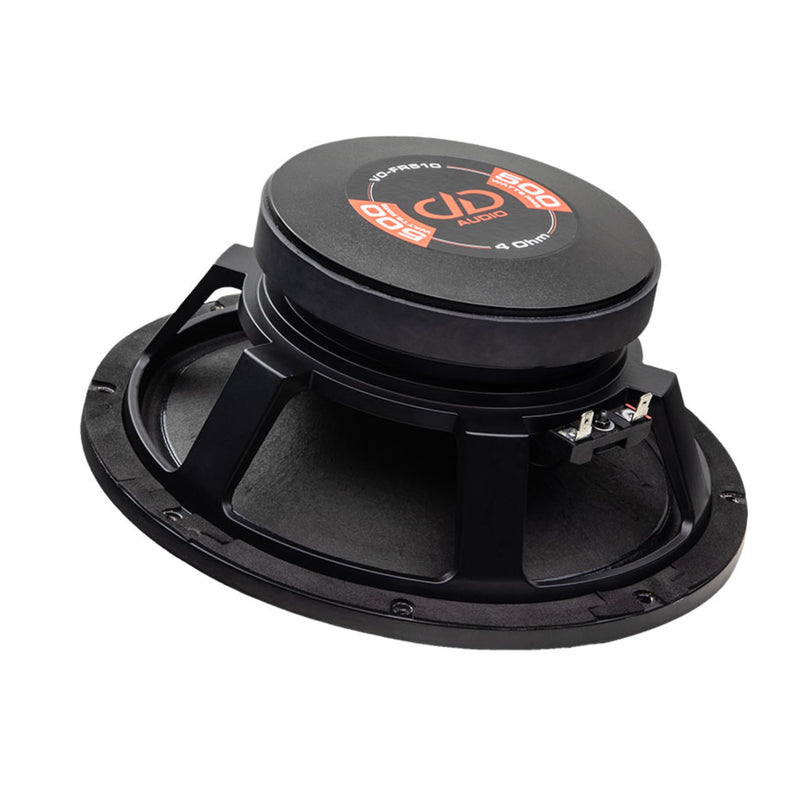

10" 500 Watts RMS 4 Ohm Car Audio Midrange Speaker DD Audio VO Series FR510-S4

• High Efficiency: 500 Watts RMS power handling with ultra-low inductance for superior performance.
• Dual Cone Design: Features a precision-engineered primary cone and ultralight whizzer cone for enhanced high-frequency response and smooth tonal blending.
• Robust Construction: Equipped with a durable paper cone with cloth edge surround and a newly designed aluminum die-cast basket.
• Voice Coil Technology: 45 mm Kapton vented former CCA wire voice coil with heat-resistant bonder treatment for improved durability and thermal performance.
• Optimized Acoustics: Copper Faraday shorting ring and supercharged magnet system for enhanced sound quality and reduced distortion.

10" 500 Watts RMS 4 Ohm Car Audio Midrange Speaker DD Audio VO Series FR510-S4

This Listing Includes:

• (1) 10" 500 Watts RMS 4 Ohm Car Audio Midrange Speaker DD Audio VO Series FR510-S4

Description:

The VO-FR500s are ultra-low inductance, high efficiency Full Range Voice Optimized drivers featuring a precision engineered dual cone design. The ultralight whizzer cone/cap is attached to the coil former to increase off axis response for greater output at higher frequencies augmenting the primary lower playing frequencies that midrange cone is designed to disperse. The independently focused acoustics of each cone have been optimized for smooth and coherent frequency blend ensuring listeners experience a fantastically broad tonal spectrum from bass to treble with no audibly perceptible phase shift or delay.

Features:

• Paper Cone With Cloth Edge Surround


• NEW Aluminum Die-Cast Basket


• 45 mm Kapton Vented Former CCA Wire w/Heat Resistant Bonder


• Treatment Voice Coil


• Magnet: †156 X 60 X 18MM (51 Oz)


• Copper Faraday Shorting Ring


• Supercharged


• Ultralight Whizzer Cone/Cap Attached to Coil Former

Specifications:

• Driver Size: 10 in


• Watts RMS: 500


• VCD (Voice Coil Diameter): 1.8 in


• Impedance: 4 Ohm


• Frequency Response: 80-16kHz


• Fs (Resonance Frequency): 73 Hz


• Qms: 12.08


• Qes: 0.51


• Qts: 0.49


• Vas: 34.71 liters


• Xmax: 4 mm


• Suspension Travel: 16 mm


• dBSPL (Sensitivity): 100 dB


• BL: 8.9


• Mounting Diameter: 9.125 in / 232 mm


• Mounting Depth: 4.0625 in / 103 mm
