- HIGH POWER HANDLING: Rated at 400 watts RMS and 800 watts peak power, the Audiopipe APLMR-10 delivers loud, clean midrange output ideal for high performance car audio systems and professional sound applications
- LOUD AND CLEAR MIDRANGE: Wide 55Hz to 8,000Hz frequency response with 95dB sensitivity reproduces vocals and instruments with clarity, punch, and excellent efficiency even at high volume levels
- HIGH TEMPERATURE VOICE COIL: Equipped with a 2.5 inch TIL voice coil designed for efficient heat dissipation and durability, ensuring consistent performance under demanding power conditions
- HEAVY DUTY CONSTRUCTION: Rugged die-cast aluminum basket minimizes unwanted resonance and distortion while providing a strong, stable platform for accurate sound reproduction
- EASY INSTALLATION DESIGN: Compact 4-5/16 inch mounting depth and standard mounting configuration allow flexible installation in doors, custom panels, and enclosures without complicated fabrication

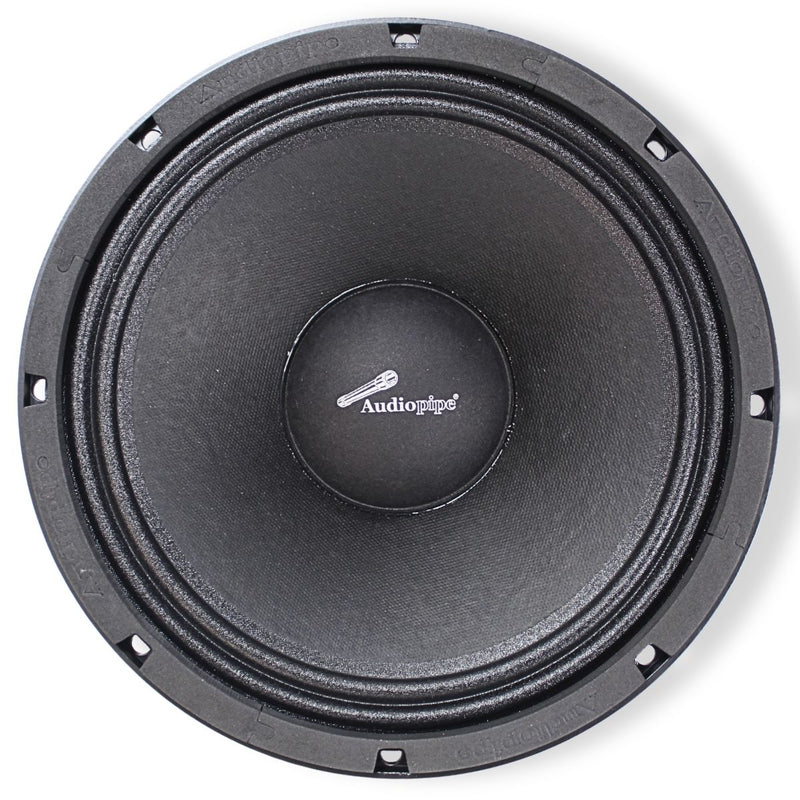

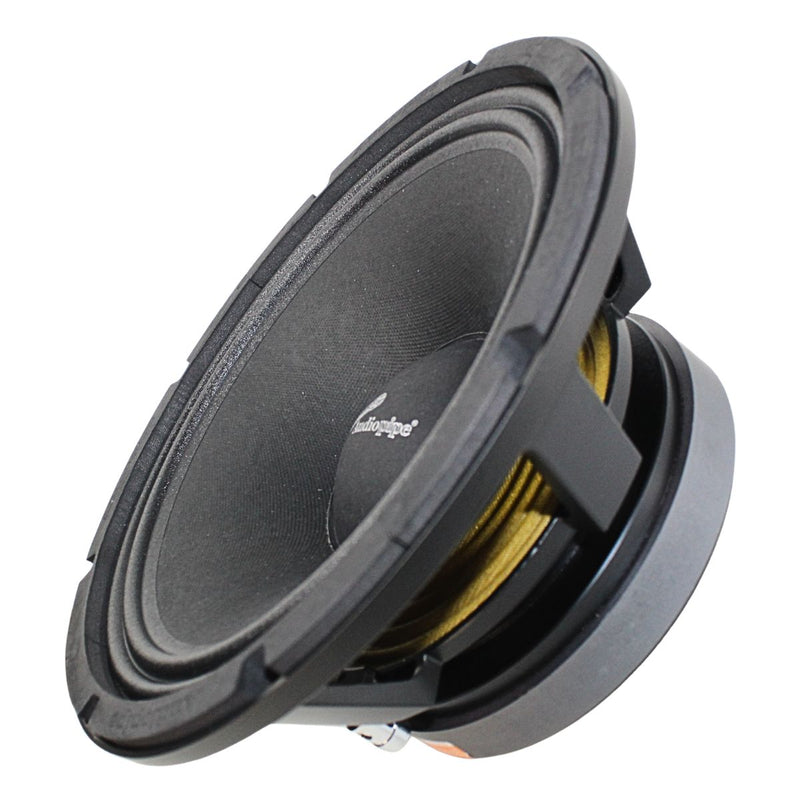

10" 400 Watt RMS 8 Ohm Midrange Loudspeaker Audiopipe APLMR-10
This Listing Includes:
- (1) Audiopipe APLMR-10 10" Mid Frequency Loudspeaker
The Audiopipe APLMR-10 is a high-output 10-inch midrange loudspeaker engineered for loud, clear vocal and mid-frequency reproduction in car audio and professional sound applications. Built as part of Audiopipe’s Mid-Range Series, this speaker delivers the ideal balance of power handling, efficiency, and installation flexibility for serious audio systems.

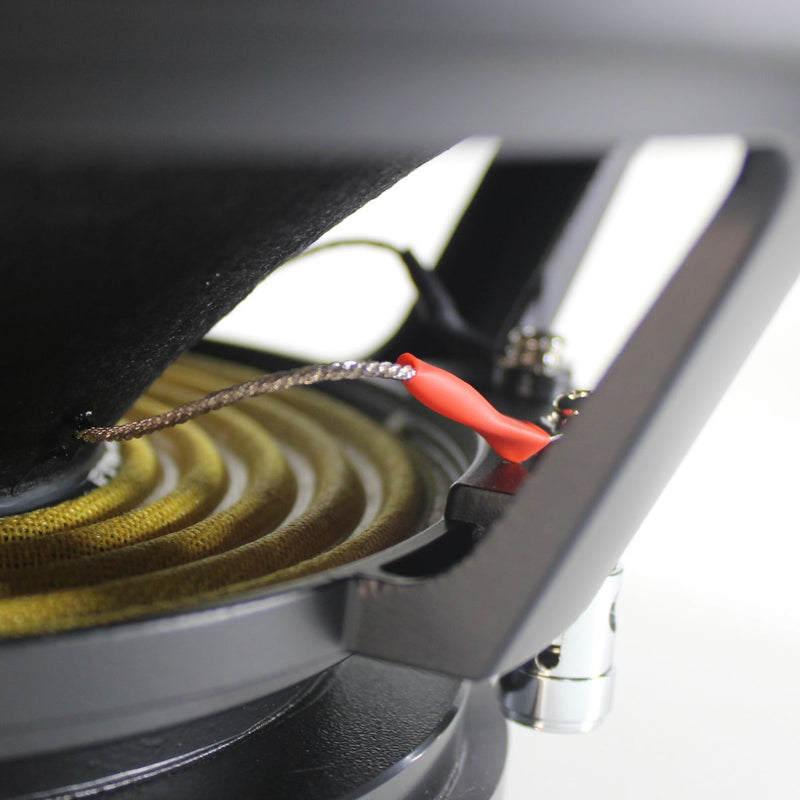

Rated at 400 watts RMS and 800 watts peak power, the APLMR-10 provides strong, controlled output with excellent clarity across the vocal range. Its 2.5-inch high-temperature TIL voice coil is designed for efficient heat dissipation and long-term durability under demanding conditions, while the heavy-duty die-cast aluminum basket reduces unwanted resonance and distortion for cleaner sound reproduction.
With a frequency response of 55Hz to 8,000Hz and high 95dB sensitivity, this midrange speaker produces detailed vocals and aggressive midrange output while maximizing amplifier efficiency. The compact 4-5/16 inch mounting depth allows for flexible installation in doors, custom panels, and enclosures where space is limited without sacrificing performance.
Specifications:
- Nominal Diameter: 10" (254mm)
- Impedance: 8 Ohms
- RMS Power Handling: 400 Watts
- Peak Power Handling: 800 Watts
- Frequency Response: 55Hz – 8,000Hz
- Sensitivity: 95dB (1W/1M)
- Voice Coil Diameter: 2.5" High Temperature TIL
- Basket Material: Die-Cast Aluminum
- Magnet Weight: 55 oz
- Mounting Depth: 110mm (4-5/16")
Dimensions:
- Overall Diameter: 10.4" (263.5mm)
- Overall Depth: 4.8" (123mm)
- Front Mount Baffle Cutout: 9.1" (232mm)
- Mounting Depth: 4.3" (110mm)
- Motor Diameter: 6.5" (165mm)
Whether you are building a competition-level system or upgrading your daily driver for louder and clearer mids, the Audiopipe APLMR-10 delivers reliable performance with professional-grade construction.
