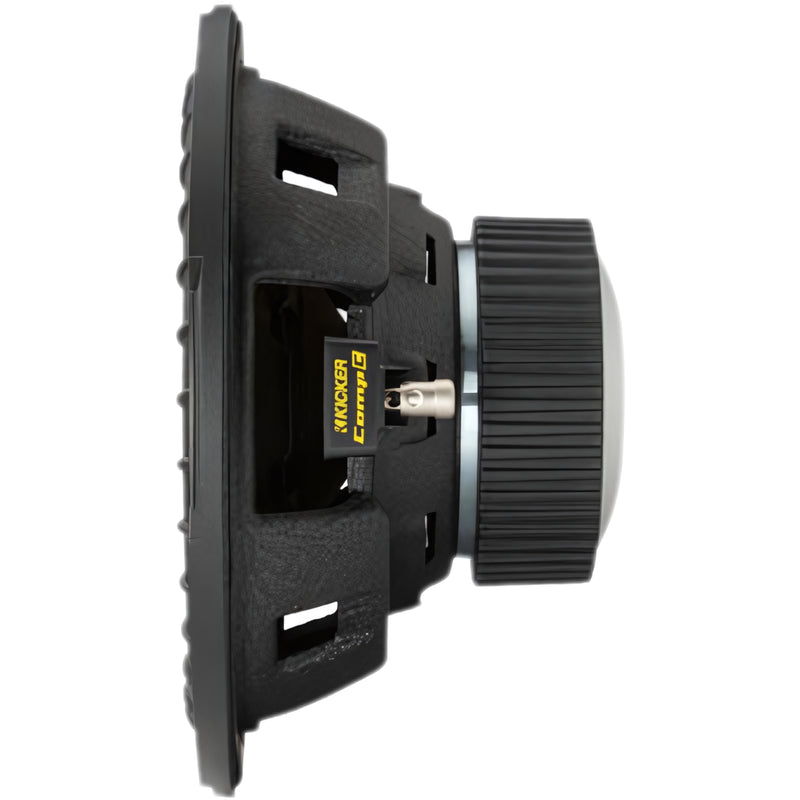

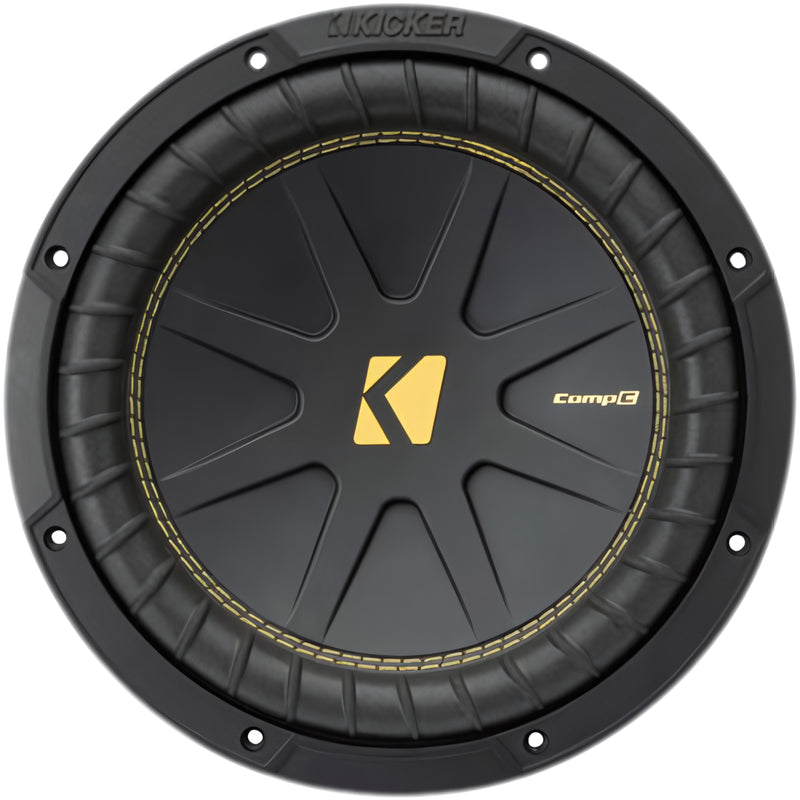

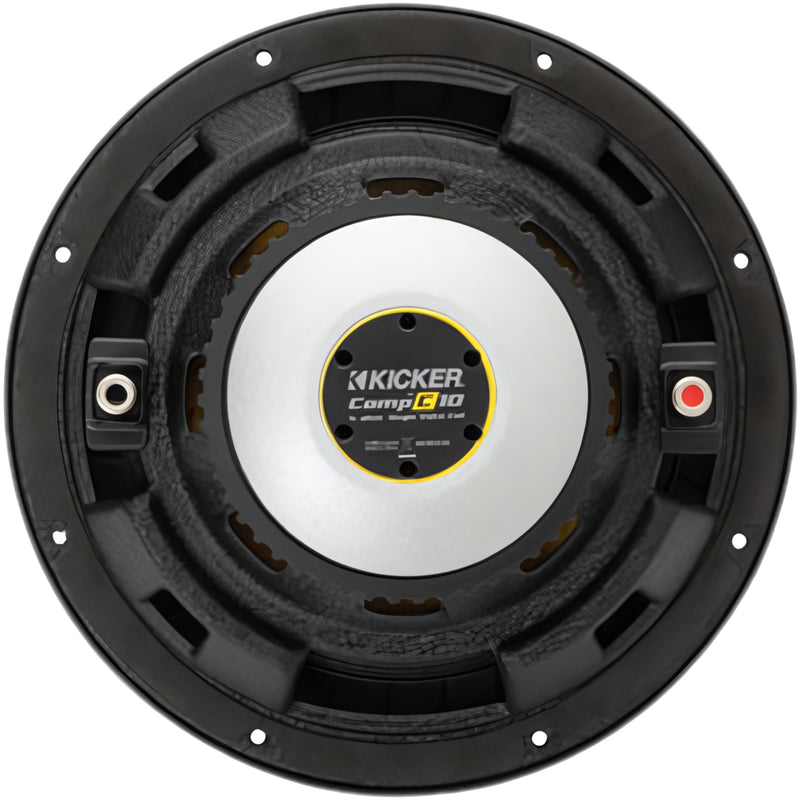

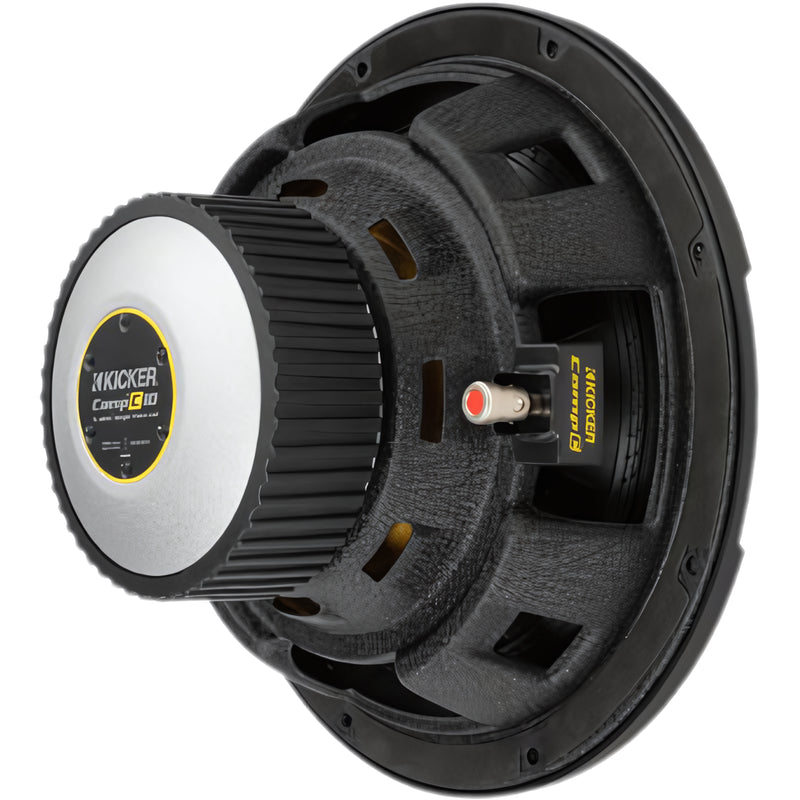

10" 250W RMS 4-Ohm SVC Subwoofer Kicker CompC Series / 50CWCS104

CASE QUANTITY: 4

PACKAGE WEIGHT: 25.0 LB

SKU KI-50CWCS104
Save 20% Save 20%
Original price $137.99
Original price $137.99 - Original price $137.99
Original price $137.99
Current price $109.99
$109.99 - $109.99
Current price $109.99

Free Gifts when added to Cart

The more you spend, the greater selection of free gifts you'll have at your fingertips when selecting items in your shopping cart!

Earn [points_amount] when you buy this item.

Spend More, Save More

Big Jeff loves his customers!!!
  • Spend $250, Save 3% *Must purchase 2 items to qualify
  • Spend $500, Save 5% *Must purchase 3 items to qualify
  • Spend $1000, Save 7% *Must purchase 4 items to qualify

*Does not apply to: Sundown, XS power or Kicker products*

*Does not stack with other promotional sales*

10" 250W RMS 4-Ohm SVC Subwoofer Kicker CompC Series / 50CWCS104

This Listing Includes:

  • (1) 50CWCS104 Subwoofer

Description:

The 10" 250W RMS 4-Ohm SVC Subwoofer Kicker CompC Series / 50CWCS104 delivers powerful bass and exceptional sound quality, making it a must-have for any car audio enthusiast. With its robust construction and high-performance capabilities, this subwoofer is designed to provide deep, resonant lows that elevate your music experience. The CompC Series is known for its durability and reliability, ensuring long-lasting performance even under heavy use. This subwoofer's compact design allows for easy installation in a variety of vehicles, making it a versatile choice for any car audio setup. Upgrade your sound system with the Kicker CompC Series subwoofer and enjoy an unparalleled listening experience.

Download Owner's Manual

Features:

  • Single Four-Ohm Voice Coil and Reengineered for Increased Excursion and Deeper Bass
  • Injection-Molded Polypropylene Cone
  • Forced-Air Cooling™ for Outstanding Durability
  • Ribbed Polyurethane Surround
  • Signature Yellow Surround Stitching
  • High-Strength Spiralead™ Tinsel Leads
  • Stamped Steel Basket
  • High Temp Voice Coil
  • Spring-Loaded Speaker Terminals

Specifications:

  • Size [in, cm]: 10, 25
  • Recommended Amplifier Power [watts RMS]: 125-250
  • Peak Power Handling [watts, per ANSI/CTA-2031-A]: 500
  • Sensitivity [dB 1w/1m]: 85.9
  • Rated Impedance [OHMS]: 4 SVC
  • Fs [Hz]: 33.9
  • Frequency Response [Hz]: 30-500

Thiele & Small Parameters:

Electrical Parameters

  • Re: 3.775 | Ohm | electrical voice coil resistance at DC
  • Krm: 0.0031 | Ohm | WRIGHT inductance mode
  • Erm: 0.93 | WRIGHT inductance mode
  • Kxm: 0.02235 | Ohm | WRIGHT inductance mode
  • Exm: 0.78 | WRIGHT inductance mode
  • Cmes: 867.8 | µF | electrical capacitance representing moving mass
  • Lces: 30.625 | mH | electrical inductance representing driver compliance
  • Res: 48.48 | Ohm | resistance due to mechanical losses
  • fs: 30.95 | Hz | driver resonance frequency

Mechanical Parameters

  • Mms: 96.9255 | g | mechanical mass of driver diaphragm assembly including air load and voice coil
  • Mmd(Sd): 89.217 | g | mechanical mass of voice coil and diaphragm without air load
  • Rms: 2.305 | kg/s | mechanical resistance of total-driver losses
  • Cms: 0.274 | mm/N | mechanical compliance of driver suspension
  • Kms: 3.66 | N/mm | mechanical stiffness of driver suspension
  • Bl: 10.5685| Tm | force factor (Bl product)

Loss Parameters

  • Qtp: 0.6495 | total Q-factor considering all losses
  • Qms: 8.1655 | mechanical Q-factor of driver in free air considering Rms only
  • Qes: 0.6365 | electrical Q-factor of driver in free air considering Re only
  • Qts: 0.59 | total Q-factor considering Re and Rms only

Other Parameters

  • Vas: 15.1976 | I | equivalent air volume of suspension
  • n0: 0.2235 | reference efficiency (2 pi-radiation using Re)
  • Lm: 85.69 | dB | characteristic sound pressure level (SPL at 1m for 1W @ Re)
  • Lnom: 85.945 | dB | nominal sensitivity (SPL at 1m for 1W @ Zn)
  • Sd: 359.68 | sq cm | diaphragm area
  • Xmax: 13.15 | mm

Measurement:

  • Outer Frame Dimension [in, cm]: 10-11/16, 27.2
  • Mounting Depth [in, cm]: 5-3/16, 13.2
  • Mounting Cutout [in, cm]: 9-3/16, 23.3

Enclosure Suggestions:

  • Max Rec Sealed Box Vol [cu. ft, liters: 2.4, 68
  • Min Rec Sealed Box Vol [cu. ft, liters: 1, 28.3
  • Max Rec Vented Box Vol [cu. ft, liters): 1.75, 49.6
  • Min Rec Vented Box Vol [cu. ft, liters]: 1.25, 35.4
