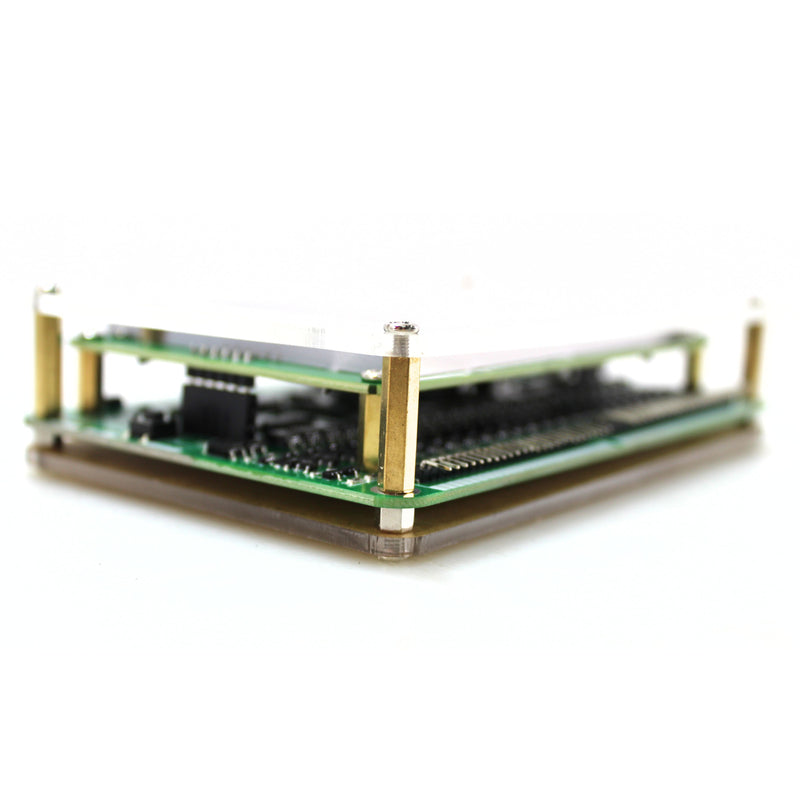

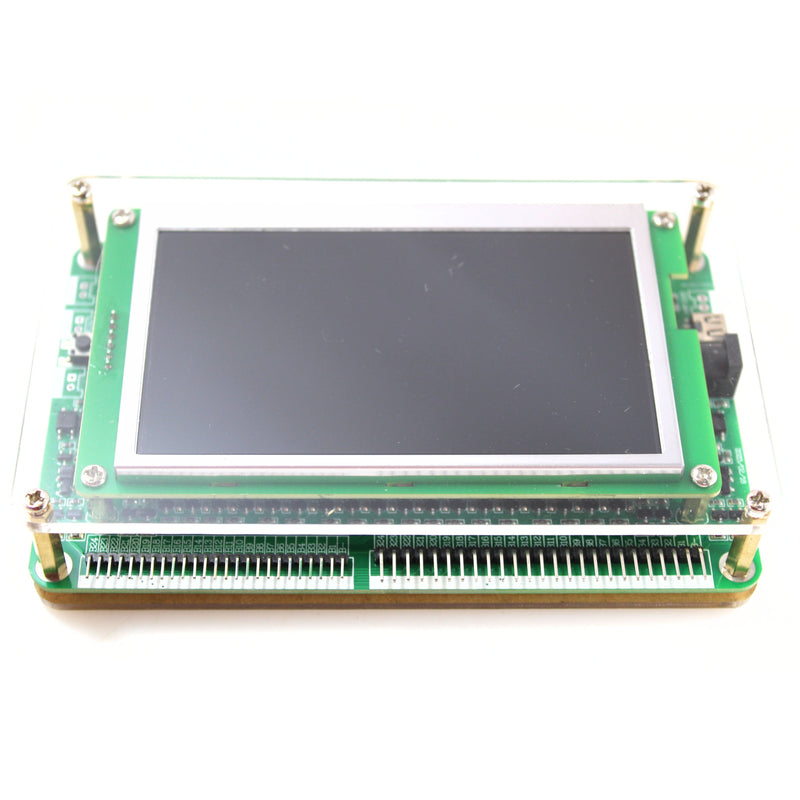

1 - 24 Lithium Cell Voltage Meter with LCD Active Balancer Display for LTO Banks

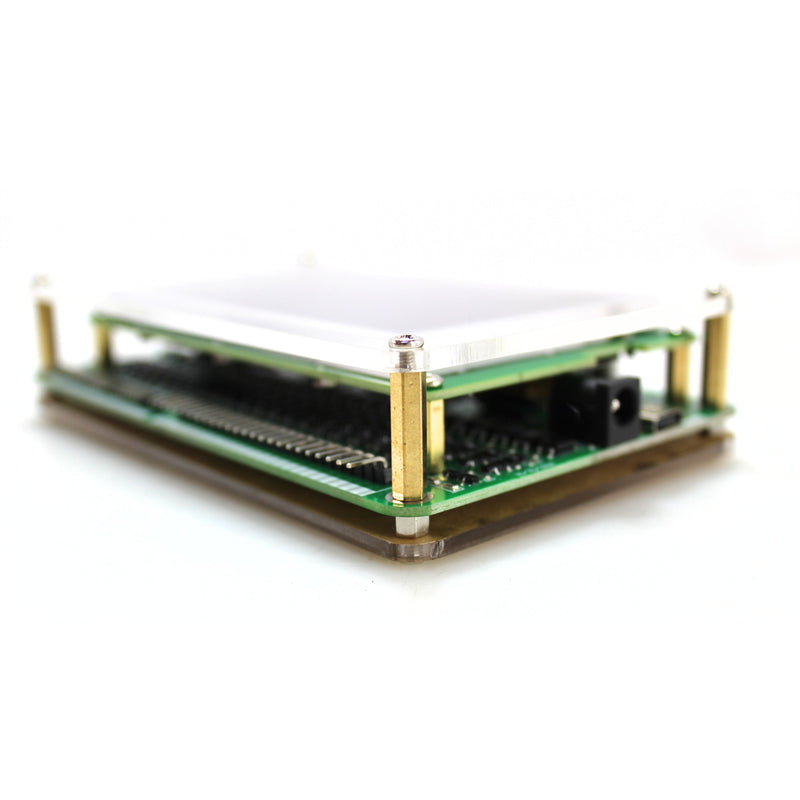

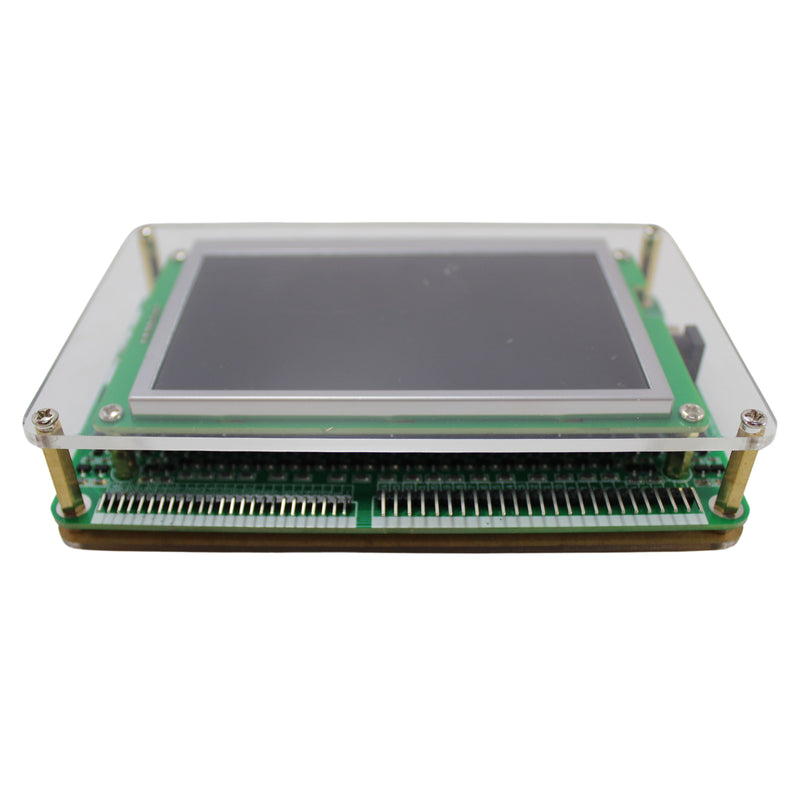

• Acrylic shell baffle for durable and transparent protection.
• Comprehensive display features including individual string voltages, total voltage, highest and lowest string voltages, maximum voltage difference, average voltage, equalization voltage, and number of strings.
• High accuracy of approximately 0.003 V for each string voltage measurement.

1 - 24 Lithium Cell Voltage Meter with LCD Active Balancer Display for LTO Banks

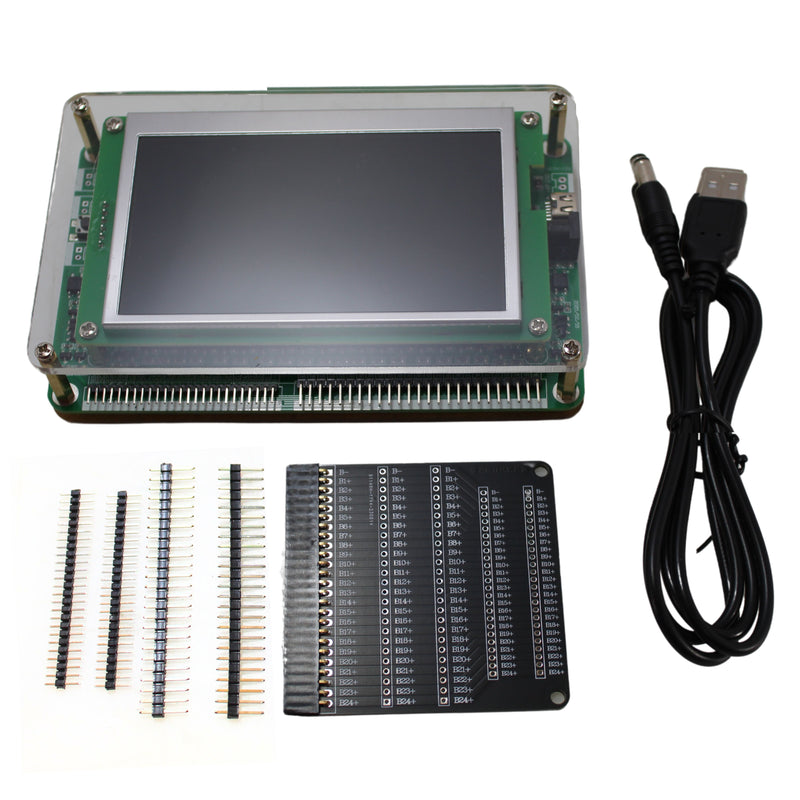

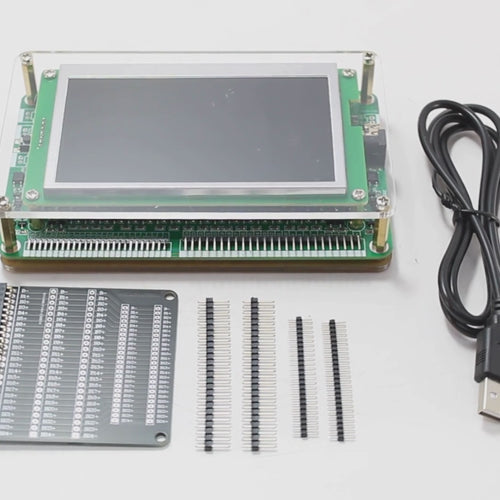

This listing includes:

• (1) LTO Cell Pack Voltage Meter

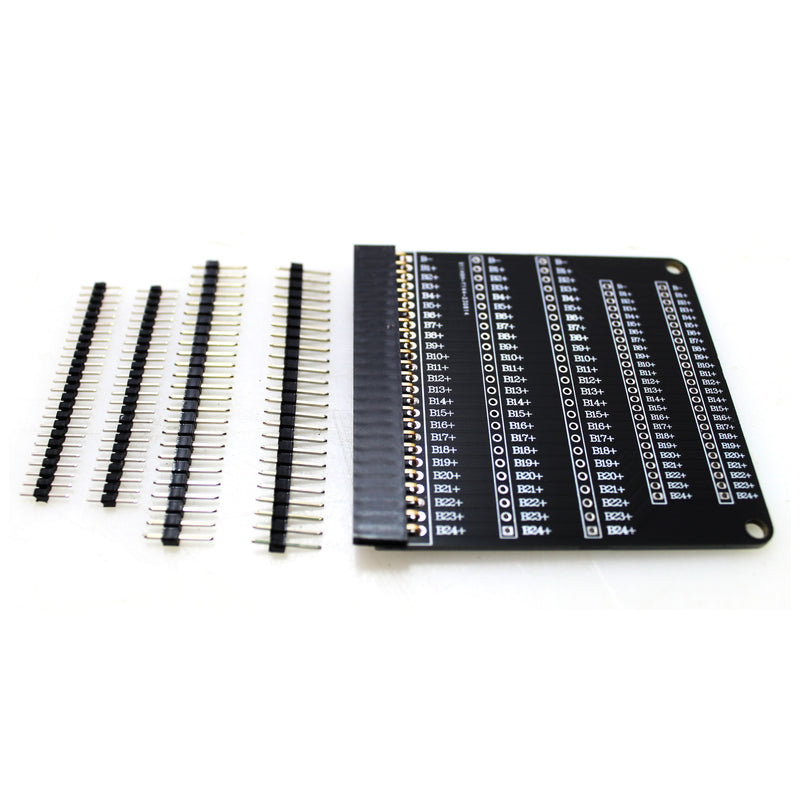

• (1) 24S Lithium Battery Expansion Board

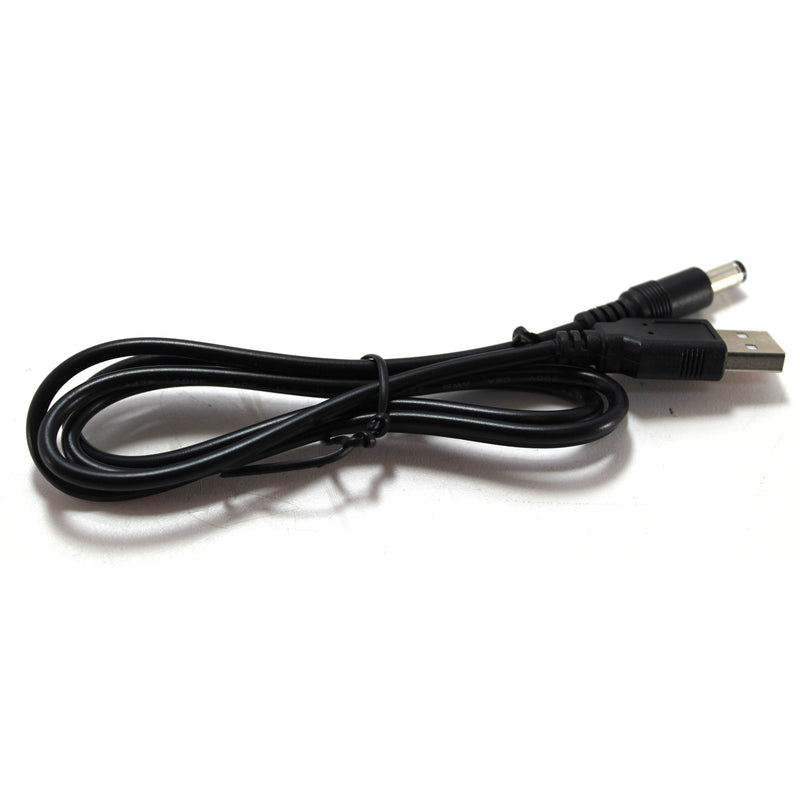

• (1) Power Cable

Engineered to support 1-24S lithium battery packs with voltages ranging from 2V to 4.5V per cell, this monitor provides unparalleled insight into your battery system. With a crystal-clear acrylic shell baffle ensuring durability and transparency, you can easily monitor individual string voltages, total voltage, and more, all with an accuracy of 0.003. Equipped with intuitive features like reverse connection and high/low voltage warnings, along with Type-C and DC power supply options, this monitor offers flexibility and peace of mind. Plus, with support for mixed plugging and bilingual operation, setup is a breeze.

Features:

• Support 1-24S lithium battery pack (voltage between 2V-4.5V per battery)

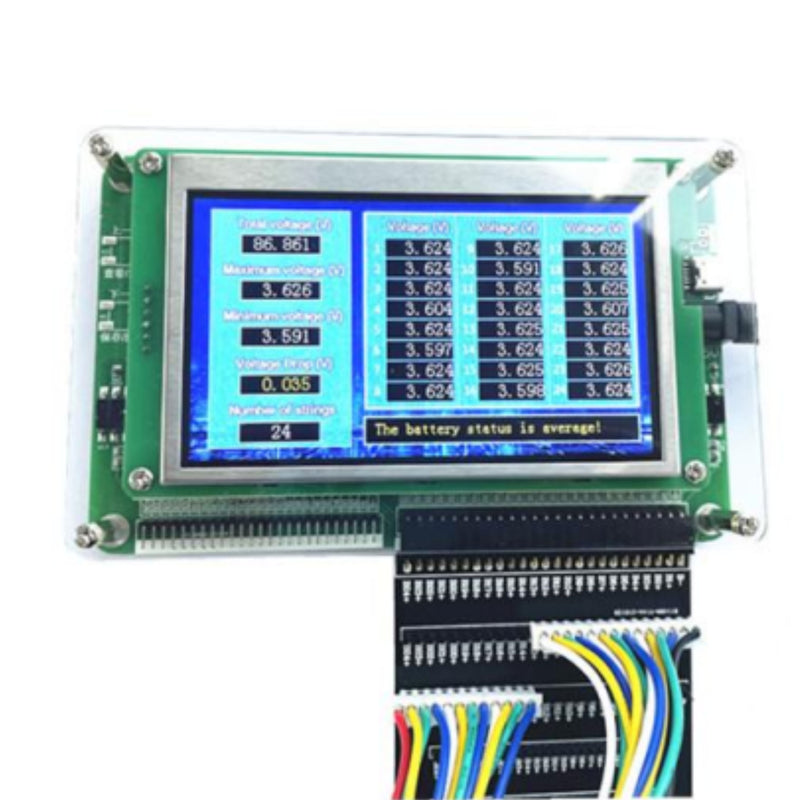

• Display the voltage of each string, total voltage, highest string voltage, lowest string voltage, maximum voltage difference of battery pack, average voltage, equalization voltage, number of battery pack strings


• Accuracy of each string voltage about 0.003


• Support for mixed insertion (without starting with B-)


• Automatically identifies the number of batteries in series


• Color LCD Display


• Reverse connection, high voltage (more than 4.5V), low voltage (less than 2V) warning sound and prompt


• Type-C and DC two kinds of power supply (power supply 5V)


• Support mixed plugging (no need to start from B1)

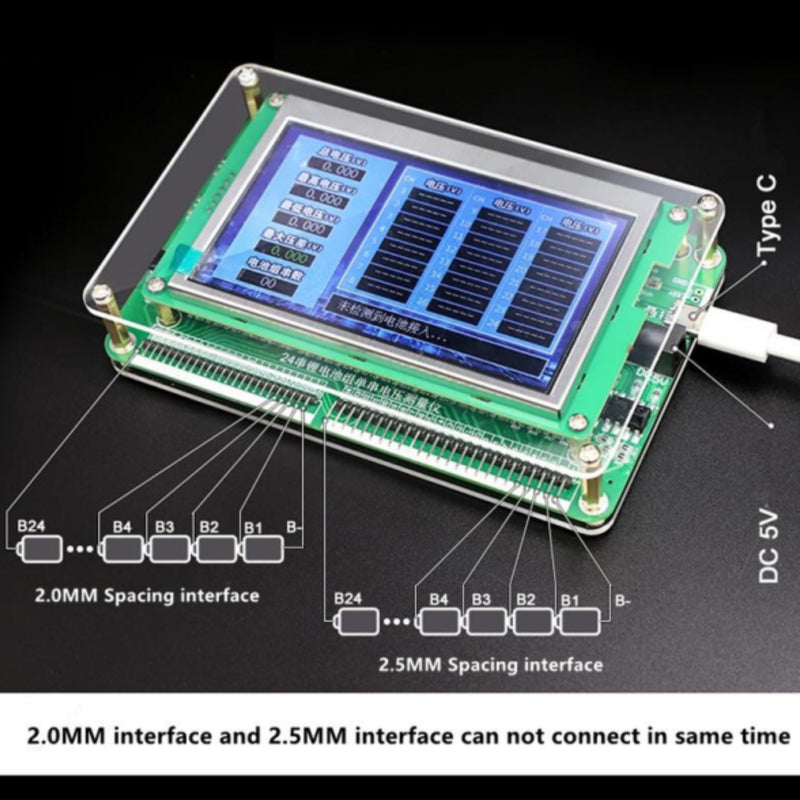

• Note: The supporting adapter board is self-contained 2.0/2.54 pitch pin position, can not be connected to two interfaces at the same time

Additional Info:

1. Single-Channel voltage measurement range: 0.3V-9.0V


2. Single-Channel voltage display accuracy: 0.001V


3. Single-Channel voltage sampling accuracy: (0.05%+0.003V)


4. Adaptable battery type: Lithium batteries with voltage between 0.3 and 9.0V, such as ternary and lithium iron phosphate.


5. Power Supply: Use 5V 2A Mobile Phone charger, power bank or DC5V-12V Adapter for power supply.

Physical Dimensions (in.):

• Length: 7"


• Width: 6"


• Height: 3"
