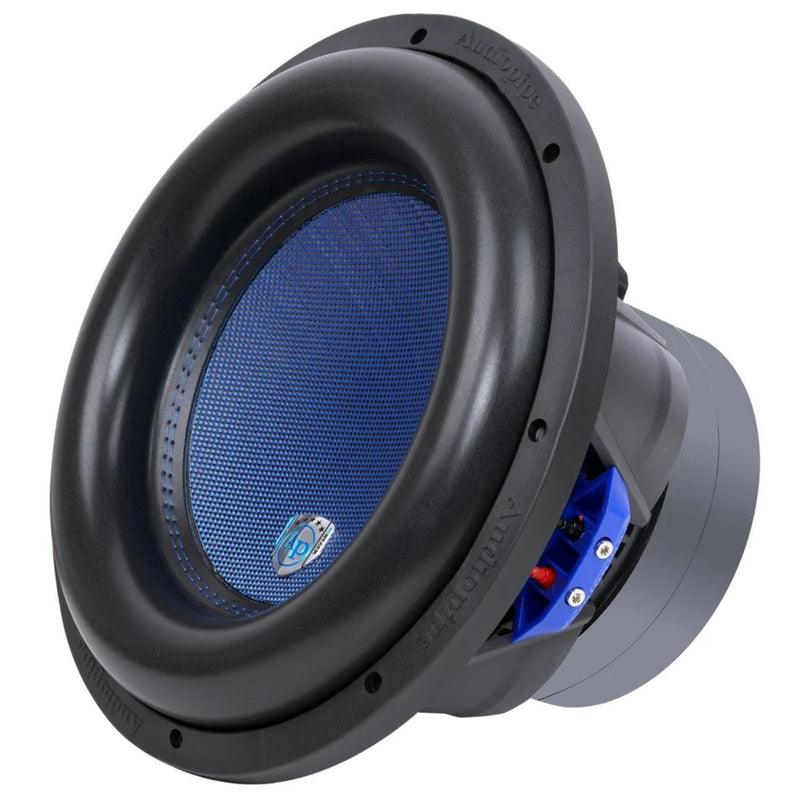

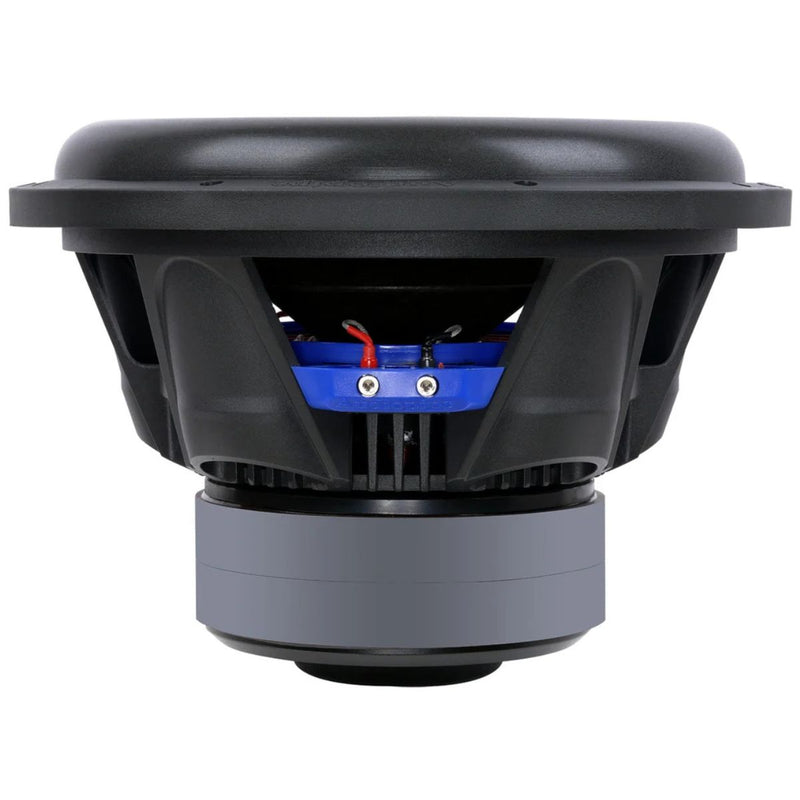

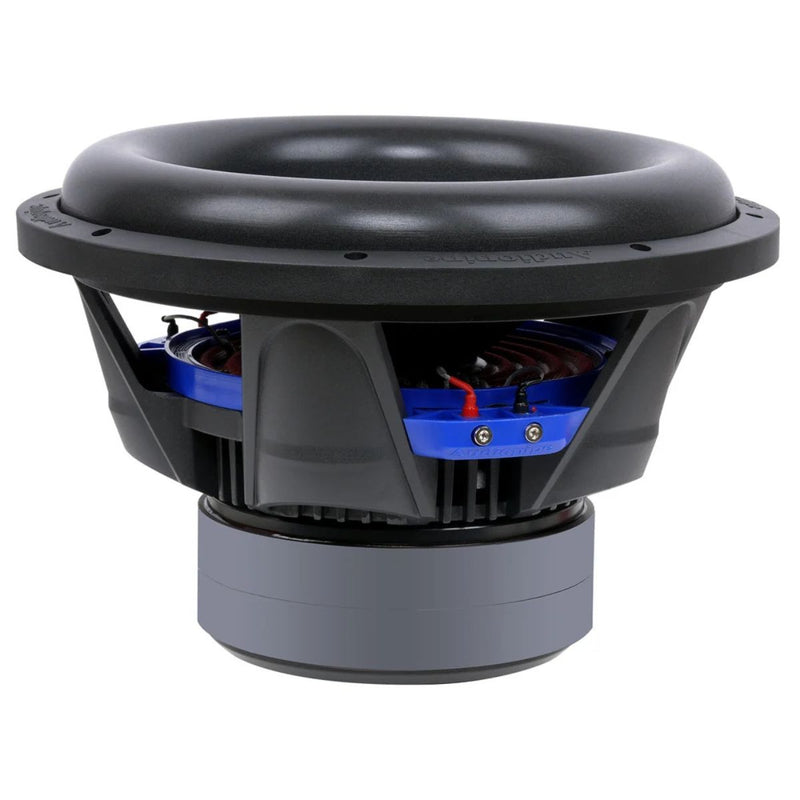

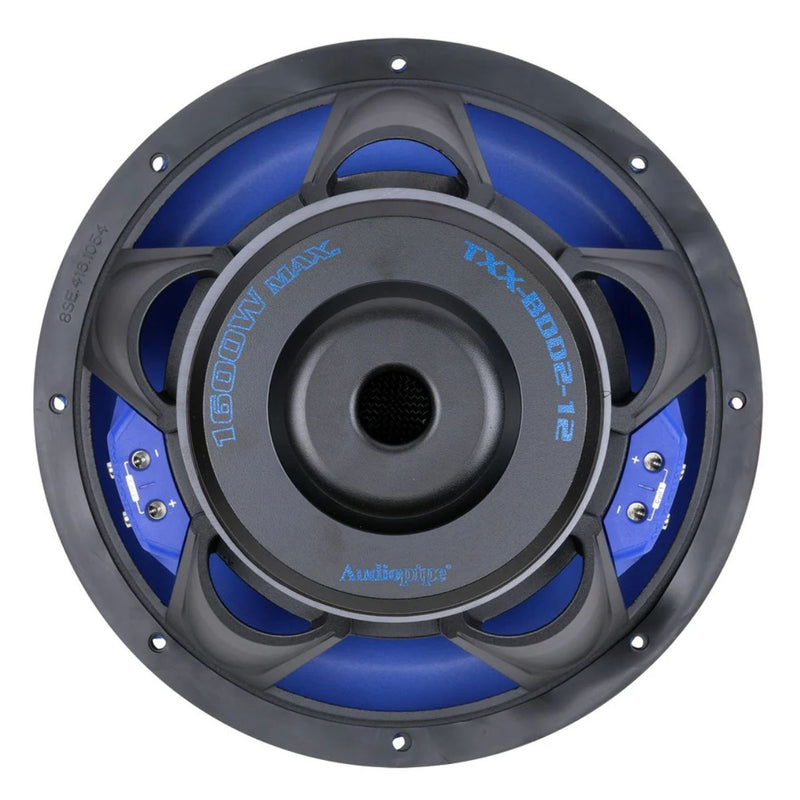

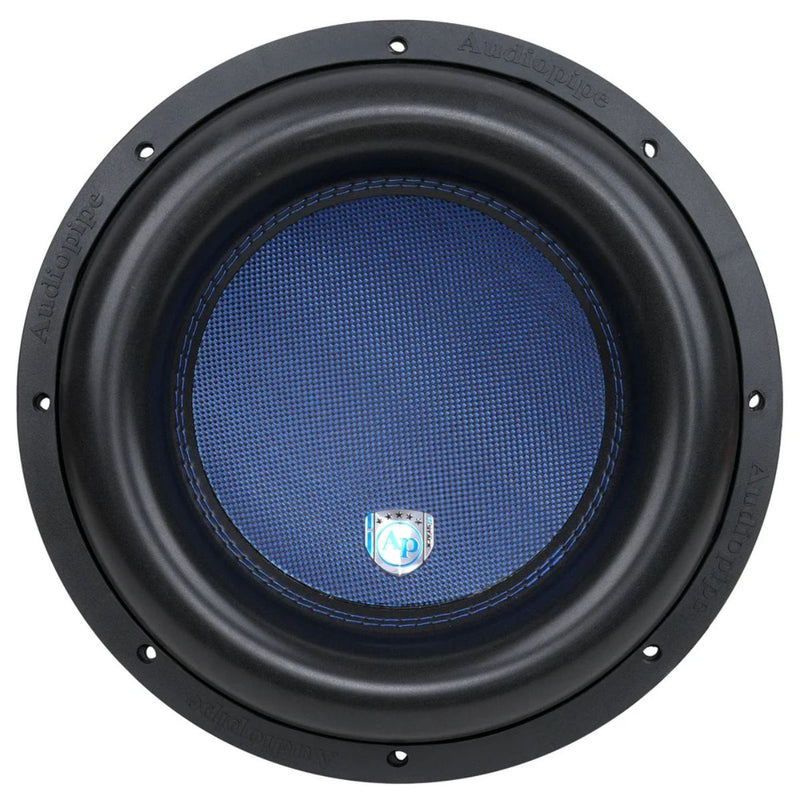

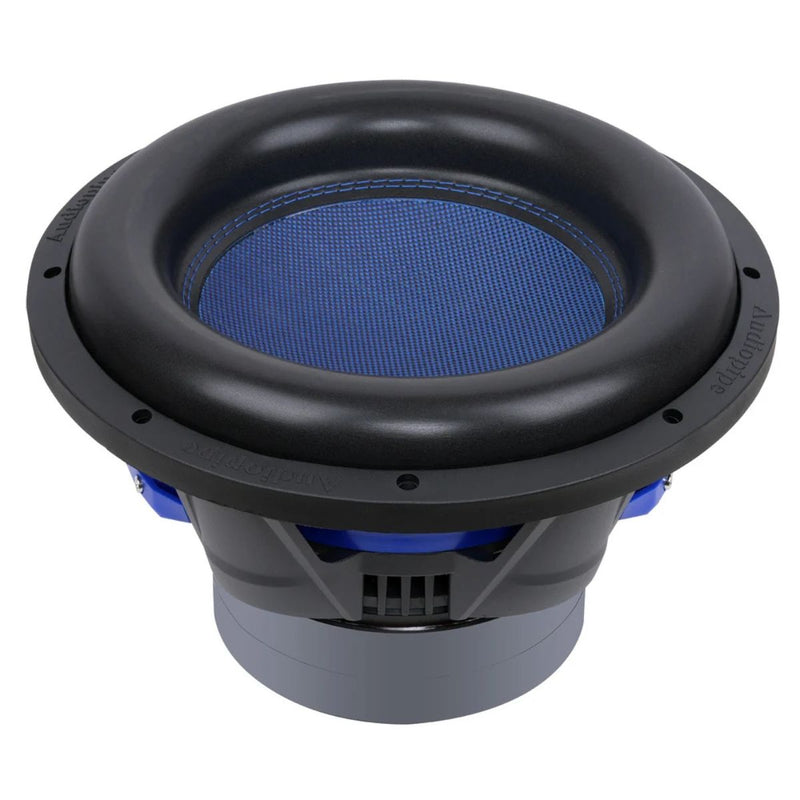

Audiopipe 12" Subwoofer 800W RMS Dual 4 Ohm Double Stack TXX-BDD2-12

• 800W RMS POWER HANDLING: Rated for 800 watts RMS and 1600 watts peak, the Audiopipe TXX-BDD2-12 brings powerful bass to your car audio system.
• DUAL 4 OHM VOICE COILS: A 2.5-inch, four-layer BASV dual voice coil allows series or parallel wiring for a final 8-ohm or 2-ohm load, with multi-connect terminals for convenient connections.
• REINFORCED COMPOSITE CONE: Paper and fiberglass construction combines rigidity with durability, while the large inverted composite fiberglass dust cap reinforces the cone assembly.
• HIGH-EXCURSION FOAM SURROUND: Air-cushion foam supports extended cone movement, with blue quad stitching that strengthens the cone-to-surround connection.
• DOUBLE-STACK MAGNET DESIGN: A 150 oz magnet structure pairs with a powder-coated die-cast aluminum basket. Designed for sealed or vented enclosures, with a mounting depth of 7.375 inches.

Audiopipe 12" Subwoofer 800W RMS Dual 4 Ohm Double Stack TXX-BDD2-12

This Listing Includes:

• (1) Audiopipe TXX-BDD2-12 12" Dual 4 Ohm Subwoofer

Bring powerful bass to your build with the Audiopipe TXX-BDD2-12. This 12" subwoofer handles 800W RMS and 1600W peak power, pairing a double-stack magnet structure with a paper and fiberglass composite cone. Its high-excursion foam surround features reinforcing blue quad stitching, while the powder-coated die-cast aluminum basket provides a rigid foundation. A 2.5" four-layer dual voice coil and multi-connect terminals give you flexible wiring options for your amplifier setup.

Key Features:

• 800W RMS Power Handling: Rated for 800W continuous and 1600W peak power for demanding car audio builds.


• Dual 4 Ohm Voice Coils: A 2.5" four-layer BASV voice coil supports series or parallel wiring for an 8-ohm or 2-ohm final load.


• Composite Cone Construction: A paper and fiberglass cone pairs with a large inverted fiberglass dust cap for rigidity during demanding bass playback.


• Reinforced High-Excursion Surround: Air-cushion foam allows cone travel, while blue quad stitching reinforces the cone-to-surround connection.

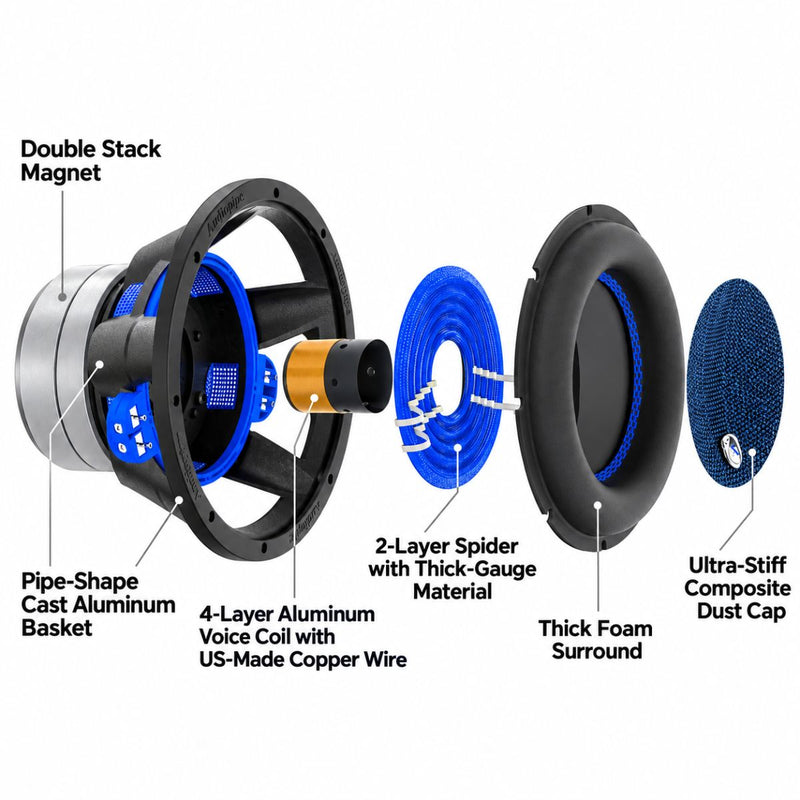

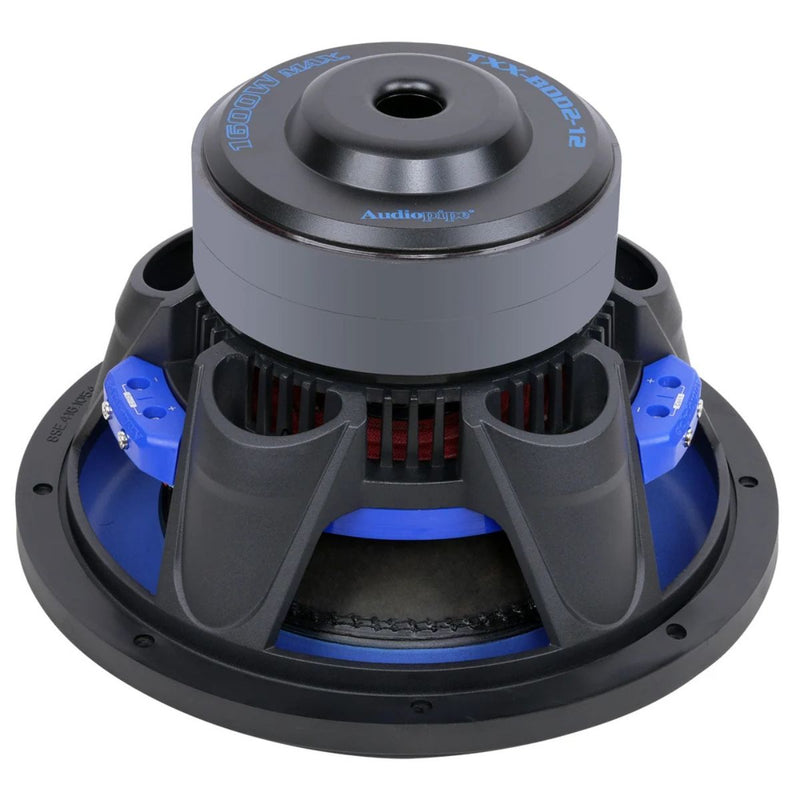

• Double-Stack Motor and Aluminum Basket: A 150 oz magnet assembly and powder-coated die-cast aluminum frame provide a substantial foundation for high-output performance.

Specifications:

• Model: TXX-BDD2-12


• Subwoofer Size: 12"


• RMS Power Handling: 800W


• Peak Power Handling: 1600W


• Impedance: Dual 4 Ohm


• Voice Coil: 2.5" four-layer black aluminum (BASV)


• Magnet Structure: Double stack, 150 oz


• Frequency Response: 22 Hz to 900 Hz


• Sensitivity: 88 dB


• Cone Material: Paper and fiberglass composite


• Surround: Air-cushion foam with blue quad stitching


• Dust Cap: Large inverted composite fiberglass


• Basket: Die-cast aluminum with black powder-coated finish


• Motor Design: Deep bumped T-yoke with oversized pipe structure


• Terminals: Multi-connect terminals for series or parallel wiring


• Mounting Depth: 7.375" (187 mm)


• Recommended Sealed Enclosure: 1.5 cu. ft.


• Recommended Vented Enclosure: 2.5 cu. ft.


• Specified Port Dimensions: 2.5" x 12" x 14"
