8000W 1-Ohm Monoblock Class D Car Audio Bass Amplifier Timpano TPT-BASS8000-1

• High Power Output: Delivers 8000 Watts RMS exclusively for bass and sub-bass, ensuring optimal performance for powerful low-end sound.
• Efficient Performance: Designed for high efficiency, providing more power with reduced battery consumption, making it ideal for extended use.
• Advanced Tuning Options: Features built-in variable crossover filters, subsonic filter (5-40Hz), and low-pass filter (30-250Hz), along with Bass Boost for precise tuning without the need for external equipment.
• Compact and Robust Design: Utilizes Brazilian Class D full-bridge technology, with a small footprint and advanced cooling systems, ensuring stable performance in limited spaces.
• Smart Technology: Equipped with LED indicators for power, clipping, and protection, plus 4-way protection circuitry for safety and reliability during demanding bass sessions.

8000W 1-Ohm Monoblock Class D Car Audio Amplifier Timpano Series TPT-BASS8000-1

This Listing Includes:

• (1) Monoblock Class D Car Audio Amplifier Timpano Series TPT-BASS8000-1

Description:

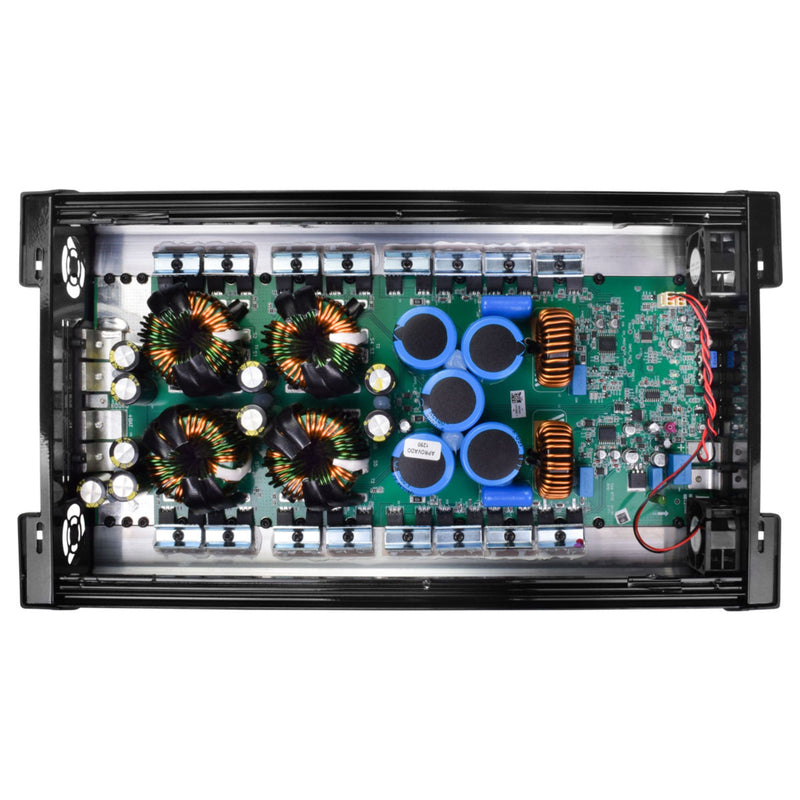

The BASS Series from Timpano combines half-bridge amplifier engineering with the newest semiconductor technologies. Utilizing them, higher power-to-footprint ratios are possible, and the more compact chassis created for this technology does not degrade the output power or stability. To handle even the most demanding bass sessions, this amplifier comes with sturdy heatsink, heavy duty power and ground inputs, high current PCBs, and premium internal components.

Features:

• POWER: This Monoblock Car Audio amplifier is designed to run your system with the power it needs to perform! 8000 Watts RMS power exclusive for BASS and SUB BASS applications. Its high efficiency provides more power with less battery consumption.


• FEATURES: Heavy duty power and speaker terminals. Built-in variable crossover filters for easy tuning! Set setting for your subwoofer with a SUBSONIC filter 5 to 40Hz and LPF 30 to 250Hz without a need for an external crossover or DSP. Fine tune it according to your box with variable frequency dial and BASS BOOST at choose frequency up to +10 dB. It also includes Variable Gain Control. Level controls are not for adjusting volume. They adjust the amount of signal that is coming into the amplifier from your signal source.


• DESIGN: Digital full bridge class D Brazilian technology allows this car audio amplifier to have a small footprint by integrating a high-speed mosfet power supply with top of line transistors to ensure performance in a small heat sink without compromising performance. Dimensions: 9.36†depth x 16.25†width x 3.05†height


• TECHNOLOGY: This bass amplifier features power, clipping and protection LED indicators on top + intelligent 4-way protection circuitry. Smart and Silent Coolers ensure efficient and noise-free operation of the amplifier.

Specifications:

• Number of Channels: 1


• 8200 Watts RMS Power at 1 Ohm 14.4Volts


• 4900 Watts RMS Power at 2 Ohm 14.4 Volts


• Supply Voltage: 9V ~ 17V


• Frequency Response: 5Hz ~ 600Hz


• Flat Switch – ON ( no Crossover Filters ) 5Hz ~ 600Hz


• Crossover Low Pass Filter: 30Hz ~ 250KHz


• Crossover Subsonic Filter: 5Hz ~ 40Hz


• Bass Boost Freq: 30Hz ~ 70Hz


• Bass Boost Gain: 0 dB ~ +10 dB


• Signal to Noise: > 90 dB


• Impedance Output: 1 Ohm


• Musical Consumption: 365A


• Bass Consumption: 730A

Dimensions (in inches):

• Length: 9.36â€


• Width: 16.25â€


• Height: 3.05â€


• Weight: 13 lbs

Before Installing:

You must follow the instructions for the product’s installation and connections to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:

• Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to the equipment connected to the amplifier;


• Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference;


• Always use 100% Copper cables and good quality connectors. This guarantees the sound's quality and fidelity;


• To avoid damaging the cables, make sure that they do not touch sharp metal edges. Important: Use a 350A fuse 12 inches away from the battery as a safety precaution
