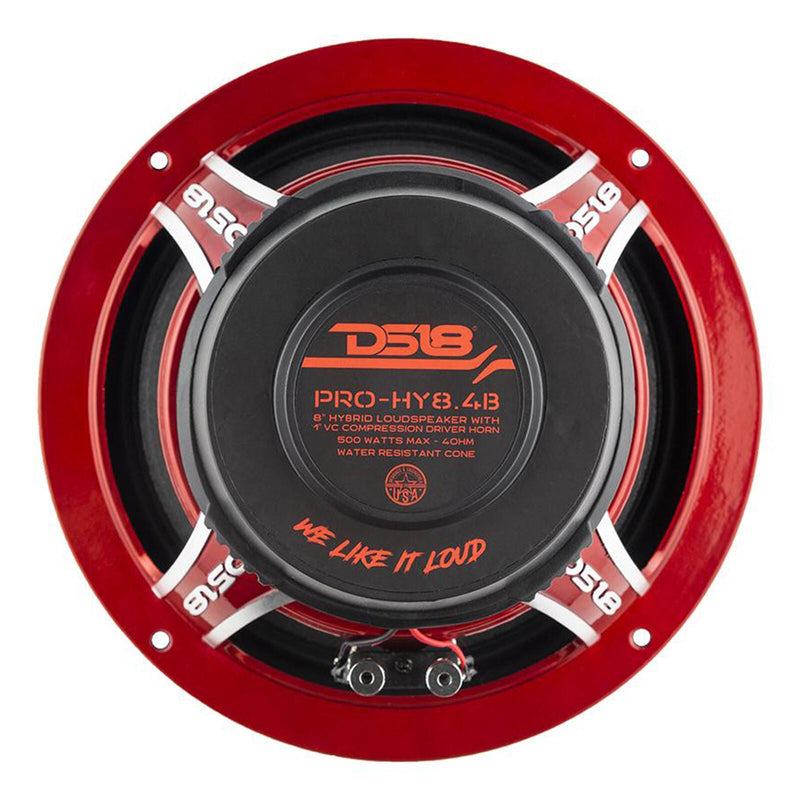

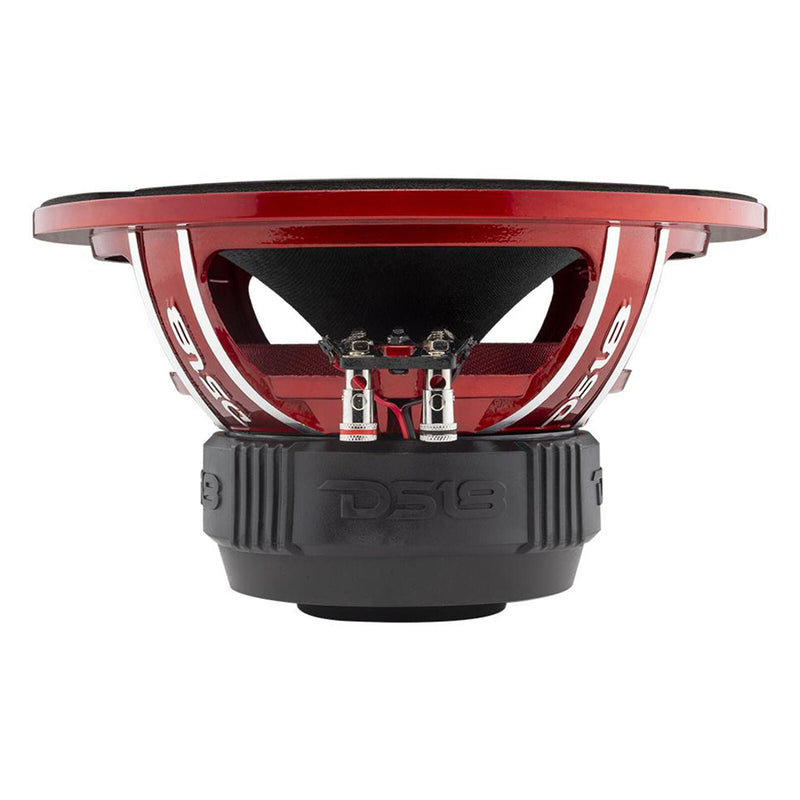

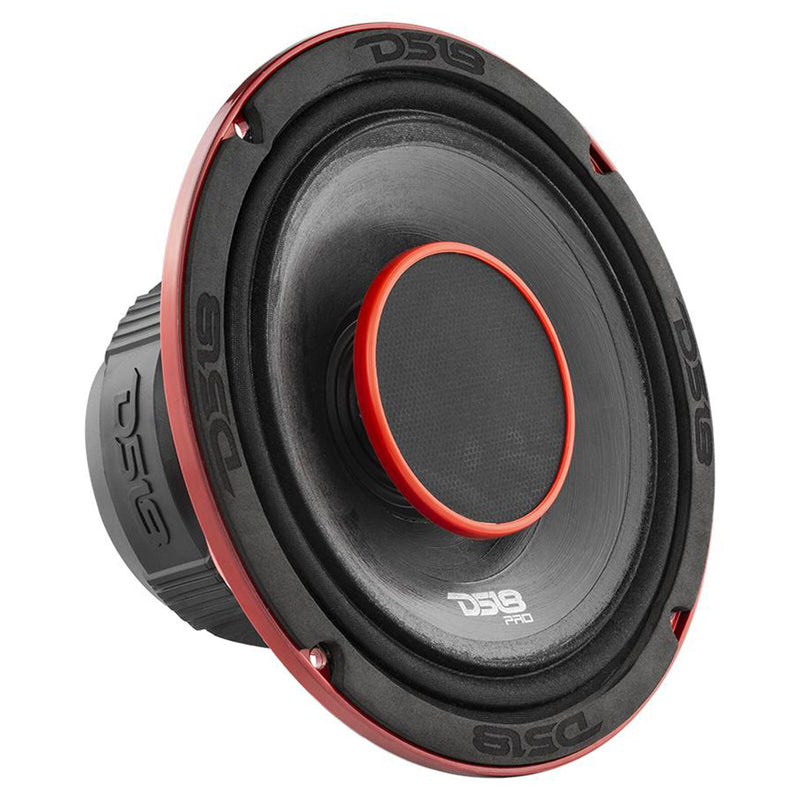

DS18 Marine / Motorcycle 8" Mid-Range Loudspeaker 500 Watt 4 Ohm Built-in Driver

DS18 Marine / Motorcycle 8" Mid-Range Loudspeaker 500 Watt 4 Ohm Built-in Driver

If you like it really loud, this speaker is made for you. This DS18 Hybrid speaker give you the best of both worlds of mids and highs combined into one pro audio combination speaker. This high powered mega speaker combines both a 8" high volume midrange speaker that also has a high wattage driver attached to the rear to give you a full range of frequencies at an amazingly loud volume. These Hybrids have water resistant cones to help battle elements and are perfect for people looking to place a high wattage, high volume loudspeaker together without having to separately mount an additional driver. Great for cars, trucks, motorcycles and boats!

This Listing Includes:

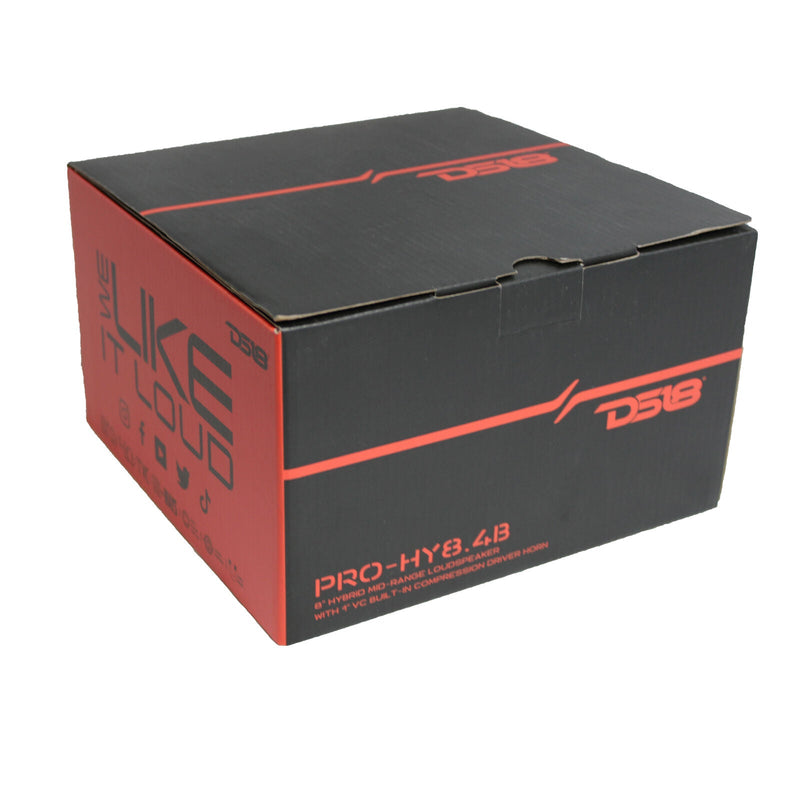

(1) DS18 8" Hybrid Mid-Range Speaker PRO-HY8.4B

FEATURES:

- Hybrid design combines high wattage midrange and driver together in one beautiful frame.

- High volume 8" and 1" compression driver rated at 500 watts max for crazy loud volume in a full range of frequencies.

- Water resistant cone to help battle elements and moisture making them great for motorcycles, boats, and regular vehicles too.

SPECIFICATIONS:

Nominal Diameter: 8"

Nominal Impedance: 4 Ohms

RMS Power Handling: 250 Watts

MAX Power Handling: 500 Watts

Sensitivity (1w/1m): 97dB

Frequency Response: 80Hz-20KHz

Recommended Hi Pass Crossover: 100 Hz

MID-RANGE SPECIFICATIONS:

Voice Coil Diameter: 1.5" / 38.6 mm

Voice Coil Former Material: Glass Fiber

Winding Material: CCAW

Cone Material: Water Resistant Paper

Surround Material: Cloth

Basket Material: Aluminum

Basket Color/Finish: Glossy Red

Magnet Material: Ferrite

Magnet Weight: 27 Oz

Displacement volume: 0.051L

THIELE & SMALL PARAMETERS:

Equivalent Volume: Vas 10.048L

Excursion (one way): Xmax 9.2 mm

Free Air Resonance: FS 135Hz

Mechanical Factor: Qms 5.96

Electrical Factor: Qes 1.321

Total Factor: Qts 1.011

Mechanical Mass: Mms 9.69g

Mechanical Compliance: Cms 137.345 mm/N

BL Factor: BL 4.58

Voice Coil Inductance: Le 4.22mH

Cone Area: Sd 226.98 Cm2

DC Resistance: Re 3.4 ohms

Mechanical Mass: w/o Air: Mmd 7.724g

DRIVER SPECIFICATIONS:

Voice Coil Diameter: 1" / 25.4 mm

Voice Coil Former Material: Kapton

Winding Material: CCAW

Diaphragm Material: Titanium

Magnet Material: Neodymium

Horn Diameter: 3.26"

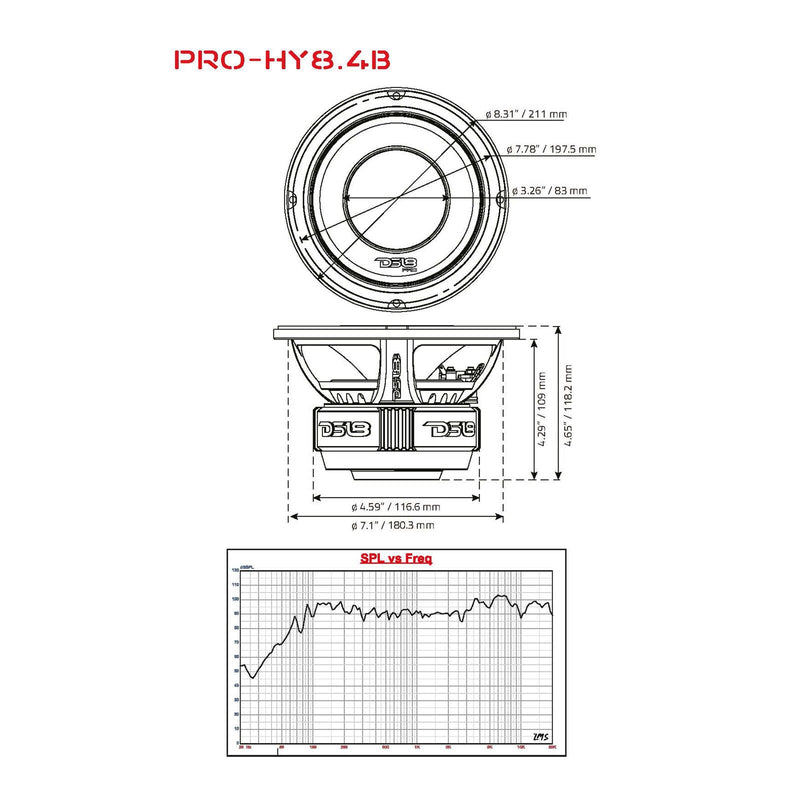

MEASUREMENTS:

Overall Diameter: 8.31" / 211 mm

Overall Depth: 4.65" / 118.2 mm

Front Mount Baffle Cutout: 7.1" / 180.3 mm

Mounting Depth: 4.29" / 109 mm

Motor Diameter: 4.59" / 116.6 mm
