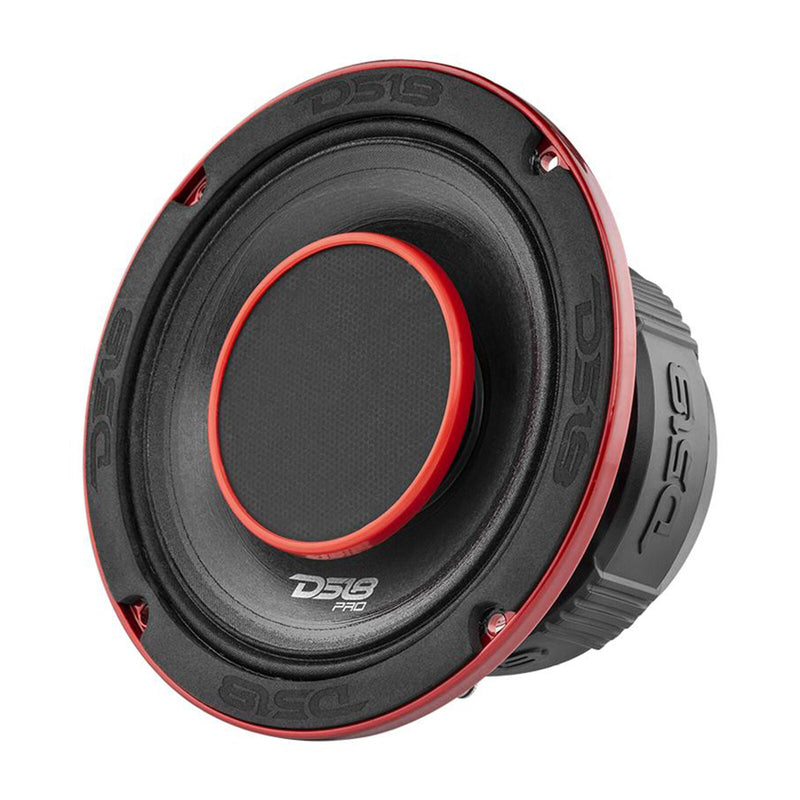

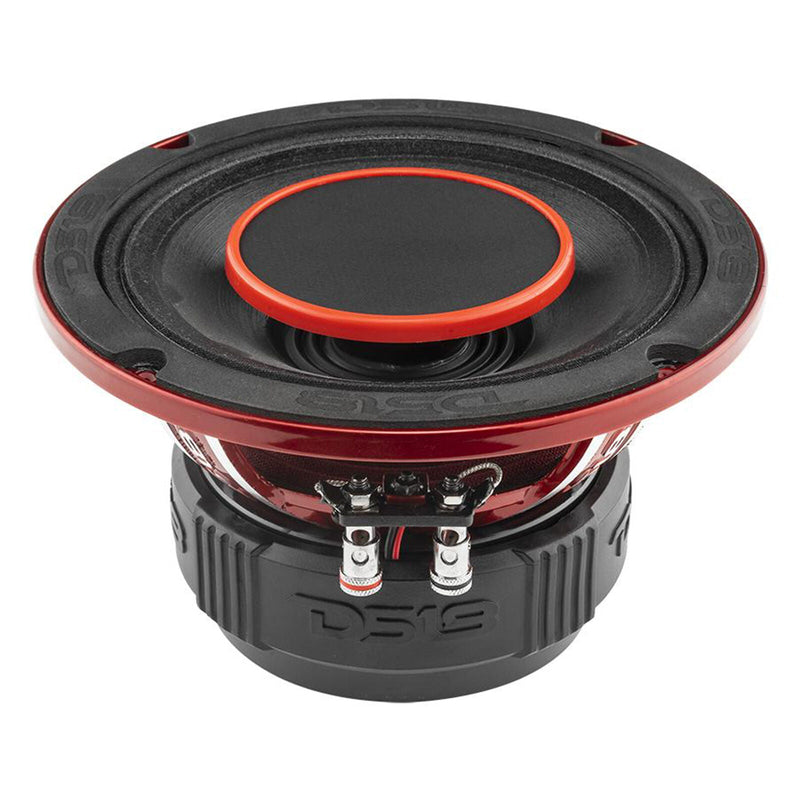

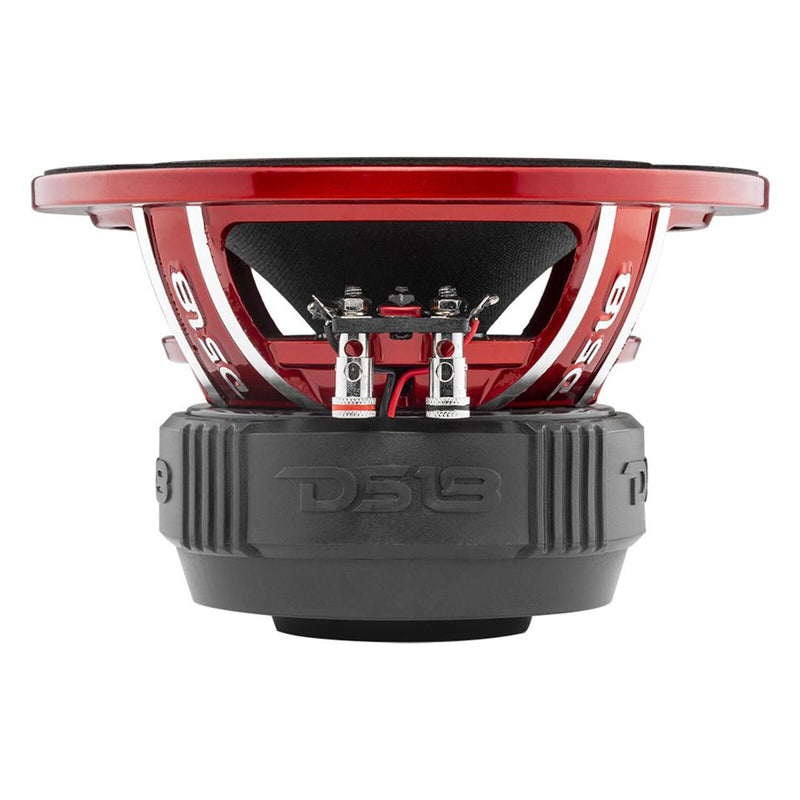

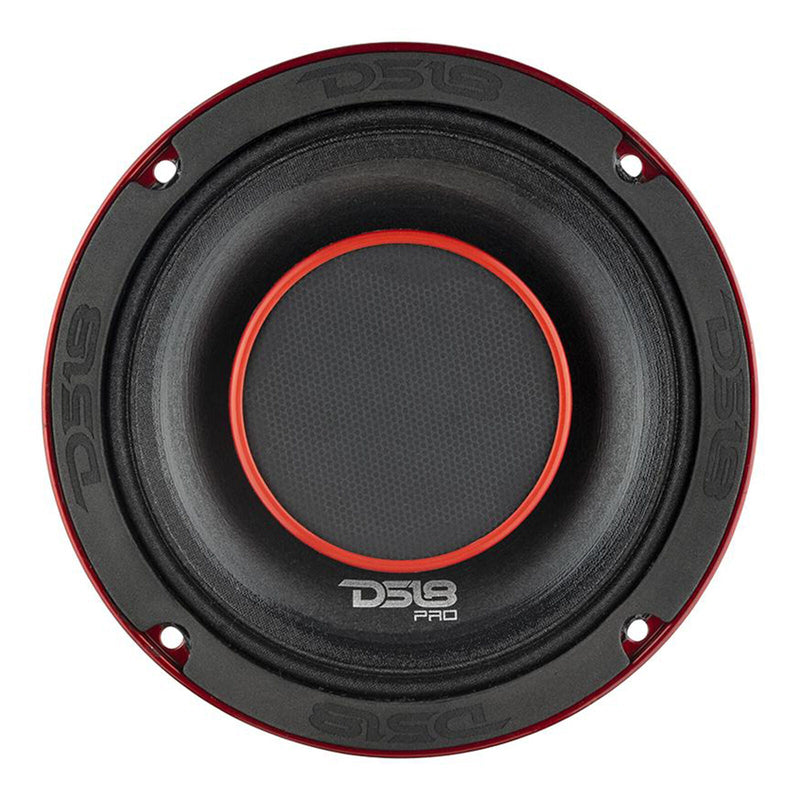

6.5" 450W 4-Ohm Mid-Range Water Resistant Loudspeaker with Built-in Driver DS18

• Hybrid Design: Combines a high-wattage 6.5" midrange speaker and a built-in compression driver in a single unit for enhanced audio performance.
• High Power Output: Delivers a maximum power handling of 450 watts and an RMS rating of 225 watts for loud, clear sound across a full range of frequencies.
• Water Resistant Cone: Features a water-resistant cone designed to withstand moisture and elements, making it ideal for outdoor and marine applications.
• Wide Frequency Response: Offers a frequency response range of 100Hz to 20KHz, ensuring rich mids and crisp highs for an immersive listening experience.
• Durable Construction: Built with a glossy red aluminum basket, glass fiber voice coil former, and high-quality materials for longevity in rugged environments.

6.5" 450W 4-Ohm Mid-Range Water Resistant Loudspeaker with Built-in Driver DS18

This Listing Includes:

(1) 6.5" 450W 4-Ohm Mid-Range Water Resistant Loudspeaker with Built-in Driver DS18

Description:

If you like it really loud, this speaker is made for you. This DS18 Hybrid speaker give you the best of both worlds of mids and highs combined into one pro audio combination speaker. This high-powered mega speaker combines both a 6.5" high volume midrange speaker that also has a high wattage driver attached to the rear to give you a full range of frequencies at an amazingly loud volume. These Hybrids have water resistant cones to help battle elements and are perfect for people looking to place a high wattage, high volume loudspeaker together without having to separately mount an additional driver. Great for cars, trucks, motorcycles and boats!

This Listing Includes:

Features:

• Hybrid Design: Combines high wattage midrange and driver in one elegant frame.


• Powerful Output: 6.5" midrange and 1" compression driver rated at 450 watts max for intense volume across a wide frequency range.


• Water Resistant Cone: Protects against moisture and elements, ideal for outdoor and marine applications.

Specifications:

• Nominal Diameter: 6.5"


• Nominal Impedance: 4 Ohms


• RMS Power Handling: 225 Watts


• Max Power Handling: 450 Watts


• Sensitivity (1w/1m): 96dB


• Frequency Response: 100Hz ~ 20KHz


• Recommended Hi-Pass Crossover: 120 Hz

Mid-Range Specifications:

• Voice Coil Diameter: 1.5" / 38.6 mm


• Voice Coil Former Material: Glass Fiber


• Winding Material: CCAW


• Cone Material: Water Resistant Paper


• Surround Material: Cloth


• Basket Material: Aluminum


• Basket Color/Finish: Glossy Red


• Magnet Material: Ferrite


• Magnet Weight: 27 oz


• Displacement Volume: 0.047L

Thiele & Small Parameters:

• Equivalent Volume (Vas): 2.211L


• Excursion (One Way, Xmax): 9.2 mm


• Free Air Resonance (Fs): 199Hz


• Mechanical Factor (Qms): 5.96


• Electrical Factor (Qes): 1.524


• Total Factor (Qts): 1.214


• Mechanical Mass (Mms): 8.654g


• Mechanical Compliance (Cms): 73.792 mm/N


• BL Factor: 4.769


• Voice Coil Inductance (Le): 4.22mH


• Cone Area (Sd): 145.26 cm


• DC Resistance (Re): 3.2 ohms


• Mechanical Mass (w/o Air, Mmd): 6.7g

Driver Specifications:

• Voice Coil Diameter: 1" / 25.4 mm


• Voice Coil Former Material: Kapton


• Winding Material: CCAW


• Diaphragm Material: Titanium


• Magnet Material: Neodymium


• Horn Diameter: 3.26"

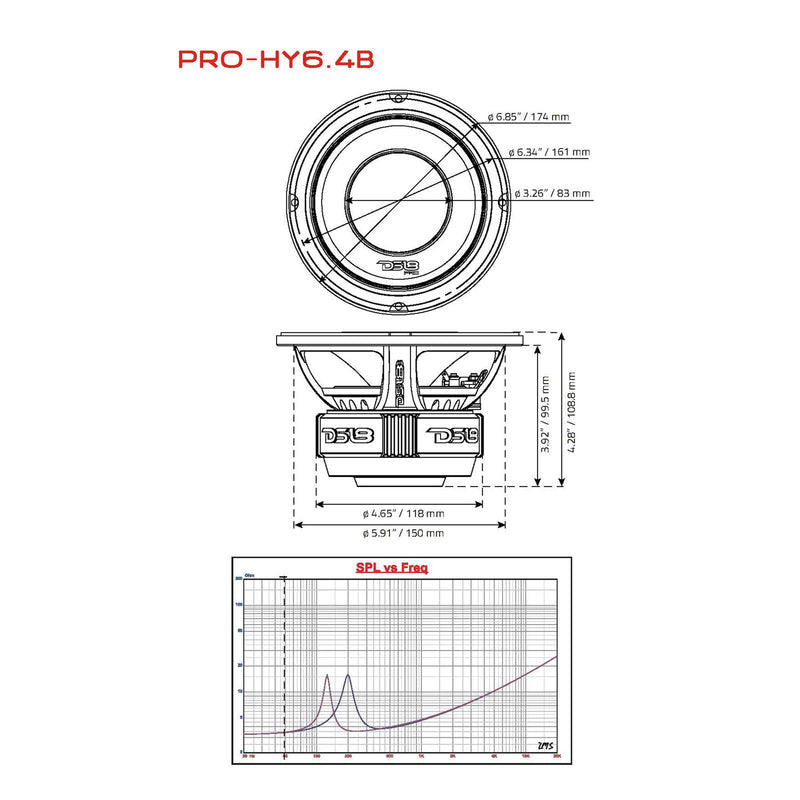

Measurements:

• Overall Diameter: 6.85" / 174 mm


• Overall Depth: 4.28" / 108.8 mm


• Front Mount Baffle Cutout: 5.91" / 150 mm


• Mounting Depth: 3.92" / 99.5 mm


• Motor Diameter: 4.65" / 118 mm
