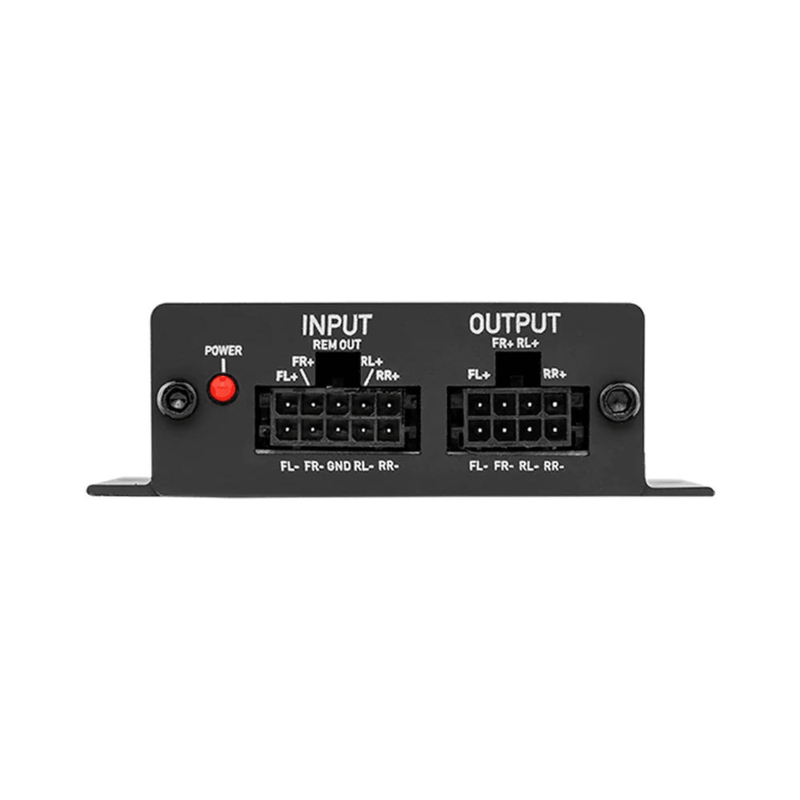

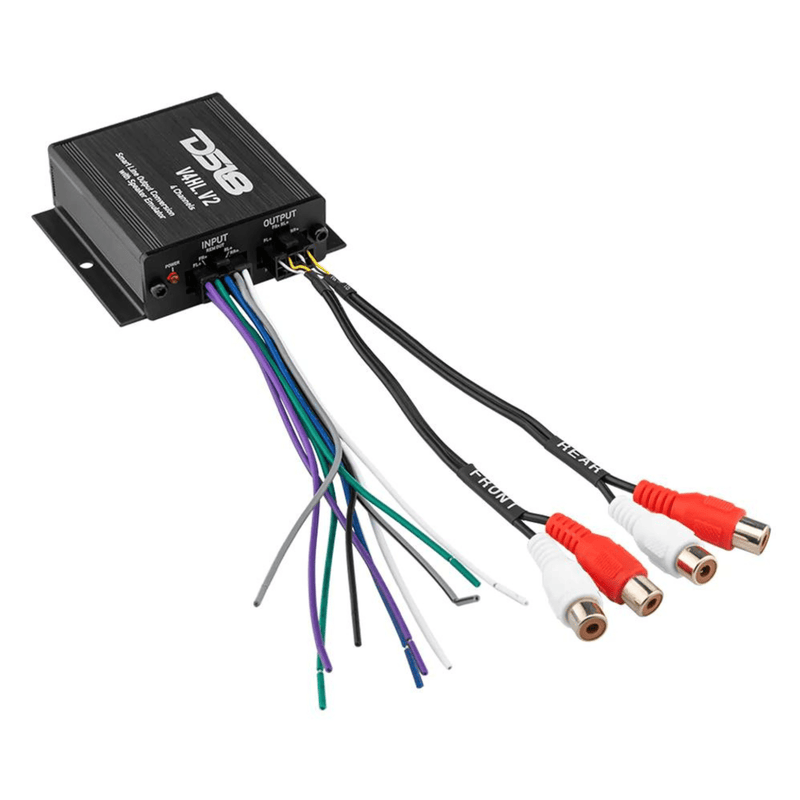

DS18 V4HL.V2 4 Channel Line Output Converter w Speaker Emulator 8V Output

• 4 Channel Hi/Lo Conversion: Converts 4 channels of factory high level signal into 4 RCA outputs for single or multi amp systems.
• Built-In Speaker Emulator: Keeps signal flowing from some factory amplifiers that shut down without a speaker load, so you can skip adding resistors.
• Adjustable Output Up to 8V: Sends a strong, clean signal to your aftermarket amplifiers.
• Signal Sensing Turn-On: Turns on automatically when signal is detected, with a 12V remote trigger output to turn on your amps.
• Compact and Easy to Mount: Small size and power LED indicator make it easy to place and check during install.

DS18 V4HL.V2 4 Channel Line Output Converter w Speaker Emulator 8V Output

This Listing Includes:

• (1) DS18 V4HL.V2 4 Channel Hi/Lo Converter

The DS18 V4HL.V2 is a 4 channel line output converter that lets you add aftermarket amplifiers while keeping your factory head unit. That means you keep factory features like climate control, lighting, and GPS that can be hard to give up when swapping radios. It takes the high level speaker signal from your factory system and converts it into RCA outputs your amps can use, with adjustable output up to 8V. A built-in speaker emulator keeps some factory amplifiers from shutting down when no speakers are detected, so you don’t need to add resistors.

Features:

• 4 Channel Hi/Lo Conversion: Converts 4 channels of factory high level signal into 4 RCA outputs for single or multi amp systems.


• Built-In Speaker Emulator: Keeps signal flowing from some factory amplifiers that shut down without a speaker load, so you can skip adding resistors.


• Adjustable Output Up to 8V: Sends a strong, clean signal to your aftermarket amplifiers.


• Signal Sensing Turn-On: Turns on automatically when signal is detected, with a 12V remote trigger output to turn on your amps.


• Compact and Easy to Mount: Small size and power LED indicator make it easy to place and check during install.

Specifications:

• Model: V4HL.V2


• Channels: 4


• Input: High Level, Up to 55W


• Output: RCA, Up to 8V


• Remote Output Voltage: 12V


• Frequency Response: 10Hz - 30kHz


• Input Impedance: 20K Ohms


• Standby Current: 200mA


• Turn-On: Signal Sensing


• Speaker Emulator: Yes


• Board: FR4 Double Sided PCB, Surface Mount Components


• Indicator: Power LED

Dimensions:

• Length: 4.17"


• Width: 3.39"


• Height: 1.38"


• Weight: 4.2 oz
