DS18 PRO Car Audio Compression Driver 3" 8 Ohm 800 Watt Phenolic VC Bolt on

• HIGH-POWER COMPRESSION DRIVER: DS18 PRO-D2PH delivers 200W AES, 400W program power, and 800W peak power handling with 8-ohm impedance for high-output audio systems.
• 109DB SENSITIVITY: High-efficiency compression driver designed for powerful sound projection in custom car audio installations and speaker walls.
• 3-INCH PHENOLIC DIAPHRAGM: Features a 3" aluminum-wound voice coil with Kapton former and phenolic diaphragm for demanding driver applications.
• 2-INCH BOLT-ON THROAT: Four-bolt M6 mounting configuration is designed for compatible compression driver horns. Horn sold separately.
• HEAVY-DUTY FERRITE MOTOR: Features a 65 oz ferrite magnet and black machined aluminum body. Includes one compression driver with supplied mounting hardware.

DS18 PRO Car Audio Compression Driver 3" 8 Ohm 800 Watt Phenolic VC Bolt on

This Listing Includes

• (1) DS18 PRO-D2PH Compression Driver


• (1) Mounting Hardware


• (1) 100v Blocker

Drivers are known for their extreme loudness all while maintaining the highest efficiency and decibel to wattage ratio possible. Ferrite is definitely a great motor structure you want to go with for the absolute loudest ear piercing high range frequencies available. This ferrite driver is compatible with 4 bolt horns (throats) of all sizes and depths. This will be an amazing addition to any system that needs super loud highs with no compromises!

Features:

• 400W PROGRAM POWER: Rated for 200 watts AES and 800 watts peak power handling.


• 109DB SENSITIVITY: High-efficiency design for powerful sound projection.


• 2" BOLT-ON THROAT: Compatible with appropriately matched four-bolt horn assemblies.


• 3" VOICE COIL: Aluminum winding with high-temperature Kapton former.


• PHENOLIC DIAPHRAGM: Designed for high-output compression driver applications.


• 65 OZ FERRITE MAGNET: Heavy-duty motor construction.


• 8-OHM IMPEDANCE: Designed for compatible amplifier configurations.


• MACHINED ALUMINUM BODY: Durable black aluminum construction.


• 500HZ TO 10KHZ FREQUENCY RESPONSE: Broad driver operating range.


• 800HZ RECOMMENDED HIGH-PASS: Manufacturer-recommended crossover frequency.


• SERVICEABLE DESIGN: Replaceable diaphragm assembly.


• MOUNTING HARDWARE INCLUDED: Supplied with spacers, washers, screws, and blocker.

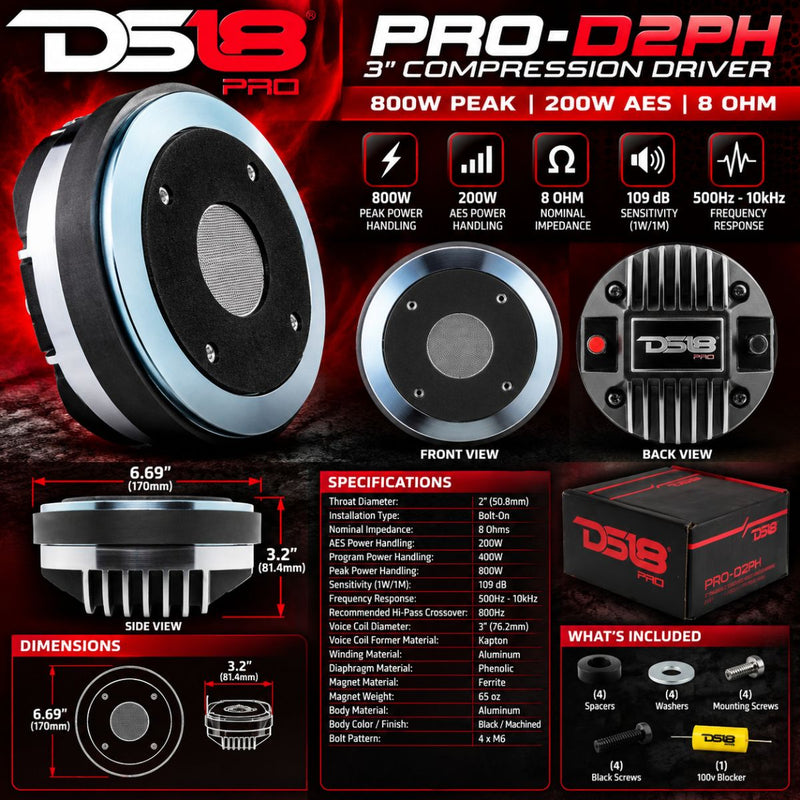

Specifications:

• Throat Diameter: 2" / 50.8mm


• Installation Type: Bolt-On


• Nominal Impedance: 8 Ohms


• AES Power Handling: 200W


• Program Power Handling: 400W


• Peak Power Handling: 800W


• Sensitivity (1W/1M): 109dB


• Frequency Response: 500Hz - 10kHz


• Recommended Hi-Pass Crossover: 800Hz


• Voice Coil Diameter: 3" / 76.2mm


• Voice Coil Former Material: Kapton


• Winding Material: Aluminum


• Diaphragm Material: Phenolic


• Magnet Material: Ferrite


• Magnet Weight: 65 oz


• Body Material: Aluminum


• Body Color / Finish: Black / Machined


• Bolt Pattern: 4 x M6

Dimensions:

• Overall Diameter: 6.69" / 170mm


• Overall Depth: 3.2" / 81.4mm
