- HIGH-OUTPUT COMPRESSION DRIVER: DS18 PRO-DR200 delivers 100 watts RMS and 300 watts maximum power handling for powerful, detailed high-frequency reproduction in custom car audio and professional sound systems.
- 2-INCH ALUMINUM VOICE COIL: Features a 2-inch aluminum voice coil and aluminum diaphragm for responsive high-frequency sound reproduction and clear vocal detail.
- POWERFUL FERRITE MOTOR: Built with a 36 oz ferrite magnet and 103 dB sensitivity for efficient sound projection in demanding high-output audio applications.
- 1-INCH THROAT BOLT-ON DESIGN: Designed for compatible bolt-on horn assemblies, making it suitable for custom speaker walls, pro audio builds, and car audio system upgrades.
- EXTENDED HIGH-FREQUENCY RESPONSE: Frequency response of 1 kHz to 20 kHz with a recommended 2 kHz high-pass crossover. Includes one compression driver, DS18 sticker, and owner's manual. Horn sold separately.

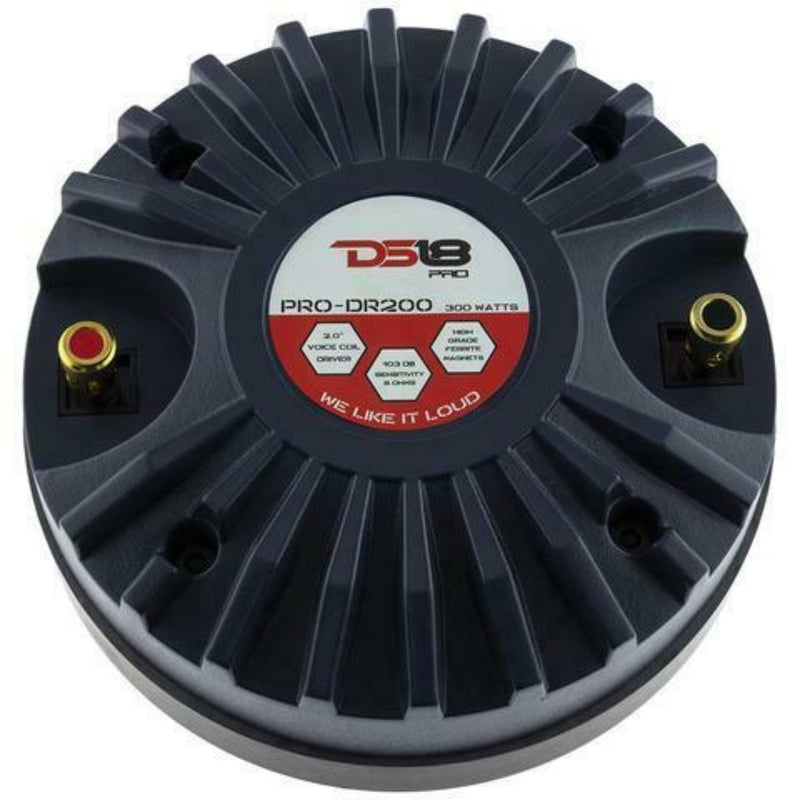

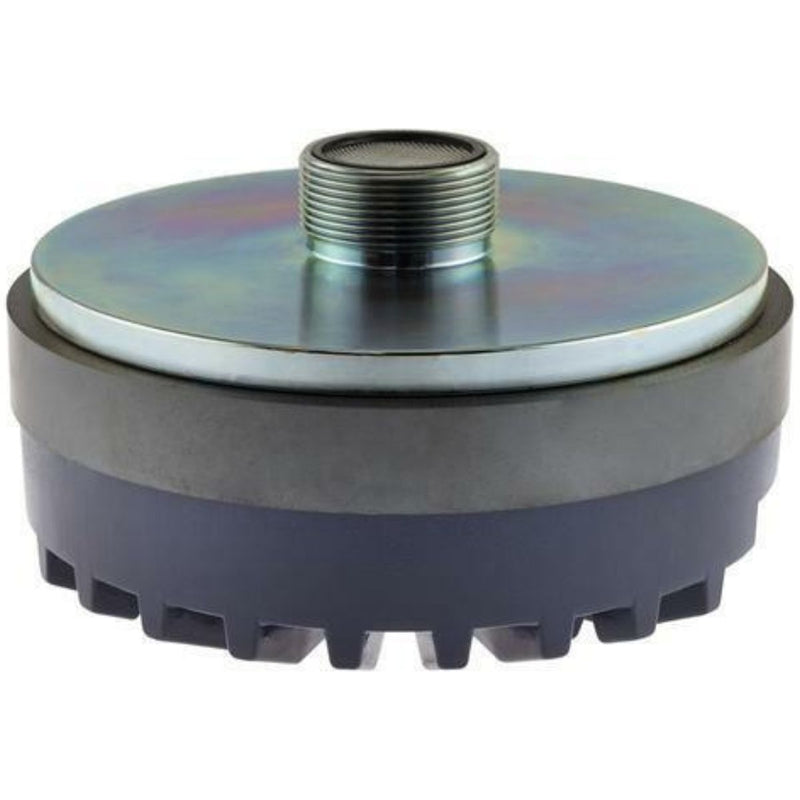

DS18 2" Aluminum Voice Coil Bolt-On Compression Driver 100W RMS 8 Ohm PRO-DR200
This Listing Includes
- (1) DS18 PRO-DR200 Compression Driver
Bring powerful, crystal-clear highs to your sound system with the DS18 PRO-DR200 Compression Driver. Built for high-output car audio and professional sound applications, this 8-ohm driver delivers 100 watts RMS and 300 watts maximum power handling. Featuring a 2-inch aluminum voice coil, heavy-duty ferrite magnet, and precision-engineered diaphragm, the PRO-DR200 is designed to produce strong, detailed high-frequency sound that cuts through even the loudest audio setups.
Engineered for performance, the PRO-DR200 combines a 36 oz ferrite magnet with a high-efficiency motor structure to deliver impressive output and clarity. Its aluminum diaphragm provides responsive high-frequency reproduction, while the 103 dB sensitivity helps maximize sound projection. With a frequency response of 1 kHz to 20 kHz, this driver is ideal for bringing vocals, instruments, and upper-frequency detail forward in demanding audio systems.
Featuring a 1-inch throat and bolt-on mounting design, the PRO-DR200 is built for installation with compatible horn assemblies. Its durable construction makes it an excellent choice for custom speaker walls, competition-inspired audio systems, and high-output car audio builds. Whether you're replacing an existing driver or upgrading your system's high-frequency capabilities, the DS18 PRO-DR200 delivers the performance needed to make your highs stand out.

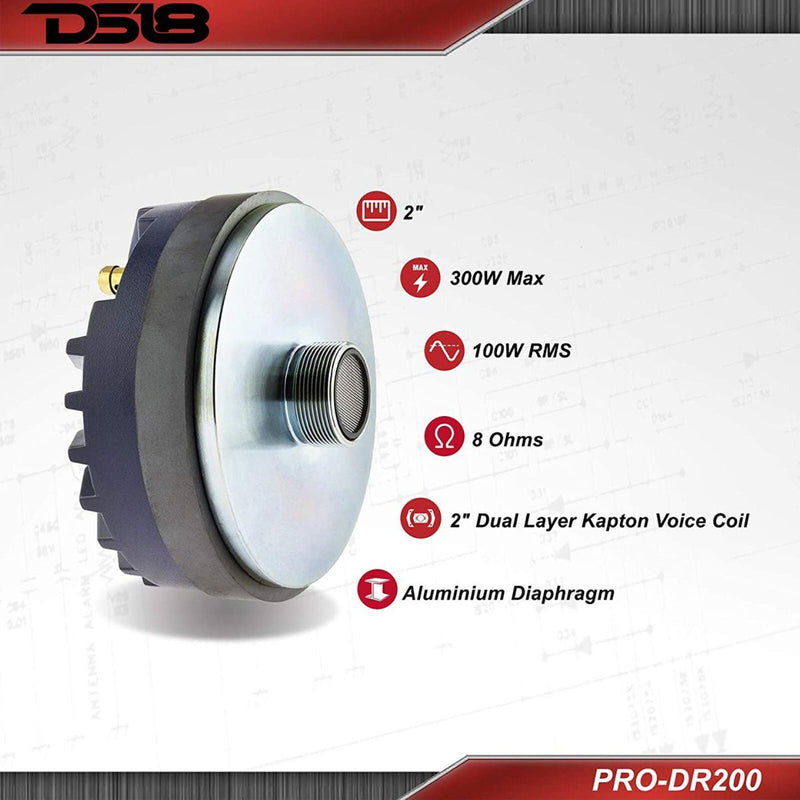

Features
- 100 watts RMS and 300 watts maximum power handling
- 8-ohm nominal impedance
- 2-inch aluminum voice coil for high-frequency performance
- 1-inch throat for compatible horn assemblies
- Bolt-on mounting design for secure installation
- High-strength 36 oz ferrite magnet
- Aluminum diaphragm for clear, detailed high-frequency reproduction
- 103 dB sensitivity for efficient sound projection
- Frequency response of 1 kHz to 20 kHz
- Recommended 2 kHz high-pass crossover
- Aluminum voice coil winding material
- Durable die-cast aluminum frame construction
- Designed for powerful high-frequency output
- Suitable for high-output car audio and professional sound applications
- Ideal for custom speaker builds and competition-inspired audio systems
- Compatible with properly matched bolt-on horn assemblies
- Sold individually as one compression driver
- Horn assembly sold separately
Specifications:
- Brand: DS18
- Model: PRO-DR200
- Series: PRO
- Product Type: Compression Driver
- RMS Power Handling: 100 Watts
- MAX Power Handling: 300 Watts
- Nominal Impedance: 8 Ohms
- Sensitivity (1W/1m): 103 dB
- Frequency Response: 1 kHz - 20 kHz
- Recommended High-Pass Crossover: 2 kHz
- Voice Coil Diameter: 2"
- Voice Coil Winding Material: Aluminum
- Diaphragm Material: Aluminum
- Throat Diameter: 1"
- Installation Type: Bolt-On
- Frame Material: Aluminum
- Basket Material: Plastic
- Magnet Material: Ferrite
- Magnet Weight: 36 oz
- Application: Car Audio and Pro Audio Systems
- Quantity: 1 Driver
- Horn Included: No
- Magnet Weight: 36 oz
Dimensions:
- Voice Coil Diameter: 2"
- Overall Width: 5.3"
- Overall Depth: 3"
- Throat Diameter: 1"
