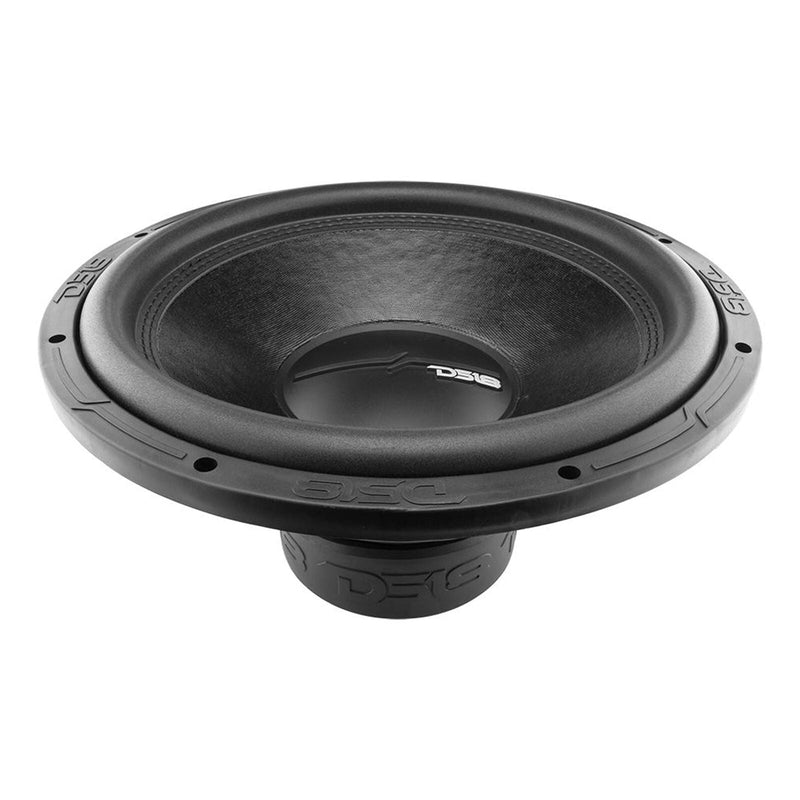

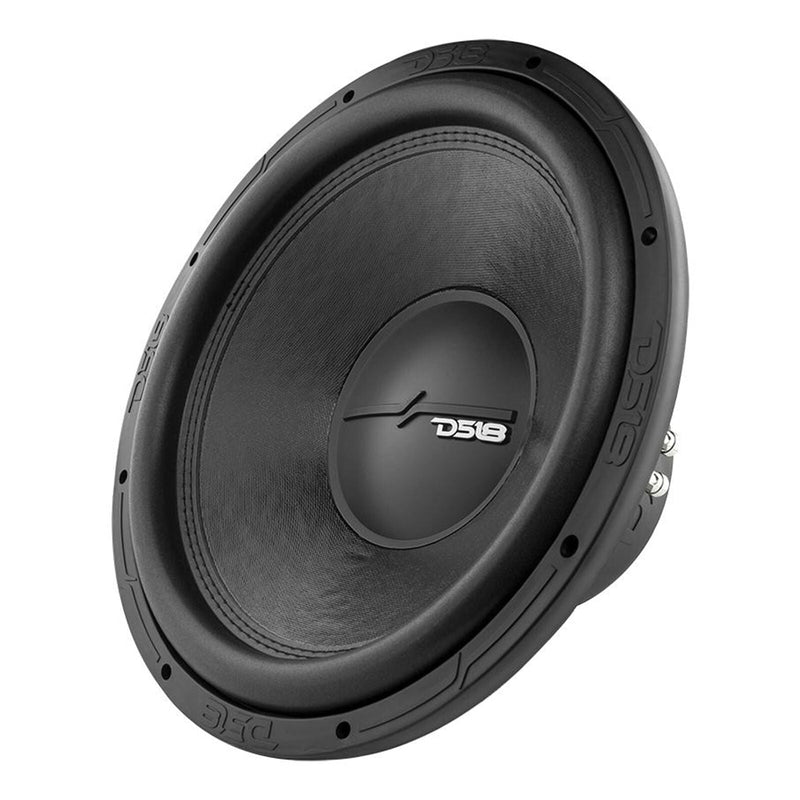

DS18 Elite-Z 15" 750 Watts RMS Dual Voice Coil 4-Ohm Subwoofer ZR15.4D

• 750W RMS Power Handling: Handles 750 watts RMS and 1500 watts max power through a 2.5-inch voice coil with copper windings and an aluminum former.
• Dual 4-Ohm Voice Coils: Wire a single subwoofer to a final 2-ohm or 8-ohm load to match your compatible amplifier.
• Paper Cone and Foam Surround: A non-pressed paper cone and large foam surround support controlled cone movement and strong bass output.
• Steel Basket and Ferrite Magnet: Features a sturdy matte black steel basket and a 100-ounce ferrite magnet for a durable motor assembly.
• Sealed or Ported Enclosures: Works in sealed and ported boxes, giving you flexibility to match your available space and preferred bass response.

DS18 Elite-Z 15" 750 Watts RMS Dual Voice Coil 4-Ohm Subwoofer ZR15.4D

This Listing Includes:

• (1) DS18 Elite-Z 15" Dual 4-Ohm Subwoofer ZR15.4D

Bring powerful bass to your system with the DS18 Elite-Z ZR15.4D. This 15-inch subwoofer handles 750 watts RMS and 1500 watts max power, with dual 4-ohm voice coils for flexible amplifier matching. Its non-pressed paper cone, large foam surround, and steel basket support controlled bass output. Designed for sealed and ported enclosures, it gives you options when planning your installation.

Features:

• The ZR15.4D handles 750 watts RMS and 1500 watts max power through a 2.5-inch voice coil with copper windings and an aluminum former. Its dual 4-ohm voice coils allow a single subwoofer to be wired to a final 2-ohm or 8-ohm load for use with a compatible amplifier.


• A non-pressed paper cone and large foam surround support cone movement and bass control. The matte black steel basket provides structural support, while a 100-ounce ferrite magnet powers the motor assembly.


• Compatibility with sealed and ported boxes lets you choose an enclosure that suits your available space and preferred bass response.

Specifications:

• Nominal Diameter: 15"


• Voice Coil Configuration: Dual 4 Ohm


• RMS Power Handling: 750W


• Max Power Handling: 1500W


• Sensitivity (1W/1m): 82 dB


• Frequency Response: 21 Hz to 200 Hz


• Recommended Low-Pass Crossover: 80 Hz


• Motor and Construction:


• Voice Coil Diameter: 2.5"


• Voice Coil Former Material: Aluminum


• Winding Material: Copper


• Cone Material: Non-Pressed Paper


• Dust Cap Material: PPI


• Surround Material: Foam


• Basket Material: Steel


• Basket Color/Finish: Matte Black


• Magnet Material: Ferrite


• Magnet Weight: 100 oz


• Displacement Volume: 0.11 ft

Dimensions:

• Overall Diameter: 15.35" / 391 mm


• Overall Depth: 8.41" / 213.56 mm


• Front Mount Baffle Cutout: 13.95" / 354.24 mm


• Mounting Depth: 7.39" / 187.76 mm


• Motor Diameter: 6.1" / 155 mm
