- 300W RMS POWER: DS18 XL Series 6.5" midrange loudspeaker handles 300 watts RMS and 600 watts maximum power for high-output car audio applications.
- 97DB SENSITIVITY: High-efficiency 4-ohm speaker designed to deliver strong vocals, detailed instrumentation, and powerful midrange sound.
- 2-INCH VOICE COIL: Features a Kapton voice coil former, CCAW winding, and 34 oz ferrite magnet for demanding audio installations.
- ALUMINUM BASKET: Rigid satin black aluminum basket with a non-pressed paper cone, cloth surround, and paper dust cap.
- CUSTOM AUDIO BUILDS: Ideal for custom door panels and high-output speaker systems. Features a 3.14" mounting depth and manufacturer-recommended 100Hz high-pass crossover.

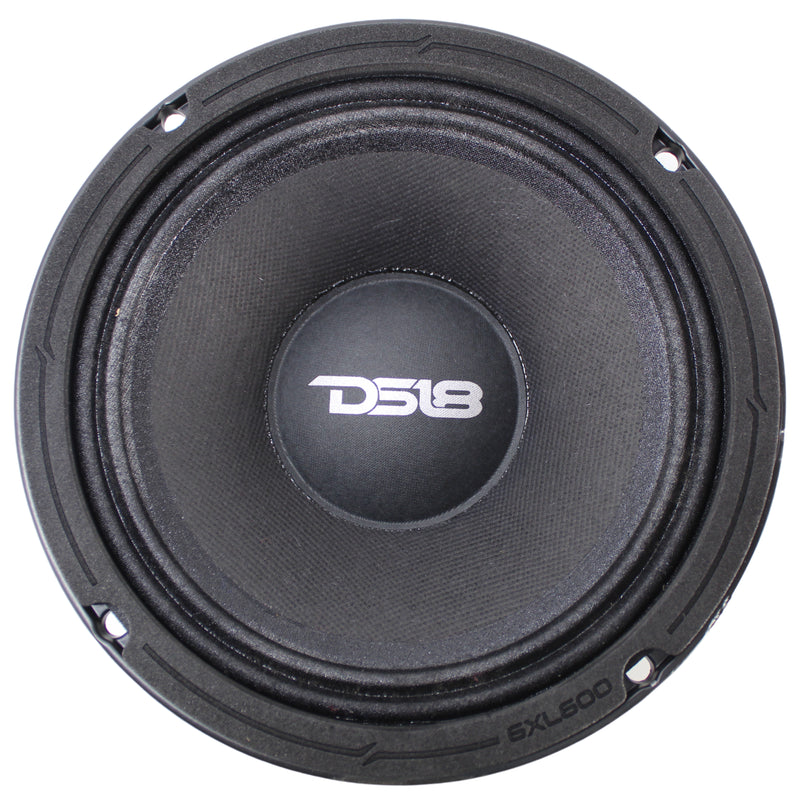

DS18 Car Audio XL 6.5 Inch Mid Range Loud Speaker 300 Watts RMS 4 OHMS 6XL600-4
This Listing Includes:
- (1) DS18 6.5" Speaker 6XL600-4
Serious Midrange Output Built to Get Loud!
When your build demands more than ordinary door speakers can deliver, the DS18 6XL600-4 XL Series 6.5" Midrange Loudspeaker brings the power, efficiency, and performance needed for a high-output car audio system.
Handling 300 watts RMS and 600 watts max power, this 4-ohm midrange is built to deliver strong vocals, detailed instrumentation, and commanding midrange presence. Its impressive 97dB sensitivity helps produce high output efficiently, making it an excellent choice for custom door panels, speaker walls, and other high-performance audio installations.

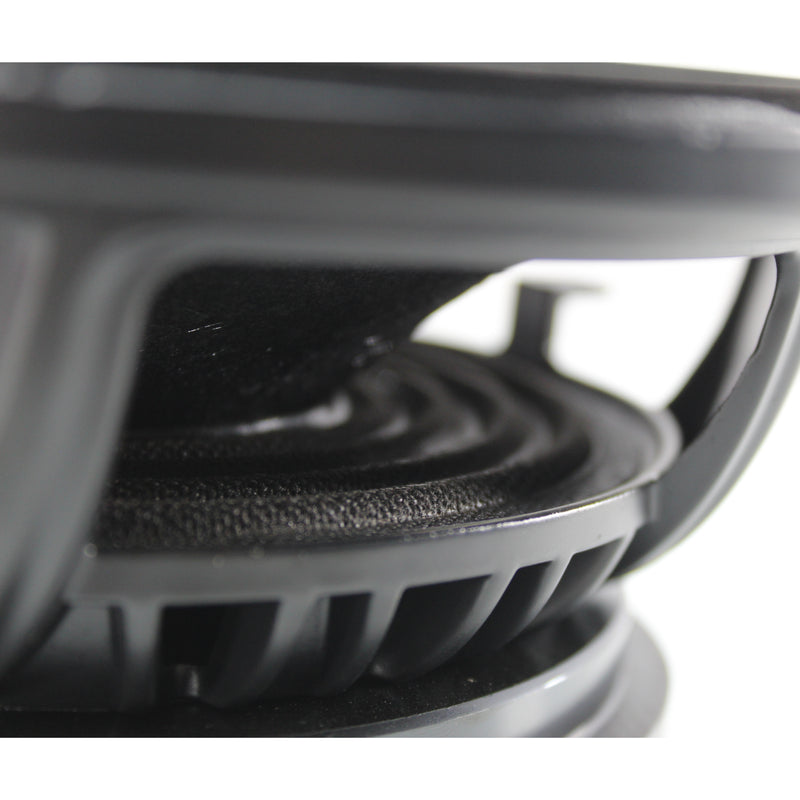

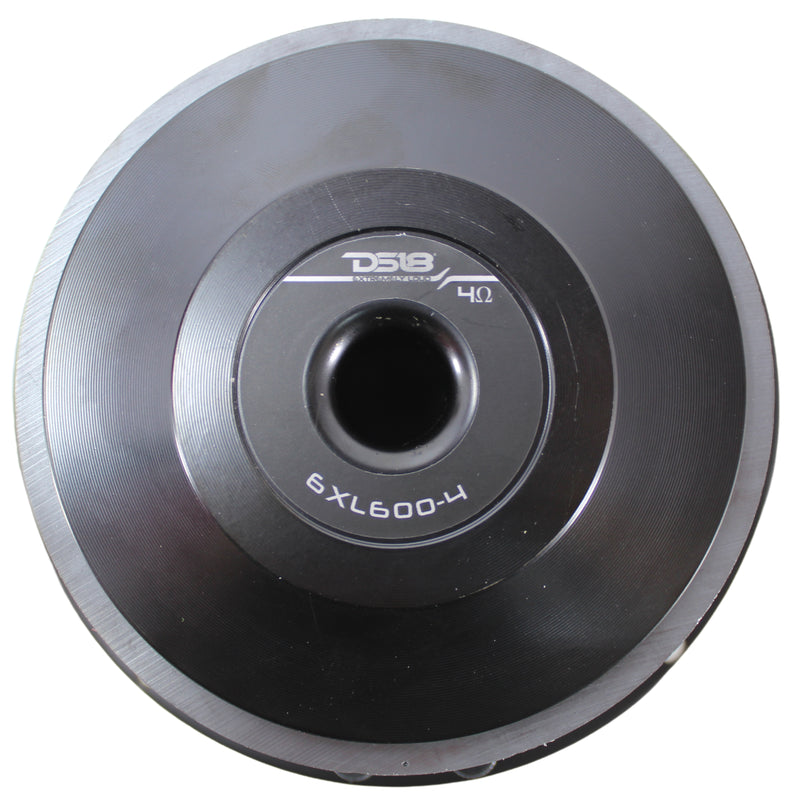

The 6XL600-4 features a rigid aluminum basket with a satin black finish, a powerful 34 oz ferrite magnet, and a 2" voice coil. Its non-pressed paper cone and cloth surround provide the foundation for responsive midrange reproduction, while the 60Hz to 12.5kHz frequency response gives builders flexibility when designing their system.
DS18 recommends a 100Hz high-pass crossover to help manage lower frequencies and keep the speaker operating within its intended range.
Whether you're building a loud daily driver or an aggressive custom audio setup, the XL Series delivers the kind of midrange performance that refuses to get lost in the mix.
Features
- HIGH-OUTPUT MIDRANGE: 6.5" loudspeaker designed for powerful vocals and midrange reproduction.
- 300W RMS POWER HANDLING: Handles up to 600 watts maximum power.
- 4-OHM IMPEDANCE: Designed for compatible 4-ohm amplifier configurations.
- 97DB SENSITIVITY: High-efficiency design supports strong output.
- 2" VOICE COIL: Features a Kapton former and CCAW winding.
- 34 OZ FERRITE MAGNET: Powerful motor assembly for high-output applications.
- ALUMINUM BASKET: Rigid construction with a satin black finish.
- NON-PRESSED PAPER CONE: Paired with a cloth surround and paper dust cap.
- 100HZ HIGH-PASS RECOMMENDATION: Manufacturer-recommended crossover setting for proper system integration.
Specifications
- Brand: DS18
- Series: XL
- Model: 6XL600-4
- Speaker Type: Midrange Loudspeaker
- Nominal Diameter: 6.5" / 165 mm
- Nominal Impedance: 4 Ohms
- RMS Power Handling: 300 Watts
- Maximum Power Handling: 600 Watts
- Sensitivity (1W/1M): 97 dB
- Frequency Response: 60 Hz - 12.5 kHz
- Recommended High-Pass Crossover: 100 Hz
- Voice Coil Diameter: 2" / 50.8 mm
- Voice Coil Former Material: Kapton
- Voice Coil Winding Material: CCAW
- Cone Material: Non-Pressed Paper
- Dust Cap Material: Paper
- Surround Material: Cloth
- Basket Material: Aluminum
- Basket Finish: Satin Black
- Magnet Material: Ferrite
- Magnet Weight: 34 oz
- Displacement Volume: 0.45 L / 0.015 ft
- Quantity: Single Speaker
Thiele & Small Parameters
- Vas: 5.71 L / 0.201 ft
- Xmax: 3.7 mm
- Fs: 100 Hz
- Qms: 4.93
- Qes: 0.5
- Qts: 0.454
- Mms: 11.917 g
- Cms: 0.214 mm/N
- BL: 6.906
- Le: 0.1647 mH
- Sd: 136.85 cm
- Re: 3.2 Ohms
- Mmd: 10.996 g
Dimensions:
- Overall Diameter: 6.7" / 170 mm
- Overall Depth: 3.5" / 89 mm
- Front Mount Baffle Cutout: 5.9" / 150 mm
- Mounting Depth: 3.14" / 80 mm
- Motor Diameter: 4.96" / 126 mm
