- 325W RMS POWER: DS18 6XL650N-8 XL Series 6.5" midrange loudspeaker handles 325 watts RMS and 650 watts maximum power with 8-ohm impedance for high-output car audio systems.
- NEODYMIUM RING MAGNETS: Features a powerful 11.4 oz neodymium magnet assembly designed for efficient, high-output midrange performance.
- 98.5DB SENSITIVITY: High-efficiency speaker with a 60Hz to 12.5kHz frequency response for strong vocals and detailed midrange reproduction.
- 2-INCH VOICE COIL: Features a CCAW voice coil with Kapton former, non-pressed paper cone, cloth surround, and satin black aluminum basket.
- CUSTOM AUDIO INSTALLATIONS: Features a 2.83" mounting depth and 5.9" baffle cutout. DS18 recommends a 100Hz high-pass crossover. Sold individually.

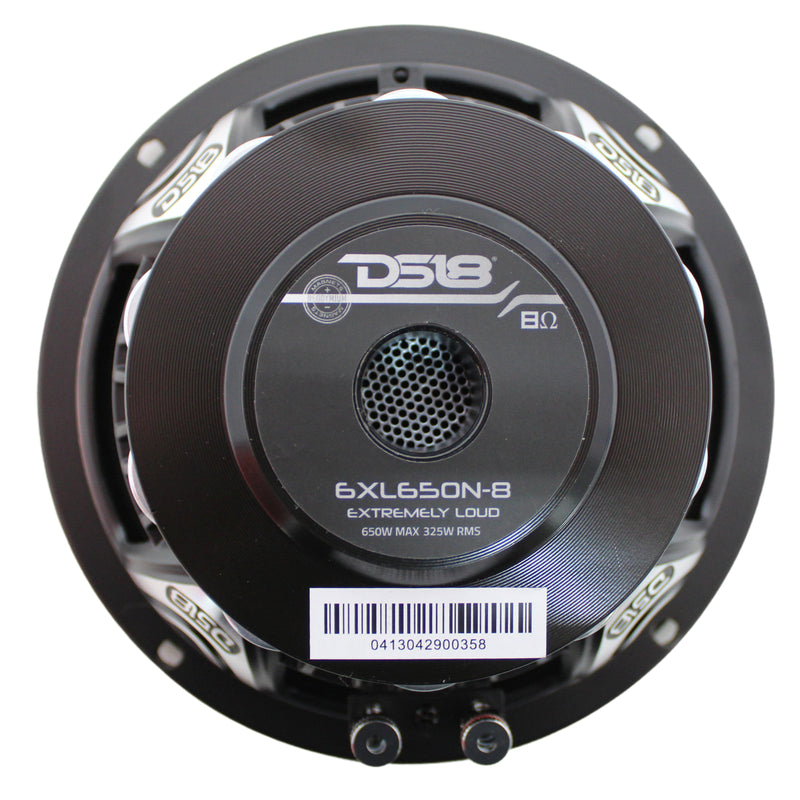

DS18 XL 6.5" 325 Watts RMS 8 Ohm Neodymium Pro Midrange Loudspeaker 6XL650N-8
This listing includes:
- (1) DS18 6.5" Loudspeaker 6XL650N-8
Serious Midrange Power. Neodymium Performance. Built to Get Loud!
The DS18 6XL650N-8 XL Series 6.5" Midrange Loudspeaker delivers the kind of output that high-performance car audio builds demand. With a powerful neodymium ring magnet system, high sensitivity, and heavy-duty construction, this speaker is designed to bring strong vocals and commanding midrange presence to your setup.
Handling 325 watts RMS and 650 watts max power, the 6XL650N-8 combines serious power handling with an impressive 98.5dB sensitivity. Its efficient design helps produce high output from your amplifier, making it a strong choice for custom door panels, speaker walls, and high-output car audio systems.
At the heart of this speaker is an 11.4 oz neodymium ring magnet system paired with a 2" CCAW voice coil on a Kapton former. A non-pressed paper cone, cloth surround, and paper dust cap work together to deliver responsive midrange reproduction, while the rigid satin black aluminum basket provides a durable foundation.
Spring-loaded push terminals make wiring connections convenient, and the 2.83" mounting depth provides installation flexibility for custom builds.
With a frequency response of 60Hz to 12.5kHz and a manufacturer-recommended 100Hz high-pass crossover, the DS18 6XL650N-8 is built to deliver the clear, powerful midrange your system needs.
Whether you're upgrading your daily driver or putting together a competition-inspired setup, this XL Series midrange is ready to make its presence heard.
Features
- 325W RMS POWER HANDLING: Rated for 650 watts maximum power.
- 6.5" MIDRANGE LOUDSPEAKER: Designed for high-output car audio applications.
- 8-OHM IMPEDANCE: Suitable for compatible amplifier and multi-speaker configurations.
- 98.5DB SENSITIVITY: High-efficiency design for impressive midrange output.
- NEODYMIUM RING MAGNETS: 11.4 oz magnet assembly.
- 2" CCAW VOICE COIL: Kapton voice coil former with copper-clad aluminum winding.
- ALUMINUM BASKET: Durable satin black construction.
- NON-PRESSED PAPER CONE: Paired with a cloth surround and paper dust cap.
- SPRING-LOADED TERMINALS: Convenient push-terminal wire connections.
- 2.83" MOUNTING DEPTH: Designed for integration into compatible speaker installations.
Specifications:
- Brand: DS18
- Series: XL
- Model: 6XL650N-8
- Speaker Type: Midrange Loudspeaker
- Nominal Diameter: 6.5" / 165 mm
- Nominal Impedance: 8 Ohms
- RMS Power Handling: 325W
- Maximum Power Handling: 650W
- Sensitivity (1W/1M): 98.5 dB
- Frequency Response: 60 Hz - 12.5 kHz
- Recommended High-Pass Crossover: 100 Hz
- Sold As: Single
- Voice Coil Diameter: 2" / 50.8 mm
- Voice Coil Former Material: Kapton
- Voice Coil Winding Material: CCAW
- Cone Material: Non-Pressed Paper
- Dust Cap Material: Paper
- Surround Material: Cloth
- Basket Material: Aluminum
- Basket Color / Finish: Satin Black
- Magnet Material: Neodymium
- Magnet Weight: 11.4 oz
- Displacement Volume: 0.34 L / 0.012 ft3
Thiele & Small Parameters
- Vas: 5.86 L / 0.206 ft3
- Xmax: 3.7 mm
- Fs: 100 Hz
- Qms: 4.385
- Qes: 0.256
- Qts: 0.242
- Mms: 11.278
- Cms: 0.214 mm/N
- BL: 9.449
- Le: 0.1744 mH
- Sd: 136.85 cm2
- Re: 3.2 Ohms
- Mmd: 11.278 g
Dimensions:
- Overall Diameter: 6.7" / 170 mm
- Overall Depth: 3.19" / 81 mm
- Front Mount Baffle Cutout: 5.9" / 150 mm
- Mounting Depth: 2.83" / 72 mm
- Motor Diameter: 4.13" / 105 mm
