- POWERFUL PERFORMANCE – Delivers 150W RMS and 97dB sensitivity for loud, clear sound with minimal distortion.
- NEODYMIUM MAGNET – Lightweight yet strong magnet provides enhanced sound quality and efficiency.
- PREMIUM MATERIALS – Paper cone and cloth surround ensure warm, accurate vocal and midrange reproduction.
- DURABLE DESIGN – Satin black aluminum basket reduces vibration and improves heat dissipation at high volumes.
- EASY INSTALLATION – Spring-loaded push terminals offer secure, high-quality signal transmission with minimal effort.

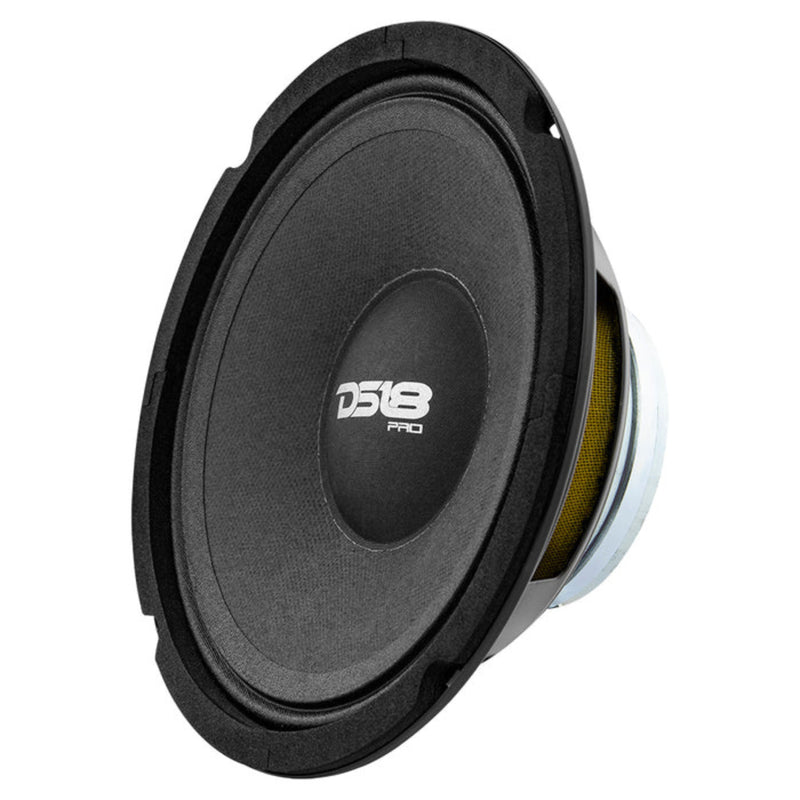

DS18 6.5" 150 Watts RMS 4 Ohm Neodymium Midrange Loudspeaker 6JP300N-4
This Listing Includes:
- (1) DS18 6.5" Full-Range 150W RMS Loudspeaker 6JP300N-4
Big Sound. Compact Design. Serious Midrange Performance.
The DS18 6JP300N-4 6.5" Midrange Loudspeaker brings impressive output and efficiency to your car audio system without the bulk of a traditional ferrite magnet. Built with a powerful neodymium motor, this speaker is designed for high-output applications where space is limited but performance is a priority.
Handling 150 watts RMS and 300 watts max power, the 6JP300N-4 delivers strong, detailed midrange sound with the efficiency to get loud. Its 97dB sensitivity helps produce impressive volume from your amplifier, while the 4-ohm impedance makes it a versatile option for compatible car audio systems.
A 1.5" CCAW voice coil with Kapton former, paper cone, and durable cloth surround work together to deliver responsive midrange performance and clear vocal reproduction. Spring-loaded push terminals make wiring connections convenient, while the satin black basket provides a clean finish for custom installations.
With a frequency response of 80Hz to 10kHz and a recommended 120Hz high-pass crossover, this speaker is built for strong midrange presence in custom door panels, speaker walls, and high-output audio builds.
Whether you're upgrading your daily driver or building a system designed to turn heads, the DS18 6JP300N-4 delivers the efficiency, clarity, and output to make your midrange heard.
Features
- Voice Coil Diameter: 1.5" / 38mm
- Voice Coil Former Material: Kapton
- Winding Material: CCAW
- Cone Material: Paper
- Dust Cap Material: Paper
- Surround Material: Cloth
- Basket Material: Steel
- Basket Color | Finish: Satin Black
- Magnet Material: Neodymium
Specifications:
- SKU: 6JP300N-4
- Nominal Diameter: 6.5" / 165 mm
- Nominal Impedance: 4 Ohms
- RMS Power Handling: 150W
- MAX Power Handling: 300W
- Sensitivity (1W/1M): 97 dB
- Frequency Response: 80 Hz - 10 kHz
- Recommended High-Pass Crossover: 120 Hz
- Sold As: Single
MOTOR SPECIFICATIONS
- Voice Coil Diameter: 1.5" / 38 mm
- Voice Coil Former Material: Kapton
- Voice Coil Winding Material: CCAW
- Cone Material: Paper
- Dust Cap Material: Paper
- Surround Material: Cloth
- Basket Material: Steel
- Basket Color / Finish: Satin Black
- Magnet Material: Neodymium
- Magnet Size: 75 x 45 x 6 mm
THIELE & SMALL PARAMETERS
- Vas: 5 L / 0.176 ft
- Xmax: 3.6 mm
- Fs: 140 Hz
- Qms: 4.244
- Qes: 0.863
- Qts: 0.717
- Mms: 7.515 g
- Cms: 0.1678 mm/N
- BL: 4.981
- Le: 0.1091 mH
- Sd: 141.03 cm
- Re: 3.2 Ohms
- Mmd: 6.508 g
Dimensions:
- Overall Diameter: 6.53" / 166mm
- Overall Depth: 2.67" / 68mm
- Front Mount Baffle Cutout: 5.63" / 143mm
- Mounting Depth: 2.48" / 63mm
- Motor Diameter: 2.95" / 75mm
