- HIGH-OUTPUT 5X7 LOUDSPEAKER: DS18 PRO-FR57NEO delivers 225 watts RMS and 450 watts MAX power handling in a full-range bullet loudspeaker designed for powerful car audio performance.
- POWERFUL NEODYMIUM MOTOR: Features a lightweight neodymium magnet and 1.5-inch CCAW voice coil with Kapton former for efficient operation and high-output sound reproduction.
- ALUMINUM BULLET DESIGN: Integrated aluminum bullet helps project sound with improved clarity and presence, making this loudspeaker an excellent addition to high-output audio systems.
- WIDE FREQUENCY RESPONSE: Delivers a 90Hz-20kHz frequency range, 4-ohm impedance, and high sensitivity for strong vocals and musical detail when paired with compatible amplification.
- DURABLE COMPACT CONSTRUCTION: Features a paper cone, cloth surround, black steel basket, and 2.15-inch mounting depth. Sold individually; grille not included.

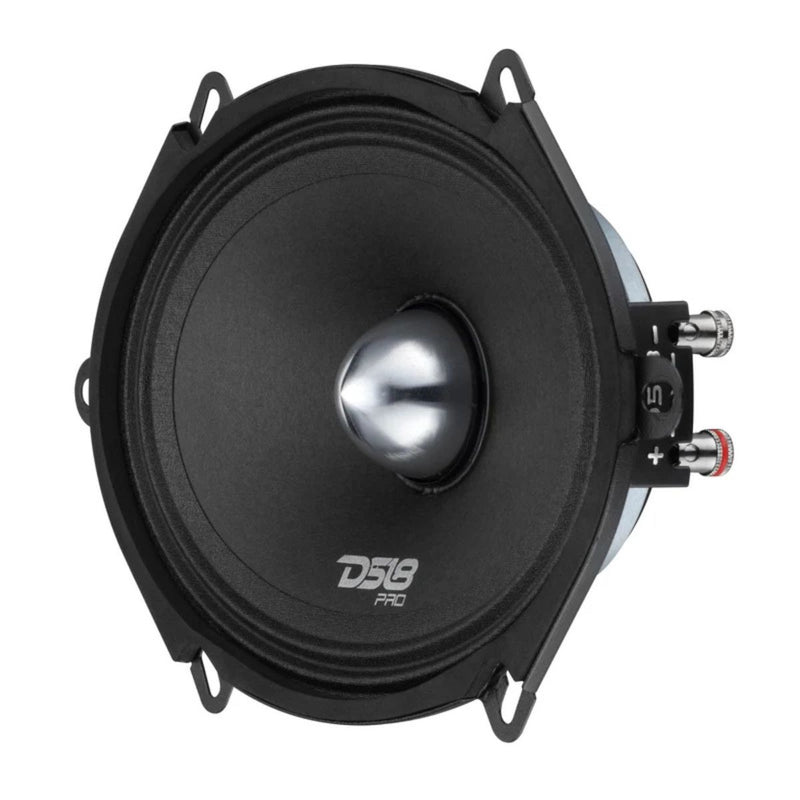

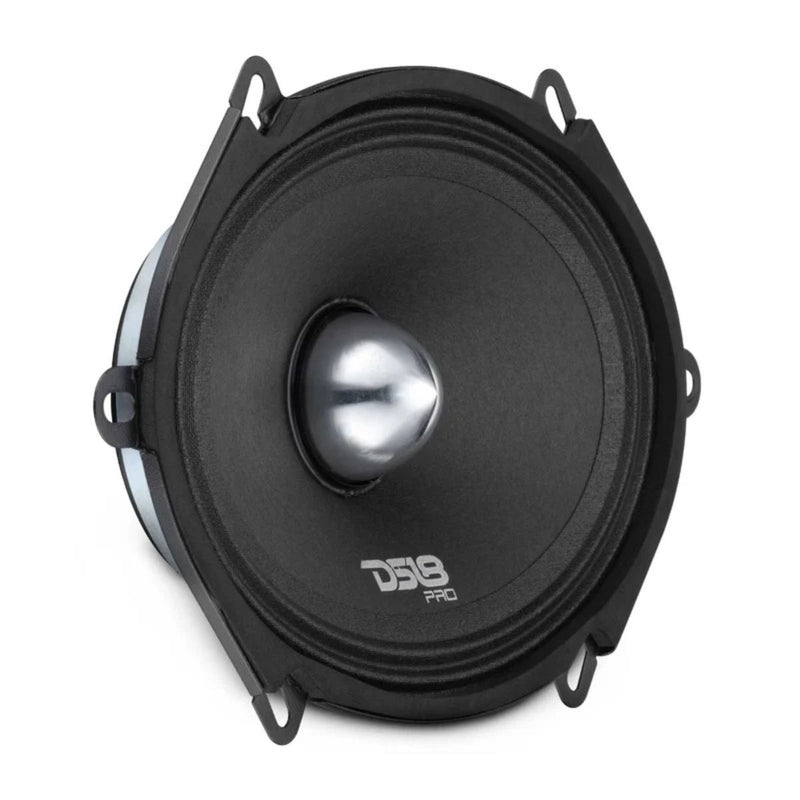

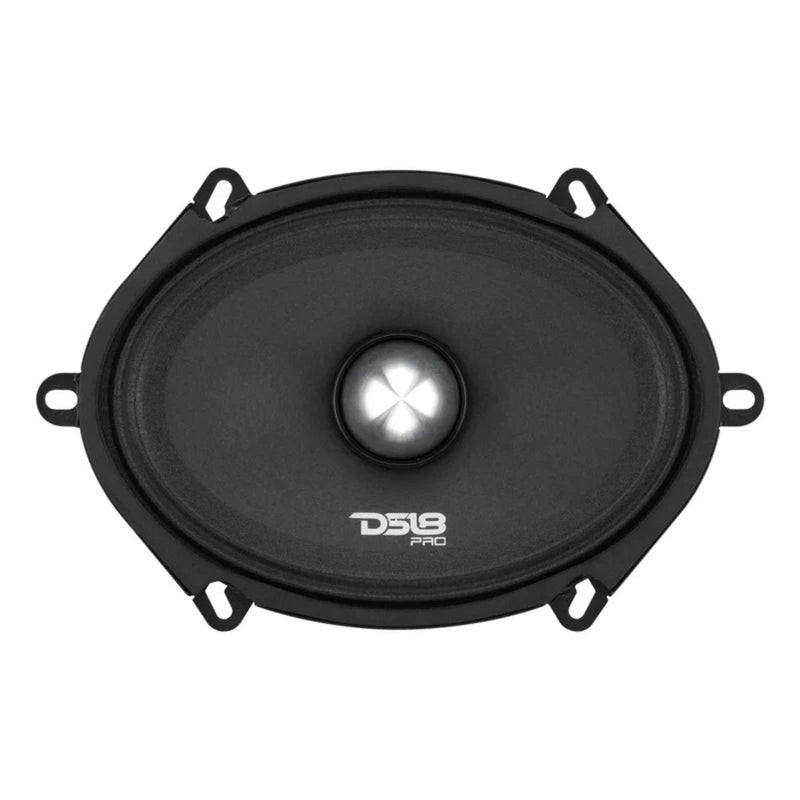

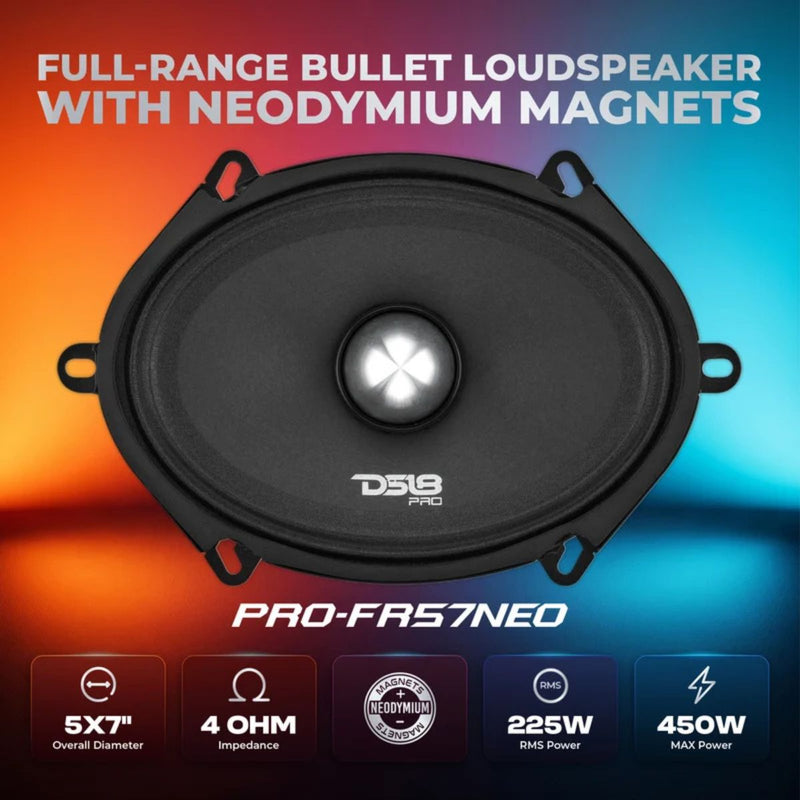

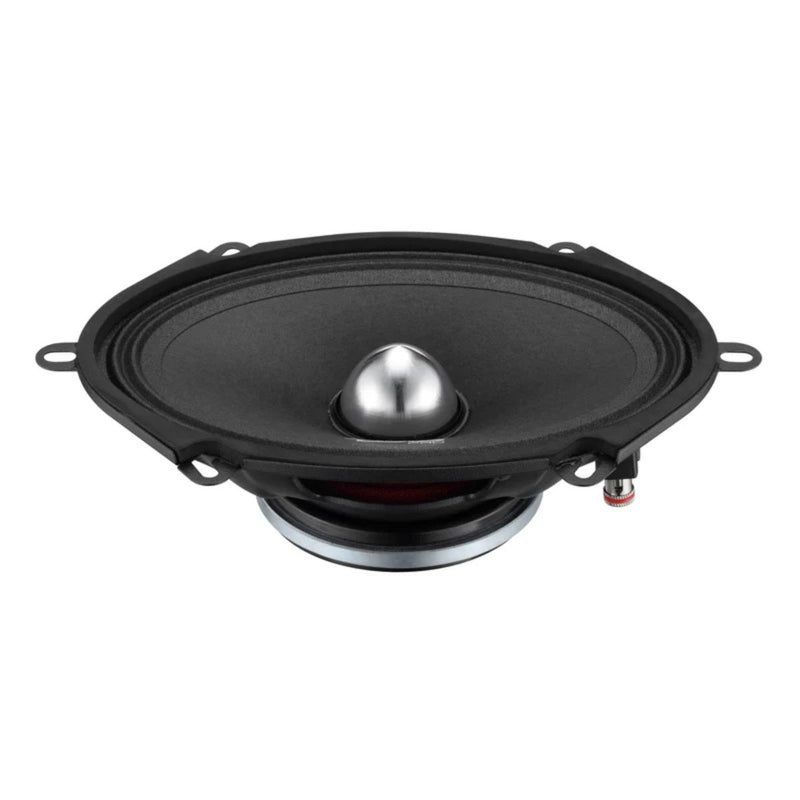

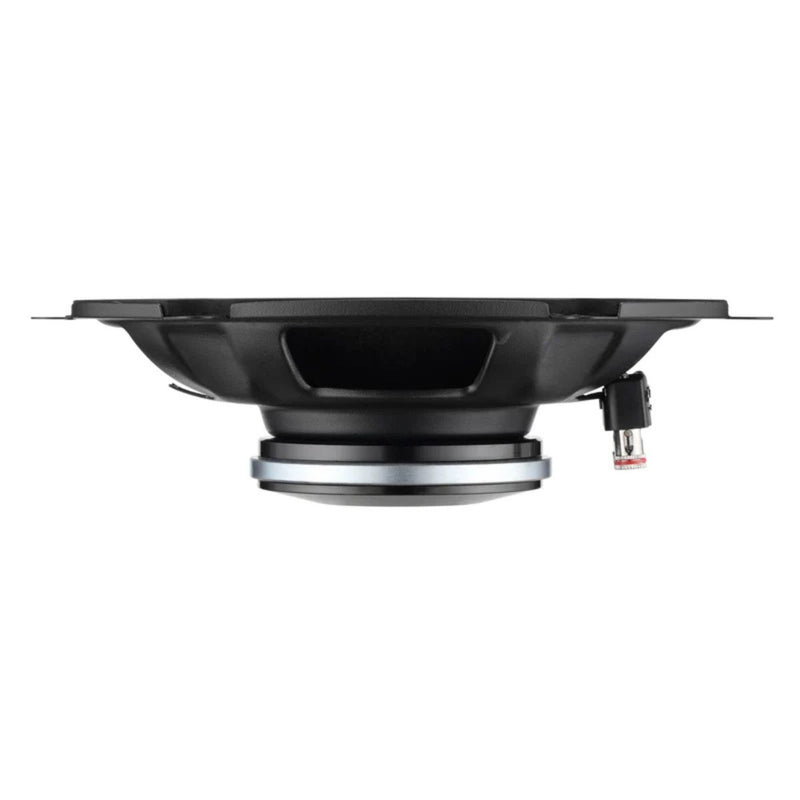

DS18 5x7" Neodymium Full-Range Bullet Loudspeaker 225W RMS 4 Ohm PRO-FR57NEO
This Listing Includes
- (1) DS18 PRO-FR57NEO 5x7" Loudspeaker
Turn up the volume without sacrificing clarity with the DS18 PRO-FR57NEO 5x7" Neodymium Full-Range Bullet Loudspeaker. Built for serious car audio enthusiasts who want powerful, detailed sound, this high-output loudspeaker combines 225 watts RMS power handling, a lightweight neodymium motor, and an aluminum bullet design to deliver aggressive performance in a compact 5x7" configuration.
Engineered for loud, clean sound, the PRO-FR57NEO features a 90Hz-20kHz frequency response and high sensitivity to help your music cut through even the loudest environments. The aluminum bullet helps direct high-frequency output, delivering greater presence and projection for vocals and musical detail.

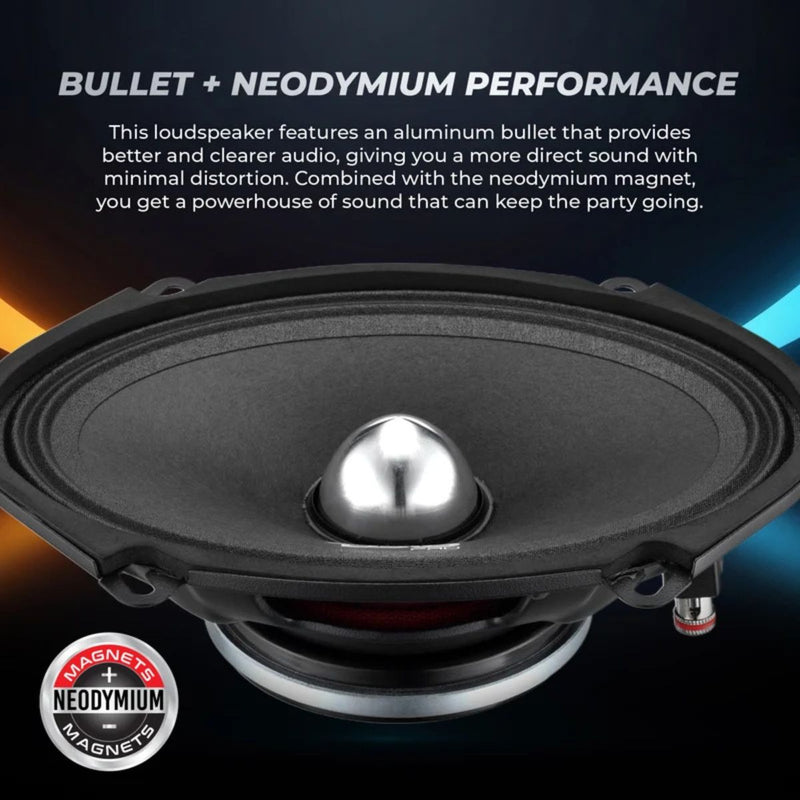

At the heart of this speaker is a powerful neodymium magnet paired with a 1.5" CCAW voice coil on a Kapton former. The combination provides efficient motor performance, while the paper cone and cloth surround deliver responsive sound reproduction.
A durable black steel basket provides structural support and a clean, professional appearance. With a mounting depth of just 2.15", the PRO-FR57NEO offers a compact installation profile for compatible custom car audio applications.
Whether you're upgrading your vehicle's front stage, building a high-output speaker system, or adding serious volume to a custom audio installation, the DS18 PRO-FR57NEO delivers the power, projection, and performance expected from the DS18 PRO Series.
Features
- 225W RMS / 450W MAX Power: High-output performance designed for demanding car audio applications.
- 5x7" Full-Range Design: Oval loudspeaker configuration with integrated aluminum bullet.
- Neodymium Magnet: Compact, powerful motor structure for high-performance sound reproduction.
- Aluminum Bullet: Designed to improve sound projection and high-frequency clarity.
- High Sensitivity: Rated at 97.5dB (1W/1m) in the manufacturer's technical specifications.
- 90Hz-20kHz Frequency Response: Wide operating range for reproducing vocals and musical detail.
- 1.5" CCAW Voice Coil: Copper-clad aluminum winding on a Kapton former.
- Paper Cone and Cloth Surround: Lightweight cone construction with a durable cloth suspension.
- Black Steel Basket: Strong frame construction with a clean black finish.
- 2.15" Mounting Depth: Compact design for compatible speaker locations and custom installations.
- 4 Ohm Impedance: Designed for use with properly matched car audio amplifiers.
Specifications:
- Brand: DS18
- Model: PRO-FR57NEO
- Product Type: Full-Range Bullet Loudspeaker
- Speaker Size: 5x7"
- Nominal Diameter: 5x7" / 142 x 190 mm
- RMS Power Handling: 225 Watts
- MAX Power Handling: 450 Watts
- Nominal Impedance: 4 Ohms
- Sensitivity (1W/1m): 97.5 dB
- Frequency Response: 90 Hz - 20 kHz
- Recommended High-Pass Crossover: 120 Hz
- Voice Coil Diameter: 1.5" / 38.3 mm
- Voice Coil Former Material: Kapton
- Voice Coil Winding Material: CCAW
- Cone Material: Paper
- Bullet Material: Aluminum
- Surround Material: Cloth
- Basket Material: Steel
- Basket Color / Finish: Black
- Magnet Material: Neodymium
- Magnet Weight: 7.6 oz
- Displacement Volume: 0.63 L / 0.22 ft
- Grille Included: No
- Sold As: Single Unit
Installation note: This speaker is designed for full-range/high-output audio use, not dedicated sub-bass. DS18 recommends a 120Hz high-pass crossover. Verify the vehicle's speaker opening and mounting clearance before installation.
Thiele & Small Parameters
- Equivalent Volume (Vas): 2.86 L / 0.1 ft
- Excursion (One Way): 0.4 mm
- Free Air Resonance (Fs): 160 Hz
- Mechanical Factor (Qms): 12.929
- Electrical Factor (Qes): 0.515
- Total Factor (Qts): 0.495
- Mechanical Mass (Mms): 10.198 g
- Mechanical Compliance (Cms): 0.081 mm/N
- BL Factor: 8.540
- Voice Coil Inductance (Le): 0.023 mH
- Cone Area (Sd): 158.37 cm
- DC Resistance (Re): 3.2 Ohms

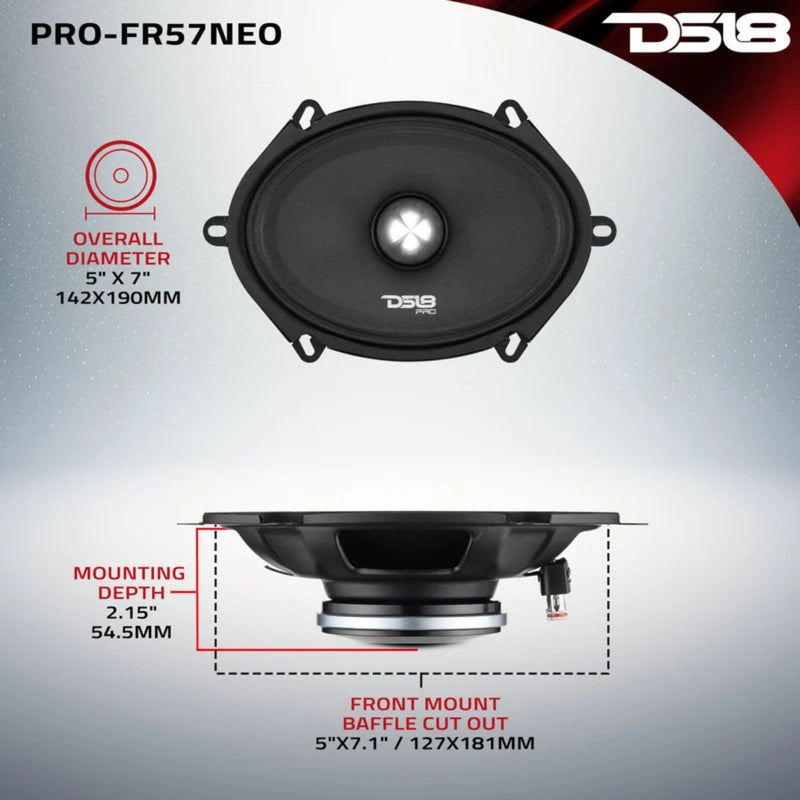

Dimensions
- Overall Diameter: 5.6" x 7.5" / 142 x 190 mm
- Overall Depth: 2.37" / 60.3 mm
- Front Mount Baffle Cutout: 5" x 7.1" / 127 x 181 mm
- Mounting Depth: 2.15" / 54.5 mm
- Motor Diameter: 3.54" / 90 mm
