- 2-WAY COAXIAL COMPRESSION DRIVER: DS18 PRO-DRNCOAX combines a 3.5" midrange voice coil and 1.75" high-frequency tweeter voice coil in one neodymium compression driver assembly.
- 440W COMBINED PROGRAM POWER: Mid-driver handles 160W AES, 320W program, and 640W peak. Tweeter handles 60W AES, 120W program, and 240W peak.
- 118DB SENSITIVITY: High-efficiency design with an overall frequency response of 315Hz to 20kHz for powerful sound projection in custom car audio systems.
- NEODYMIUM MAGNET: Features dual polyester diaphragms, CCAW voice coil windings, Kapton formers, and separate electrical inputs for the midrange and tweeter sections.
- 2-INCH BOLT-ON THROAT: Four-bolt M6 mounting configuration for compatible compression horns. Ideal for speaker walls and high-output audio builds. Includes one driver; horn sold separately.

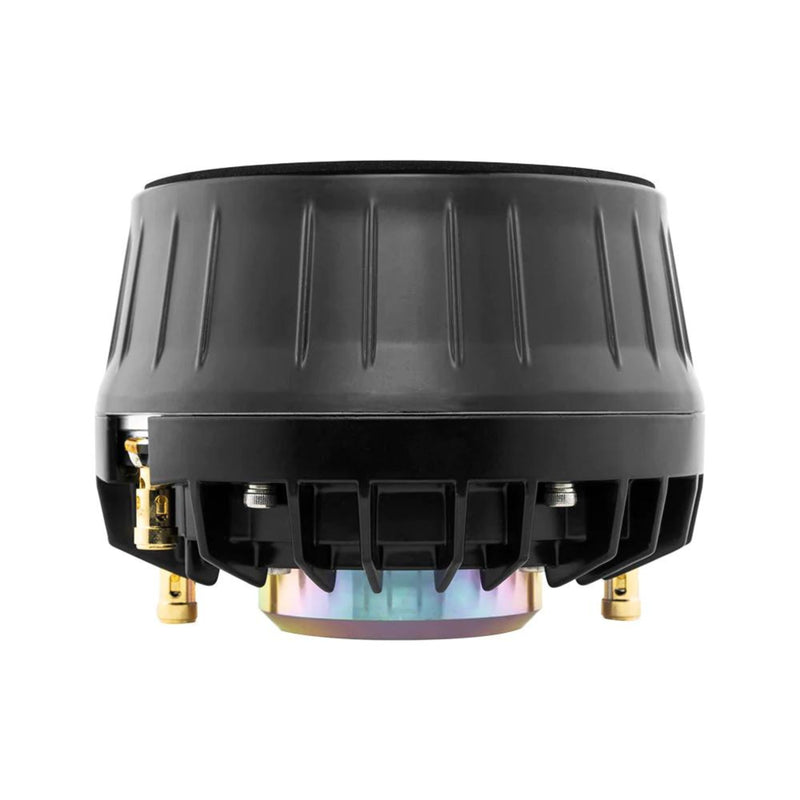

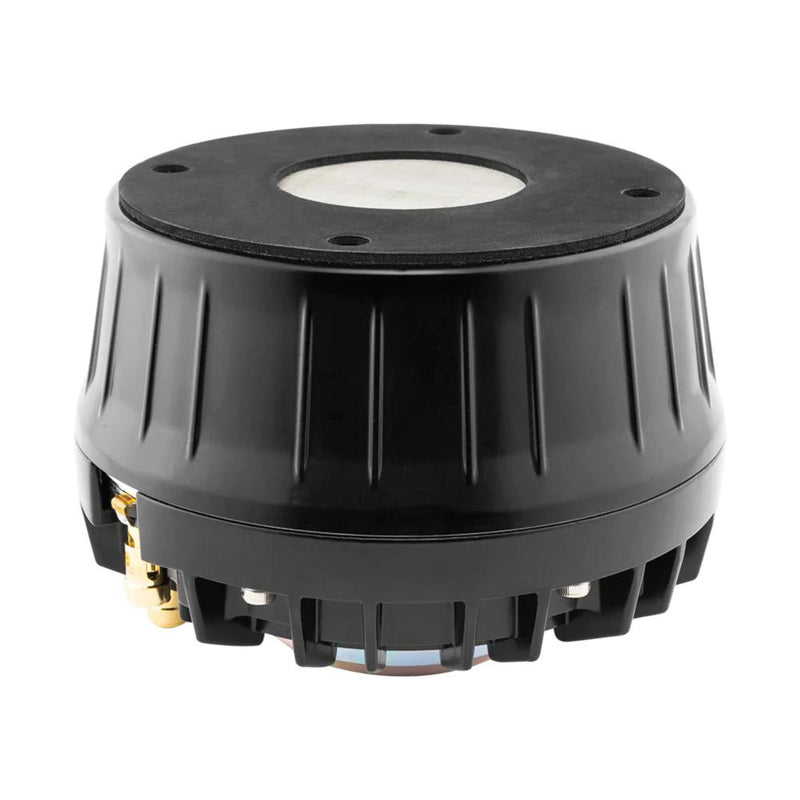

DS18 2" Bolt-On Neodymium Coaxial Driver 3.5" Mid 1.75" Tweeter 8 Ohm 320W PRO-DRNCOAX
This Listing Includes:
- (1) DS18 2" Driver PRO-DRNCOAX
Bring powerful midrange projection and crisp high-frequency detail to your audio system with the DS18 PRO-DRNCOAX 2-Way Neodymium Coaxial Compression Driver. Combining a dedicated midrange driver and high-frequency tweeter into one compression driver assembly, the PRO-DRNCOAX delivers a wide range of sound from a single horn-mounted design.
The midrange section features a 3.5" voice coil rated for 160W AES, 320W program, and 640W peak power, while the integrated high-frequency tweeter uses a 1.75" voice coil rated for 60W AES, 120W program, and 240W peak. Together, these components provide powerful output for demanding car audio applications.
With an impressive 118dB sensitivity and an overall frequency response of 315Hz to 20kHz, the PRO-DRNCOAX is designed for efficient sound projection. Its neodymium magnet provides strong motor performance, while the dual polyester diaphragms, CCAW windings, and Kapton voice coil formers support the demands of high-output audio systems.
The coaxial design features separate connections for the midrange and tweeter sections, allowing each to receive the appropriate amplification and crossover filtering. The midrange section has a recommended band-pass crossover of 630Hz to 5kHz, while the tweeter requires a recommended high-pass crossover of 5kHz.

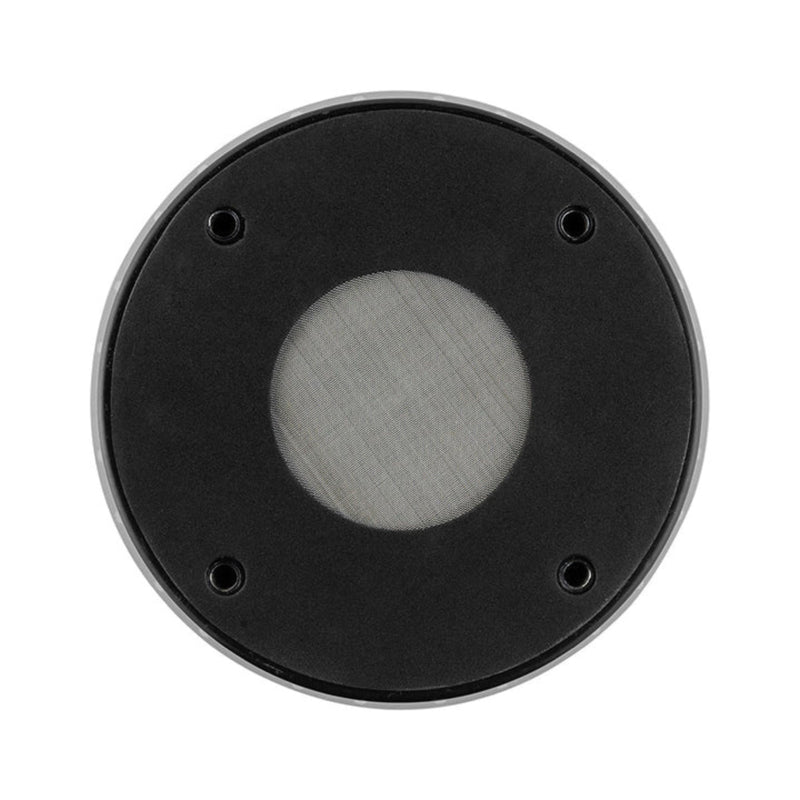

Featuring a 2" throat and four-bolt M6 mounting pattern, this compression driver is designed for compatible bolt-on horns, making it a versatile choice for custom speaker walls, stunt walls, and high-output car audio builds.
Whether you're upgrading your existing horn system or designing a custom multi-driver installation, the DS18 PRO-DRNCOAX delivers the power, efficiency, and two-way performance needed for serious sound.
Horn sold separately.
Features
- 2-WAY COAXIAL DESIGN: Combines a dedicated midrange compression driver and high-frequency tweeter in one assembly.
- 440W COMBINED PROGRAM POWER: Mid-driver handles 320W program and tweeter handles 120W program.
- 880W COMBINED PEAK POWER: Mid-driver rated for 640W peak and tweeter rated for 240W peak.
- 118DB SENSITIVITY: High-efficiency design for powerful sound projection.
- NEODYMIUM MAGNET: Rare-earth magnet motor structure.
- 2" BOLT-ON THROAT: Designed for compatible four-bolt compression horns.
- 3.5" MIDRANGE VOICE COIL: Dedicated midrange section for strong vocal and instrumental projection.
- 1.75" TWEETER VOICE COIL: Dedicated high-frequency section for clear, detailed highs.
- DUAL POLYESTER DIAPHRAGMS: Designed for two-way compression driver performance.

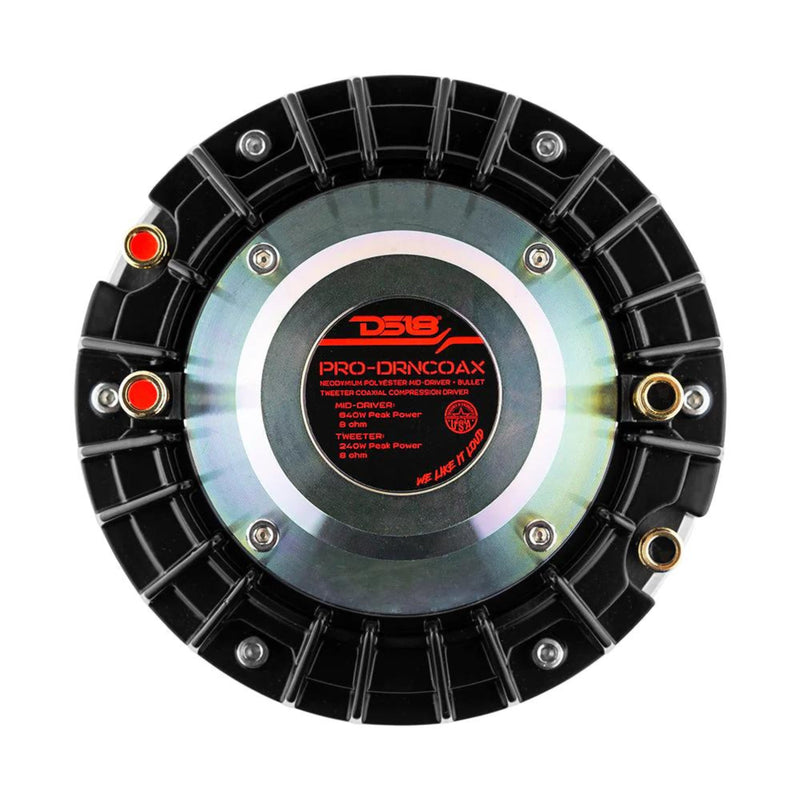

- SEPARATE DRIVER INPUTS: Independent electrical connections for midrange and tweeter sections.
- GOLD-PLATED TERMINALS: Designed for secure electrical connections.
- SERVICEABLE DESIGN: Compatible with replacement diaphragm PRO-DRNCOAXVC.
- SOLD INDIVIDUALLY: Includes one complete coaxial compression driver.
Specifications:
- Brand: DS18
- Model: PRO-DRNCOAX
- Product Type: 2-Way Coaxial Compression Driver
- Throat Diameter: 2" / 50.8mm
- Installation Type: Bolt-On
- Sensitivity (1W/1M): 118dB
- Overall Frequency Response: 315Hz - 20kHz
- Nominal Impedance: 8 Ohms
- Sold As: Single
Mid-Driver Specifications
- AES Power Handling: 160W
- Program Power Handling: 320W
- Peak Power Handling: 640W
- Frequency Response: 315Hz - 20kHz
- Recommended Band-Pass Crossover: 630Hz - 5kHz
- Voice Coil Diameter: 3.5" / 90mm
Tweeter Specifications
- AES Power Handling: 60W
- Program Power Handling: 120W
- Peak Power Handling: 240W
- Frequency Response: 4kHz - 20kHz
- Recommended Hi-Pass Crossover: 5kHz
- Voice Coil Diameter: 1.75" / 44.4mm
Motor
- Voice Coil Former Material: Kapton
- Winding Material: CCAW
- Diaphragm Material: Polyester
- Magnet Material: Neodymium
- Driver Configuration: Dual Polyester Diaphragms
Dimensions:
- Overall Diameter: 5.5" / 140mm
- Overall Depth: 3.9" / 101mm
- Bolt Pattern: M6, 4" / 102mm
- Manufacturer Product Weight: 6.5 lbs
- Manufacturer Product Dimensions: 7" x 6.5" x 4.75"
