- Powerful 2-Way Design: Combines a high-output 6x9" mid-range driver with an integrated 3" compression horn for crystal-clear vocals and punchy mids
- High Power Handling: Delivers 200W RMS and 400W max power, ideal for high-volume car audio and pro sound setups without distortion
- Slim Fit, Easy Install: Flat steel basket with a shallow 3-7/8" mounting depth fits most car doors, speaker pods, and custom builds
- Hybrid Magnet System: Features an 18 oz ferrite and neodymium combo for stronger magnetic force and improved response
- Durable Protective Grill: Includes steel mesh grill for added protection against debris and impact, without compromising sound quality

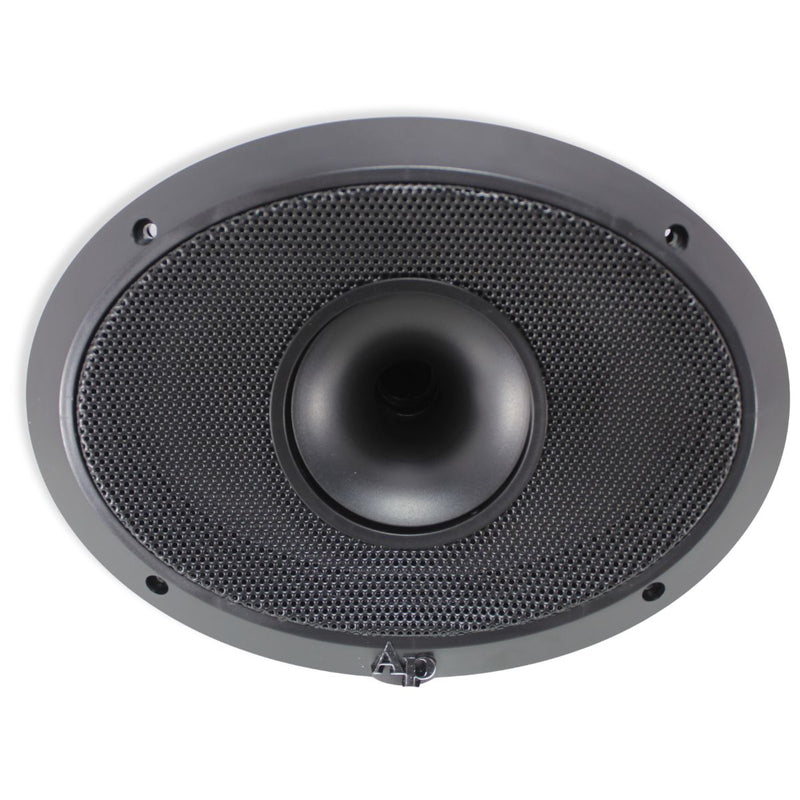

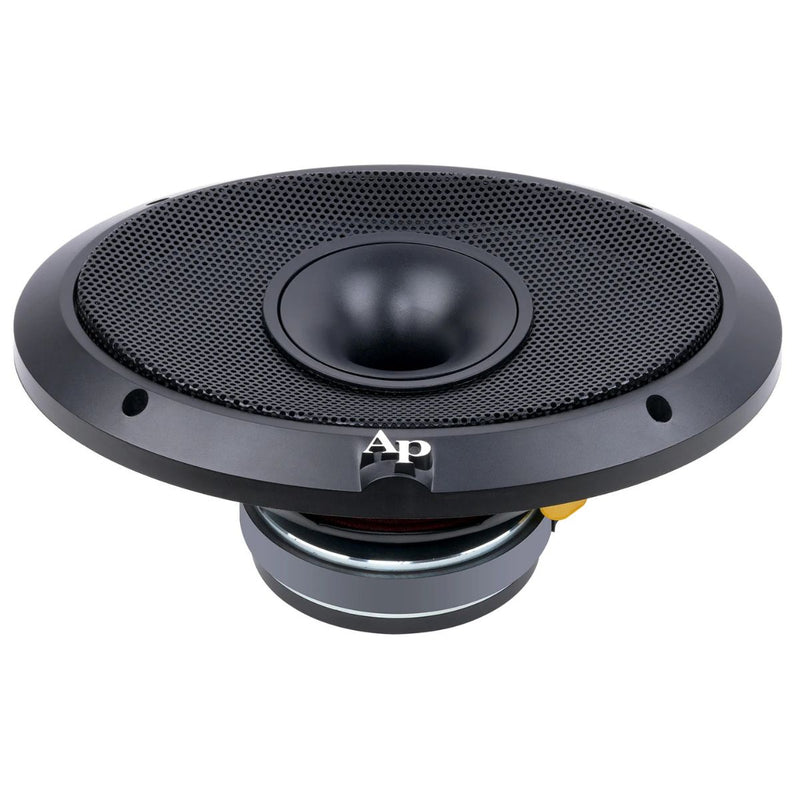

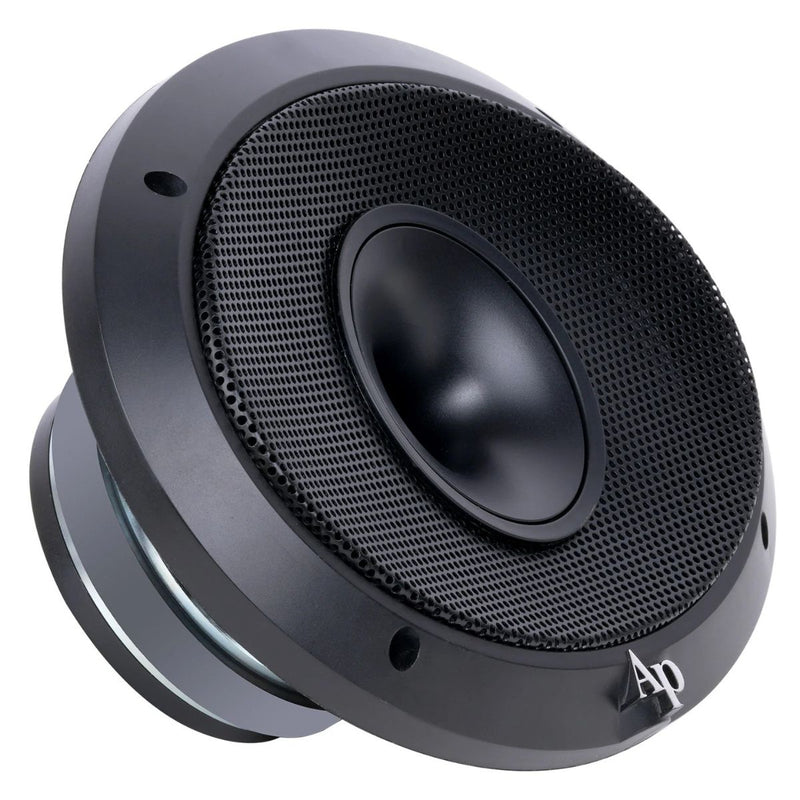

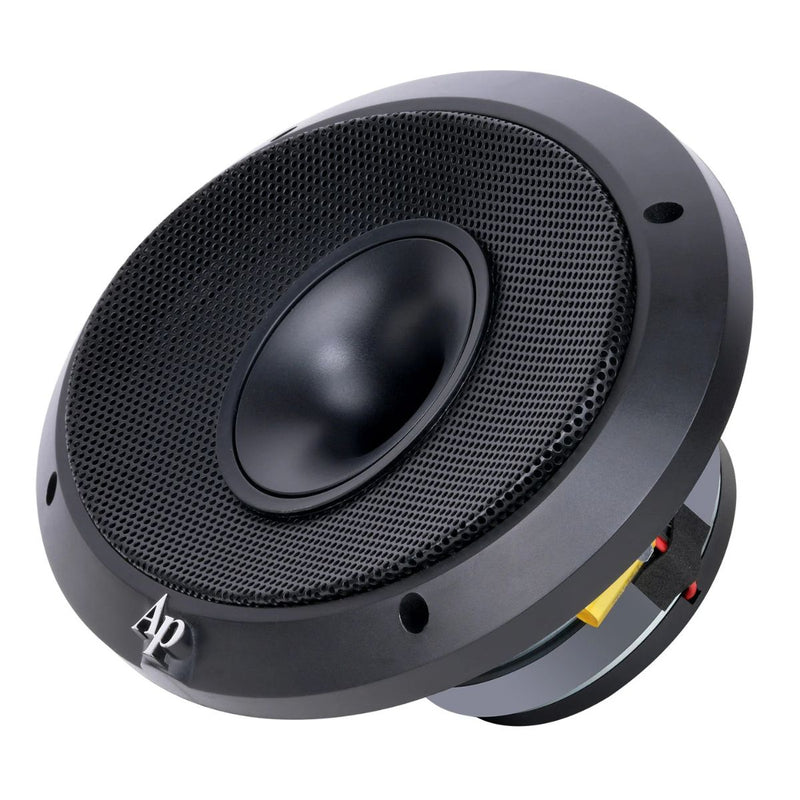

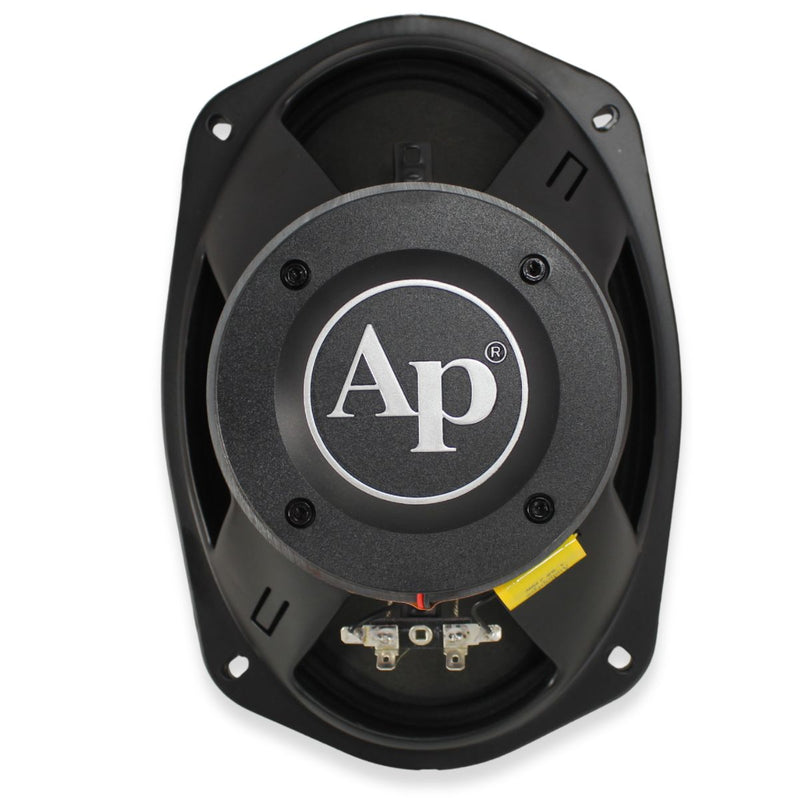

Audiopipe 6x9" 2-Way Compression Horn Midrange Speaker 200W RMS 4 Ohm w/ Grill APMB-698G-CHF
This listing includes:
- (1) Audiopipe 6x9" Loudspeaker APMB-698G-CHF
- (1) Protective Steel Grill
Midrange punch and horn-loaded highs in one powerful 6x9" speaker.
The Audiopipe APMB-698G-CHF combines a high-output 6x9" midrange driver with an integrated 3" compression horn in a 2-way coaxial design. Built for car audio systems that demand strong vocal projection and extended high-frequency output, this speaker delivers both midrange and high-frequency reproduction from a single speaker location.
Unlike a traditional 6x9" coaxial speaker with a conventional tweeter, the APMB-698G-CHF uses a compression horn to enhance high-frequency projection. The midrange driver handles vocals and instruments while the centrally mounted horn provides additional upper-frequency presence.
Rated at 200 watts RMS and 400 watts PMPO, this 4-ohm loudspeaker features a 1.5" Kapton voice coil, a hybrid ferrite and neodymium magnet structure, and a frequency response of 80Hz to 20kHz.
The flat steel basket provides a rigid mounting structure, while the included protective steel grill helps shield the speaker from accidental contact and debris. The compression horn is also replaceable, allowing service or maintenance without replacing the entire loudspeaker.
Whether you're upgrading a custom car audio system, building a high-output door speaker setup, or adding dedicated vocal and high-frequency reproduction, the APMB-698G-CHF delivers a combination of midrange performance and horn-loaded output.
Features
-
2-Way Coaxial Design: Combines a 6x9" midrange loudspeaker with an integrated compression horn for midrange and high-frequency reproduction.
-

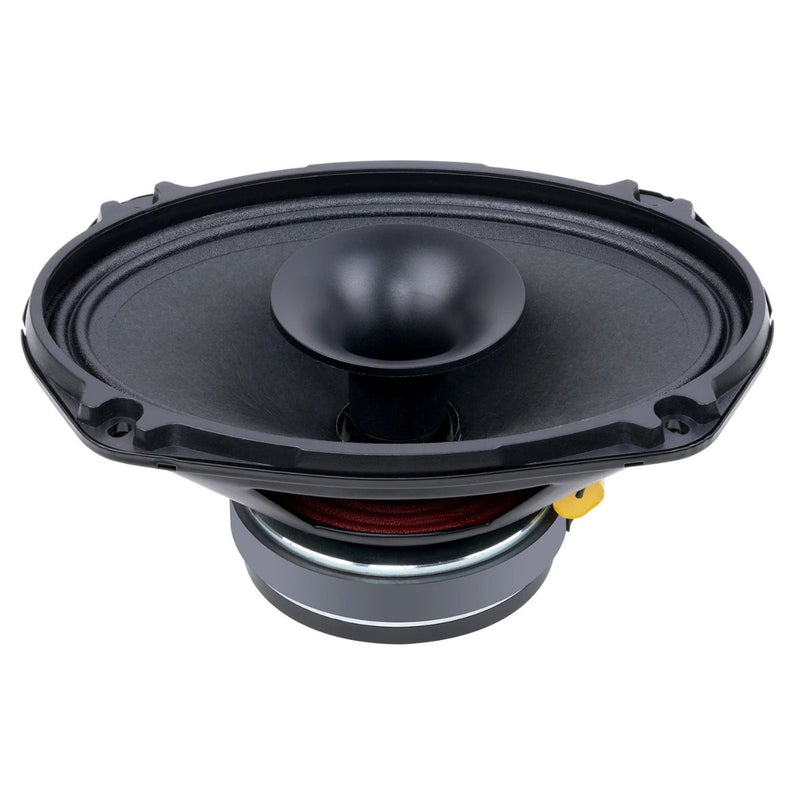

Built-In 3" Compression Horn: Enhances high-frequency projection without requiring a separate horn mounting location.
-
200W RMS Power Handling: Rated for 200 watts continuous power and 400 watts PMPO.
-
80Hz-20kHz Frequency Response: Designed to reproduce midrange and high-frequency content across a broad frequency range.
-
1.5" Kapton Voice Coil: Designed for heat resistance and reliable power handling.
-

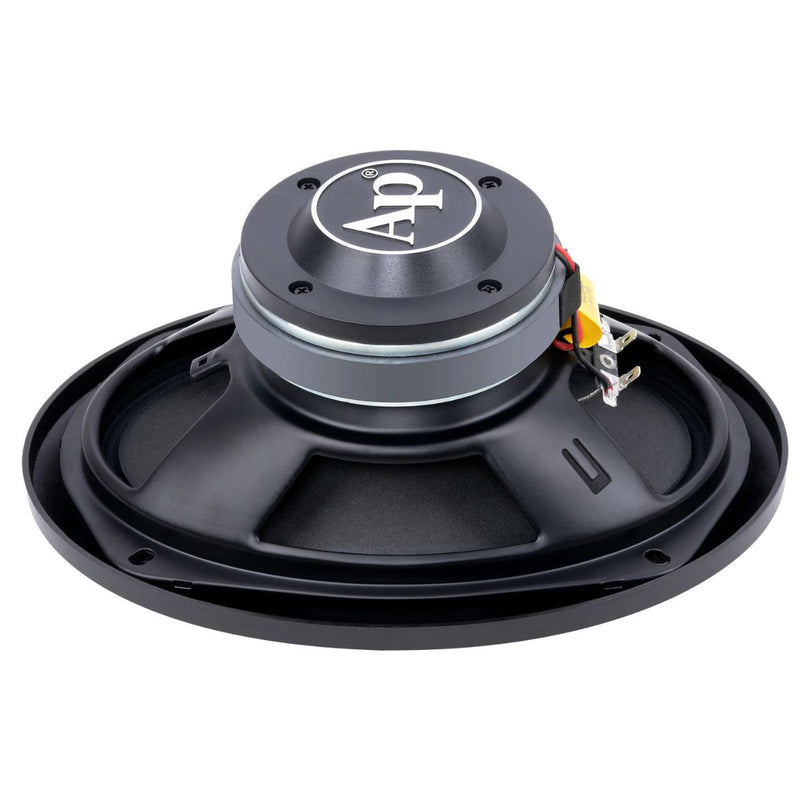

Hybrid Magnet Structure: Combines an 18 oz ferrite magnet with neodymium components.
-
4-Ohm Impedance: Suitable for compatible car audio amplifier configurations.
-
Replaceable Compression Horn: Serviceable horn design supports maintenance without replacing the entire speaker.
-
Flat Steel Basket: Rigid construction designed for compatible 6x9" mounting locations.
-

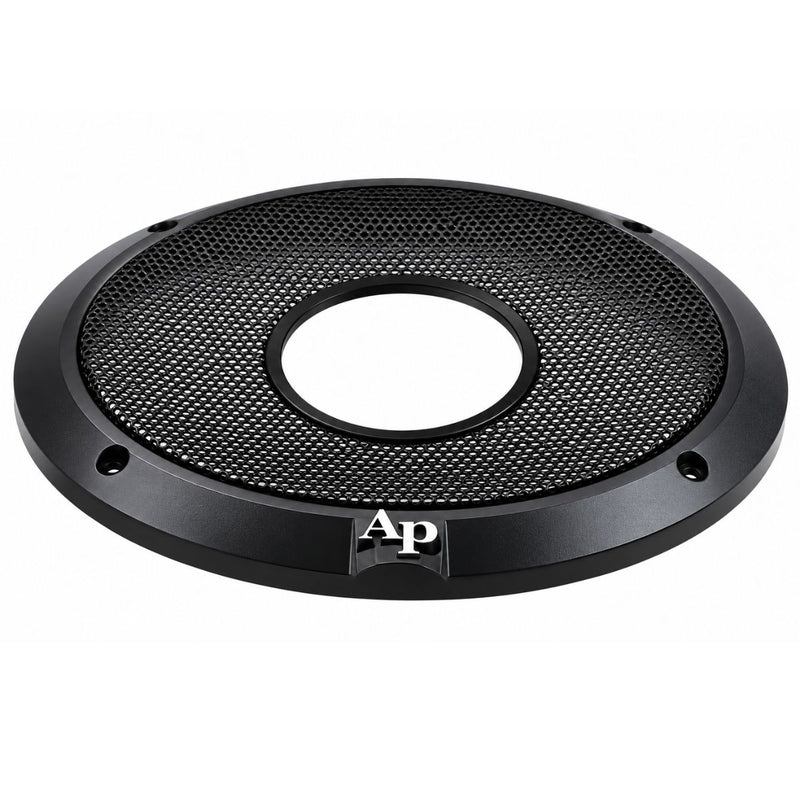

Protective Steel Grill Included: Helps protect the driver while allowing sound to pass through the perforated metal covering.
Specifications:
- Model: APMB-698G-CHF
- Speaker Type: 2-Way Compression Horn Mid-Range
- Speaker Size: 6x9"
- Peak Power Handling: 400 Watts (P.M.P.O.)
- RMS Power Handling: 200 Watts
- Frequency Response: 80Hz – 20kHz (3dB)
- Sensitivity: 91 dB
- Impedance: 4 Ohms
- Voice Coil Diameter: 1.5" Kapton
- Horn Diameter: 3"
- Magnet Type: Hybrid Ferrite & Neodymium
- Magnet Weight: 18 oz

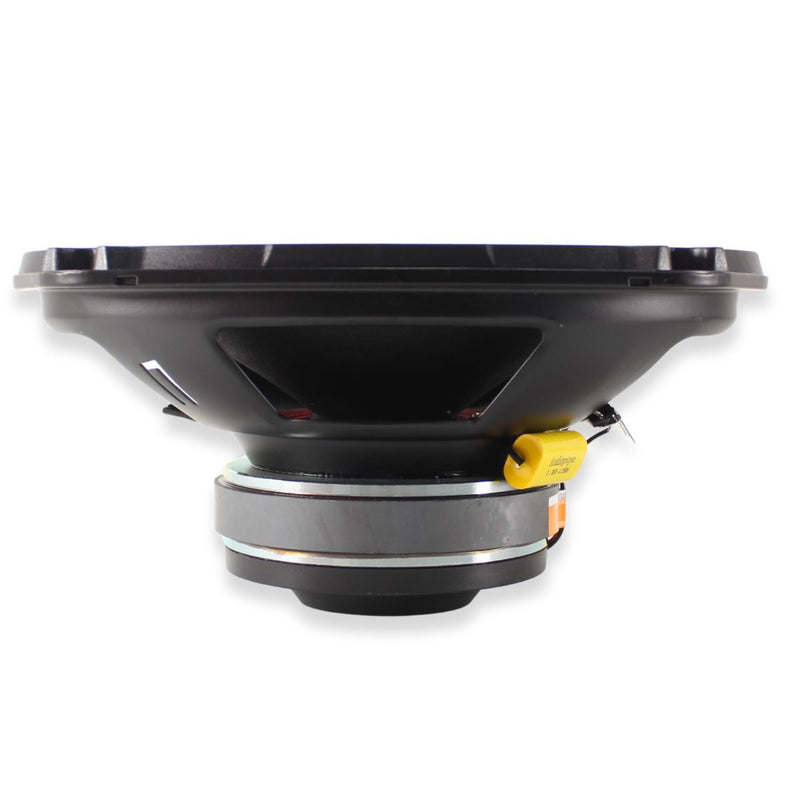

- Mounting Depth: 98 mm (3-7/8")
- Basket Type: Flat Steel
- Included Accessories: Protective steel grill
- Weight: 3.5 lbs
- Weight with Grill: 3.9 Lbs
Package Dimensions:
- Length: 10.9"
- Width: 8.3"
- Height: 5.6"
Important: This is a single 6x9" speaker with an integrated compression horn and protective grill. It is not a speaker pair or a separate midrange and horn driver kit. Verify mounting clearance, amplifier compatibility, and appropriate crossover settings before installation.
