- POWERFUL 10-INCH SUBWOOFER: Audiopipe TXX-BDD2-10 features a double-stack motor structure with 700 watts RMS and 1400 watts maximum power handling according to the manufacturer's technical specifications.
- DUAL 4-OHM VOICE COILS: Equipped with dual 4-ohm voice coils for flexible system configurations, allowing a single subwoofer to be wired to 2 ohms in parallel or 8 ohms in series.
- 100 OZ DOUBLE-STACK MAGNET: Features two strontium magnets with a combined weight of 100 ounces and a 2.5-inch four-layer voice coil for strong, controlled bass reproduction.
- DURABLE COMPOSITE CONSTRUCTION: Paper and fiberglass composite cone, large inverted fiberglass dust cap, air-cushion foam surround, and reinforced blue stitching for demanding audio applications.
- HEAVY-DUTY VENTED BASKET: Patented pipe-style die-cast aluminum basket features ventilation for heat dissipation, a black powder-coated finish, and multi-connect terminals for convenient wiring.

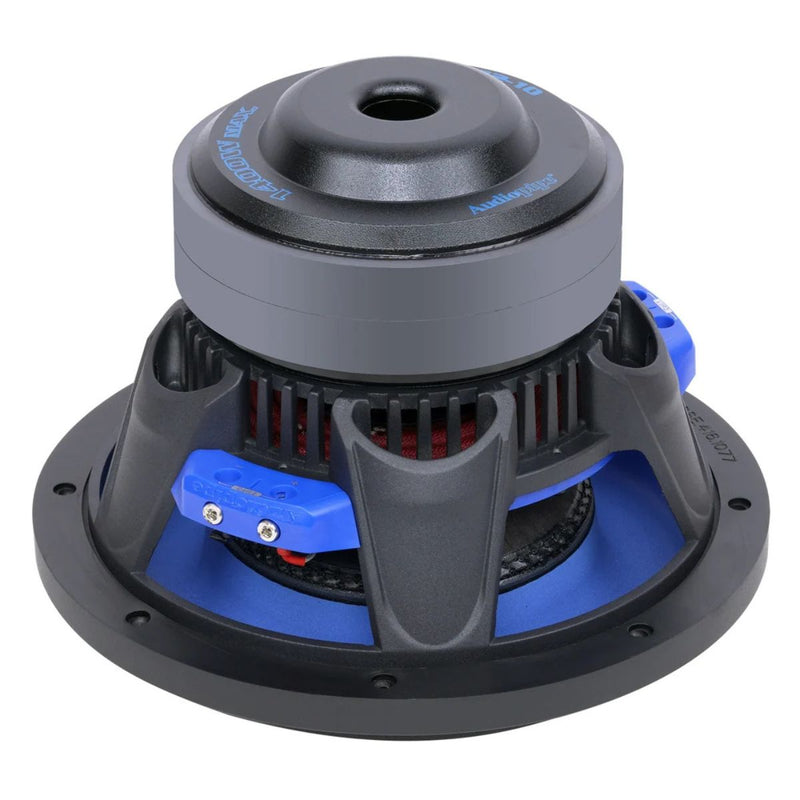

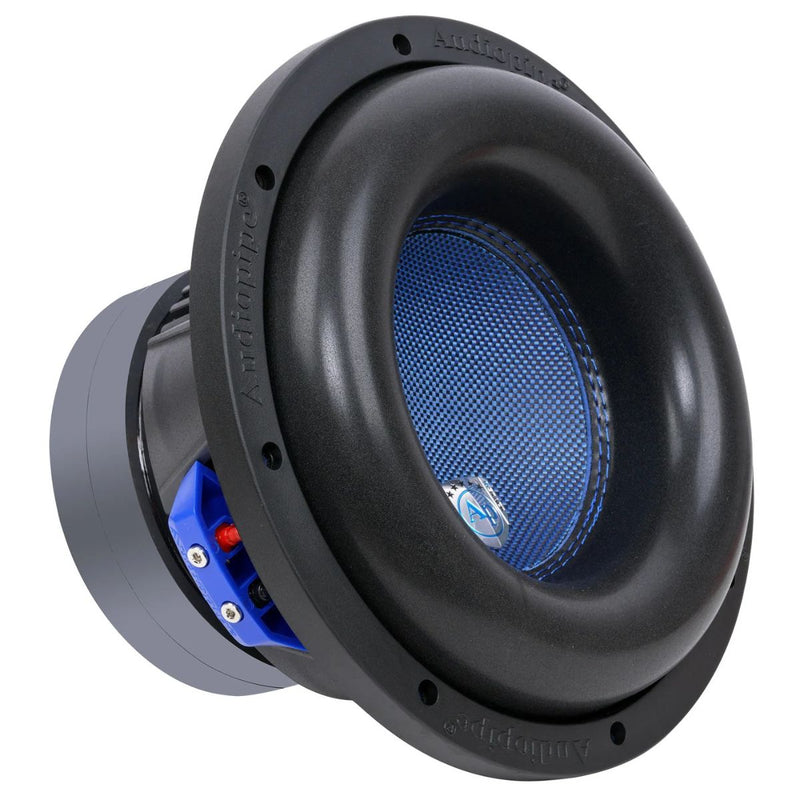

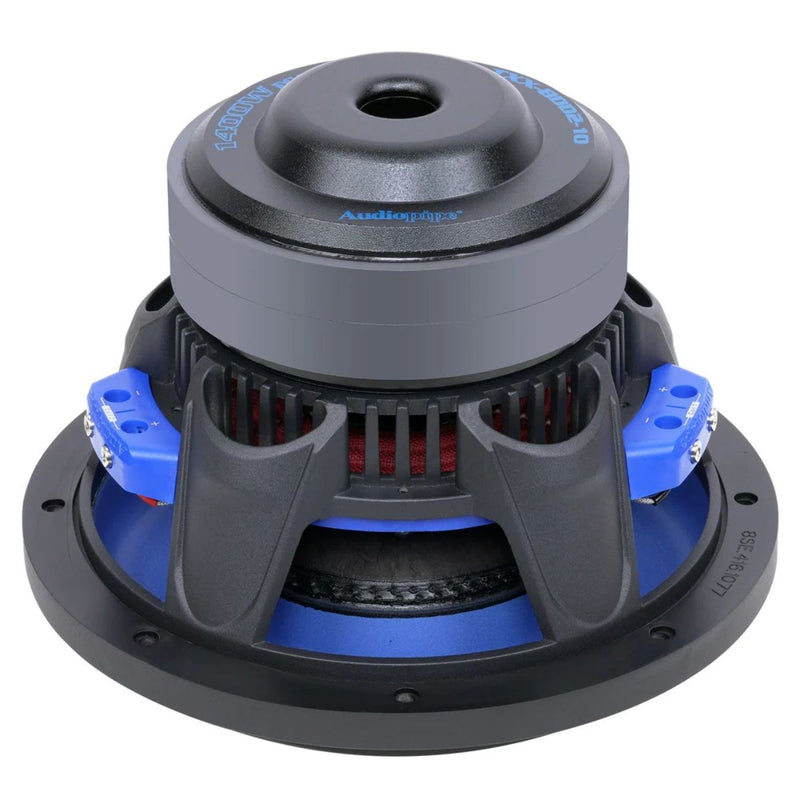

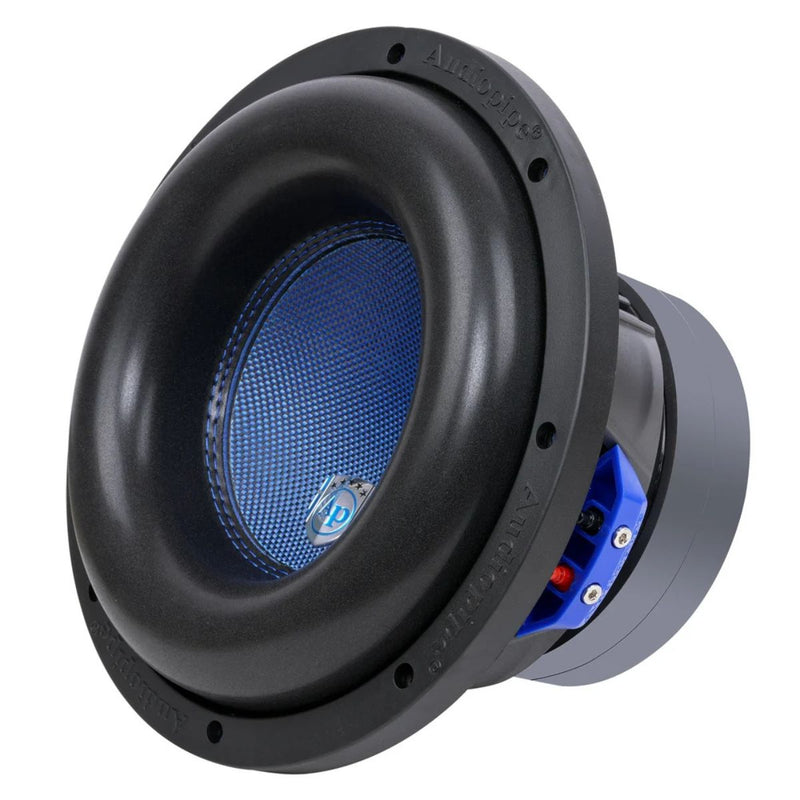

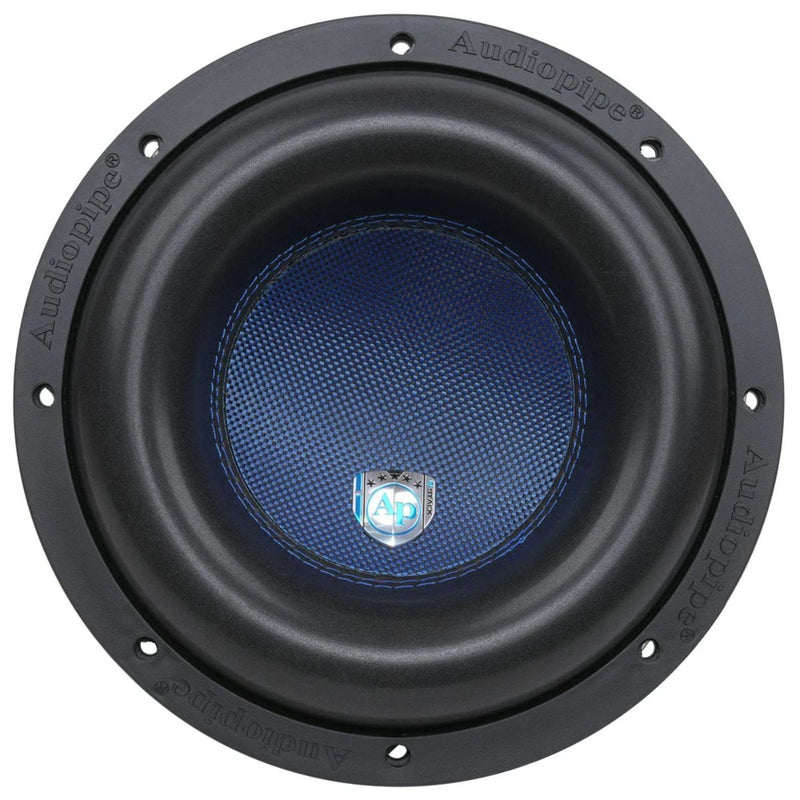

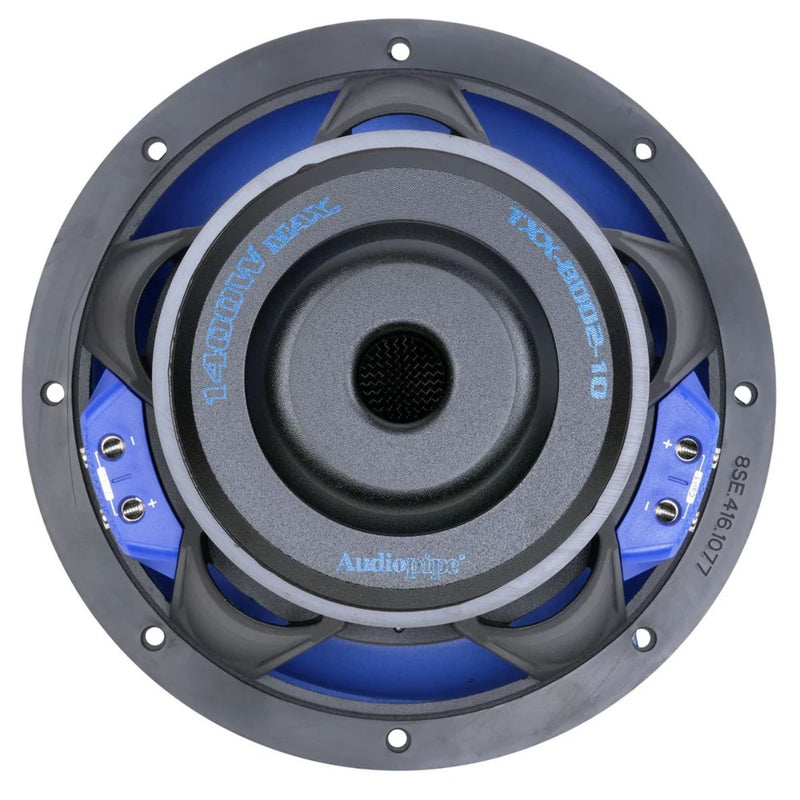

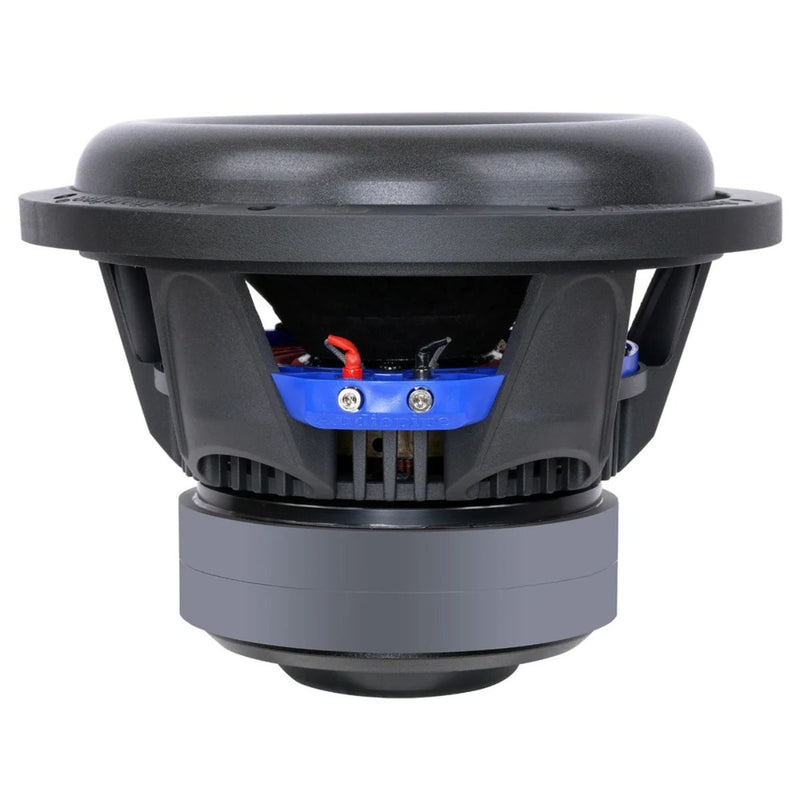

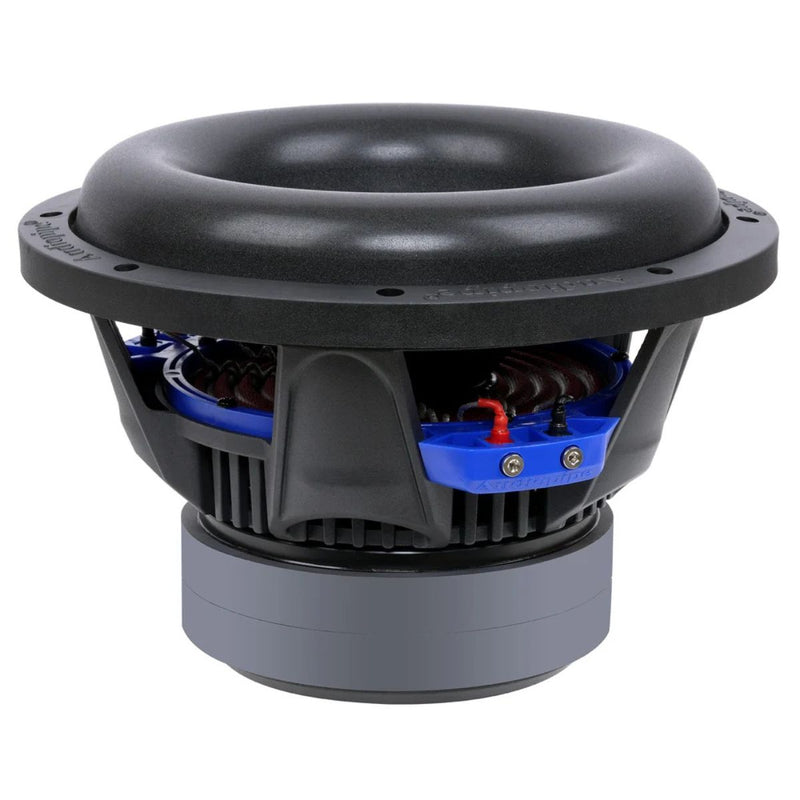

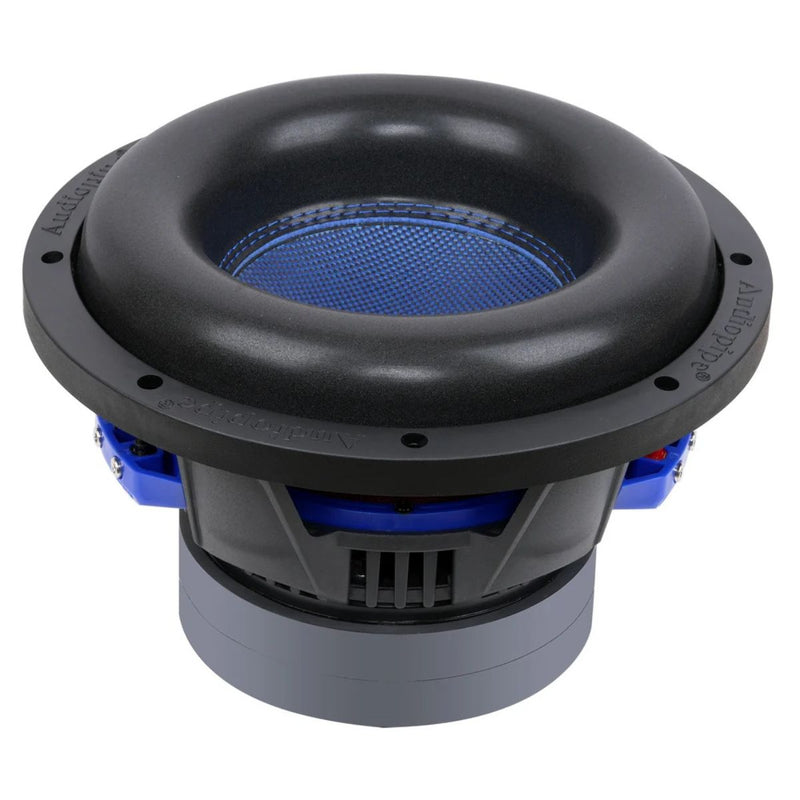

Audiopipe 10" 700W RMS Dual 4 Ohm Double Stack High Power Subwoofer TXX-BDD2-10
This Listing Includes
- (1) Audiopipe 10" Subwoofer TXX-BDD2-10
Bring powerful, deep bass to your car audio system with the Audiopipe TXX-BDD2-10 10" Double Stack High Power Subwoofer. Built for bass enthusiasts who demand serious performance, this subwoofer combines a heavy-duty dual-magnet motor, high-excursion suspension, and durable cone construction to deliver impactful low-frequency output.
Rated at 700 watts RMS and 1,400 watts maximum power according to Audiopipe's official manual, the TXX-BDD2-10 features dual 4-ohm voice coils for flexible amplifier matching. Wire the coils in parallel for a final 2-ohm load or in series for an 8-ohm load.
Its double-stack strontium magnet assembly provides a total magnet weight of 100 ounces, working with a 2.5-inch, four-layer black aluminum voice coil former to support controlled cone movement. The paper and fiberglass composite cone provides strength and rigidity, while the large inverted fiberglass dust cap and air-cushion foam surround help deliver deep, aggressive bass.
Audiopipe's patented pipe-style basket features die-cast aluminum construction, a black powder-coated finish, and ventilation designed to promote heat dissipation. Reinforced blue stitching adds durability while giving the subwoofer its distinctive Audiopipe appearance.
With multi-connect terminals and enclosure options for sealed or ported installations, the TXX-BDD2-10 is ready for custom trunk builds, daily-driver audio systems, and high-output bass setups.
Features
- 700W RMS / 1400W MAX: Manufacturer manual-rated power handling for high-output bass performance.
- 10-Inch Subwoofer: Designed for powerful low-frequency reproduction in compatible enclosures.
- Dual 4-Ohm Voice Coils: Supports 2-ohm parallel or 8-ohm series wiring configurations.
- 100 Oz Double-Stack Magnet: Dual strontium magnet motor structure for strong magnetic control.
- 2.5-Inch Four-Layer Voice Coil: Black aluminum BASV former designed for high-power operation.
- Paper and Fiberglass Composite Cone: Rigid, durable cone construction for responsive bass output.
- Large Inverted Fiberglass Dust Cap: Reinforced center structure with a distinctive blue woven appearance.
- Air-Cushion Foam Surround: High-excursion suspension designed to support substantial cone movement.
- Quad-Stitched Surround: Reinforced blue stitching for added durability.
- Die-Cast Aluminum Basket: Patented pipe-style basket with black powder-coated finish and ventilation.
- Multi-Connect Terminals: Convenient connections for series or parallel voice-coil wiring.
- Sealed or Ported Enclosures: Suitable for different bass performance goals and custom builds.
Specifications:
- Brand: Audiopipe
- Model: TXX-BDD2-10
- Series: TXX-BDD2
- Product Type: Double Stack High Power Subwoofer
- Speaker Size: 10"
- RMS Power: 700 Watts
- MAX Power: 1400 Watts
- Voice Coil Configuration: Dual Voice Coil (DVC)
- Voice Coil Impedance: Dual 4 Ohm
- Parallel Wiring Impedance: 2 Ohms
- Series Wiring Impedance: 8 Ohms
- Voice Coil Diameter: 2.5"
- Voice Coil Layers: 4
- Voice Coil Former: Black Aluminum (BASV)
- Magnet Type: Strontium
- Magnet Configuration: Double Stack
- Magnet Weight: 100 oz Total
- Frequency Response: 22 Hz - 900 Hz
- Sensitivity: 88 dB (Product Page)
- Cone Material: Paper and Fiberglass Composite
- Dust Cap: Large Inverted Composite Fiberglass
- Surround Material: Air-Cushion Foam
- Surround Reinforcement: Quad-Stitched Blue Thread
- Basket Material: Die-Cast Aluminum
- Basket Finish: Black Powder-Coated
- Basket Style: Patented Pipe Style
- Terminal Type: Multi-Connect Screw Terminals
- Enclosure Compatibility: Sealed, Ported
- Recommended Sealed Enclosure (Everyday): 1.0 cu ft
- Recommended Sealed Enclosure (Competition): 1.5 cu ft
- Recommended Ported Enclosure (Everyday): 1.5 cu ft
- Recommended Ported Enclosure (Competition): 2.0 cu ft
- Net Weight: 19.9 lbs / 9 kg
- Quantity: 1 Subwoofer
Dimensions:
- Mounting Depth: 6.07" / 154 mm
- Cutout Diameter: 8.8"
- Overall Diameter: 10.5"
