- 3600W RMS Full-Bridge Class-D Amplifier: High-efficiency design with advanced thermal management
- Massive Bass Output: L7X 18-inch subwoofers with 3" voice coils for deep, powerful bass
- Competition-Grade Performance: Engineered for SPL competitions with robust, durable components
- Easy Integration: FIT+ differential inputs ensure compatibility with most factory and aftermarket systems

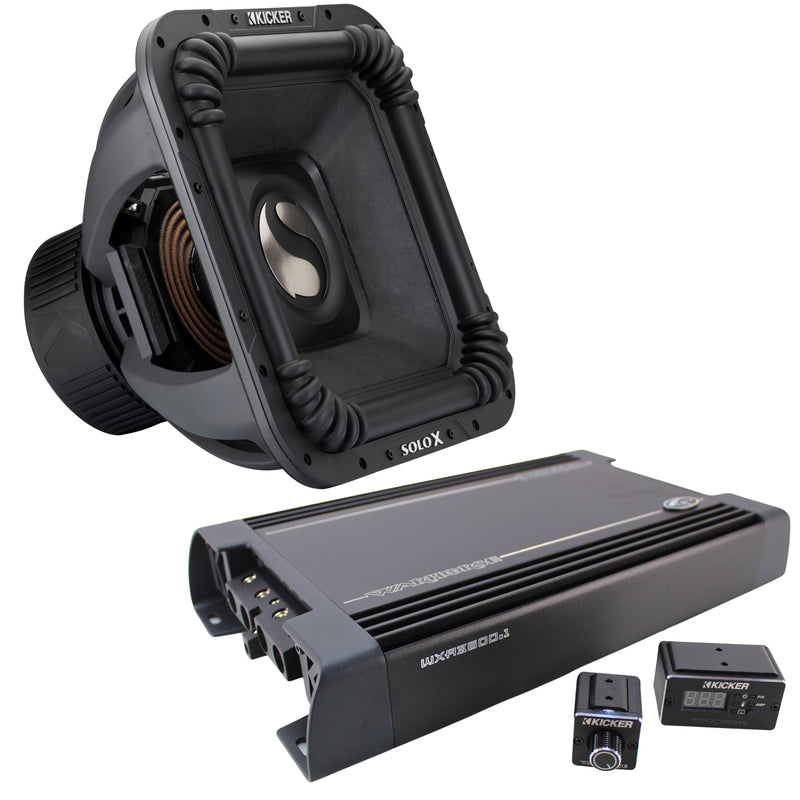

Solo X 18" Dual 2 Ohm 2000 Watt RMS Subwoofer Combo with Warhorse 3600 Amplifier
This Listing Includes:
- (1) Kicker 18 Inch Dual 2-Ohm Subwoofer
- (1) Kicker Warhorse 3600.1 Amplifier
Experience earth-shattering bass with our Kicker WARHORSE WXA Series 3600W Monoblock Amplifier paired with a single Kicker 18-Inch L7X Dual 2-Ohm Competition Subwoofer. This powerful combo delivers deep, resonant lows and competition-level sound performance.

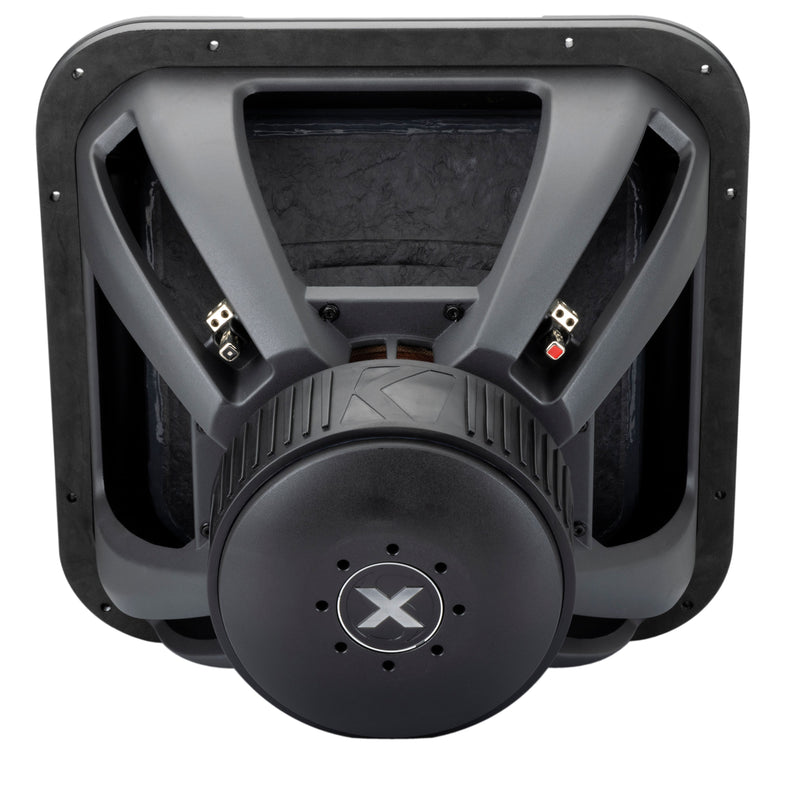

Wiring the dual 2-ohm coils in parallel (both positives together, both negatives together) gives you a 1-ohm load.
Wiring Configuration:
- Dual 2-Ohm coils wired in parallel for a 1-ohm load
- Amp Output: 3600W RMS @ 1 ohm
- Careful gain setting recommended to avoid overpowering the subwoofer

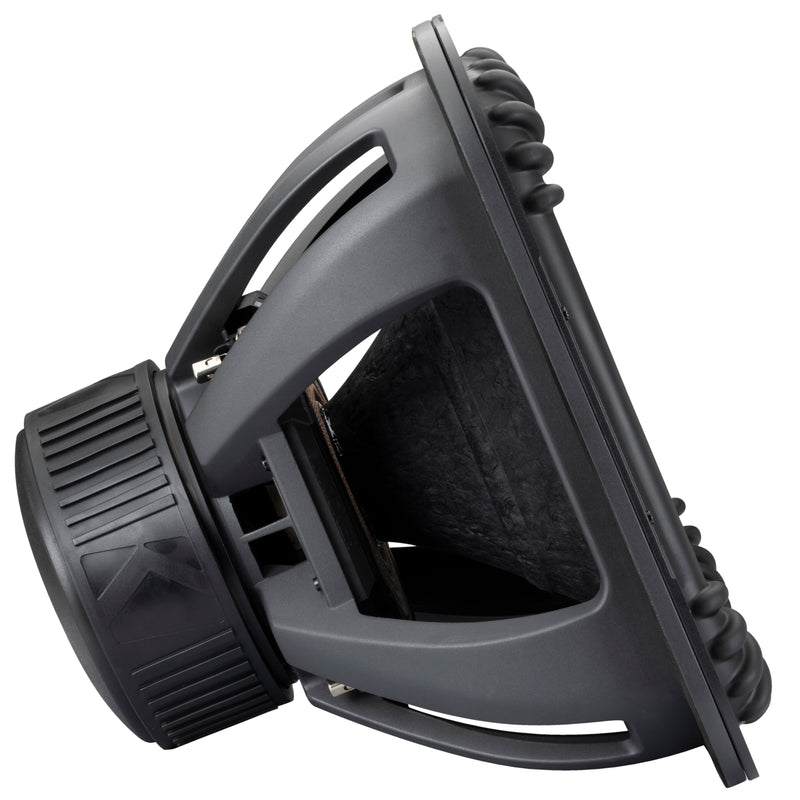

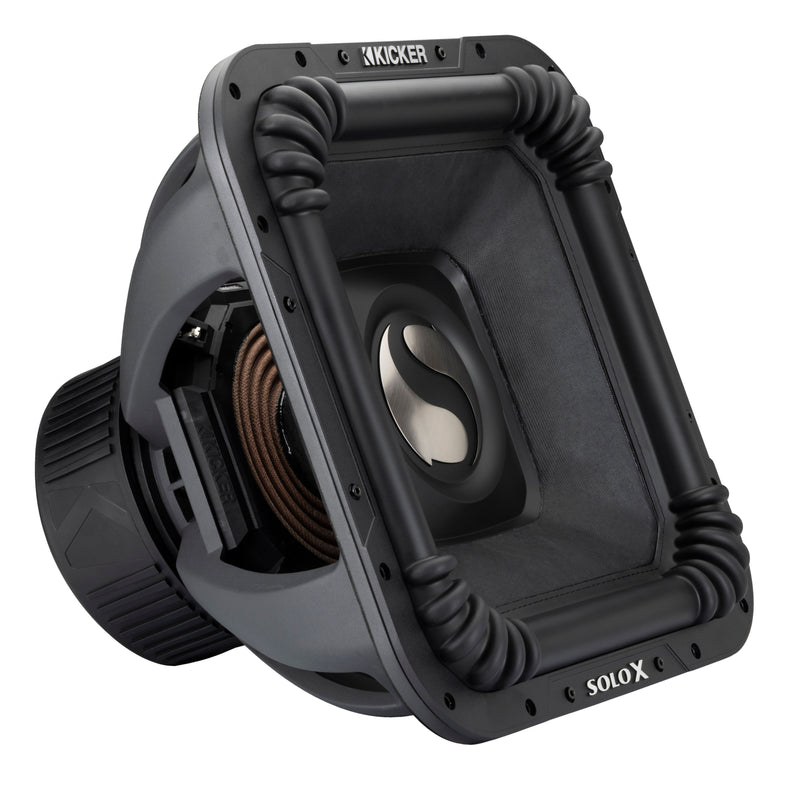

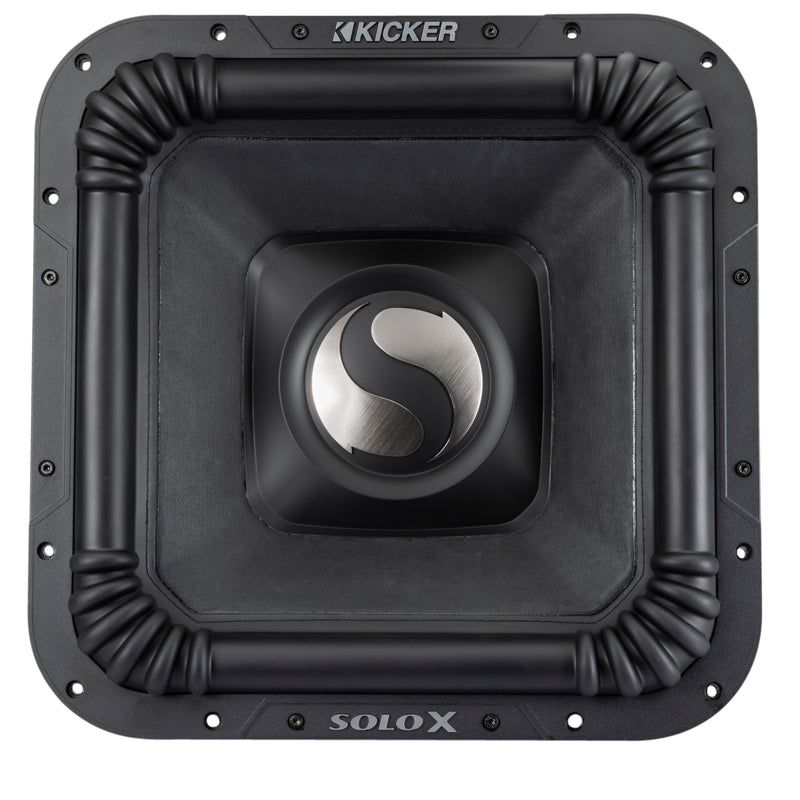

Subwoofer Specifications:
- Woofer Size: 18 in (46 cm)
- Recommended Amplifier Power: 1000-2000 Watts RMS
- Frequency Response: 18 - 100 Hz
- Magnet Diameter: 8.6875" (22 cm)
- Total Magnet Weight: 406 oz (11.5 kg)
- Voice Coil Diameter: 3" (75 mm)
- Voice Coil Winding Width: 2.5" (62.5 mm)
- Top Plate Thickness: 0.5" (12 mm)
- Rated Impedance: 2 Ohm
- Xmax (Linear Excursion): 1.25" (31.25 mm)
- Mounting Cutout: 16.5" (42 cm)
- Mounting Depth: 13.1875" (33.5 cm)
Enclosure Recommendations
- Recommended Vented Box Volume:7.5 cubic feet (214.5 L)
- Port Opening (in x in / cm x cm):6.5 x 19.5 in (16.5 x 49.5 cm)
- Port Length (in / cm):27.75 in (70.5 cm)
- Tuning Frequency:28 Hz
- Woofer Displacement:0.36 cubic feet (10.19 L)

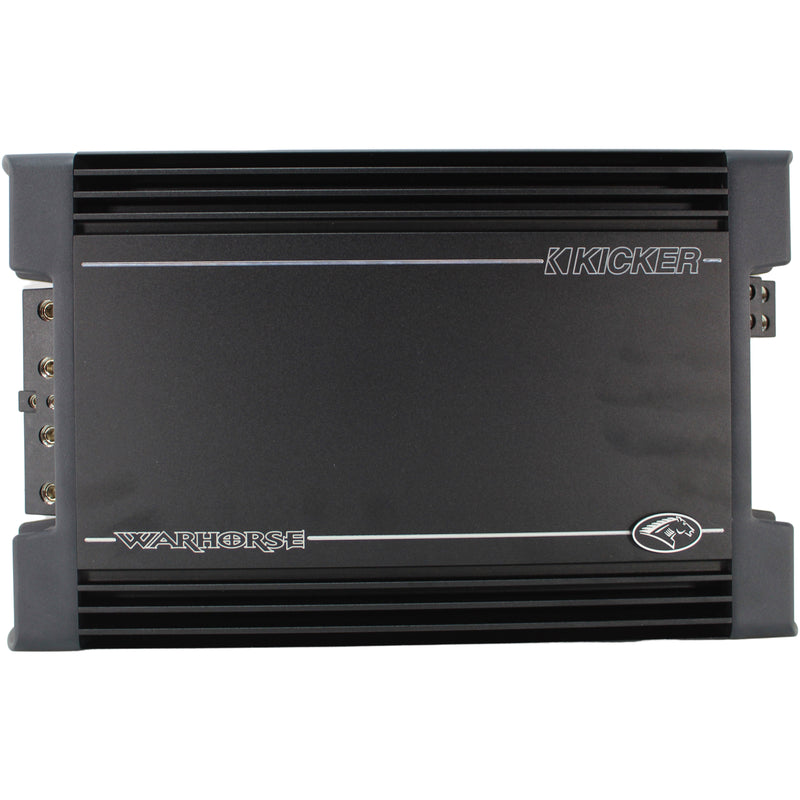

Amplifier Specifications:
- RMS Power (watts/ch) 1 Ohm Mono (@ 14.4v, <1%THD): 3600x1
- RMS Power (watts/ch) 2 Ohm Mono (@ 14.4v, <1%THD): 2500x1
- RMS Power (watts/ch) 4 Ohm Mono (@ 14.4v, <0.5%THD): 1400x1
- Dynamic Power (watts): 5000
- Frequency Response (Hz): 10-200
- Signal-to-Noise Ratio (dB; A-weighted, re: rated power): >90
- Signal-to-Noise Ratio (dB; ref: 1W output): >70
- Input Sensitivity: low level 125mV-5V | high level 1V-40V
- Selectable Electronic Crossover: Variable Low-pass 50-200Hz, 24dB/octave
- Subsonic Filter: Defeatable @ 15Hz, 24dB/octave

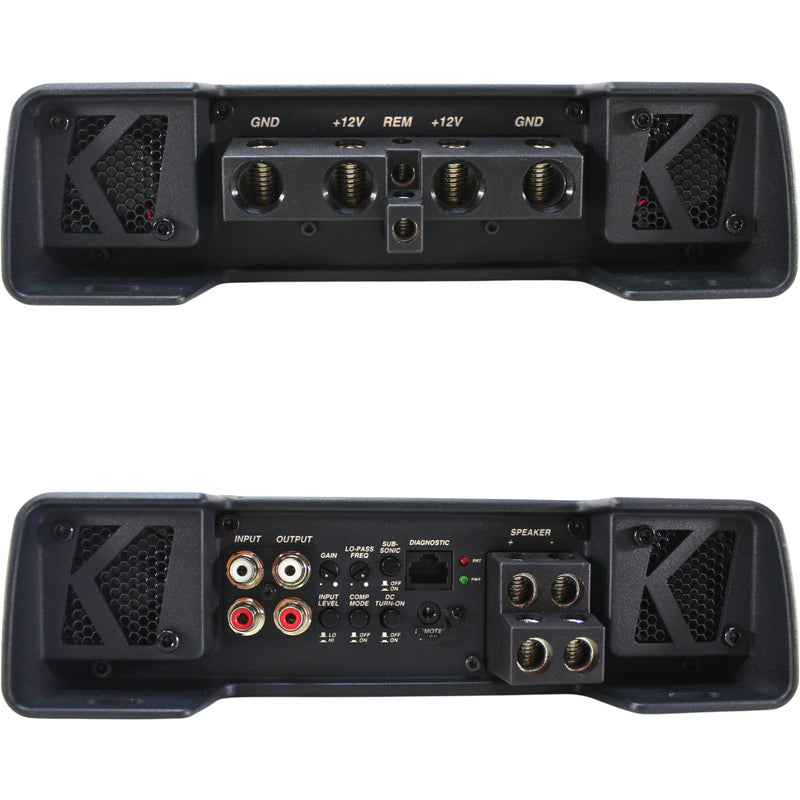

Amplifier Features:
- Features extreme reliability under intense bass power and overall use
- Full-bridge Class-D design
- Quad micro-controller-regulated cooling fans
- Capable of daisy-chaining remote power across multiple amps
- Competition mode switch to avoid potentiometer creep, fix crossover setting, and gain-match multiple amps

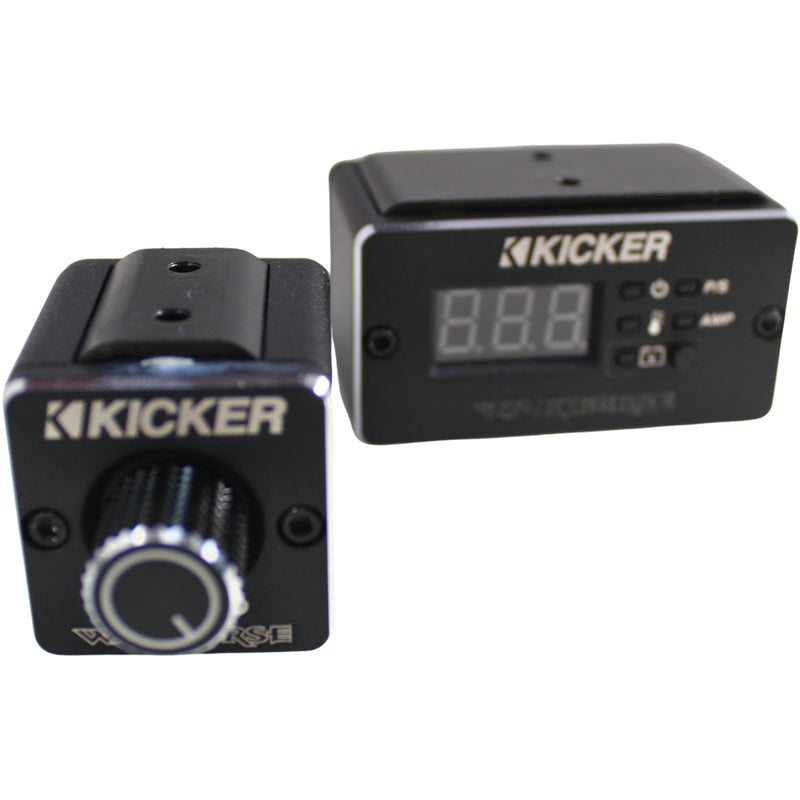

- Includes premium remote bass-level control with a magnetic mount
- Includes a heavy-duty, magnetic-mount diagnostic tool for monitoring voltage measurements and amp protection status
- Fully compatible with most factory or aftermarket source units (with FIT+ differential inputs)
- Engineered completely in-house by KICKER R&D
