BL^2/RE increased by as much as 50% (plat 12V1 vs Plat 12V2)
10" spider pack with insulated dual leads.

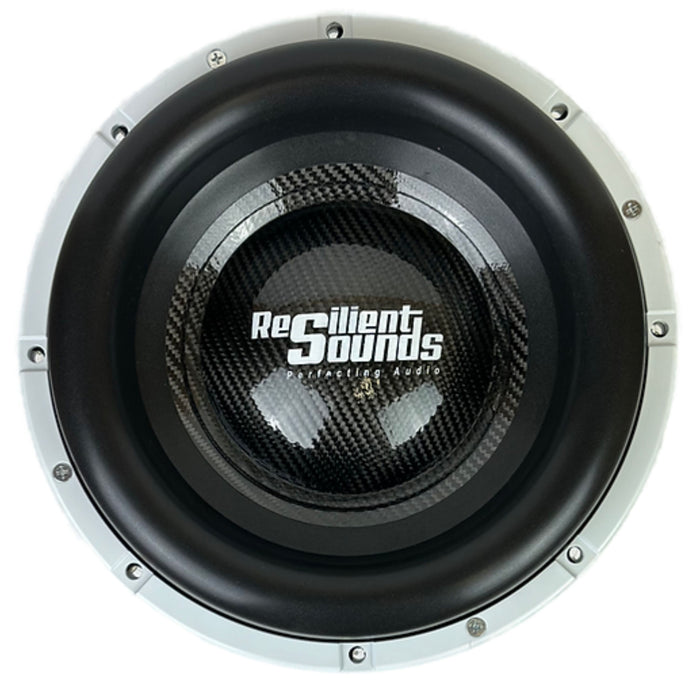

Carbon fiber cones and dust caps will come standard with the platinum line.
New high roll tooled surrounds.

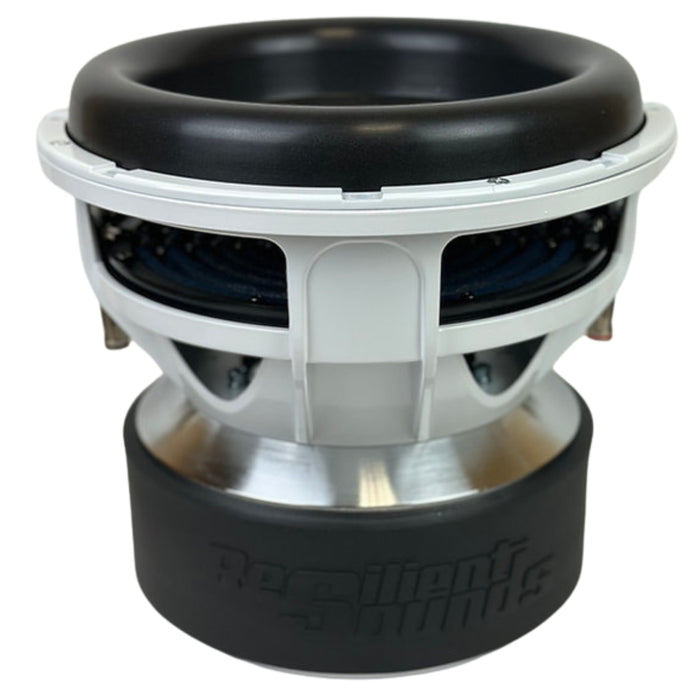

Cast aluminum frame
conservative rated at 2,500RMS/5,000Watts
XMAX 35MM
Box Specifications:
Cubic ft: 2.00-3.00 Cubic ft. Per Subwoofer
Tuning: 28-33 Hz
Port Area: 12-16 Sq. Inches of Ported Area per Cubic ft.
Mounting Depth: 10.25 Inches
Cutout: 11.175 Inches
Displacement: 0.25 Cubic ft
Trim Ring Removal Instructions:
The Resilient Sounds V2 trim ring is a decorative and functional piece used to enhance aesthetics and secure the surround. Please note it is not meant to be removed unless doing a recone and doing so may void your manufacturer warranty. However, should you choose to remove it here is the process and tools you will need.
Phillips Screwdriver
Pliers
Heat Gun
Pry Tool
Personal Protective Equipment (PPE)
1. You will need a Philips screwdriver to remove the 4 screws securing the trim ring to the frame. There may be residual adhesive on the screws preventing them from coming all the way out and you may need pliers once unscrewed to free the screws.
2. There may be excess adhesive protruding from the surround that may have adhered to your trim ring. So next you will utilize a heat gun going around the trim ring with a pry tool slightly breaking the adhesive free. The Frame and Trim Ring will be hot! USE CAUTION! Be sure to use a tool that won't damage your trim ring or frame and do not pry too much at once as you may break the ring.
3. By this point your ring should be free from the frame. Handle it with care as it may still be hot. When reinstalling the ring ONLY hand tighten the screws.
