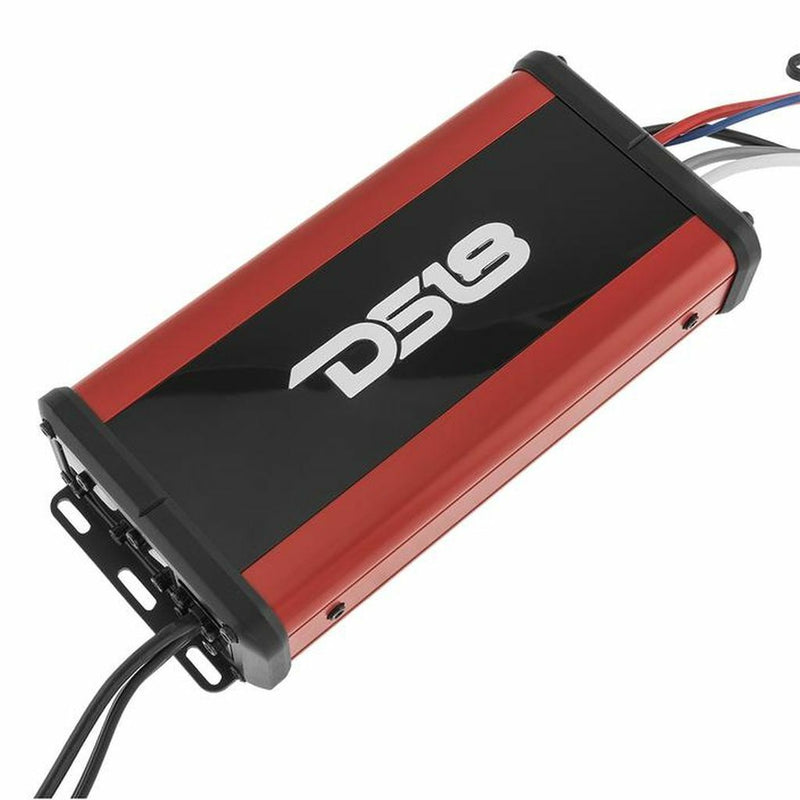

DS18 NXL-N2 2 Ch 300 Watt RMS Full Range Class D Waterproof IP67 Nano Amplifier

• Engineered for Harsh Environments: IPX67 waterproof-rated with UV and salt fog protection, perfect for marine, motorsports, and off-road use.
• Reliable Class D Performance: Produces 600W max power with stable and efficient power delivery through a 4-layer PCB layout.
• Versatile Sound Control: Selectable crossover with HPF, LPF, and Full modes, plus high pass filter adjustable from 40 Hz to 500 Hz.
• Ultra Compact Design: Fits easily in tight spaces like ATVs, UTVs, boats, and motorcycles without compromising output.
• Built to Last: Features a removable faceplate for tuning access, stainless steel mounting hardware, and precision-tested for quality control.

DS18 NXL-N2 2 Ch 300 Watt RMS Full Range Class D Waterproof IP67 Nano Amplifier

This listing includes:

• (1) DS18 NXL-N2 Amplifier


• (1) Removable Face Plate


• Stainless Mounting Hardware


• User Manual

The DS18 NXL-N2 2-Channel Micro Amplifier brings powerful Class D performance in a compact, waterproof design built for extreme conditions. With 600 watts of max power, it's a perfect fit for ATVs, UTVs, boats, jet skis, motorcycles, and more. Its IPX67 rating, stainless hardware, and UV/salt fog protection ensure durability in any element. Thanks to a stable 4-layer PCB layout and selectable crossover settings (LPF/FULL/HPF), the NXL-N2 delivers clean, customizable sound for your outdoor adventures. The removable faceplate makes tuning easy, while its compact form makes installation a breeze even in tight setups.

Specifications:

• Max Power: 600W


• RMS Power (4 Ohm): 2 x 100W


• RMS Power (2 Ohm): 2 x 150W


• RMS Power Bridged (4 Ohm): 1 x 300W


• Frequency Response: 20 Hz – 20 kHz


• High Pass Filter: 40 Hz – 500 Hz


• Low Pass Filter: N/A

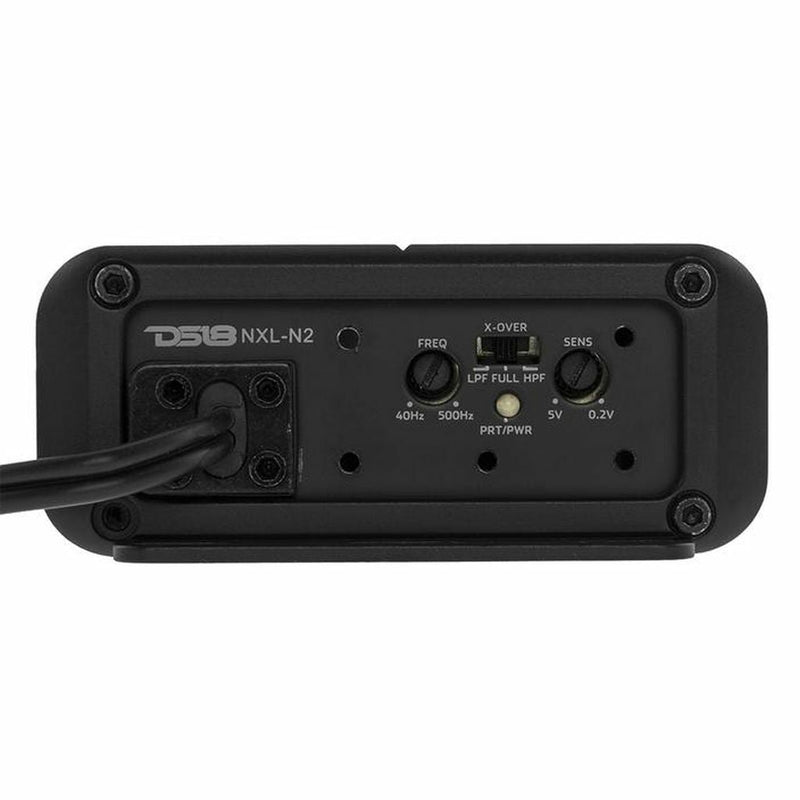

• Selectable Crossover: LPF / FULL / HPF


• Signal-to-Noise Ratio: 90 dB


• Input Sensitivity: 0.2V – 10V


• Protection Rating: IPX67 Waterproof, UV & Salt Fog Resistant


• PCB Layout: 4-layer stable and reliable design

Dimensions (L x W x H):

• Length: 7.67"


• Width: 3.67"


• Height: 1.56"
