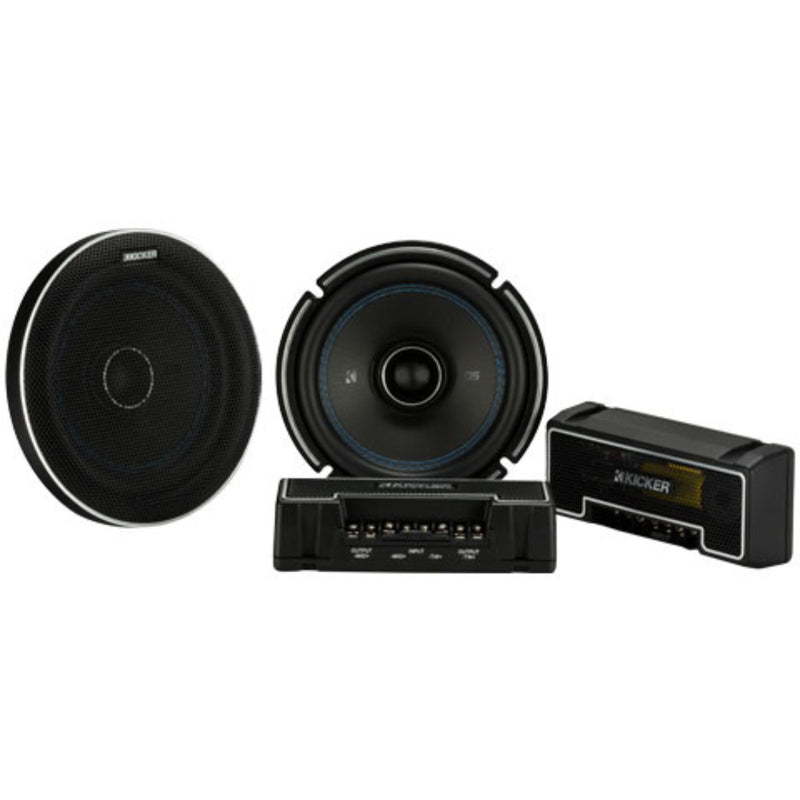

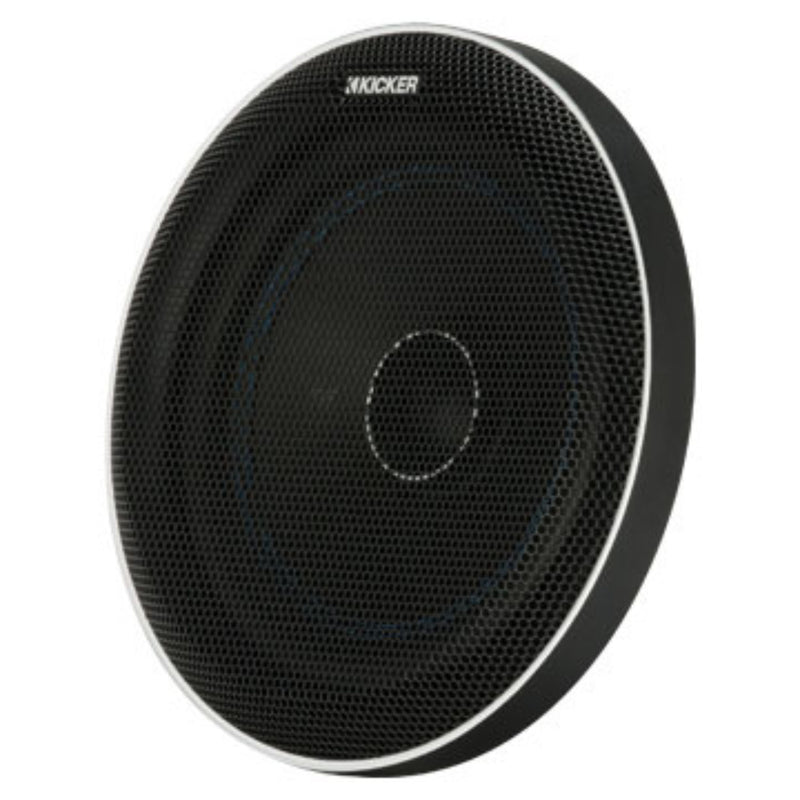

The QSC Coaxial speakers are built to KICKER’s highest acoustic standards. These 6.75-inch point source drivers feature neodymium magnets on the woofer and tweeter, and are bi-amp capable. The QSC drivers includes a revolutionary 25mm Teteron dome tweeter and custom wave guide for near perfect phase alignment for smooth frequency response. The injection-molded Polypropylene cone is impregnated with carbon-fiber for tight, accurate midrange. An NBR rubber surround provides superior damping, and complemented by KICKER’s signature blue double surround stitching.

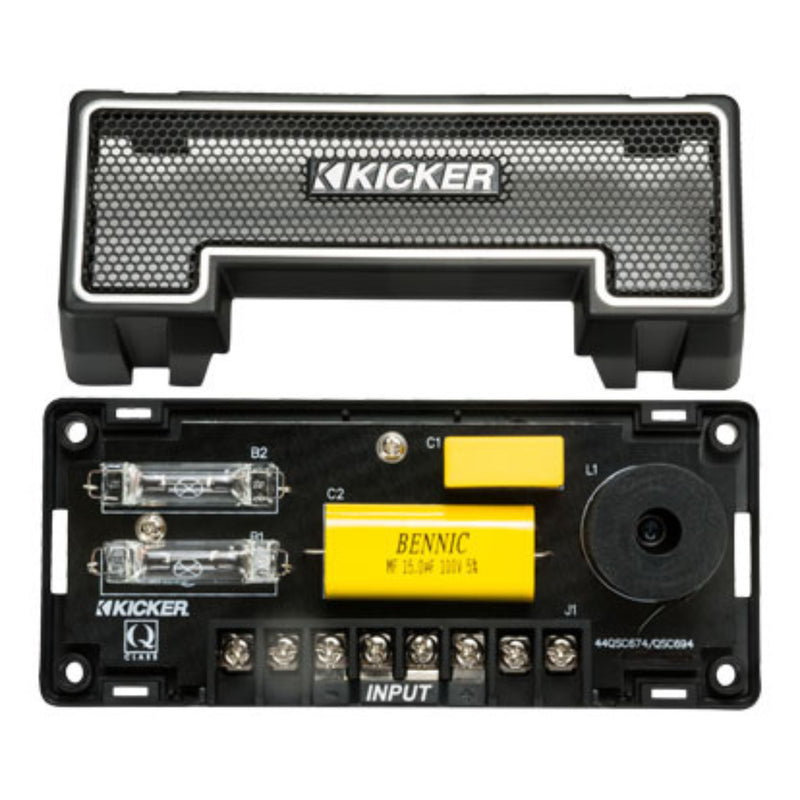

The independent 18dB crossover has been optimized for size, and features built-in tweeter protection. Utilizing Metallized Polypropylene capacitors, high-powered resistors and audiophile-grade air-core inductors, the crossover delivers outstanding overall sound quality and easy mounting in a door or under a seat. These speakers also include adaptor rings, allowing the speakers to be installed using factory speaker mounting points.
These QSC speakers work best with 100 watts of recommended power.
Features:
Bi-Amp Capable
Neodymium Magnets
Injection-molded Polypropylene cone
High-powered resistors
Audiophile-grade air-core inductors
Specifications:
Woofer (in.): 6-3/4
Tweeter (in.): 1
Tweeter dome material: Teteron
Rated Impedance [Ohm]: 4
Recommended Amplifier Power (watts RMS): 100
Peak Power (watts, per ANSI/CTA-2031-A): 200
Sensitivity [1W, 1m]: 86dB
Frequency Response [Hz]: 40-20k
Woofer Mounting Hole Diameter [in]: 5-9/16
Woofer Mounting Depth [in, mm]: 2-9/16, 64.9
High Pass [dB], at Frequency [Hz]: 18, 5.5k
Low Pass [dB], at Frequency [Hz]: 18, 5.5k
Adapter Ring Fitment
Make - Model - Years
Toyota - Tacoma - 2005-2017
Toyota - Tundra - 2007-2017
Ford - F150 - 2015-2017
Ford - F250/F350 - 2017
Chevrolet/GMC - Colorado/Canyon - 2015-2017
Chevrolet/GMC - Silverado/Sierra - 2007-2017
Dodge - Ram 1500 - 2009-2017
Dodge - Ram 2500/3500 - 2010-2016
